Toyota RAV4 后牌照灯 — Figure 8113

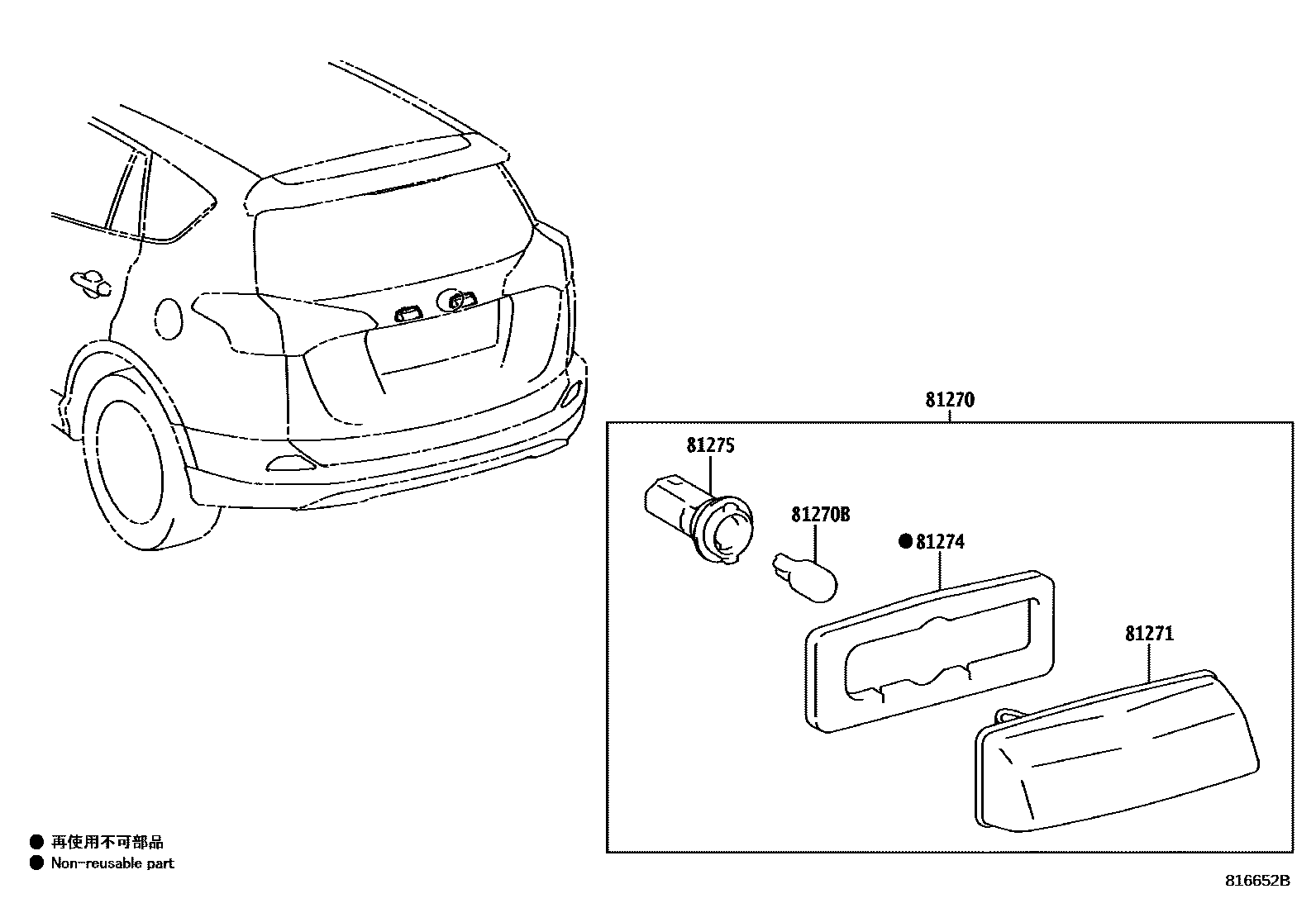

Toyota RAV4 EPC diagram 8113, 后牌照灯, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-0R040 |
| 81270B | Bulb (for license plate light) | 90981-CB001 |
| 81271 | license plate lamp shade | 81271-0R040 |
| 81274 | License plate light body gasket | 81274-0R040 |
| 81275 | License plate lamp holder and wiring harness | 81278-0R040 |
