Toyota RAV4 后组合灯 — Figure 8111

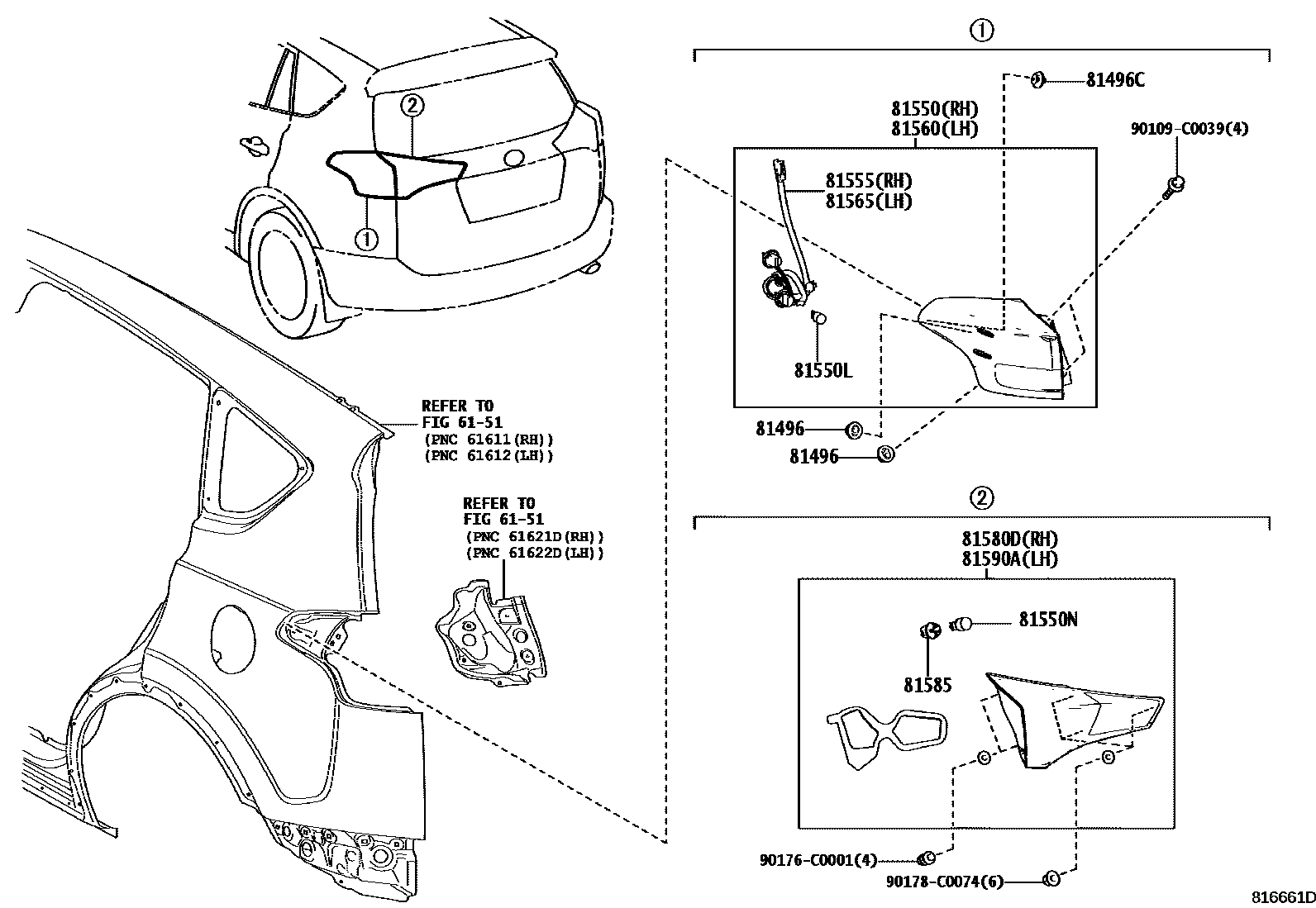

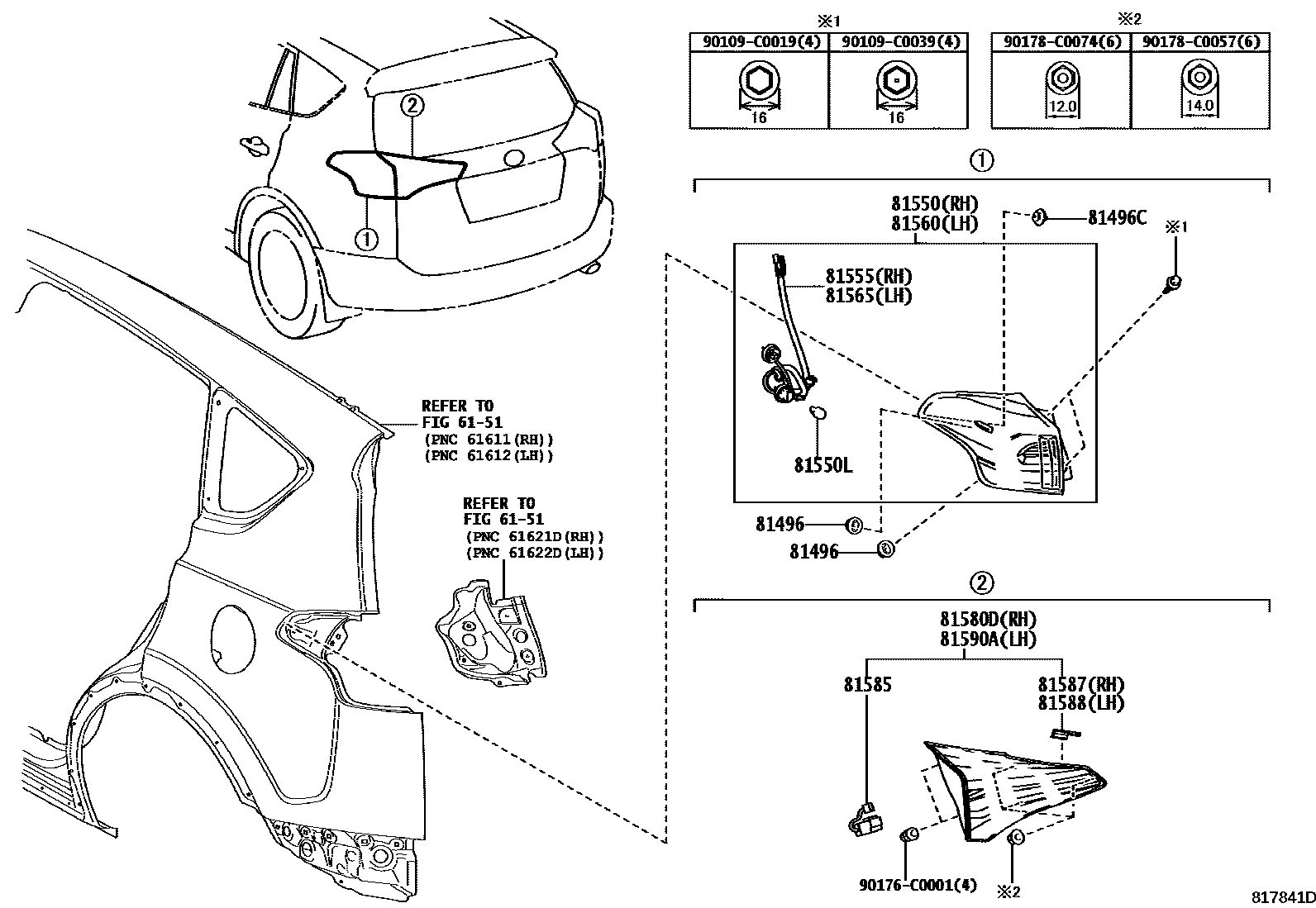

Toyota RAV4 EPC diagram 8111, 后组合灯, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52020 |
| 81496C | No. 2 rear combination light guide block | 81496-60010 · 90467-C0019 |
| 81550 | Right rear combination light assembly | 81550-0R050 · 81550-0R080 |
| 81550L | Rear turn signal light bulb | 90981-15011 |
| 81550N | reversing light bulb | 90981-13043 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0R050 · 81555-0R080 |
| 81560 | Left rear combination light assembly | 81560-0R050 · 81560-0R080 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-0R050 · 81555-0R080 |
| 81580D | Right rear light assembly | 81580-0R020 · 81580-0R050 · 81580-0R051 |
| 81585 | Rear lamp holder and wiring harness | 81555-0R020 · 81585-0R050 |
| 81587 | Right rear light protective cover | 81952-0R010 |
| 81588 | Left rear light protective cover | 81962-0R010 |
| 81590A | Left rear light assembly | 81590-0R020 · 81590-0R050 · 81590-0R051 |
