Toyota RAV4 Fog Lamp — Figure 8102

Toyota RAV4 EPC diagram 8102, Fog Lamp, with 2 images and 3 PNC and OE references.

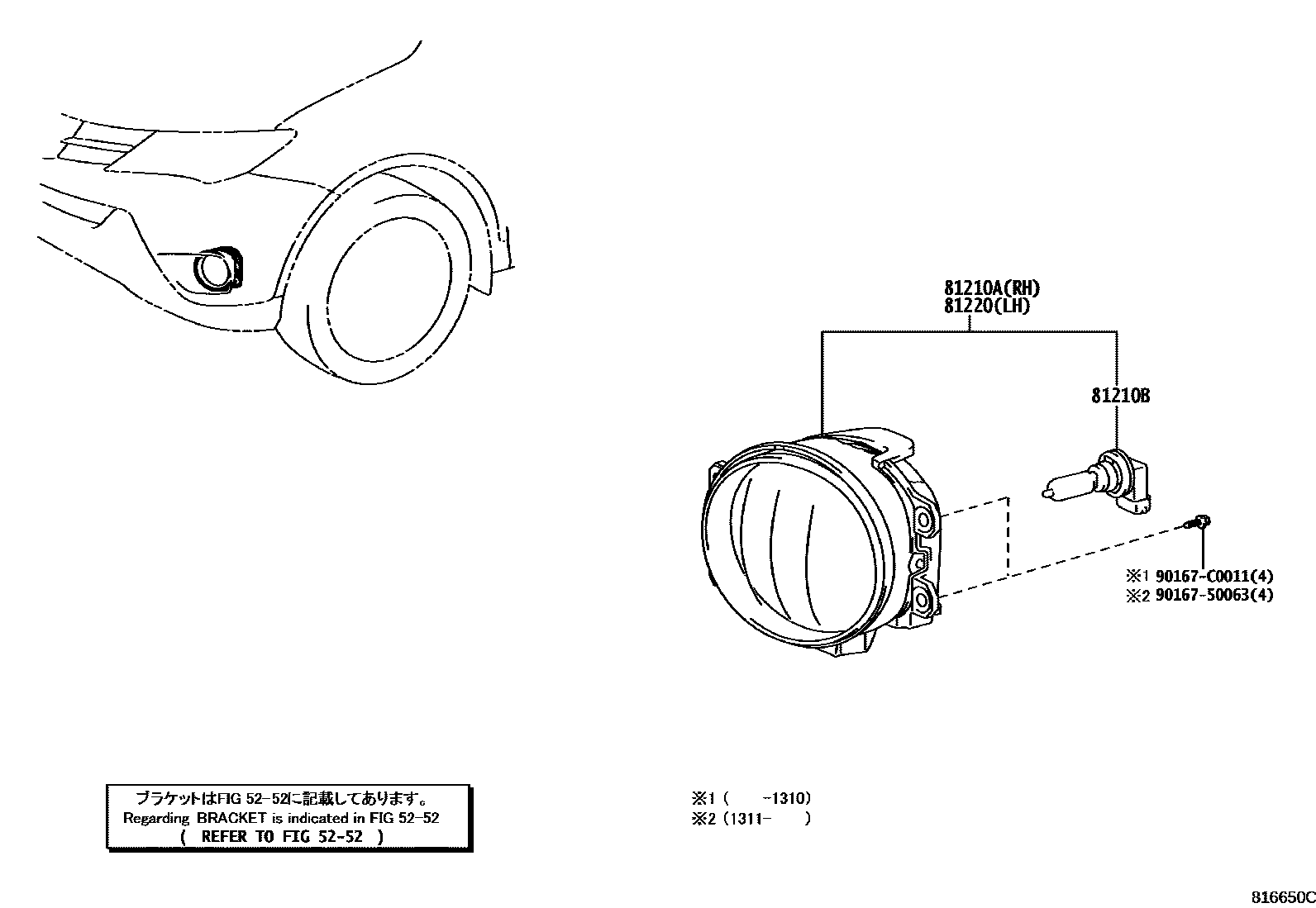

Toyota RAV4 Fog Lamp EPC diagram — 816650C
Fog Lamp — 816650C (201308 – 201607)

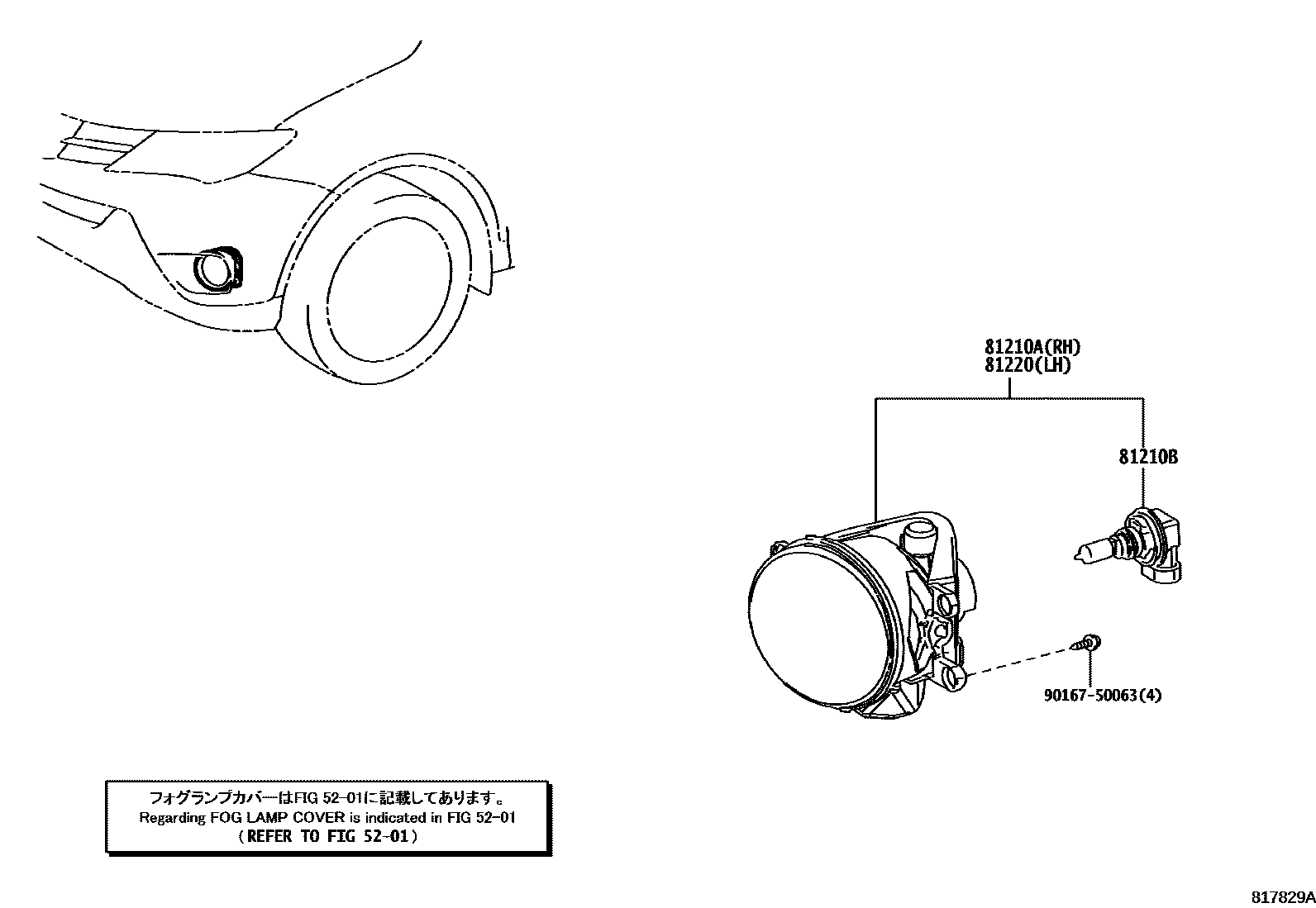

Toyota RAV4 Fog Lamp EPC diagram — 817829A
Fog Lamp — 817829A (201607 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-0D100 · 81210-0R010
81210Bfog light bulb90981-CD003 · 90981-CD004
81220Left fog light assembly81220-0D100 · 81220-0R010
