Toyota RAV4 Headlamp — Figure 8101

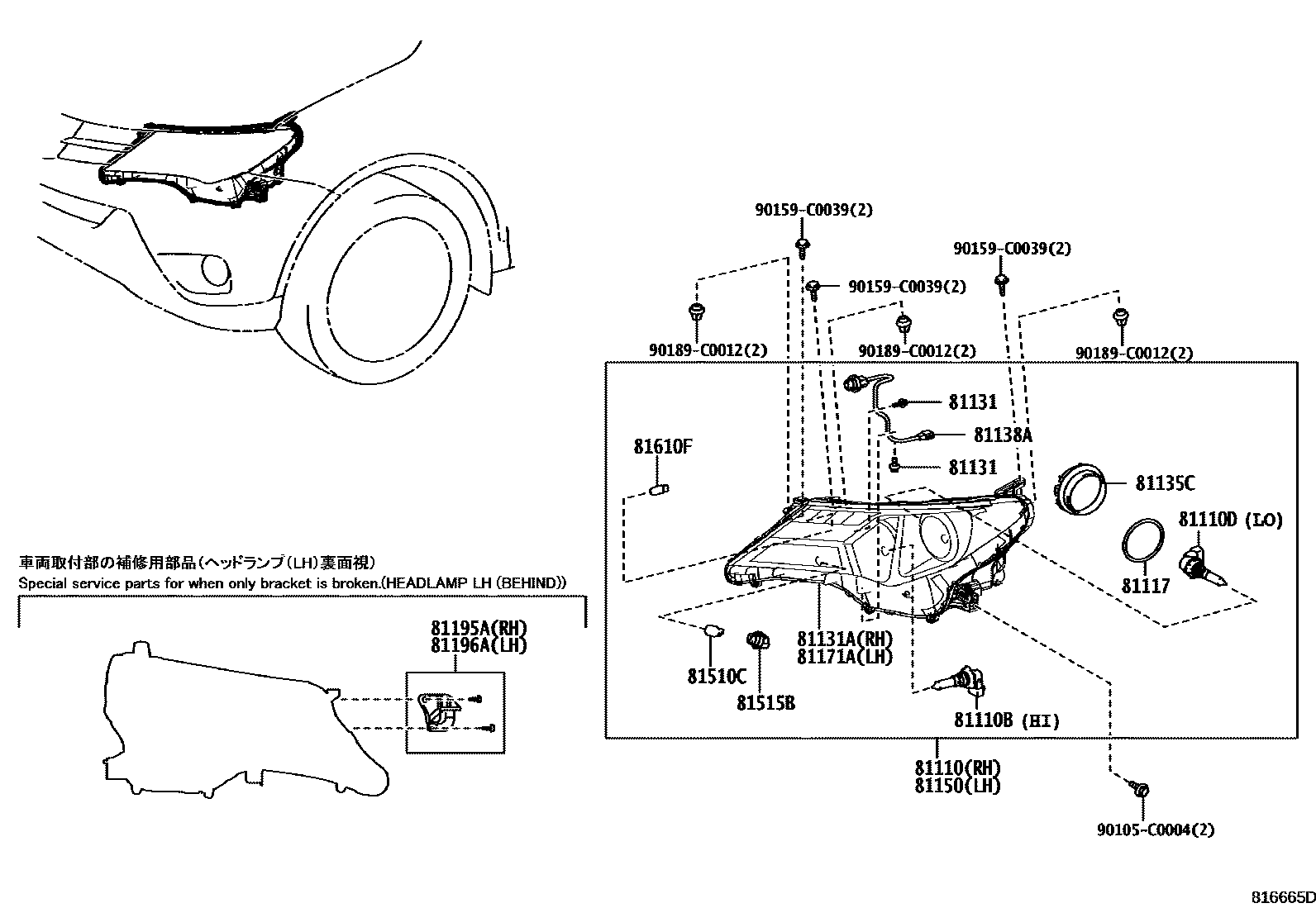

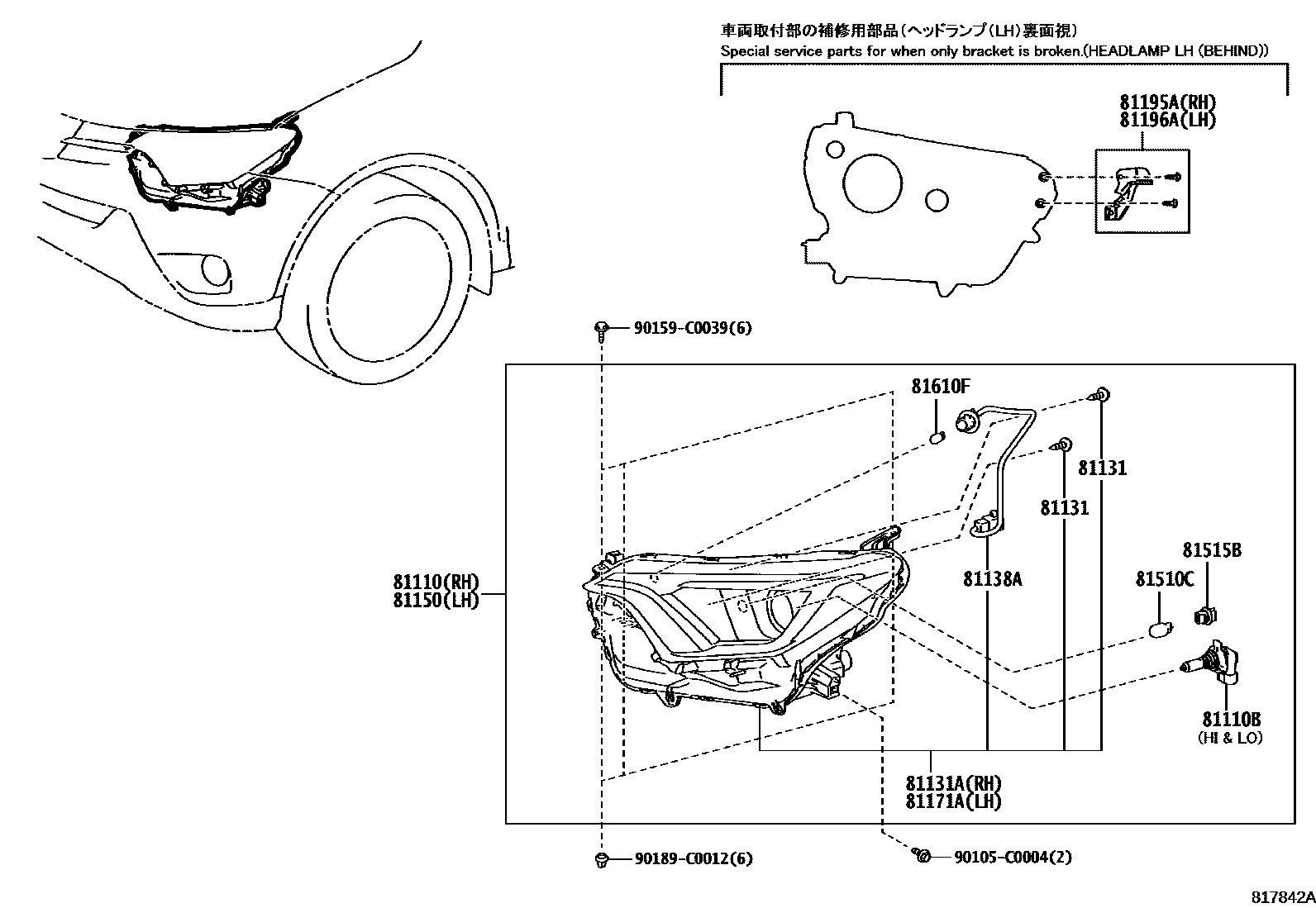

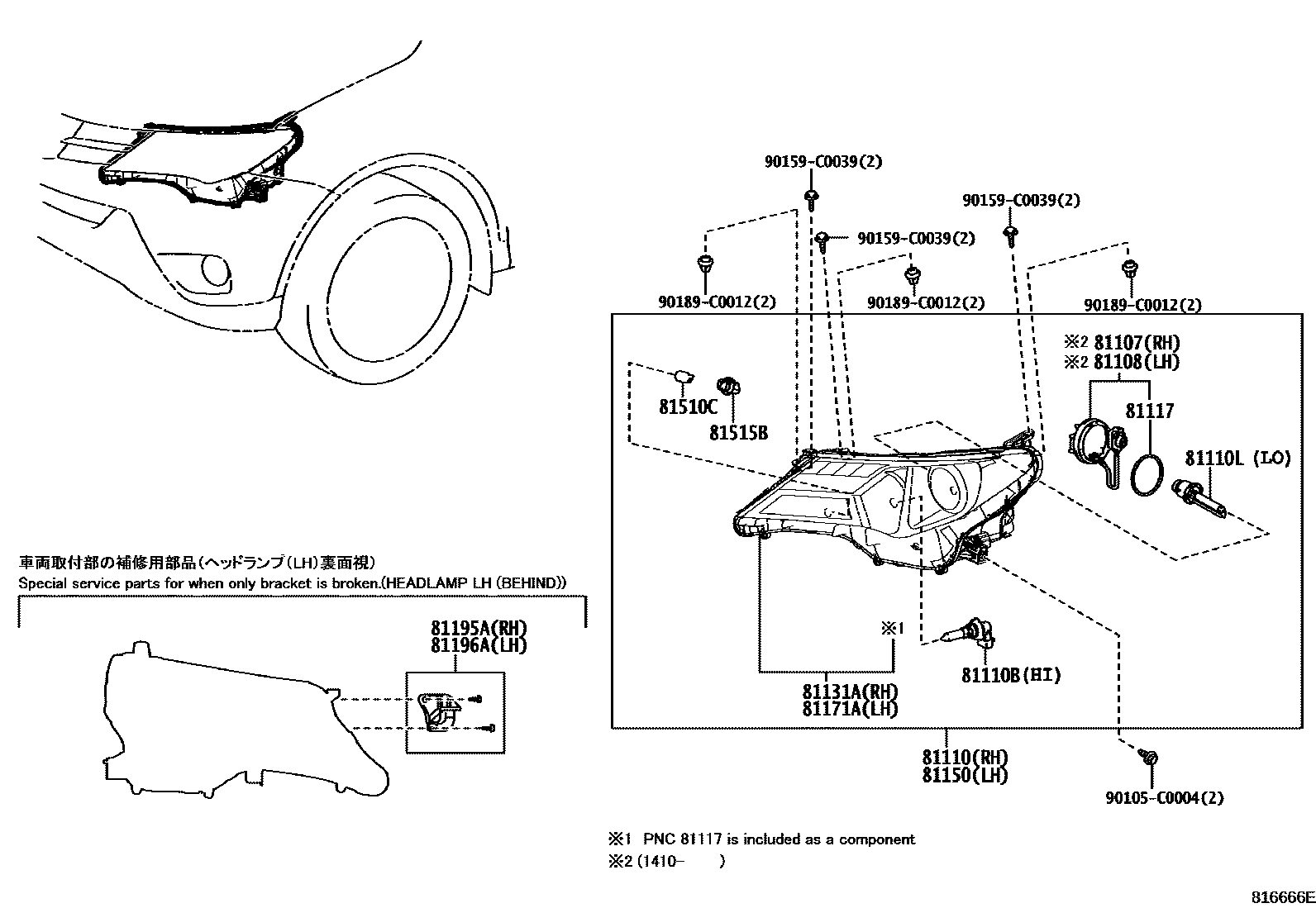

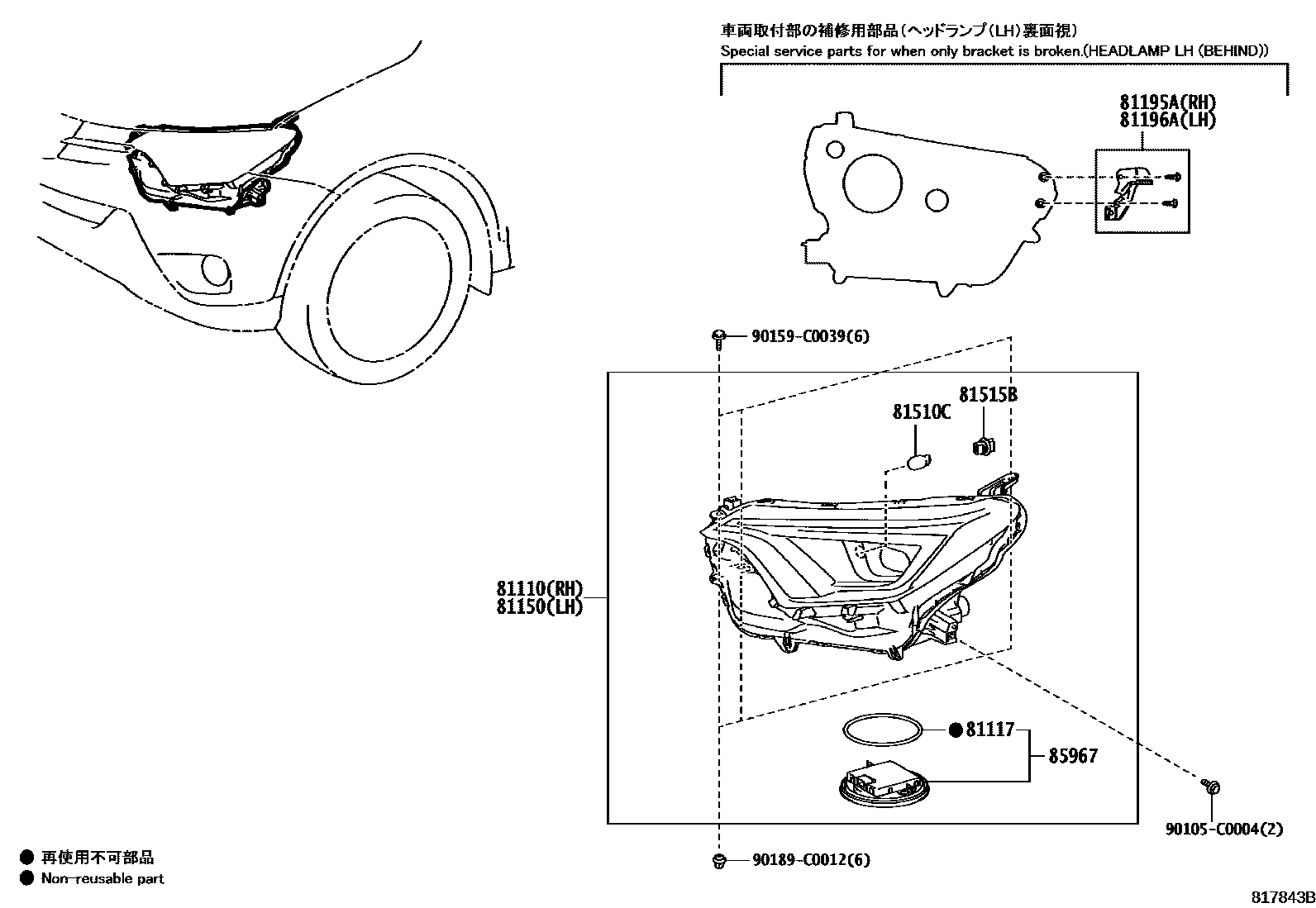

Toyota RAV4 EPC diagram 8101, Headlamp, with 4 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81107 | Right headlight control ECU sub-assembly | 81107-0R070 |
| 81108 | Left headlight control ECU sub-assembly | 81107-0R070 |
| 81110 | Right headlight assembly | 81110-0R060 · 81110-0R061 · 81110-0R062 · 81110-0R070 · 81110-0R071 · 81110-0R072 · 81110-0R100 · 81110-0R110 |
| 81110B | Bulb (for headlight No. 1) | 90981-13092 · 90981-13102 |
| 81110D | Bulb (for headlight No. 2) | 90981-13092 |
| 81110L | Discharge headlight bulb | 90981-20027 |
| 81117 | Headlight housing seal | 81117-07100 · 81117-0R110 |
| 81131 | Headlight adjustment screw | 81131-0R060 |
| 81131A | Right headlight assembly | 81130-0R060 · 81130-0R061 · 81130-0R062 · 81130-0R070 · 81130-0R071 · 81130-0R072 · 81130-0R100 |
| 81135C | No. 1 headlight rear cover | 81135-42520 |
| 81138A | Headlight holder and wiring harness | 81138-0R060 · 81138-0R100 |
| 81150 | Left headlight assembly | 81150-0R060 · 81150-0R061 · 81150-0R062 · 81150-0R070 · 81150-0R071 · 81150-0R072 · 81150-0R100 · 81150-0R110 |
| 81171A | Left headlight assembly | 81170-0R060 · 81170-0R061 · 81170-0R062 · 81170-0R070 · 81170-0R071 · 81170-0R072 · 81170-0R100 |
| 81195A | Right headlight lower protection ring | 81195-42010 · 81195-42040 |
| 81196A | Left headlight lower protection ring | 81196-42010 · 81196-42040 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 90075-60028 |
| 81610F | Light bulb (for width indicator light) | 90981-11064 · 90981-11065 |
| 85967 | Light control ECU | 85967-0R010 |
