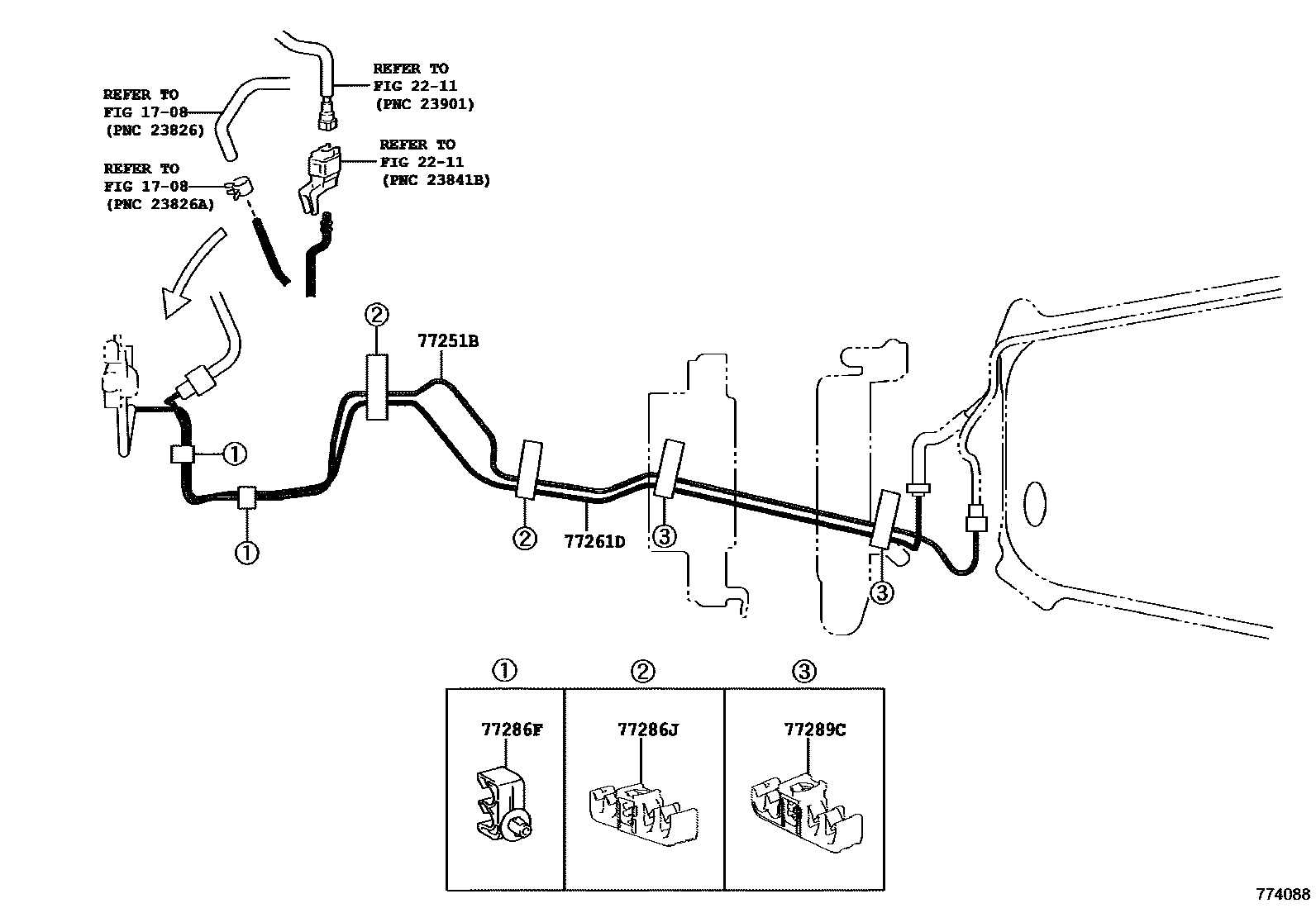

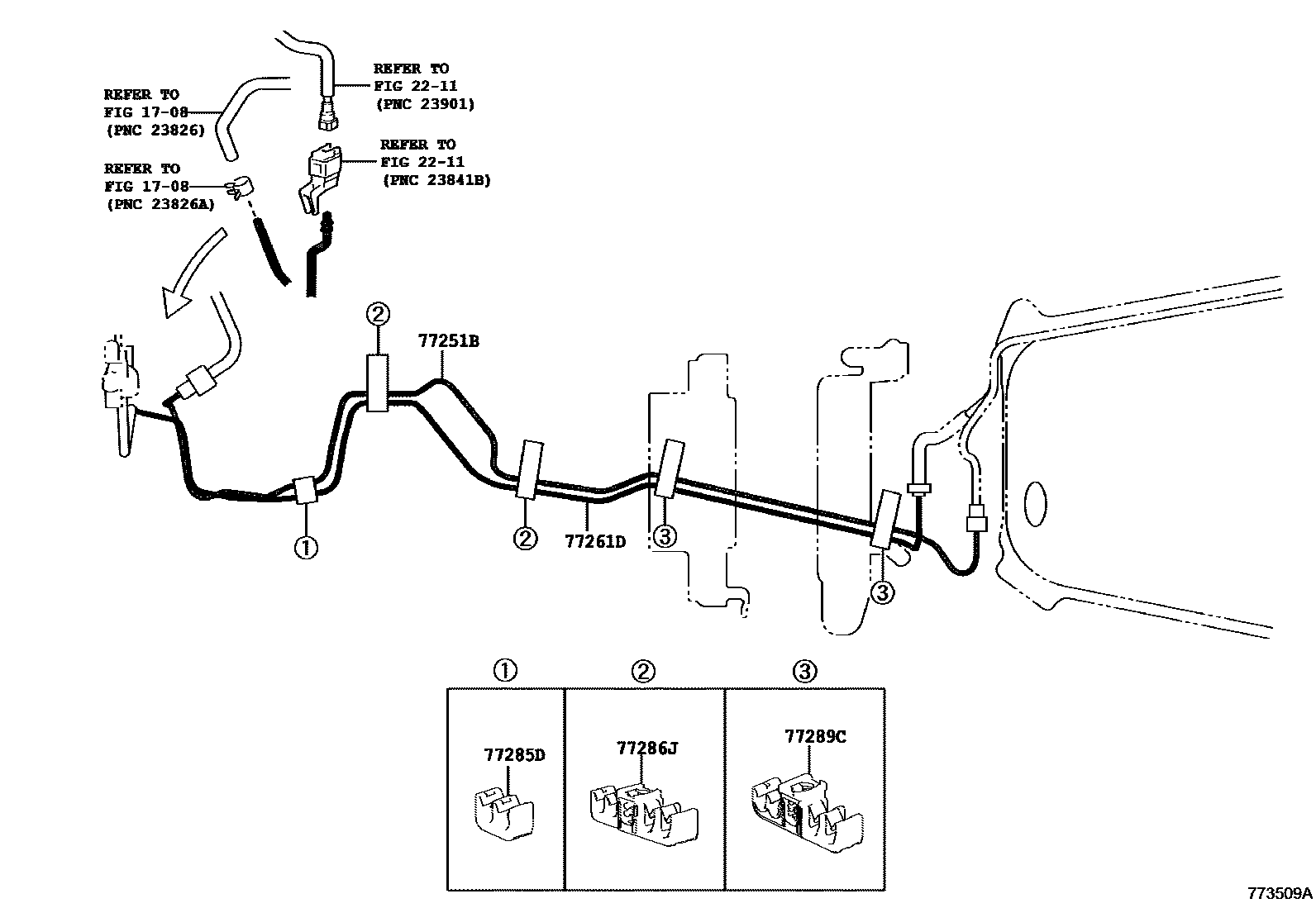

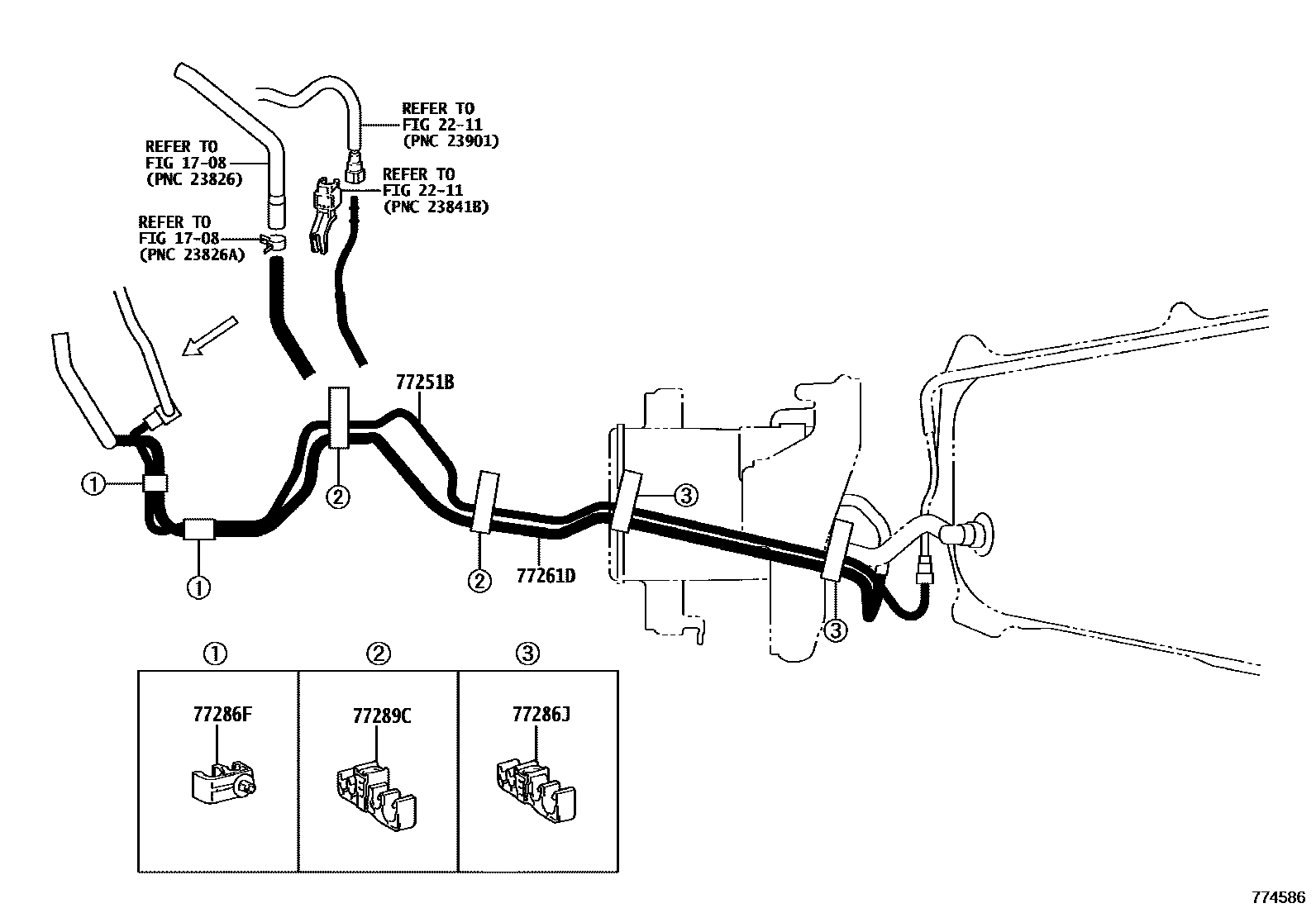

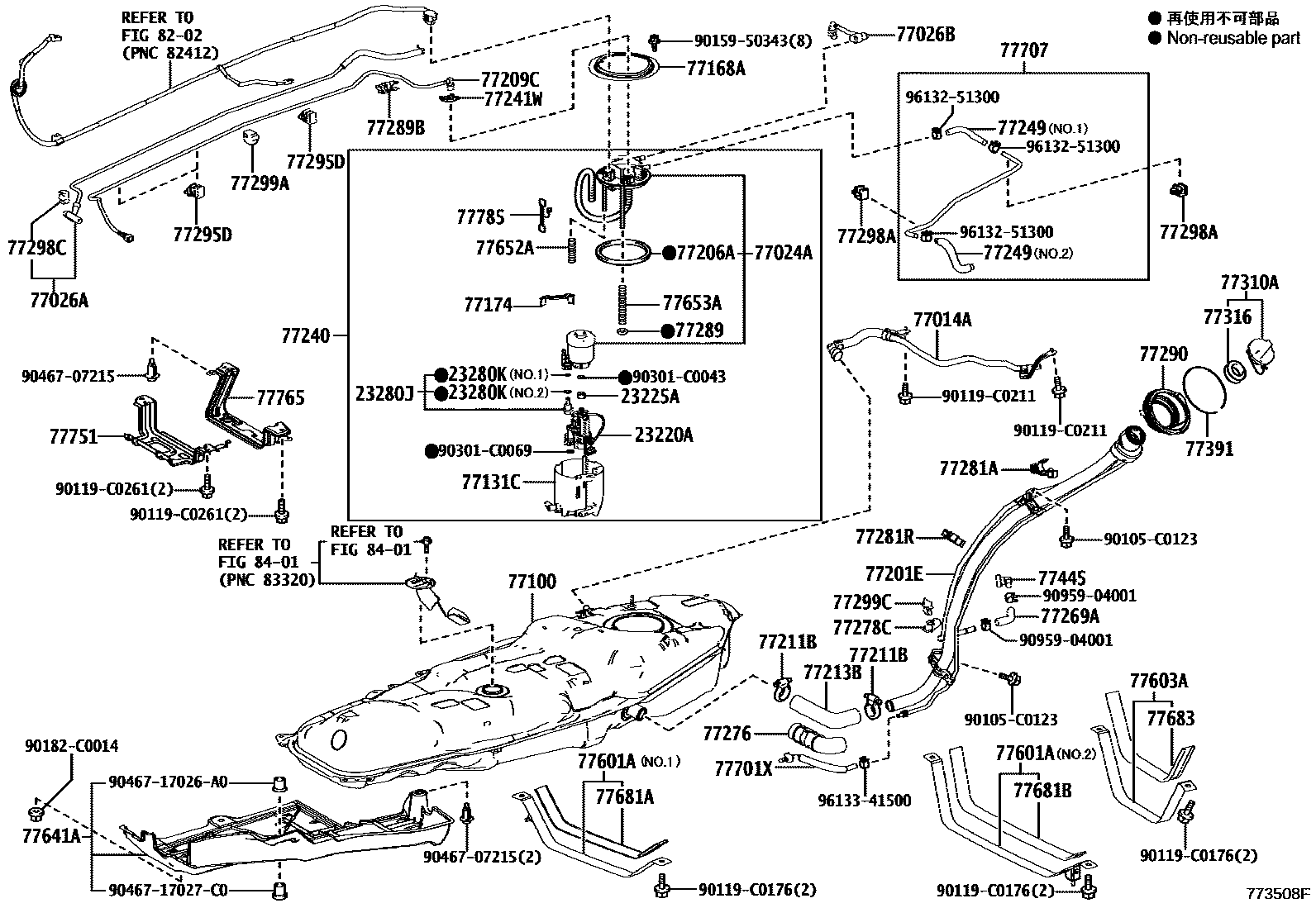

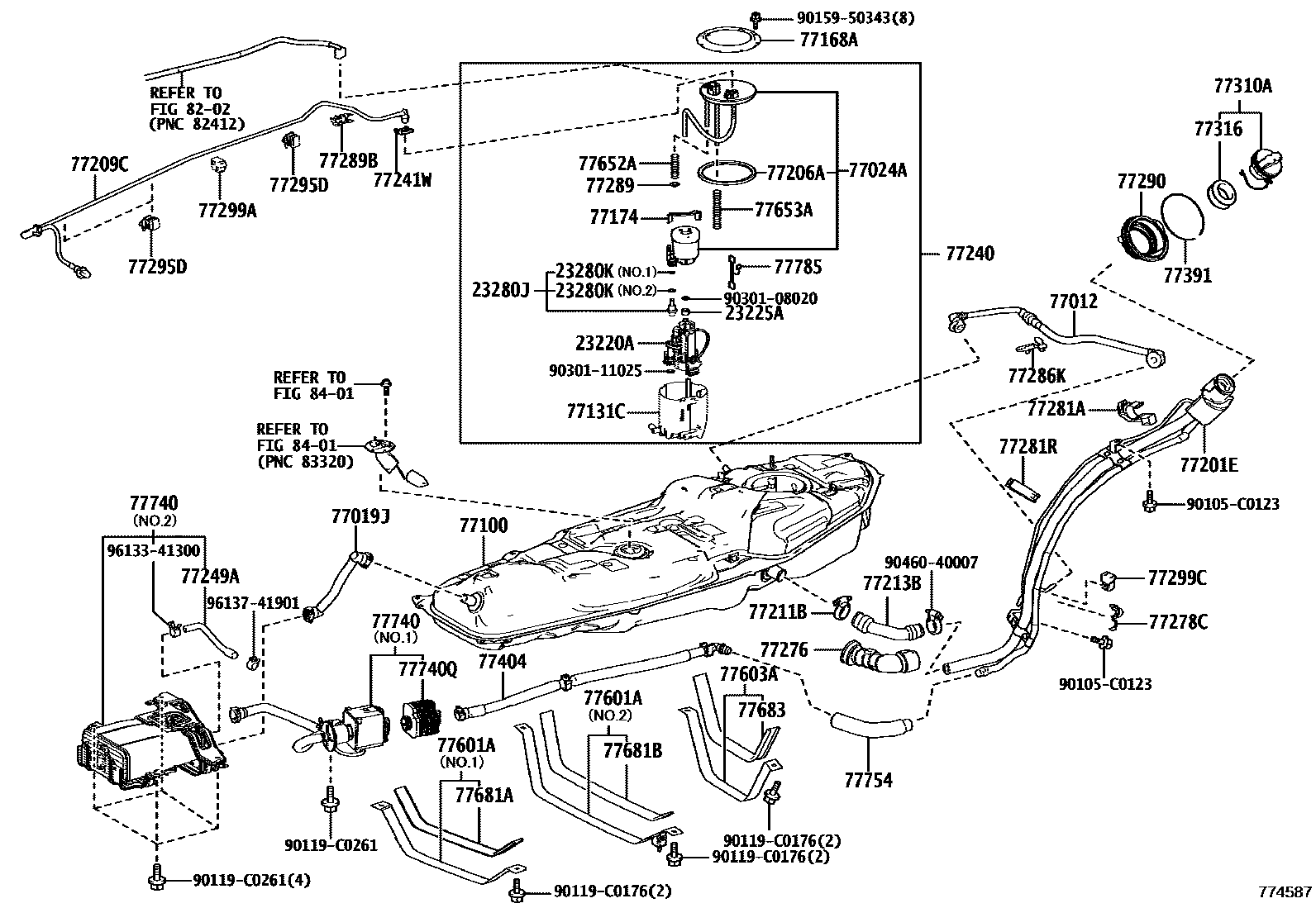

Toyota RAV4 燃油箱和燃油管 — Figure 7751
Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 6 images and 70 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23220A | Fuel pump assembly with filter | 23220-0H161 · 23220-36011 |
| 23225A | fuel pump septum | 23225-0H020 · 23225-21020 |
| 23280J | Fuel pressure regulator assembly | 23280-21010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-04013 · 90301-15024 |
| 77012 | Fuel tank breather pipe sub-assembly | 77015-0R030 |
| 77014A | No. 3 fuel tank breather pipe sub-assembly | 77014-42010 · 77014-42020 |
| 77019J | Fuel tank to carbon canister hose sub-assembly | 77019-0R020 |
| 77024A | Fuel absorber sub-assembly | 77024-0R020 · 77024-78030 |
| 77026A | No. 1 fuel evaporation pipe sub-assembly | 77026-0R030 |
| 77026B | No. 1 fuel evaporation pipe sub-assembly | 77026-0R020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0R050 |
| 77100 | fuel tank assembly | 77001-0R020 · 77001-0R040 · 77001-0R080 |
| 77131C | No. 1 auxiliary fuel tank | 77131-0R040 · 77131-52082 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-0R010 |
| 77174 | No. 1 oil suction pipe bracket | 77174-0D040 · 77174-52070 |
| 77201E | Fuel tank filling pipe sub-assembly | 77201-0R041 · 77201-0R050 |
| 77206A | Gasket (for fuel tank suction pipe) | 77169-52010 · 77169-53010 |
| 77209C | Fuel tank main pipe sub-assembly | 77209-0R040 · 77209-0R050 |
| 77211B | Clamp (for fuel filler tube) | 90460-46005 |
| 77213B | Fuel tank to filler pipe hose | 77213-0R020 · 77213-42120 |
| 77240 | Fuel suction pipe assembly | 77020-0R030 · 77020-0R040 |
| 77241W | Pipe joint clip | 77241-33011 |
| 77249 | fuel drain hose | 77249-0R020 · 77249-0R030 |
| 77249A | fuel drain hose | 77249-78020 |
| 77251B | main fuel pipe | 77251-0R040 · 77251-0R060 · 77251-0R090 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0R040 · 77261-0R060 · 77261-0R080 |
| 77269A | fuel tank breather hose | 77269-0R010 |
| 77276 | Fuel hose protector | 77276-0R010 · 77276-42020 |
| 77278C | No. 2 fuel tank filler pipe protection device | 77278-0R010 · 77278-0R030 |
| 77281A | Fuel filler pipe clamp | 77281-0R030 · 77281-0R050 |
| 77281R | No. 2 fuel filler pipe clamp | 77281-0R040 · 77281-0R060 |
| 77285D | No. 1 fuel pipe clamp | 77285-0R010 |
| 77286F | No. 2 fuel pipe clamp | 77286-0R060 · 77286-0R090 |
| 77286J | No. 4 fuel pipe clamp | 77298-0R080 · 77298-0R120 |
| 77286K | No. 2 fuel pipe clamp | 77286-78020 |
| 77289 | Fuel tank pipe holder | 77289-0D070 · 77289-52110 |
| 77289B | No. 3 fuel pipe clamp | 77289-0R020 |
| 77289C | No. 4 fuel pipe clamp | 77298-0R030 · 77298-0R110 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-0R040 |
| 77295D | Fuel pipe retaining ring | 77295-0R010 |
| 77298A | No. 4 fuel pipe clamp | 77298-0R010 |
| 77298C | No. 4 fuel pipe clamp | 77298-0R020 · 77298-42030 |
| 77299A | No. 5 fuel pipe clamp | 77299-0R020 |
| 77299C | Clamp (for fuel filler tube) | 77299-0R040 · 89639-28130 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0R010 |
| 77306A | Fuel filler cap opening lever spring | 90506-09004 |
| 77310A | Fuel tank cap assembly | 77300-06100 · 77300-0F010 |
| 77316 | fuel tank cap gasket | 77316-0F020 · 77316-75020 |
| 77350 | Fuel filler cap assembly | 77350-0R040 |
| 77366 | Fuel filler cap hinge spring | 77366-52010 |
| 77377 | Fuel filler cap lock retainer | 77377-0R060 · 77377-75010 |
| 77391 | fuel inlet ring | 77391-30020 |
| 77404 | Fuel tank vent hose sub-assembly | 77404-0R050 |
| 77445 | No. 2 fuel tank vent connector | 77445-42020 · 77445-42050 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-0R030 · 77602-0R030 |
| 77603A | No. 2 fuel tank strap sub-assembly | 77603-0R030 |
| 77641A | No. 1 fuel tank protective shell | 77641-0R040 · 77641-0R050 · 77641-0R051 |
| 77652A | No. 2 fuel tank liner | 77652-0R070 · 77652-42020 |
| 77653A | No. 3 fuel tank liner | 77652-0R080 · 77652-42030 |
| 77681A | Fuel tank strap seat | 77681-0R060 |
| 77681B | Fuel tank strap seat | 77681-0R070 |
| 77683 | No. 3 fuel tank strap seat | 77681-0R080 |
| 77701X | No. 1 carbon canister outlet hose sub-assembly | 77701-0R020 |
| 77707 | Carbon canister outlet hose sub-assembly | 77707-0R010 |
| 77740 | Carbon canister assembly | 77730-78010 · 77740-78020 |
| 77740Q | Carbon canister leak detection pump sub-assembly | 90910-14008 |
| 77751 | Carbon canister base bracket | 77751-0R040 |
| 77754 | No. 1 carbon canister outlet hose | 77754-0R040 |
| 77765 | Carbon canister protective cover | 77765-0R040 |
| 77785 | fuel pump wiring harness | 77785-0R021 · 77785-42040 |
