Toyota RAV4 防护条 — Figure 7552

Toyota RAV4 EPC diagram 7552, 防护条, with 1 images and 22 PNC and OE references.

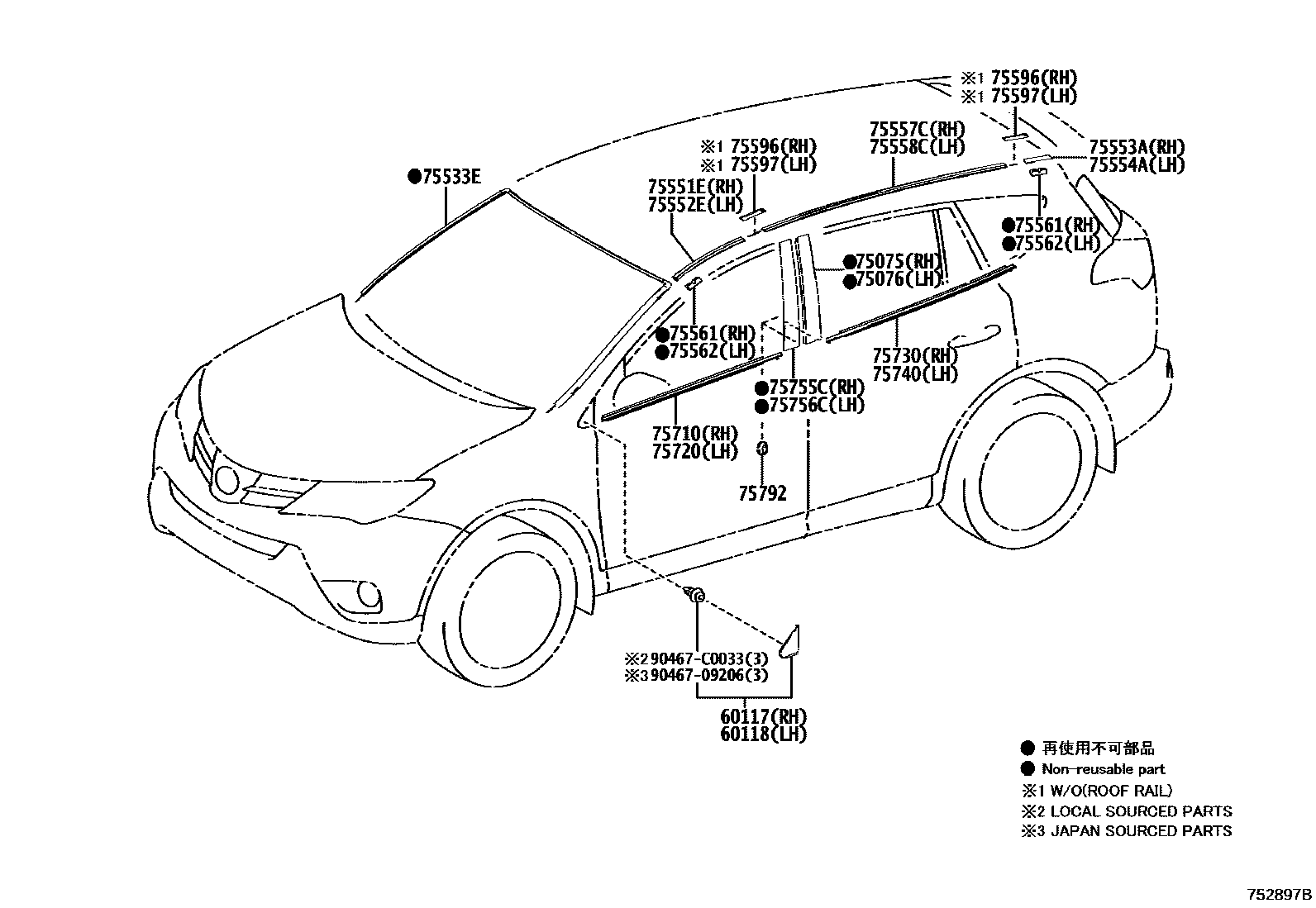

Toyota RAV4 防护条 EPC diagram — 752897B
防护条 — 752897B (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
60117Right front pillar upper cover sub-assembly60117-0R040
60118Left front pillar upper cover sub-assembly60118-0R040
75075Right rear door outer protective strip sub-assembly75075-0R020
75076Left rear door outer protective strip sub-assembly75076-0R020
75533EWindshield outer protective strip75533-0R020
75551EDrainage groove side decorative strip on the right side of the roof75551-0R020
75552EDrainage groove side decorative strip on the left side of the roof75552-0R020
75553ADecorative strip on the right side of the roof, rear gutter side75553-0R040
75554ADecorative strip on the left side of the roof, rear gutter side75554-0R040
75557CDecorative strip on the middle section of the drainage channel on the right side of the No. 2 roof75557-0R040
75558CDecorative strip on the side of the drainage channel in the middle section of the left roof of No. 2 car75557-0R040
75561No. 1 roof drain channel side decorative strip clip75561-52020
75562No. 2 roof drain channel side decorative strip clip75561-52020
75596Drainage channel side decorative strip joint cover on the right side of the roof75596-0R030
75597Drainage channel side decorative strip joint cover on the left side of the roof75596-0R030
75710Right front door waistline protection strip assembly75710-0R040
75720Left front door waistline protection strip assembly75720-0R040
75730Right rear door waistline protection strip assembly75730-0R040
75740Left rear door waistline protection strip assembly75740-0R040
75755CRight front door window frame rear protective strip75755-0R020
75756CLeft front door window frame rear protective strip75756-0R020
75792Car door window frame protective strip clip75792-0D010 · 75792-47010
