Toyota RAV4 徽标和铭牌 — Figure 7551

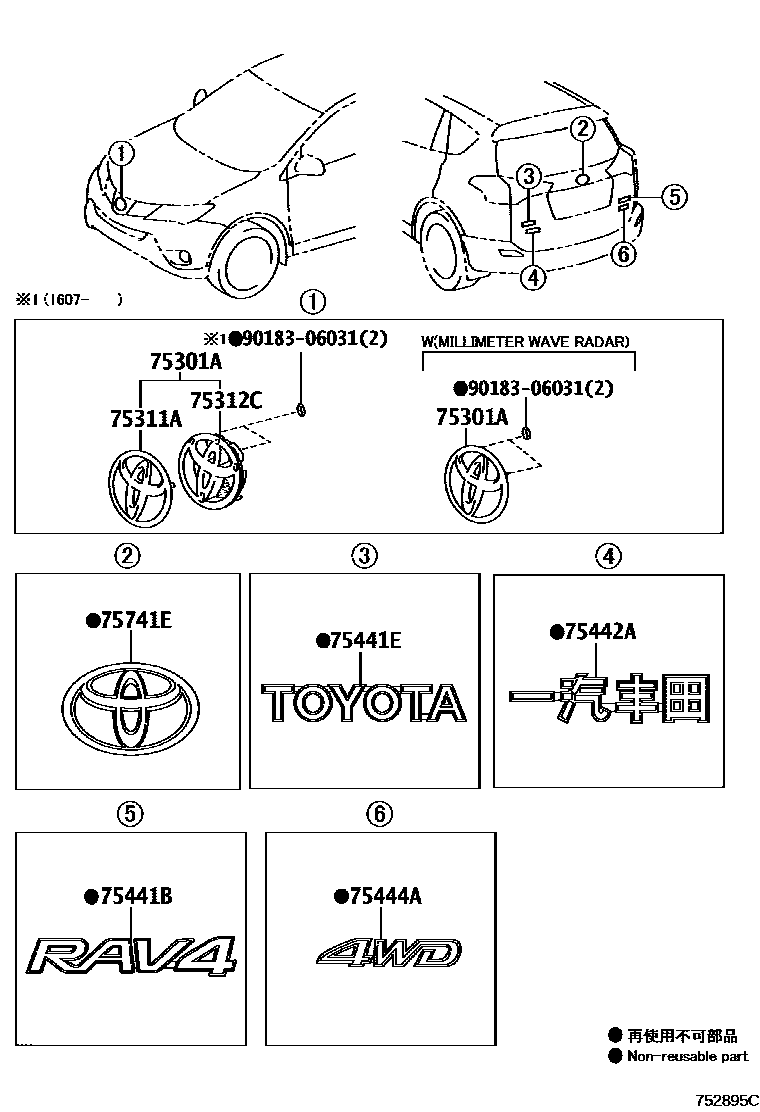

Toyota RAV4 EPC diagram 7551, 徽标和铭牌, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75301A | Front bumper sign sub-assembly | 53141-0R020 · 75301-0R020 · 75301-0R050 |
| 75311A | Front No. 1 nameplate | 90975-C2005 |
| 75312C | Front bumper sign base | 75312-0R050 · 75312-0R070 |
| 75441B | Back door nameplate | 75431-0R040 |
| 75441E | Back door No. 1 nameplate | 75441-0R010 |
| 75442A | No. 2 nameplate on back door | 75441-0R030 |
| 75444A | No. 4 nameplate on back door | 75444-0R070 |
| 75741E | logo | 75431-02060 |
