Toyota RAV4 座椅和座椅滑轨 — Figure 7151

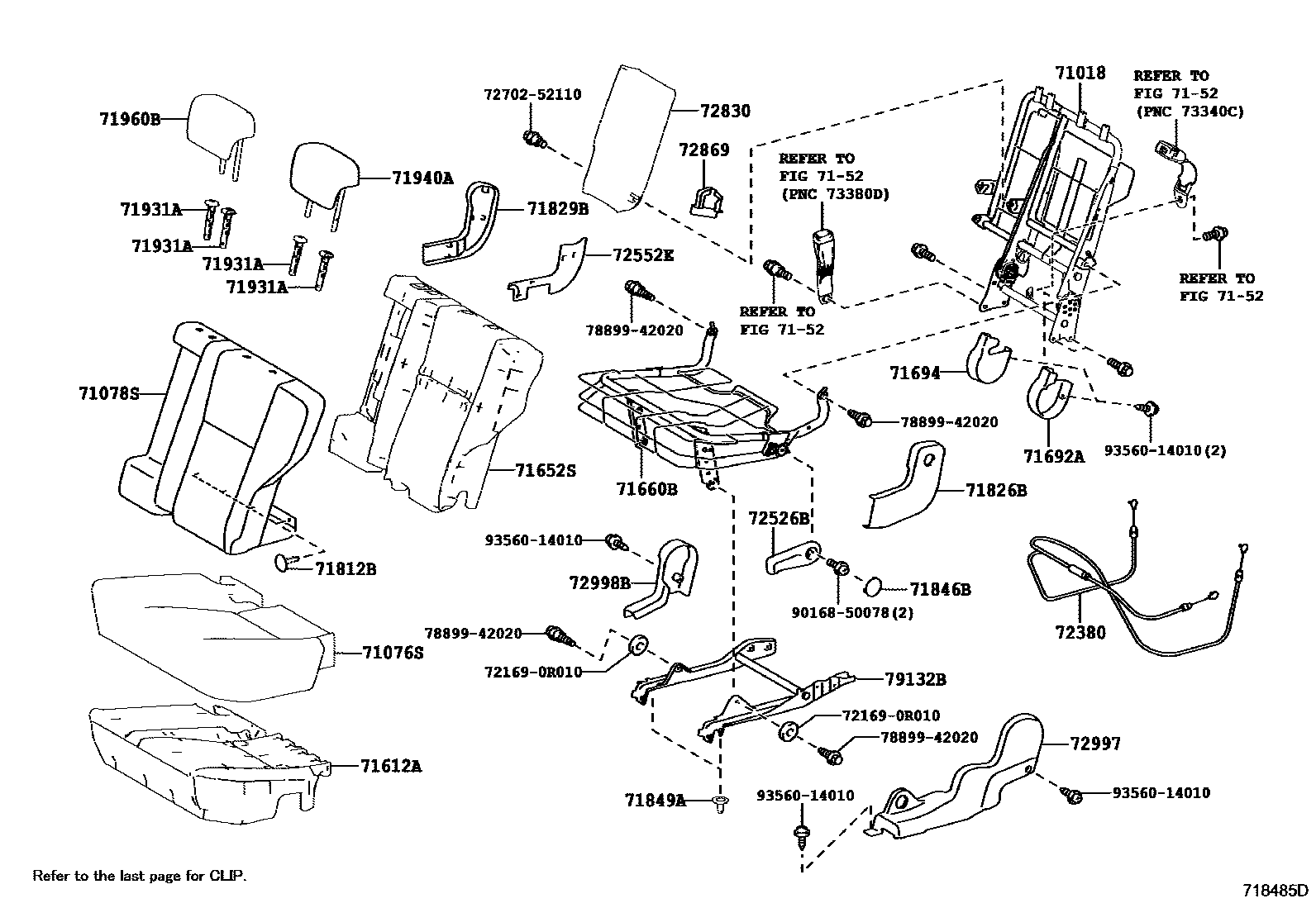

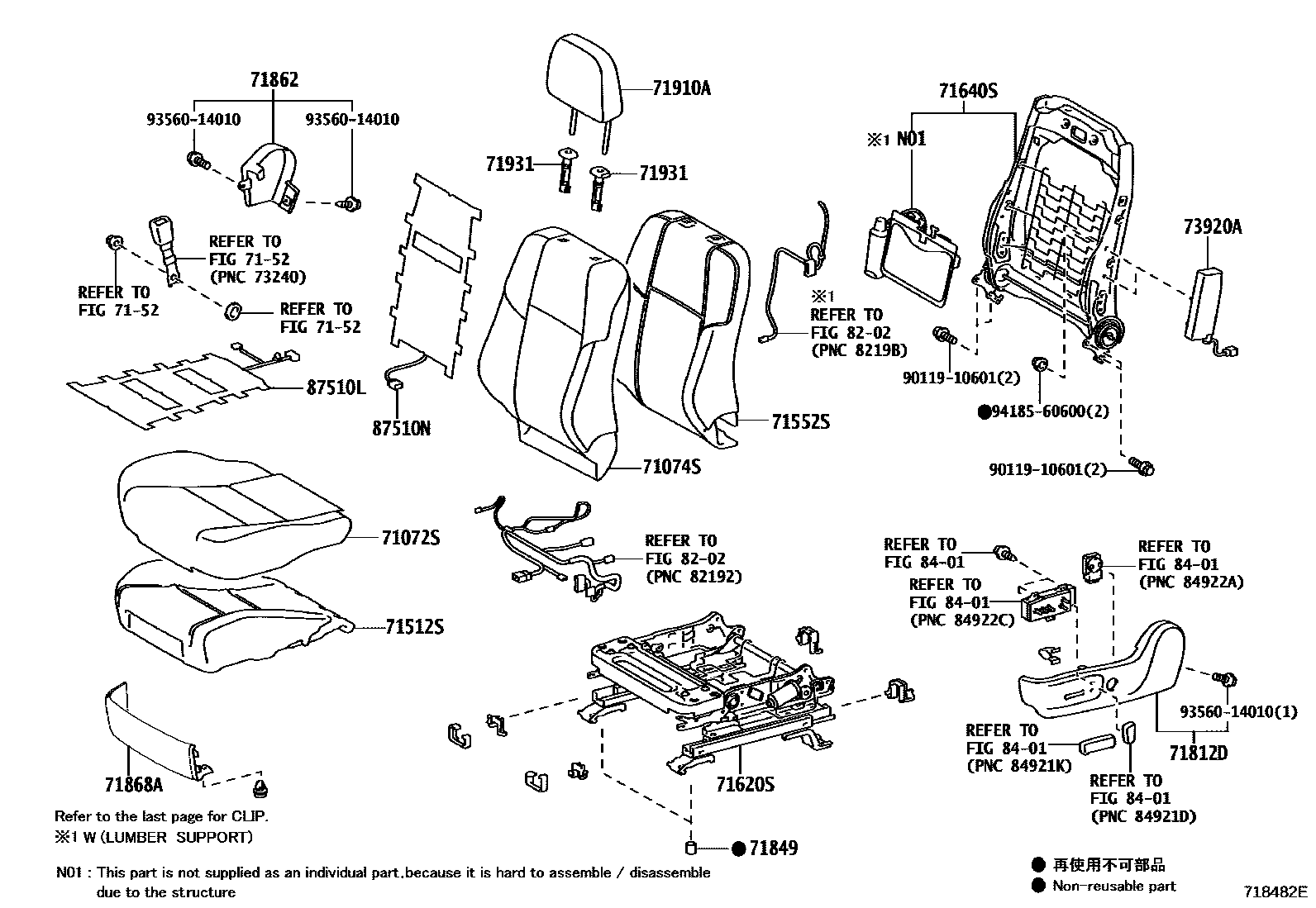

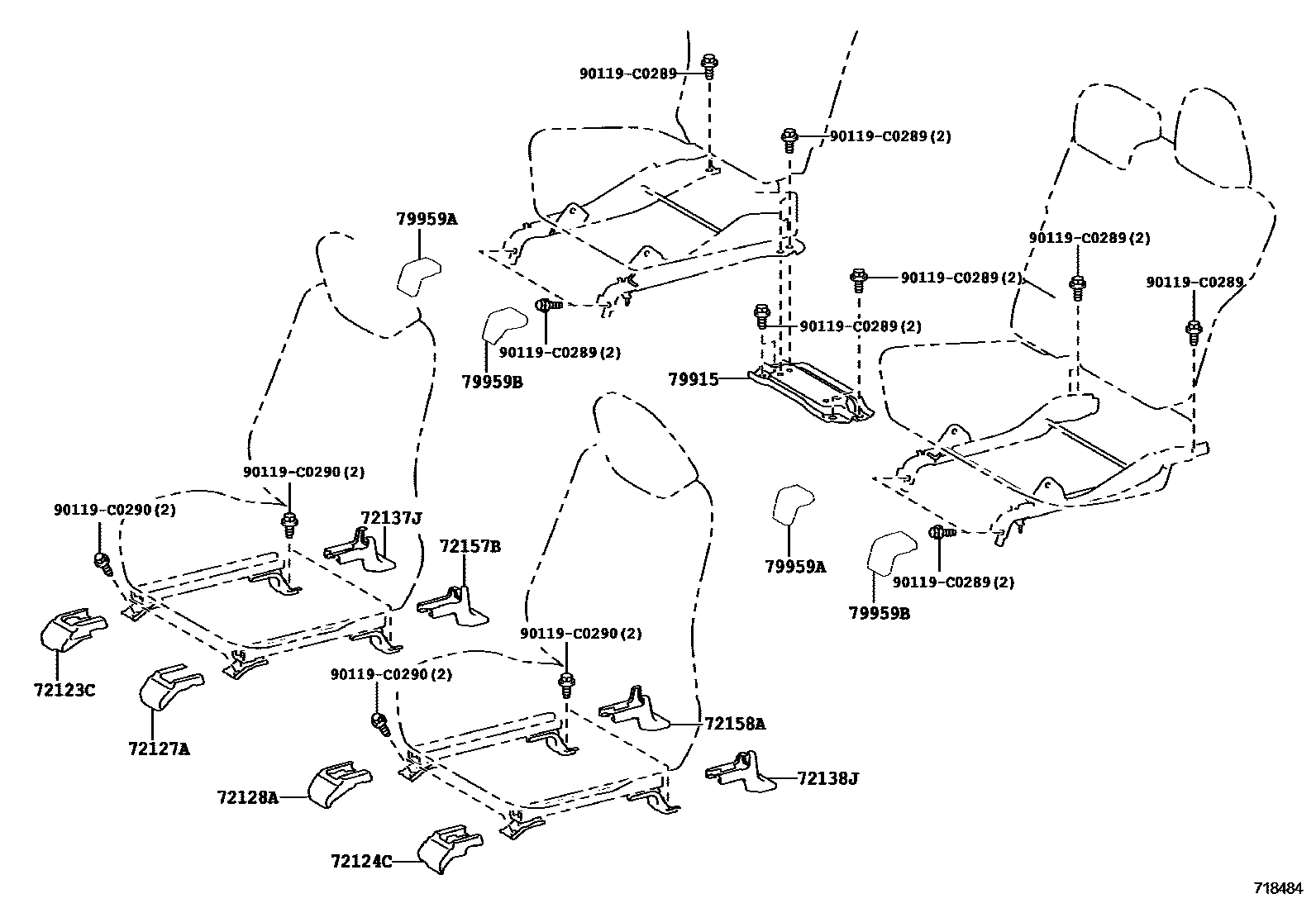

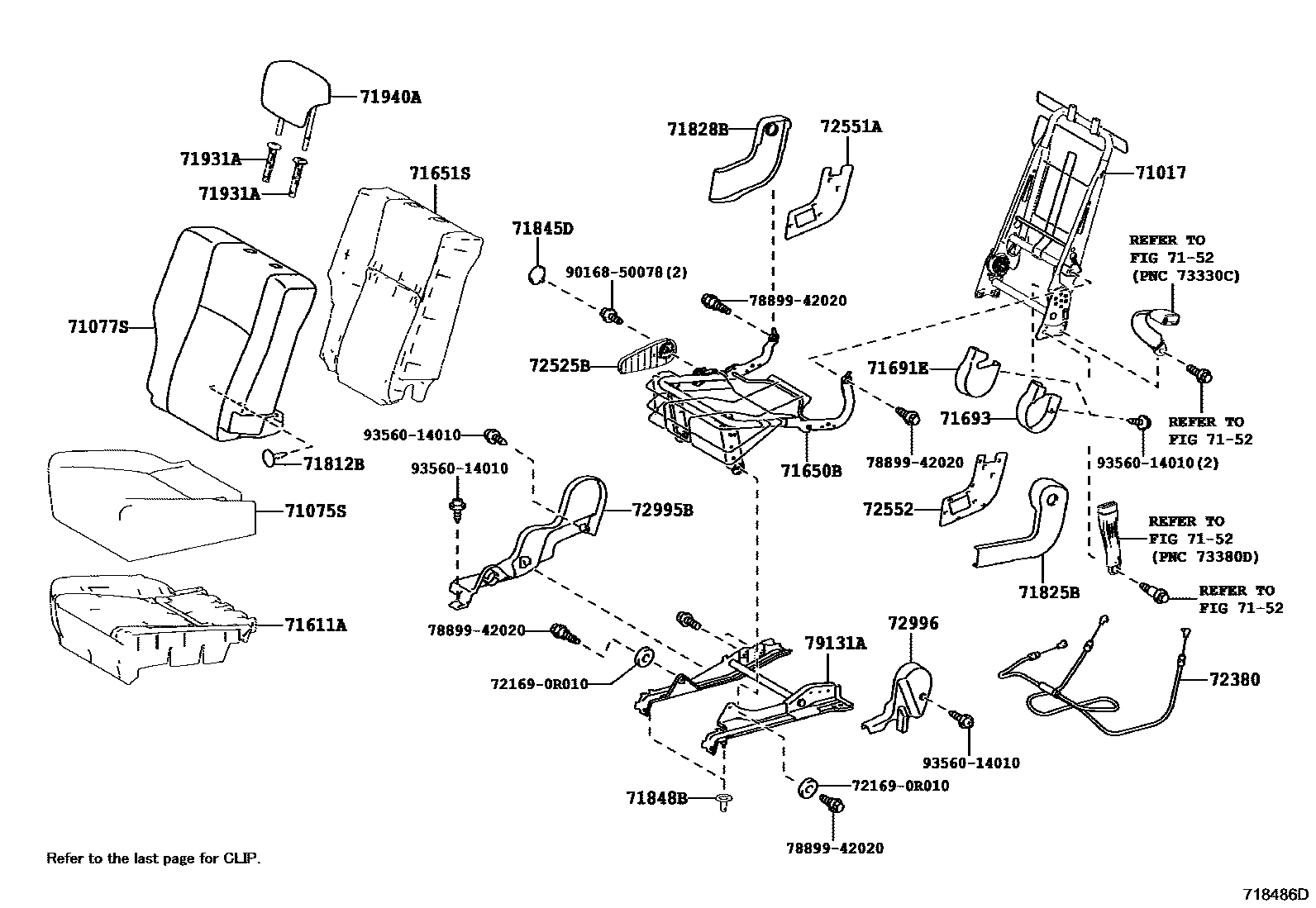

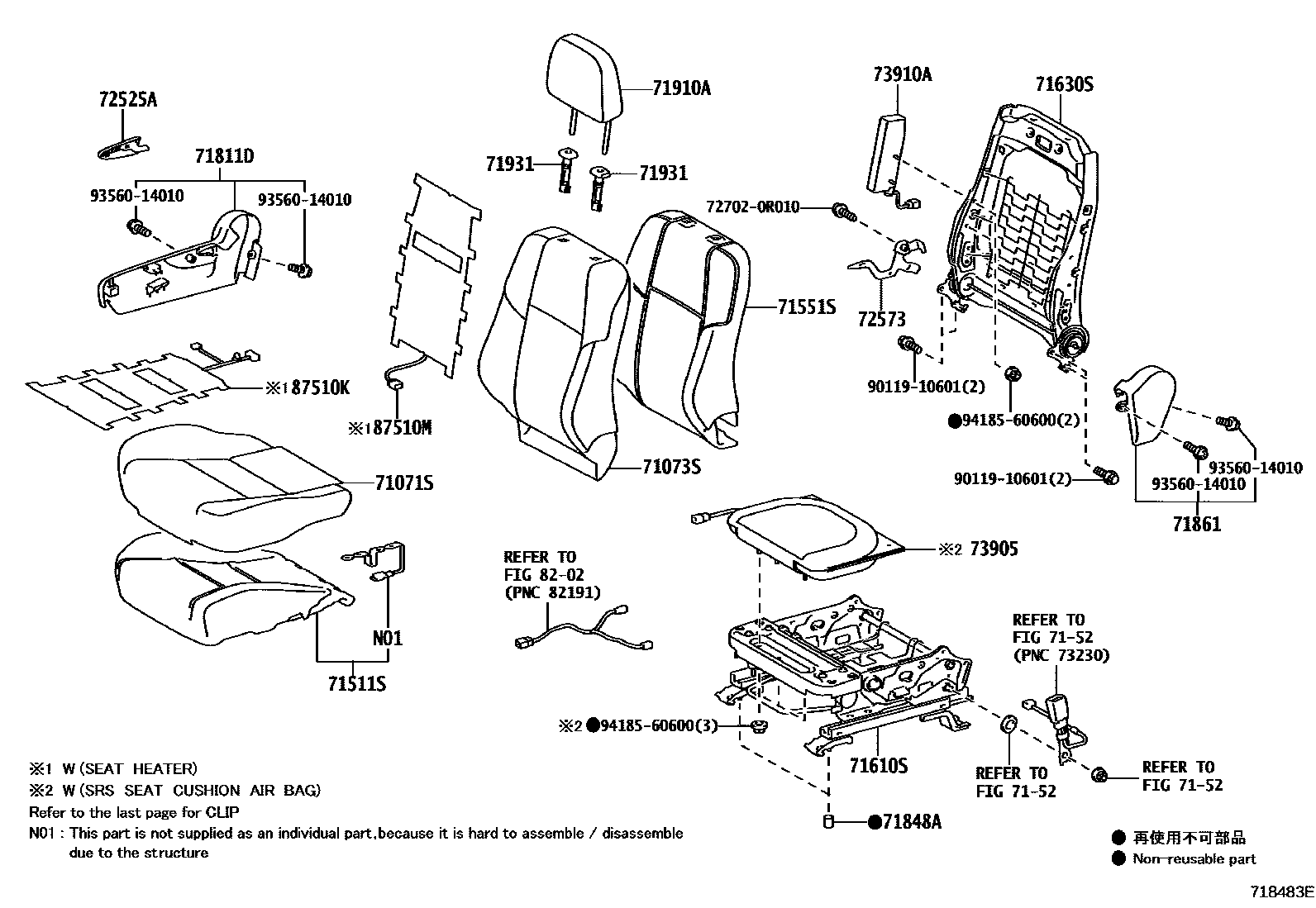

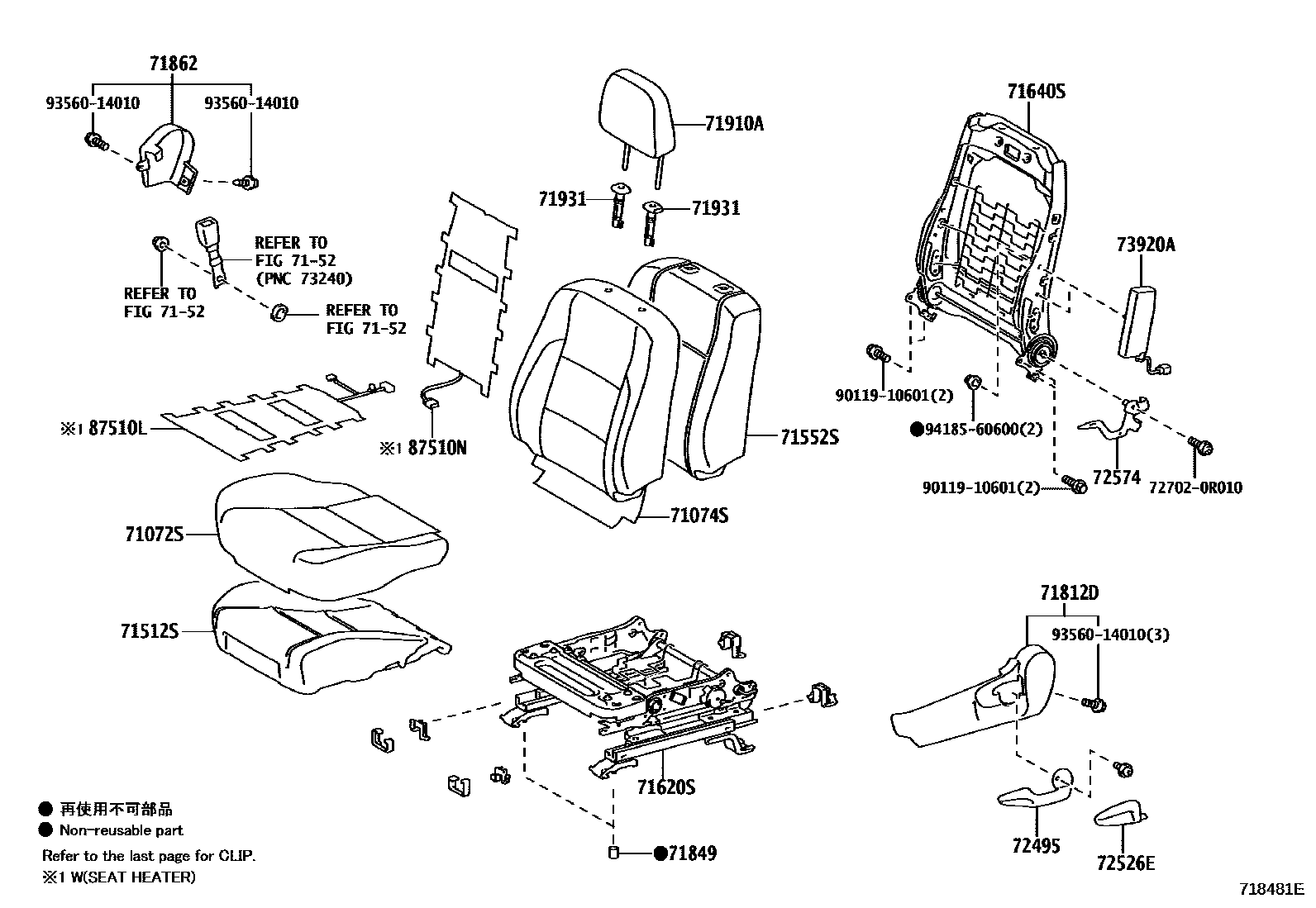

Toyota RAV4 EPC diagram 7151, 座椅和座椅滑轨, with 7 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-0R050 |
| 71018 | Rear left seat back frame sub-assembly | 71018-0R040 |
| 71511S | Front right seat cushion cushion (for split seats) | 71501-0R030 · 71501-0R040 · 71501-0R050 |
| 71512S | Front left seat cushion cushion (for split seats) | 71512-0R100 · 71512-0R110 |
| 71551S | Front right seat back cushion (for split seats) | 71551-0R110 · 71551-0R120 |
| 71552S | Front left seat back cushion (for split seats) | 71552-0R140 · 71552-0R150 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-0R060 |
| 71611A | Rear right seat cushion | 71611-0R040 |
| 71612A | Rear left seat cushion | 71612-0R040 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-0R050 · 71620-0R060 · 71620-0R100 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-0R051 |
| 71640S | Front left seat back spring assembly (for split seats) | 71630-0R051 · 71640-0R101 · 71640-0R111 |
| 71650B | Rear right seat cushion spring assembly | 71650-0R040 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0R050 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0R040 |
| 71660B | Rear left seat cushion spring assembly | 71660-0R040 |
| 71848A | Right seat adjuster cover | 71848-0R030 |
| 71848B | Right seat adjuster cover | 71848-0R030 |
| 71849 | left seat adjuster cover | 71848-0R030 |
| 71849A | left seat adjuster cover | 71848-0R030 |
| 72380 | No. 2 seat adjuster control cable assembly | 72380-0R060 |
| 72573 | Right seat back tilt control lever | 72573-0R010 |
| 72574 | Left seat back tilt control lever | 72574-0R010 |
| 73905 | Front right seat airbag sub-assembly | 73905-0R021 |
| 73910A | Front right seat airbag assembly | 73910-0R050 |
| 73920A | Front left seat airbag assembly | 73920-0R050 |
| 79131A | Seat 1 right front leg | 79131-0R010 |
| 79132B | Seat 1 left front leg | 79132-0R010 |
| 79915 | seat leg bracket | 79915-0R020 |
| 87510K | Front right seat cushion heater assembly | 87510-0R091 |
| 87510L | Front left seat cushion heater assembly | 87510-0R091 · 87510-0R130 · 87510-0R131 |
| 87510M | Front right seat back heater assembly | 87530-0R011 |
| 87510N | Front left seat back heater assembly | 87530-0R011 · 87530-0R040 |
