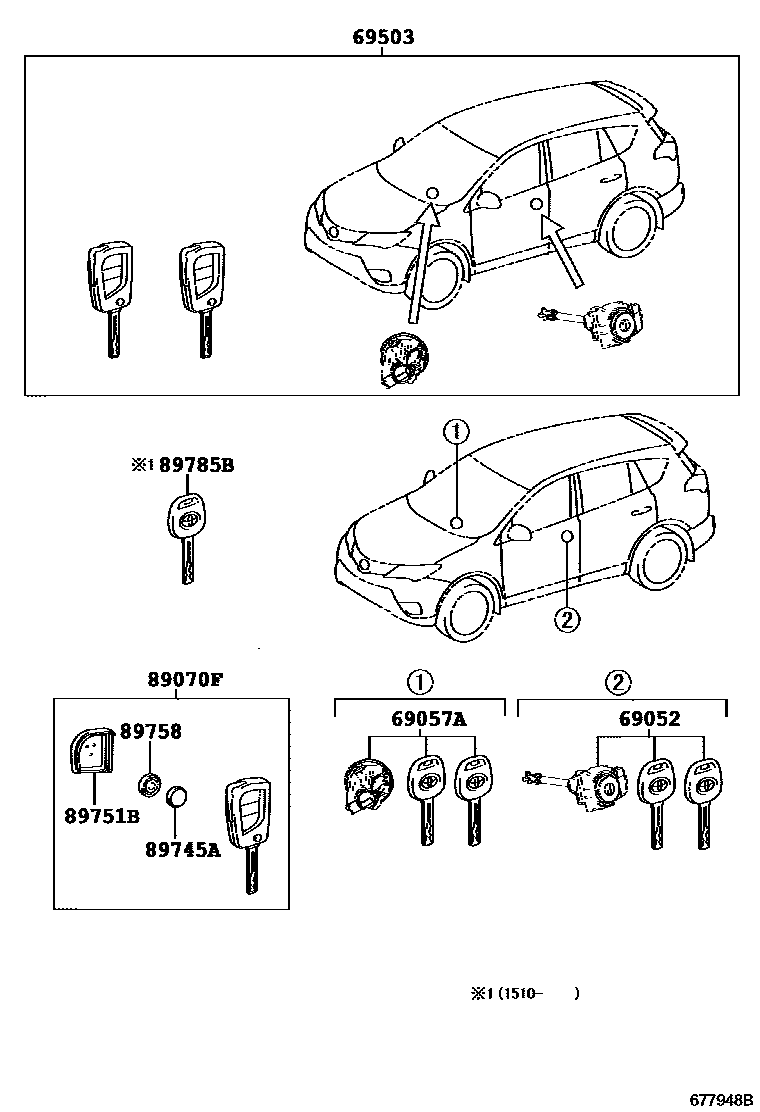

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69052 | Left door lock cylinder and key assembly | 69052-0R060 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-0R060 |
| 69503 | Door lock cylinder components | 69005-0R110 · 89704-0R150 · 89704-0R160 |
| 69503A | external tooth key | 69515-33120 |
| 69503B | internal tooth key | 69515-33110 |
| 89070F | Remote key assembly (internal tooth key) | 89070-0R180 · 89070-0R190 |
| 89072A | Remote key shell assembly | 89072-0R160 · 89072-0R170 |
| 89745A | Transmitter battery | 89745-0R020 |
| 89745C | Transmitter battery | 89745-45010 |
| 89751B | Transmitter housing cover | 89751-0R040 · 89751-0R060 |
| 89758 | Remote key seal | 89758-0R010 |
| 89785B | transceiver key master transmitter | 89785-06060 |
| 89904B | Electronic key transmitter sub-assembly | 89904-0R110 · 89904-0R120 |
