Toyota RAV4 背门锁和合页 — Figure 6762

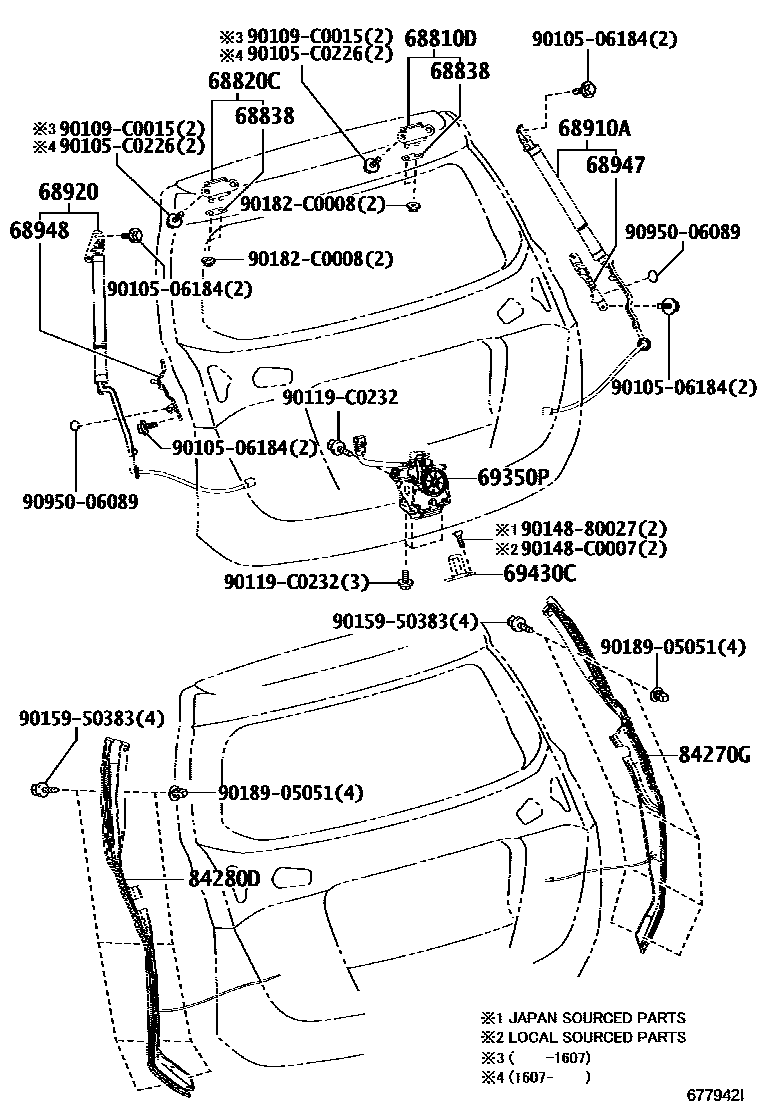

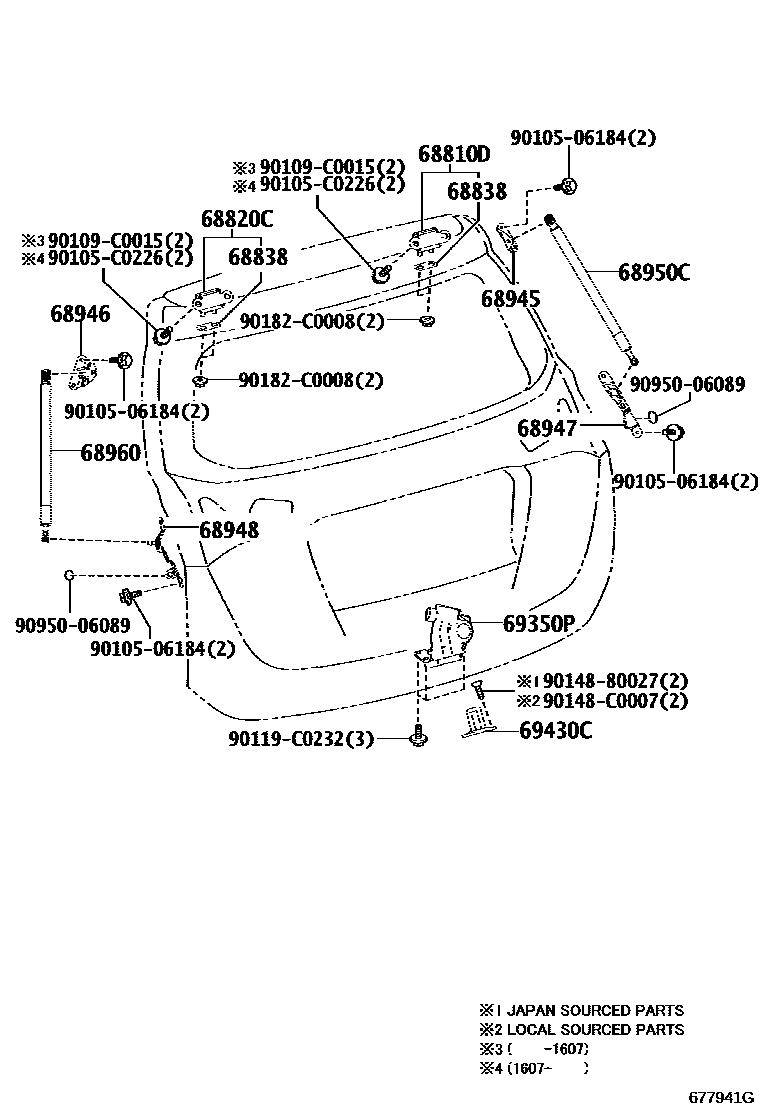

Toyota RAV4 EPC diagram 6762, 背门锁和合页, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810D | Back door right hinge assembly | 68810-0R060 · 68810-0R061 |
| 68820C | Back door left hinge assembly | 68810-0R060 · 68810-0R061 |
| 68838 | Back door hinge No. 1 gasket | 68838-0R020 · 68838-0R030 · 68838-0R040 |
| 68910A | Right rear door electric unit assembly assembly | 68910-09050 · 68910-09090 · 68910-09092 · 68910-49018 · 68910-49045 · 68910-49046 · 68910-49047 |
| 68920 | Left rear door electric unit assembly assembly | 68920-09040 · 68920-09060 · 68920-09062 · 68920-49018 · 68920-49045 · 68920-49046 · 68920-49047 |
| 68945 | Back door right damping stay upper bracket | 68945-0R030 |
| 68946 | Rear door left damping strut upper bracket | 68946-0R030 |
| 68947 | Back door right damping strut lower bracket | 68903-42011 · 68903-42012 · 68903-42014 · 68903-42015 · 68947-0R020 |
| 68948 | Rear door left damping strut lower bracket | 68904-42011 · 68904-42012 · 68904-42014 · 68904-42015 · 68948-0R020 |
| 68950C | Back door right support rod assembly | 68950-0R030 |
| 68960 | Back door left support rod assembly | 68960-0R030 |
| 69350P | Back door with door control light switch lock assembly | 69350-0R010 · 69350-0R011 · 69350-0R012 · 69350-28160 · 69350-28161 · 69350-42060 |
| 69430C | Back door lock assembly | 69430-0R020 |
| 84270G | Electric back door right side sensor assembly | 84270-0R020 · 84270-42010 |
| 84280D | Electric back door left sensor assembly | 84280-0R020 · 84280-42010 |
