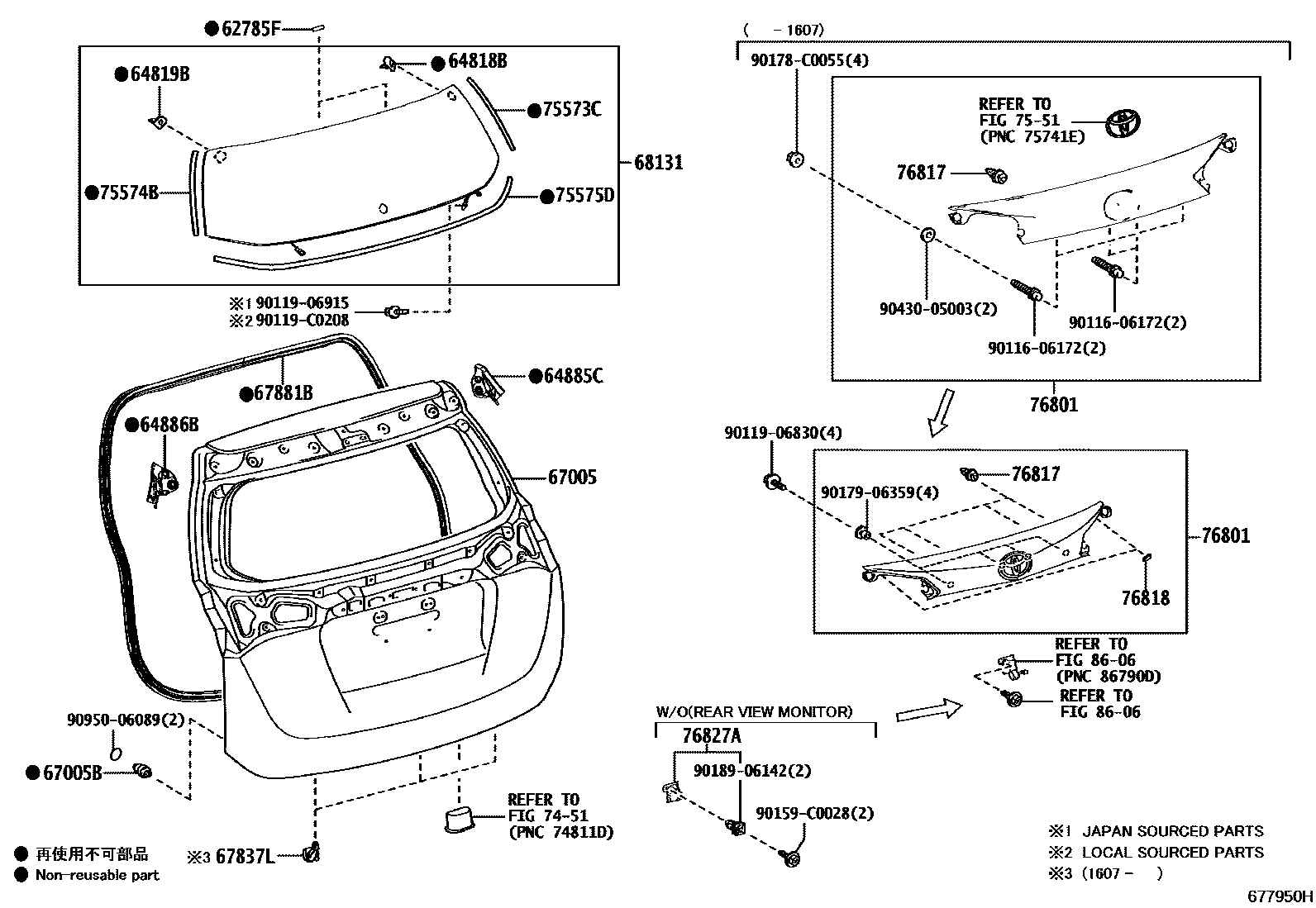

Toyota RAV4 背门板和背门玻璃 — Figure 6761
Toyota RAV4 EPC diagram 6761, 背门板和背门玻璃, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-0R020 |
| 64818B | No. 1 back door glass spacer | 64818-0R040 |
| 64819B | No. 2 back window glass spacer | 64819-0R040 |
| 64885C | Rear door right glass slot | 64885-0R020 |
| 64886B | Rear door left glass slot | 64886-0R020 |
| 67005 | Rear door panel sub-assembly | 67005-0R150 · 67005-0R160 · 67005-0R170 · 67005-0R240 · 67005-0R260 |
| 67005B | Cushion pad (for back door panel) | 90541-09142 |
| 67751A | Clip (for rear door trim panel) | 90467-10161 · 90467-C0036 |
| 67837L | Door dust seal retainer | 67837-30060 · 67837-52040 |
| 67881B | Back door upper right seal strip | 67881-0R040 |
| 67937C | Clip (for rear door side decorative strip) | 67771-58010 |
| 67939C | Clip (for rear door center trim strip) | 90467-10161 · 90467-C0036 |
| 68131 | back door glass | 68105-0R070 · 68105-0R080 · 68105-0R090 · 68105-0R100 |
| 75573C | Protective strip for rear window | 75573-0R040 |
| 75574B | Rear window left outer protective strip | 75574-0R050 |
| 75575D | Protective strip under rear window | 75575-0R040 |
| 76817 | Rear door exterior decorative strip clip | 90467-09206 |
| 76818 | Rear door outer trim strip lining | 76818-0R010 |
| 76827A | No. 2 rear door trim strip fixings | 76827-0R040 |
