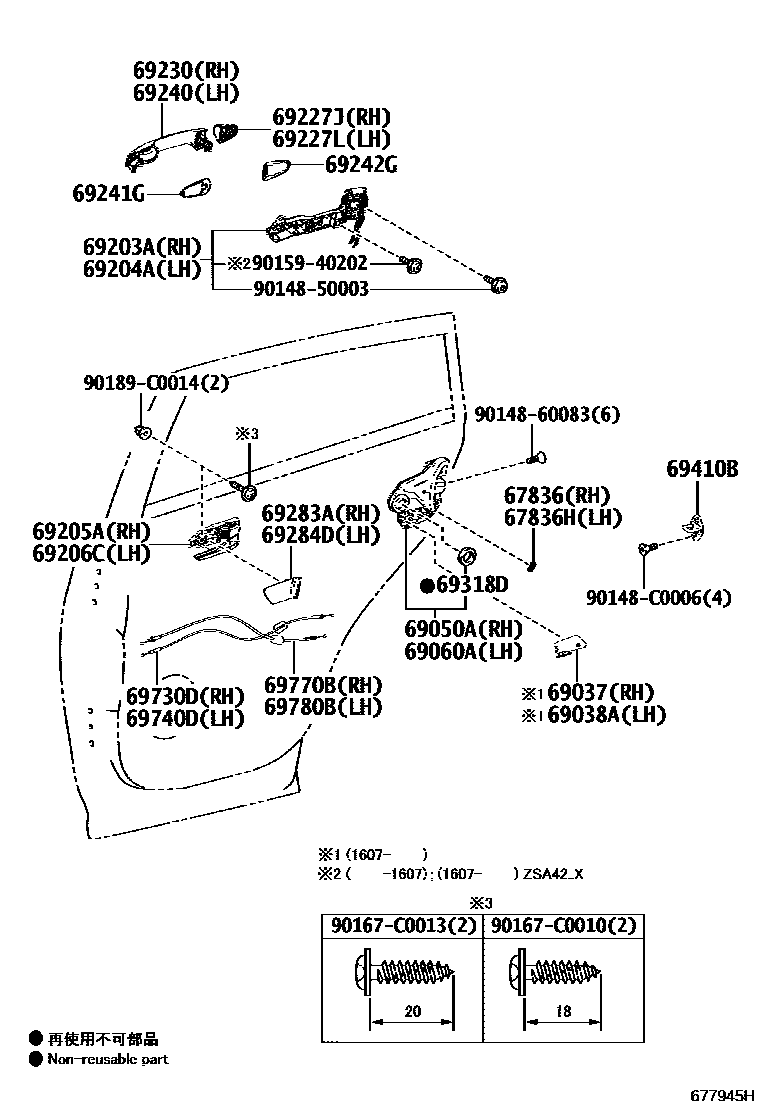

Toyota RAV4 后门锁和后门把手 — Figure 6756
Toyota RAV4 EPC diagram 6756, 后门锁和后门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-02040 |
| 67836H | Left rear door lock child restraint cover | 67836-02040 |
| 69037 | Right rear door door lock cover sub-assembly | 69037-02060 |
| 69038A | Left rear door door lock cover sub-assembly | 69038-02060 |
| 69050A | Right rear door lock assembly with motor | 69050-02450 · 69050-02460 · 69050-06111 |
| 69060A | Left rear door lock assembly with motor | 69060-02450 · 69060-02460 · 69060-06111 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-0R040 · 69203-0R050 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-0R040 · 69204-0R050 |
| 69227J | Right rear door outer handle cover | 69250-0R050 |
| 69227L | Left rear door outer handle cover | 69250-0R050 |
| 69241G | Rear door front exterior handle pad | 69241-0R020 |
| 69242G | Rear door rear outer handle pad | 69242-0R020 |
| 69318D | door lock harness seal | 69318-51010 |
| 69410B | Rear door lock plate assembly | 69410-0D020 |
| 69730D | Right rear door lock remote control cable assembly | 69730-0R040 · 69730-0R050 |
| 69740D | Left rear door lock remote control cable assembly | 69730-0R040 · 69730-0R050 |
| 69770B | Right rear door inner lock cable assembly | 69770-0R040 · 69770-0R050 |
| 69780B | Left rear door inner lock cable assembly | 69770-0R040 · 69770-0R050 |
