Toyota RAV4 后门板和后门玻璃 — Figure 6755

Toyota RAV4 EPC diagram 6755, 后门板和后门玻璃, with 2 images and 31 PNC and OE references.

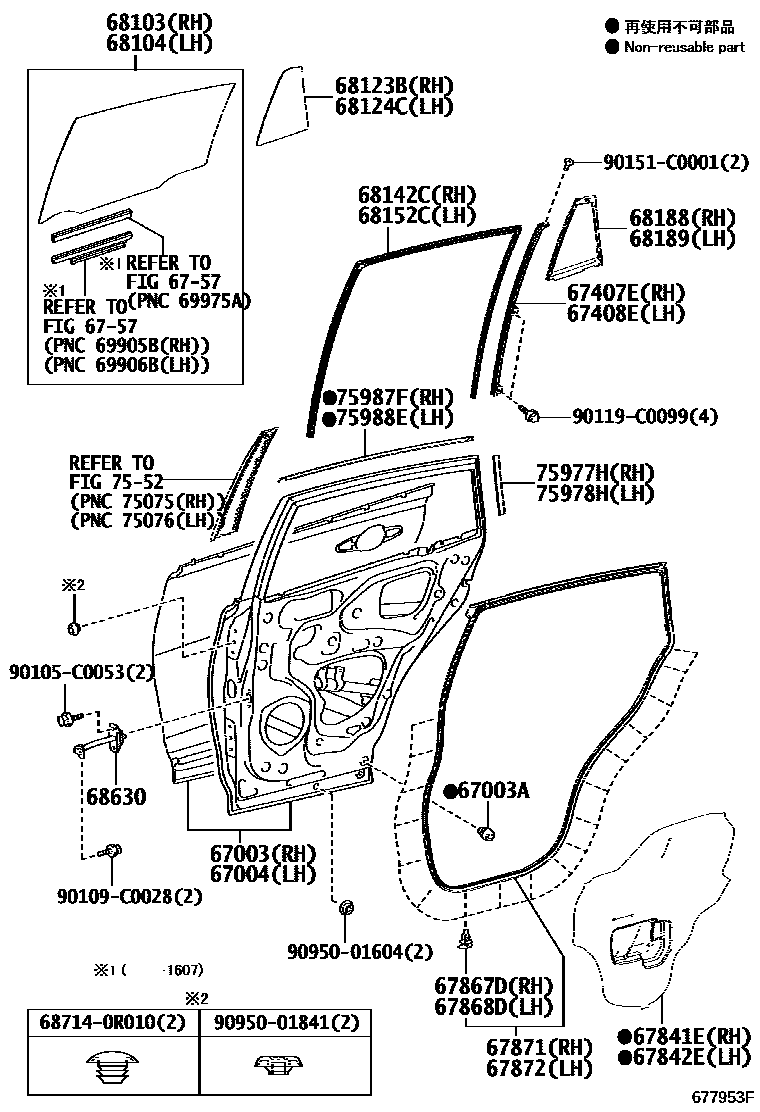

Toyota RAV4 后门板和后门玻璃 EPC diagram — 677953F
后门板和后门玻璃 — 677953F (201308 – 999999)

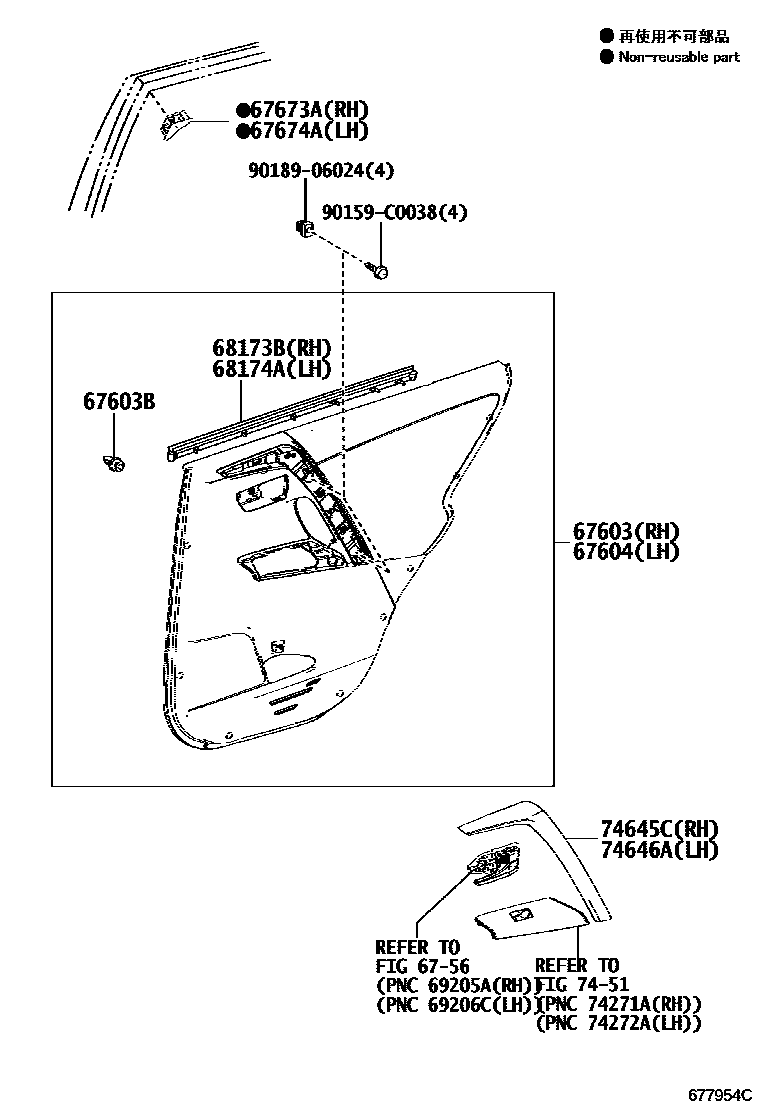

Toyota RAV4 后门板和后门玻璃 EPC diagram — 677954C
后门板和后门玻璃 — 677954C (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
67003Right rear door panel sub-assembly67003-0R100
67003AHole plug (for rear door panel)90541-09137
67004Left rear door panel sub-assembly67004-0R100
67407ERight rear door window divider sub-assembly67407-0R040
67408ELeft rear door window divider sub-assembly67408-0R040
67603BCatch (for rear door trim panel)90467-09206 · 90467-C0033
67673ARight rear door frame decorative strip67673-0R010
67674ALeft rear door frame decorative strip67674-0R010
67841ERight rear door access hole cover67841-0R040
67842ELeft rear door access hole cover67842-0R040
67867DRight rear door seal strip fixing67867-12150
67868DLeft rear door seal strip fixing67867-12150
67871Right rear door sealing strip67871-0R040
67872Left rear door sealing strip67872-0R040
68103Right rear door glass sub-assembly68103-0R060
68104Left rear door glass sub-assembly68104-0R060
68123BRight rear door corner window glass68123-0R060
68124CLeft rear door corner window glass68124-0R060
68142CRight rear door glass lift slot68142-0R040
68152CLeft rear door glass lift slot68152-0R040
68173BRight rear door glass inner sealing strip68173-0R040
68174ALeft rear door glass inner sealing strip68174-0R040
68188Right rear door corner window seal68188-0R040
68189Left rear door corner window seal68189-0R040
68630Rear door opening limiter assembly68630-0R040 · 68630-0R060
74645CRight door auxiliary handle cover74645-0R040
74646ALeft door auxiliary handle cover74646-0R040
75977HRight rear door outer lower trim strip75977-0R040
75978HLeft rear door outer lower trim strip75978-0R040
75987FRight rear door outer trim75987-0R060
75988ELeft rear door outer trim75988-0R060
