Toyota RAV4 前门锁和车门把手 — Figure 6753

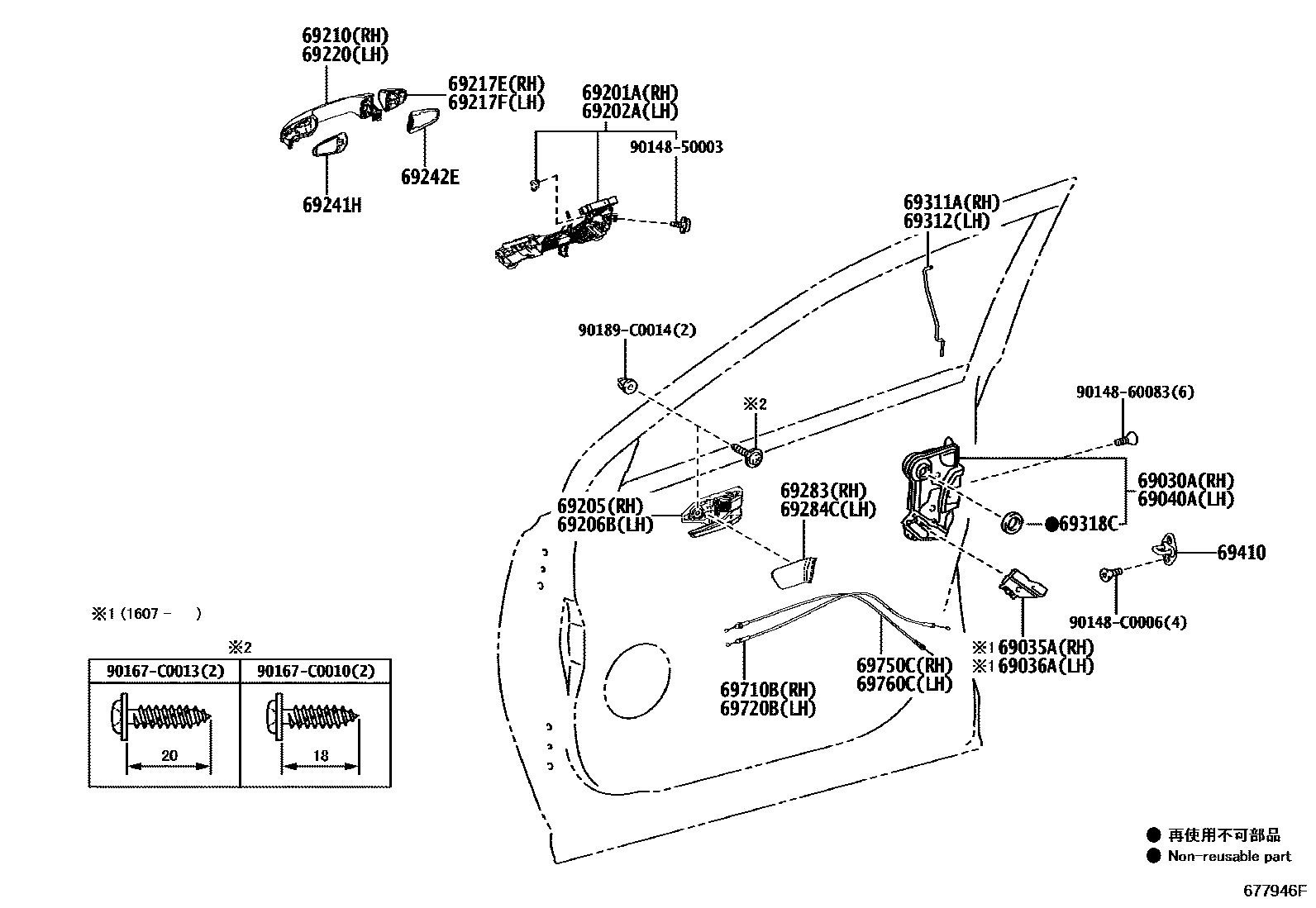

Toyota RAV4 EPC diagram 6753, 前门锁和车门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69030A | Right front door lock assembly with motor | 69030-02620 · 69030-06221 |
| 69035A | Right front door lock cover sub-assembly | 69035-02060 |
| 69036A | Left front door lock cover sub-assembly | 69036-02060 |
| 69040A | Left front door door lock assembly with motor | 69040-02590 · 69040-06191 |
| 69201A | Right front door outer handle frame sub-assembly | 69201-0R020 · 69201-0R030 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-0R020 · 69202-0R030 |
| 69217E | Right front door outer handle cover | 69250-0R030 |
| 69217F | Left front door outer handle cover | 69217-0R120 |
| 69241H | Front door exterior handle pad | 69241-0R020 |
| 69242E | Front door rear outer handle pad | 69242-0R020 |
| 69311A | Right front door lock opening lever | 69311-0R040 |
| 69312 | Left front door lock opening lever | 69312-0R040 |
| 69318C | door lock harness seal | 69318-51010 |
| 69410 | Front door lock plate assembly | 69410-0D020 |
| 69710B | Right front door lock remote control cable assembly | 69710-0R040 · 69710-0R050 |
| 69720B | Left front door lock remote control cable assembly | 69710-0R040 · 69710-0R050 |
| 69750C | Right front door inner lock cable assembly | 69750-0R040 · 69750-0R050 |
| 69760C | Left front door inner lock cable assembly | 69750-0R040 · 69750-0R050 |
