Toyota RAV4 前门板和前门玻璃 — Figure 6751

Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 2 images and 31 PNC and OE references.

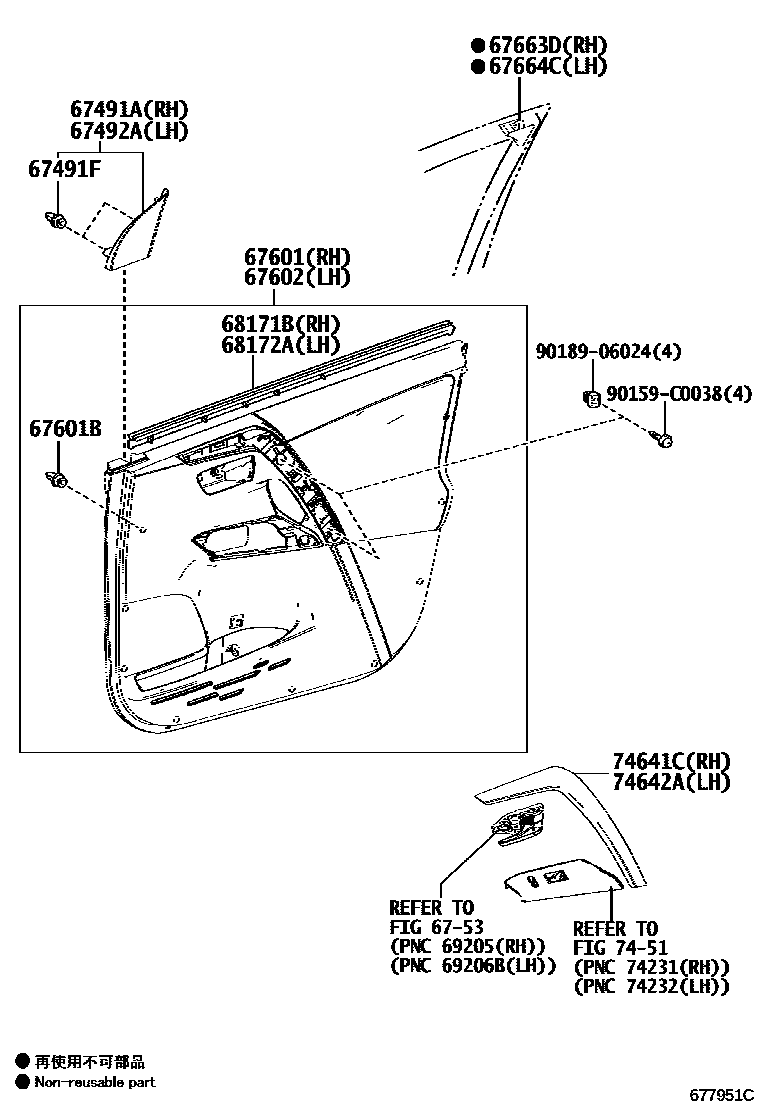

Toyota RAV4 前门板和前门玻璃 EPC diagram — 677951C
前门板和前门玻璃 — 677951C (201308 – 999999)

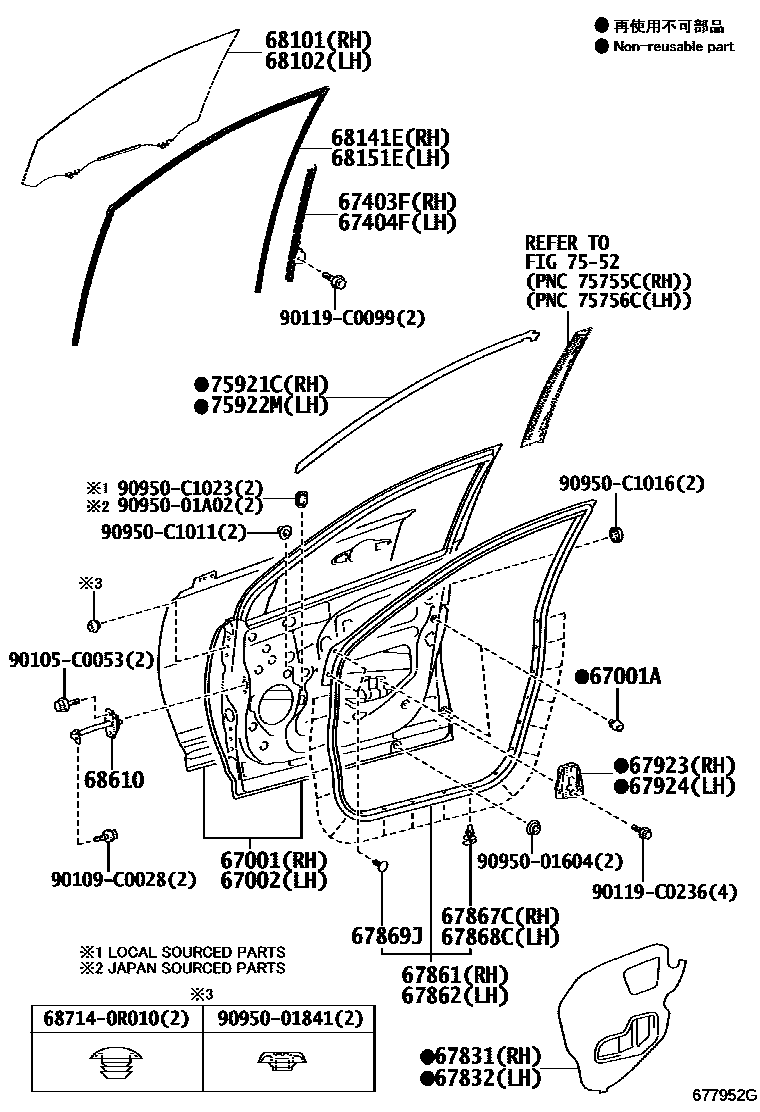

Toyota RAV4 前门板和前门玻璃 EPC diagram — 677952G
前门板和前门玻璃 — 677952G (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-0R070
67001AFront door panel cushion90541-09137
67002Left front door panel sub-assembly67002-0R070
67403FRight front door rear lower door frame sub-assembly67403-0R040
67404FLeft front door rear lower door frame sub-assembly67404-0R040
67491ARight front door lower door frame bracket decorative strip67491-0R040
67491FCatch (for door trim panel)90467-10167
67492ALeft front door lower door frame bracket decorative strip67492-0R040
67601BCatch (for front door trim panel)90467-09206 · 90467-C0033
67663DRight door frame decorative strip67663-0R020
67664CLeft door frame decorative strip67664-0R020
67831Right front door access hole cover67831-0R050
67832Left front door access hole cover67832-0R050
67861Right front door seal67861-0R040
67862Left front door seal67862-0R040
67867CRight front door seal strip fixing67867-12150
67868CLeft front door seal strip fixing67867-12150
67869JFront door seal strip clip67869-20030
67923Front door No. 1 reinforcement cushion pad67923-0R020
67924Front door No. 2 reinforcement cushion pad67924-0R020
68101Right front door glass sub-assembly68101-0R040
68102Left front door glass sub-assembly68102-0R040
68141ERight front door glass lift channel68141-0R040
68151ELeft front door glass lift channel68151-0R040
68171BRight front door glass inner sealing strip68171-0R040
68172ALeft front door glass inner sealing strip68172-0R040
68610Front door opening limiter assembly68610-0R040 · 68610-0R060
74641CRight front door auxiliary handle cover74641-0R030
74642ALeft front door auxiliary handle cover74642-0R030
75921CNo. 1 right side light-shielding film75921-0R040
75922MNo. 1 left shading film75922-0R040
