Toyota RAV4 车顶内衬和消声垫 — Figure 6452

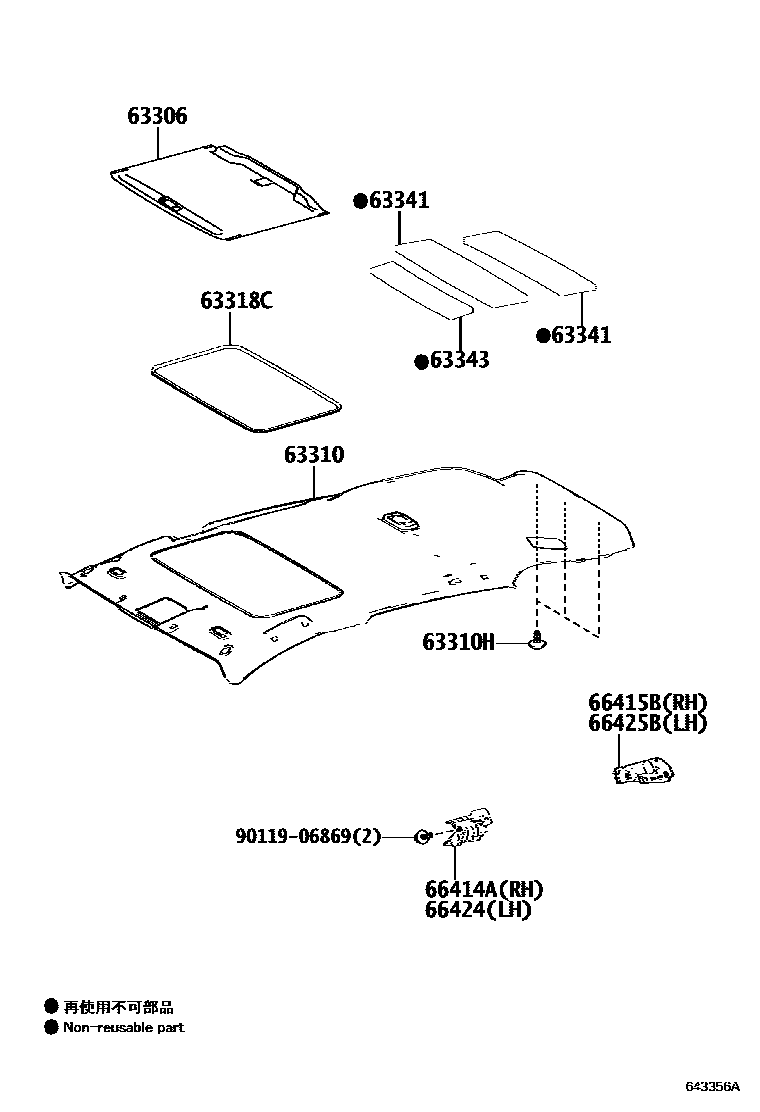

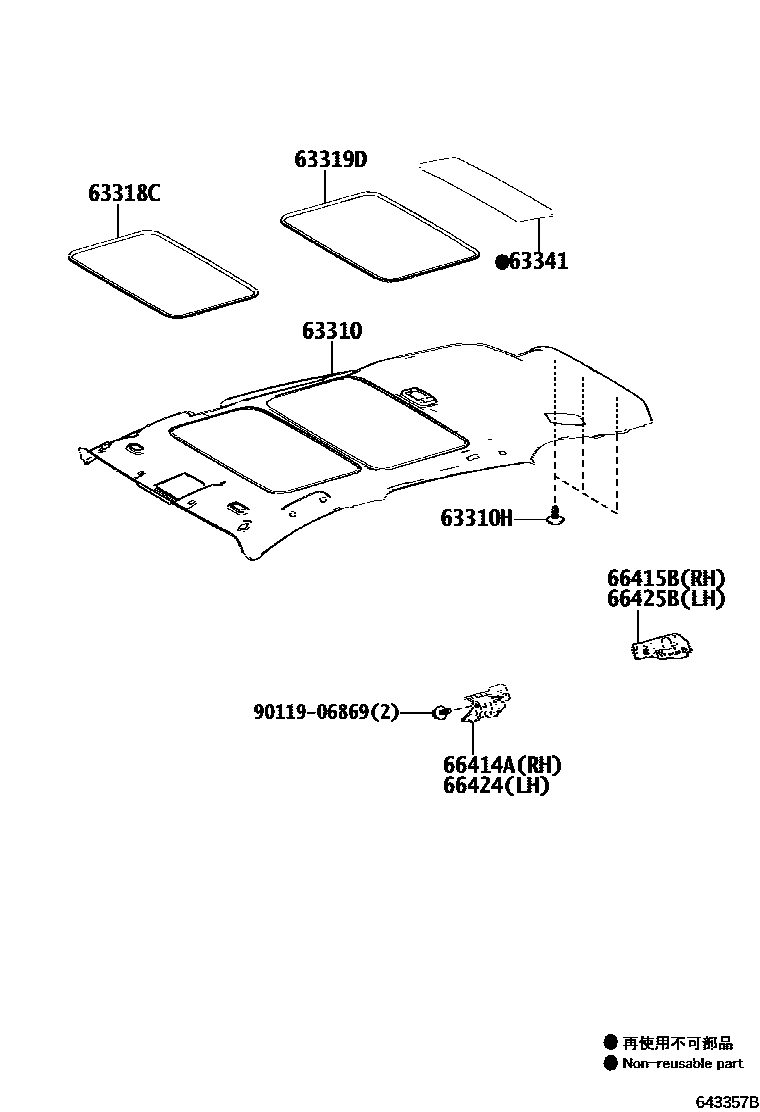

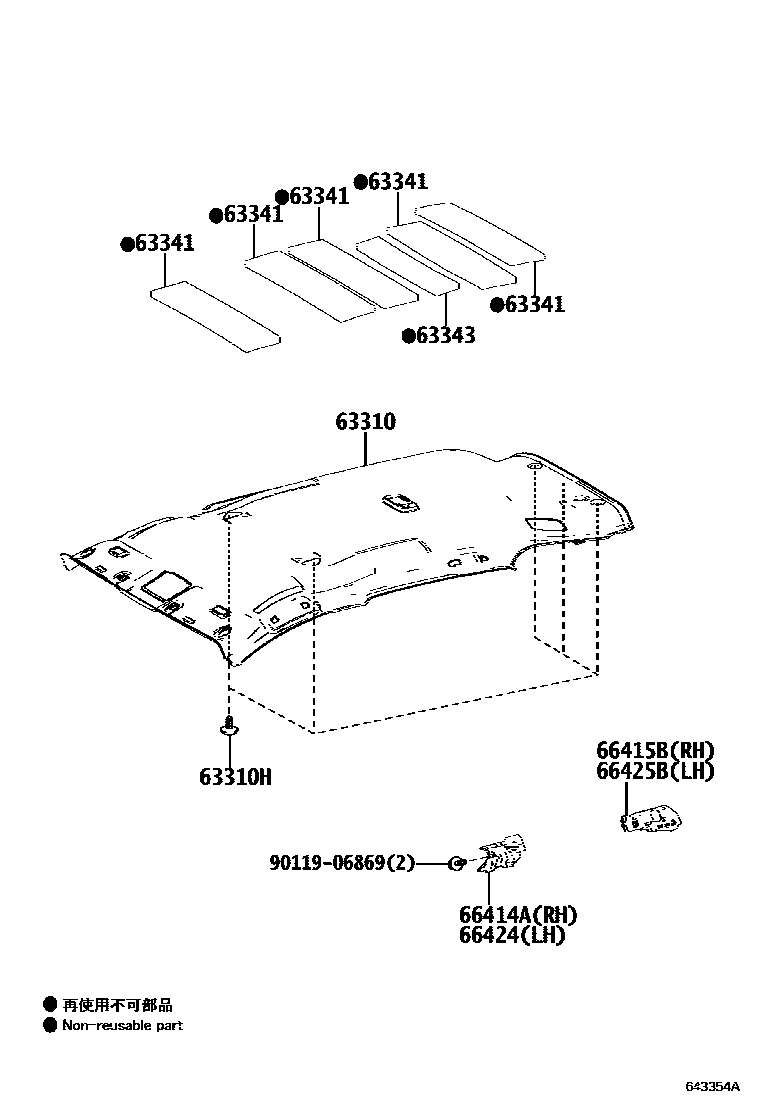

Toyota RAV4 EPC diagram 6452, 车顶内衬和消声垫, with 3 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-0R030 |
| 63343 | No. 3 roof muffler pad | 63343-0R040 |
| 66414A | Right rear longitudinal member spacer | 66414-0R060 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-0R060 |
| 66424 | Left rear longitudinal member spacer | 66424-0R060 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-0R060 |
