Toyota RAV4 车内装饰板 — Figure 6451

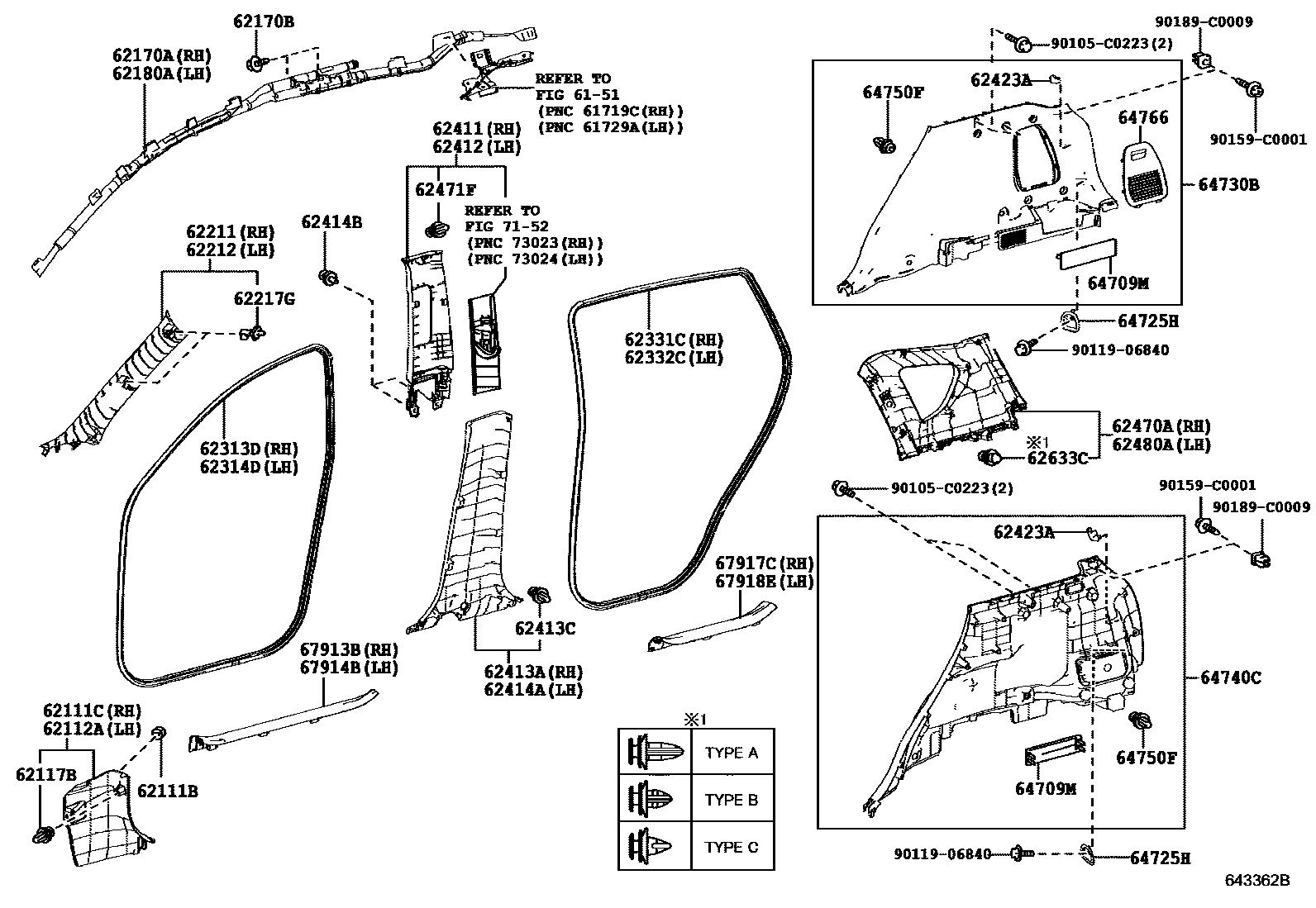

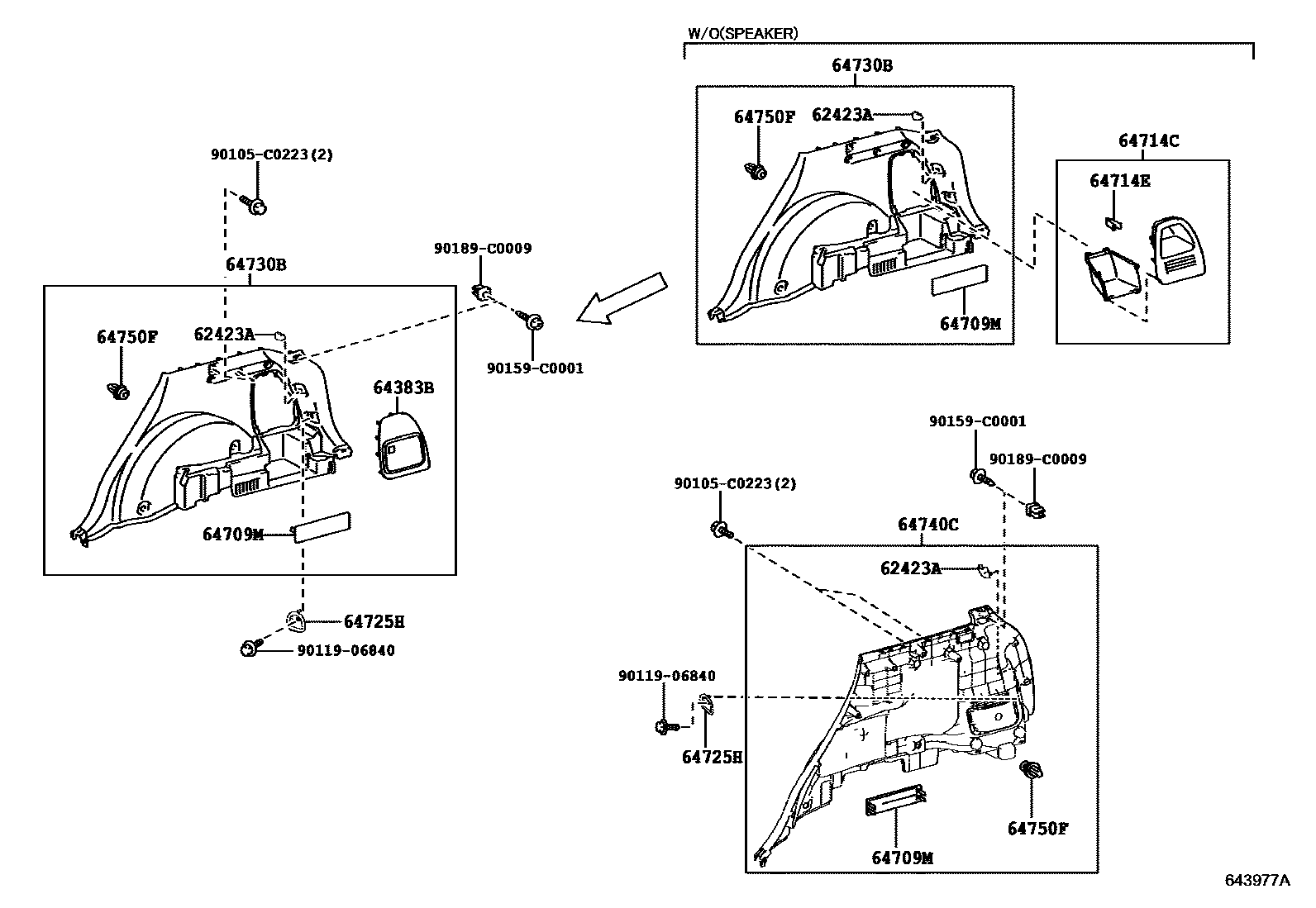

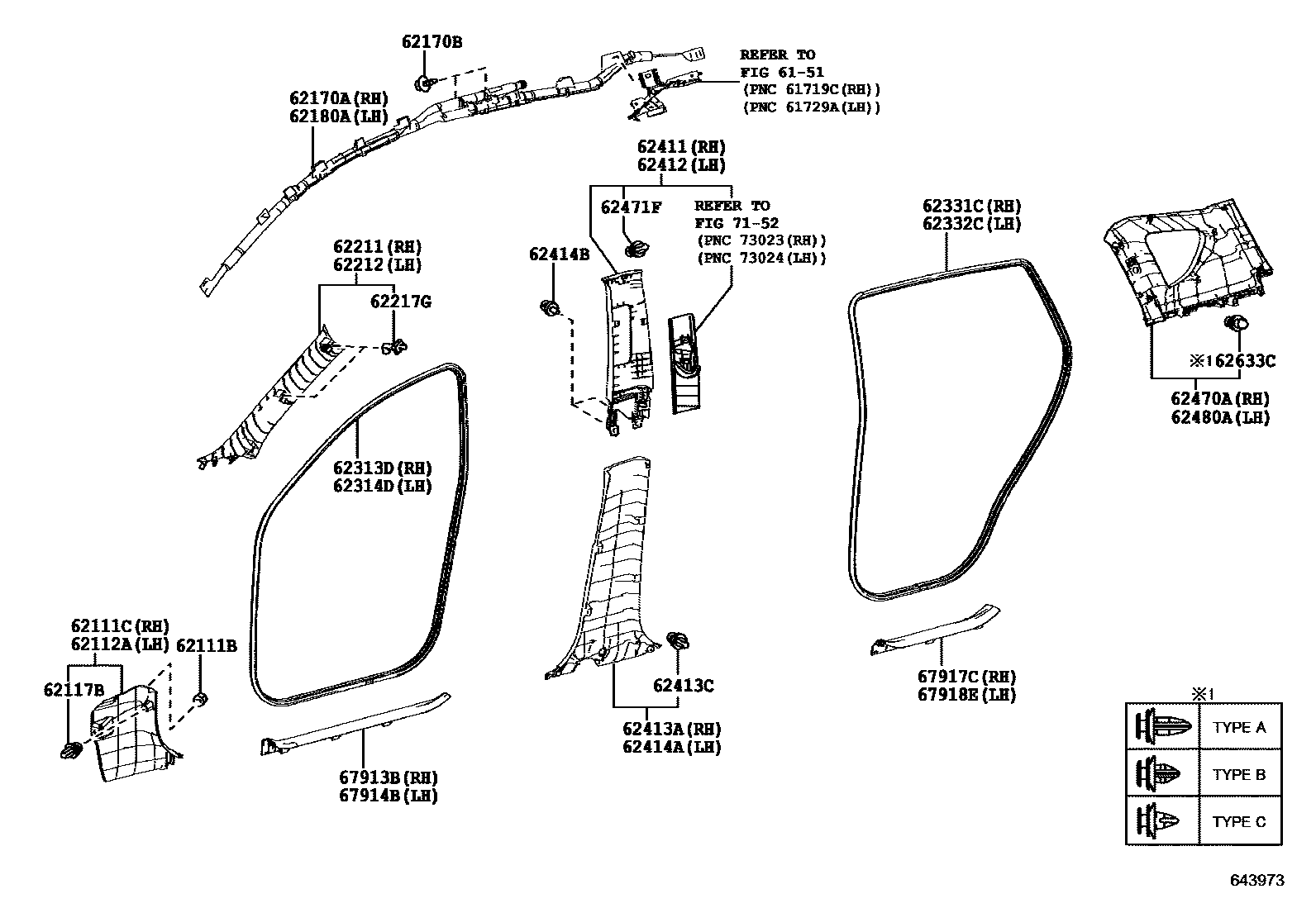

Toyota RAV4 EPC diagram 6451, 车内装饰板, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06147 · 90467-06155 |
| 62117B | No. 1 clip (for cowl side trim panel) | 90467-10161 · 90467-C0036 |
| 62170A | Right curtain air bag assembly | 62170-0R050 |
| 62170B | Bolts with washers | 90119-06869 |
| 62180A | Left curtain air bag assembly | 62180-0R050 |
| 62217G | Front pillar decorative plate clip | 62217-52120 |
| 62313D | Right front door waterproof strip | 62311-0R040 |
| 62314D | Left front door waterproof strip | 62312-0R040 |
| 62331C | Right rear door opening waterproof tape | 62331-0R040 |
| 62332C | Left rear door opening waterproof tape | 62332-0R040 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10167 |
| 62414B | Clip (for the decorative panel under the center pillar) | 90467-10216 · 90467-C0046 |
| 62471F | Clip (for roof side inner upper trim panel) | 90467-10188 |
| 62633C | Clip (for side panel decorative parts) | 90467-09240 · 90467-10161 · 90467-10167 · 90467-C0036 |
| 64709M | Floor decorative bag cover sub-assembly | 64709-0R010 |
| 64714E | Clip (for bottom panel side decorative cover) | 90467-10203 |
| 64725H | Side decorative hook | 58460-33020 |
| 64750F | Clip (for bottom panel side decorative panel) | 90467-10161 · 90467-C0036 |
