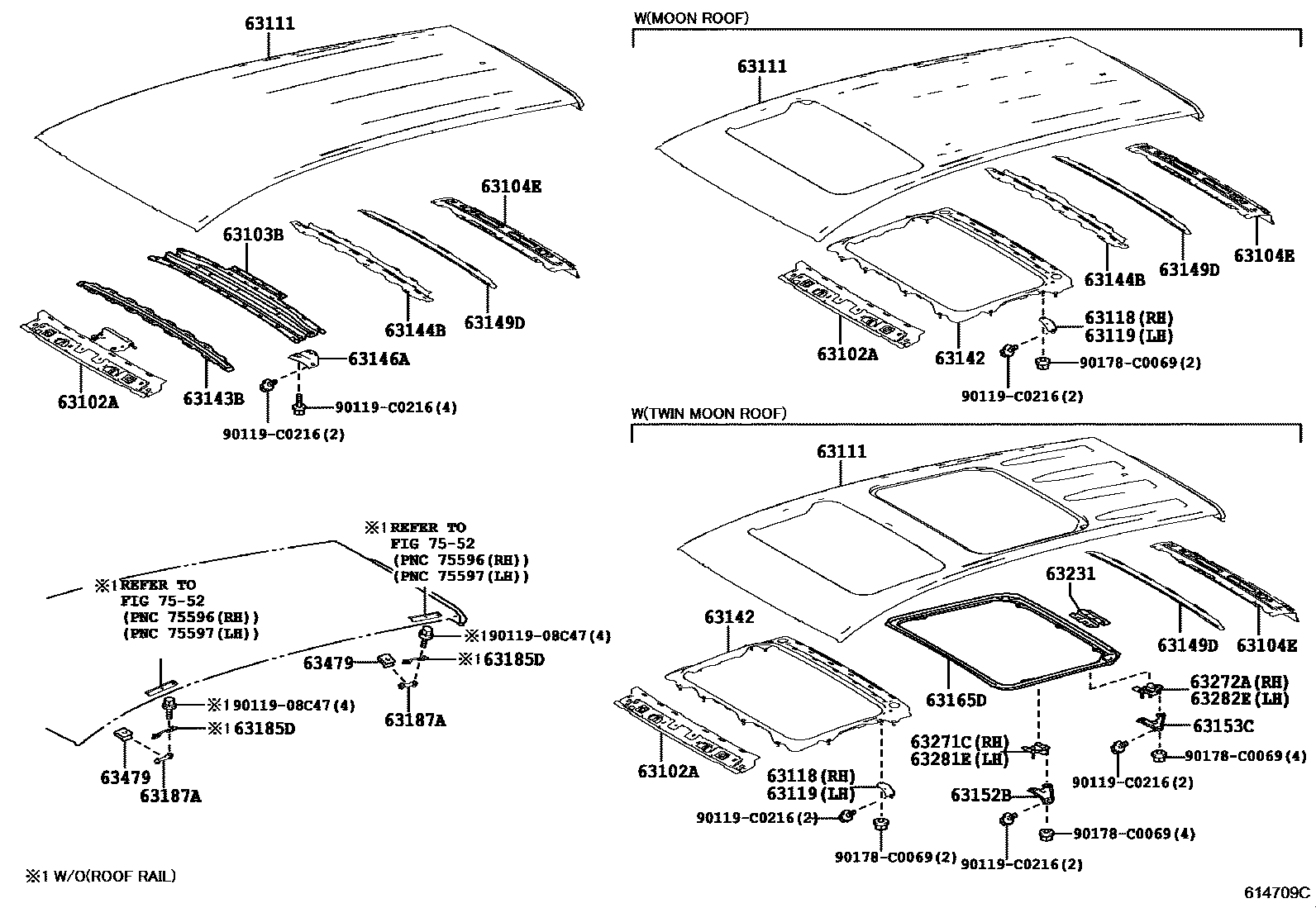

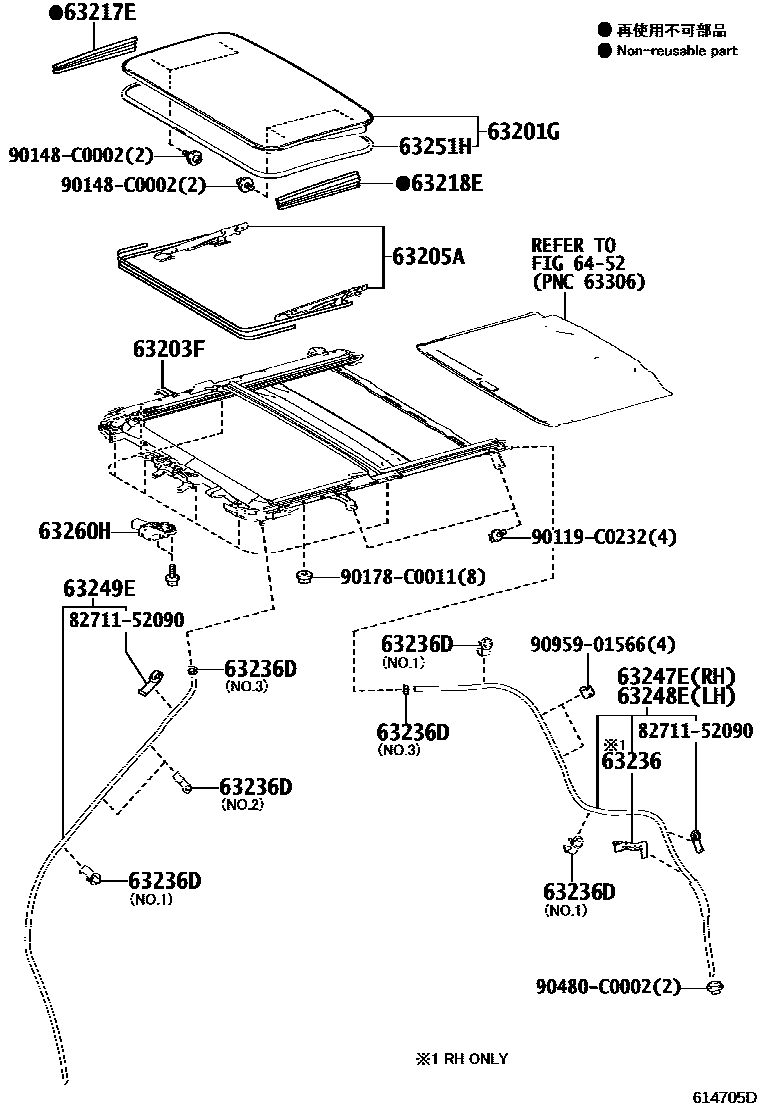

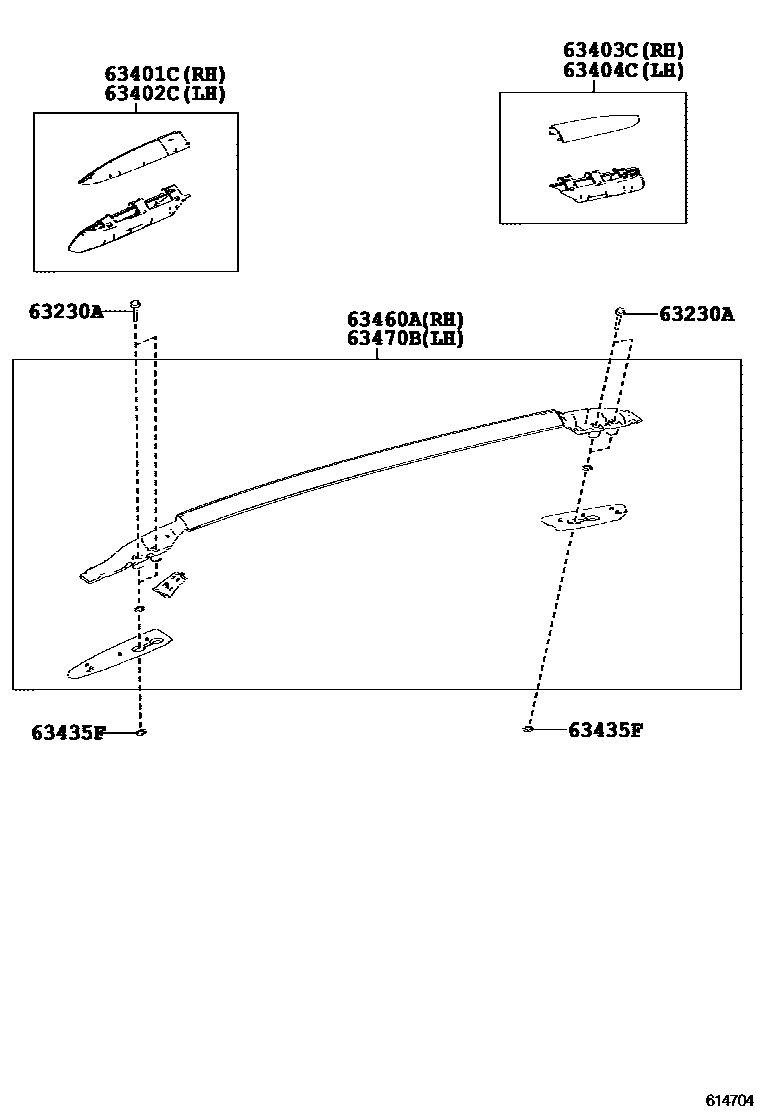

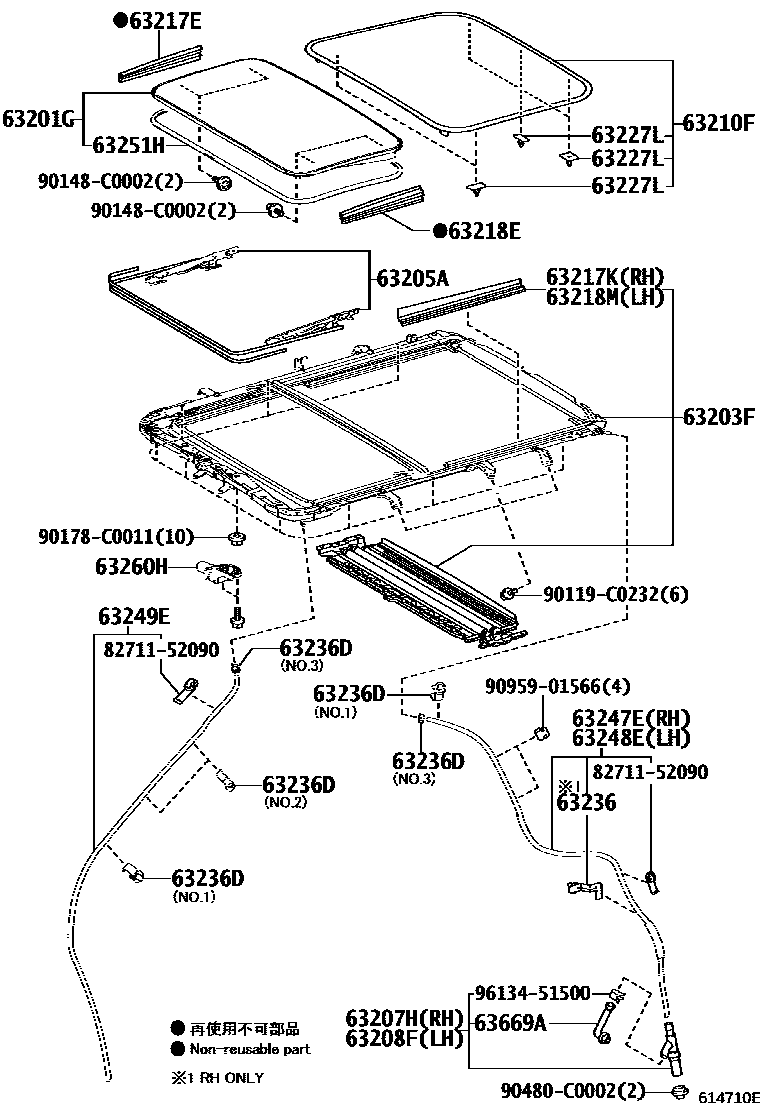

Toyota RAV4 天窗板和背板 — Figure 6153
Toyota RAV4 EPC diagram 6153, 天窗板和背板, with 4 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-0R905 · 63102-0R906 |
| 63103B | Center roof panel reinforcement sub-assembly | 63103-0R020 |
| 63104E | Rear roof panel reinforcement sub-assembly | 63104-0R020 |
| 63111 | roof panel | 63111-0R100 · 63111-0R110 · 63111-0R120 |
| 63118 | Right roof panel bracket | 63118-0R040 |
| 63119 | Left roof panel bracket | 63118-0R040 |
| 63142 | No. 2 roof panel reinforcement | 63142-0R040 |
| 63143B | No. 3 roof panel reinforcement | 63143-0R040 |
| 63144B | No. 4 roof panel reinforcement | 63144-0R040 |
| 63146A | No. 1 roof panel reinforcement bracket | 63146-0R040 |
| 63149D | No. 8 roof panel reinforcement | 63149-0R050 |
| 63152B | No. 1 roof panel reinforcement | 63152-0R010 |
| 63153C | No. 2 roof panel reinforcement | 63153-0R010 |
| 63165D | In-roof opening box | 63165-0R010 |
| 63185D | Front roof rack bracket | 63185-42020 |
| 63187A | Rear roof rack bracket | 63187-42010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-0R040 |
| 63203F | Sliding sunroof frame sub-assembly | 63203-0R040 |
| 63205A | Sliding sunroof transmission cable sub-assembly | 63205-0R010 · 63205-0R020 · 63205-0R050 · 63205-0R060 |
| 63207H | Removable sunroof right rear drain hose sub-assembly | 63207-0R010 |
| 63208F | Removable sunroof left rear drain hose sub-assembly | 63208-0R010 |
| 63210F | Skylight glass assembly | 63210-0R010 · 63210-0R011 · 63210-0R012 |
| 63217E | Right front sliding sunroof trim | 63217-02030 · 63217-0R010 |
| 63217K | Right sliding sunroof trim | 63217-0R020 |
| 63218E | Left front sliding sunroof trim | 63217-02030 · 63217-0R010 |
| 63218M | Sliding sunroof trim, left | 63218-0R010 |
| 63227L | Skylight clip | 63227-0R010 · 63227-0R020 · 63228-0R010 · 63228-0R020 |
| 63230A | Removable roof bolt assembly | 63230-42010 |
| 63231 | Interior light bracket | 63231-0R040 |
| 63236 | Sliding sunroof or removable roof drain hose clip | 63236-30020 |
| 63236D | Sliding skylight drain hose clamp | 63236-02010 · 63236-0R010 · 63236-30010 · 63236-33030 |
| 63247E | Right rear sliding sunroof drain hose | 63247-0R020 · 63247-0R030 |
| 63248E | Left rear sliding sunroof drain hose | 63248-0R020 · 63248-0R030 |
| 63249E | Sliding skylight drain hose | 63249-0R060 |
| 63251H | Sliding skylight seal | 63251-0R010 |
| 63260H | Sliding sunroof driving gear assembly | 63260-0R040 · 63260-0R050 |
| 63271C | No. 1 right side roof panel reinforcement | 63271-0R010 |
| 63272A | No. 2 right side roof panel reinforcement | 63272-0R010 |
| 63281E | No. 1 left roof panel reinforcement | 63281-0R010 |
| 63282E | No. 2 left roof panel reinforcement | 63282-0R010 |
| 63401C | Roof rack right front cover sub-assembly | 63401-0R040 |
| 63402C | Roof rack left front cover sub-assembly | 63402-0R020 |
| 63403C | Roof rack right rear cover sub-assembly | 63403-0R020 |
| 63404C | Roof rack left rear cover sub-assembly | 63404-0R020 |
| 63435F | Roof rack No. 1 seal | 63437-0R020 |
| 63460A | Roof right luggage rack assembly | 63460-0R040 |
| 63470B | Roof left luggage rack assembly | 63470-0R040 |
| 63479 | Roof rack fixings | 63479-60020 |
| 63669A | Sliding skylight drain seal | 63669-0R010 |
