Toyota RAV4 中央扶手箱和支架 — Figure 5855

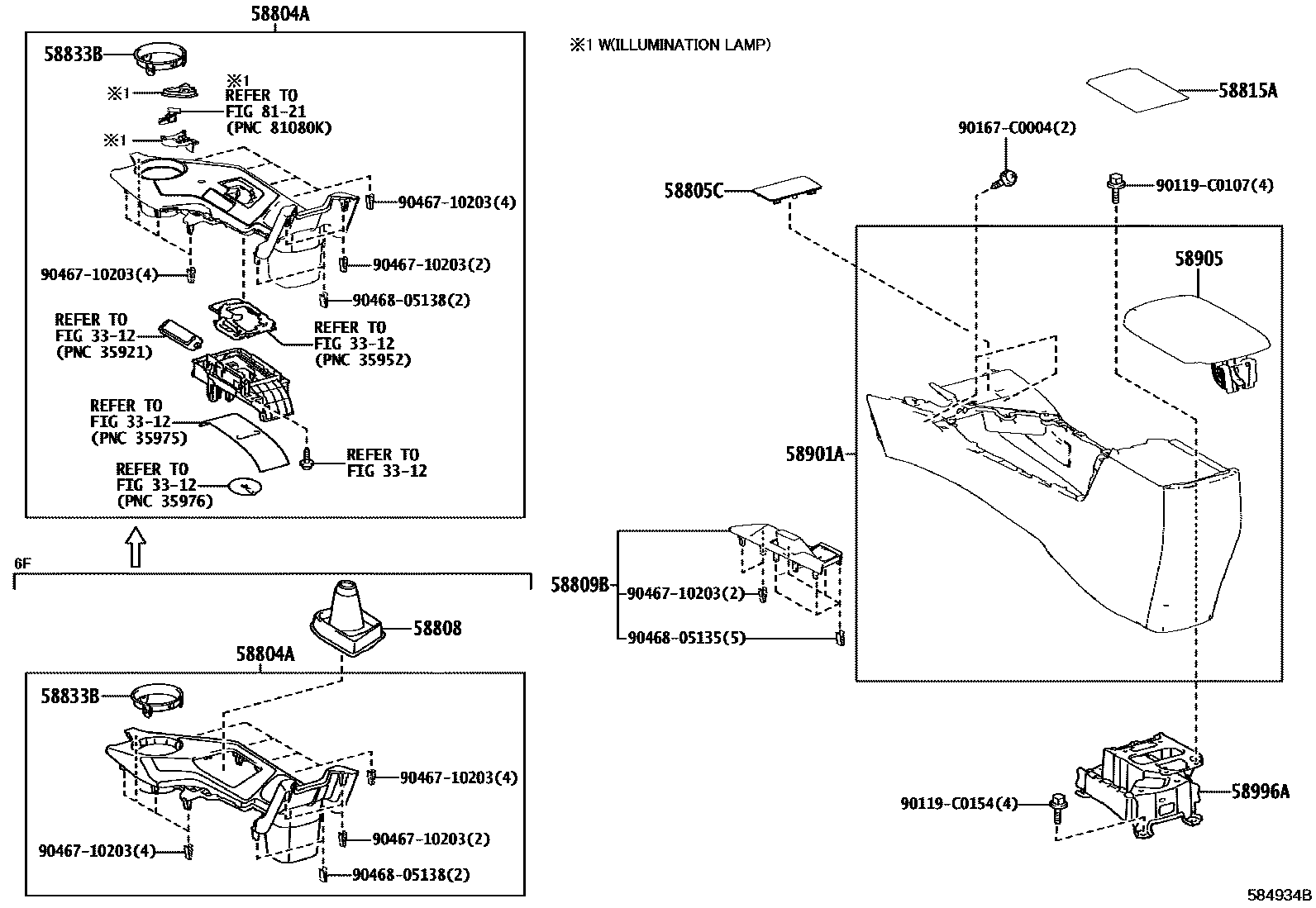

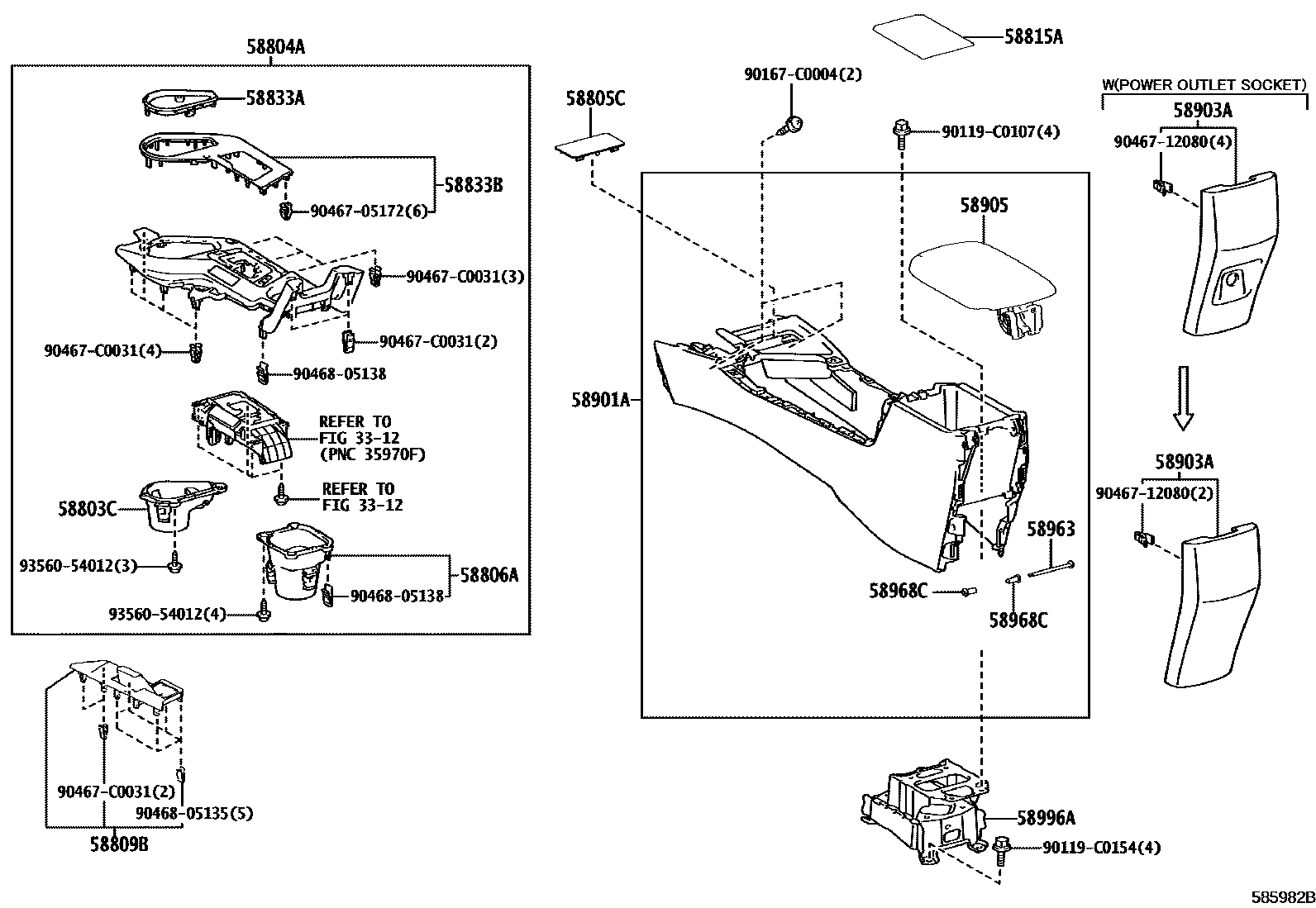

Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58815A | Armrest box felt pad | 58815-0R040 · 58815-0R070 |
| 58833B | Armrest box upper panel decorative part No. 1 | 58831-0R040 · 58833-0R050 · 58833-0R070 |
| 58963 | Armrest box lid hinge shaft | 58963-0R020 |
| 58968C | Armrest box lid stopper gasket | 58968-0R020 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-0R040 |
