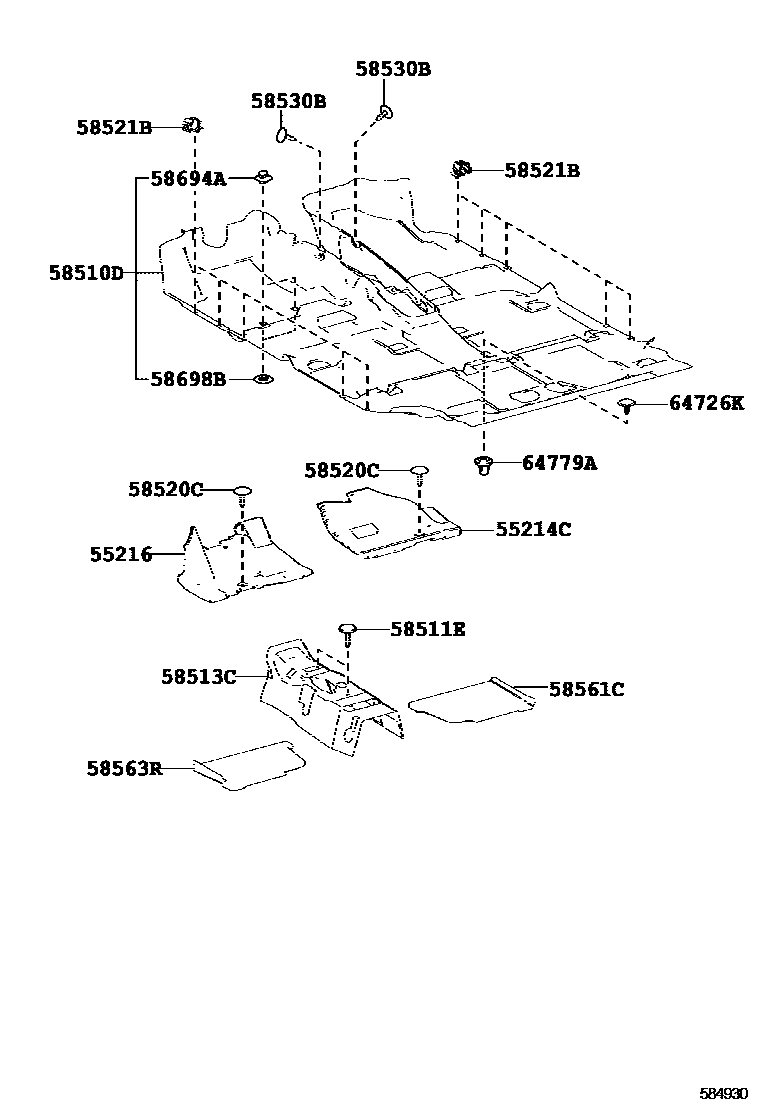

Toyota RAV4 地板垫和消声垫 — Figure 5854
Toyota RAV4 EPC diagram 5854, 地板垫和消声垫, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-0R040 |
| 55216 | No. 4 heat insulation pad for front wall | 55216-0R040 |
| 58513C | Front floor center mat | 58513-0R050 |
| 58521B | carpet hook | 58521-12150 |
| 58530B | Clip (for front carpet) | 90467-C0029 |
| 58561C | Front floor silencer No. 1 | 58561-0R040 |
| 58563R | Front floor silencer No. 3 | 58563-0R040 |
| 58694A | Pad the fixing plate | 58694-76010 |
| 58698B | Fixing plate under the pad | 58698-76010 |
| 64726K | Luggage rear trim clip | 64726-0D010 |
| 64779A | Spare tire cover stop | 64779-0D040 |
