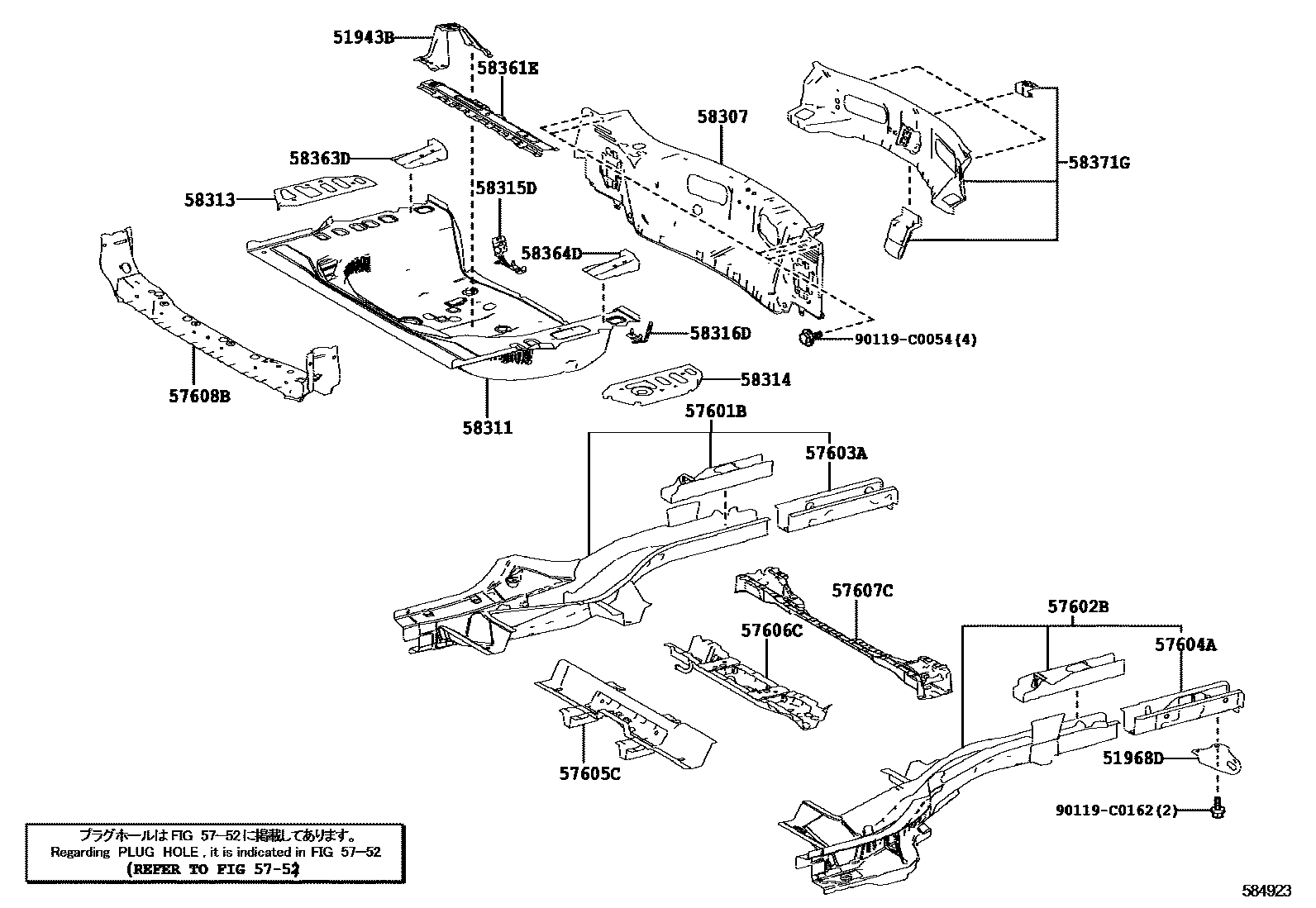

Toyota RAV4 后地板和后地板梁 — Figure 5852
Toyota RAV4 EPC diagram 5852, 后地板和后地板梁, with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51943B | No. 1 spare tire rack bracket | 51912-0R020 |
| 51968D | Left rear transport hook | 51968-0R020 |
| 57601B | Rear floor right front longitudinal beam sub-assembly | 57601-0R905 |
| 57602B | Rear floor left front longitudinal beam sub-assembly | 57602-0R904 |
| 57603A | Rear floor right rear longitudinal beam sub-assembly | 57603-0R021 |
| 57604A | Rear floor left rear longitudinal beam sub-assembly | 57604-0R020 |
| 57605C | Rear floor cross member sub-assembly | 57605-0R020 |
| 57606C | Rear floor No. 2 cross member sub-assembly | 57606-0R050 |
| 57607C | Rear floor No. 3 cross member sub-assembly | 57607-0R040 |
| 57608B | Rear floor No. 4 cross member sub-assembly | 57608-0R050 |
| 58307 | Body lower back panel sub-assembly | 58307-0R040 · 58307-0R060 |
| 58311 | rear floor pan | 58311-0R040 · 58311-0R041 |
| 58313 | Rear floor right panel | 58313-0R020 |
| 58314 | rear floor left panel | 58314-0R020 |
| 58315D | Rear floor pan right extension | 58315-0R040 |
| 58316D | Rear floor pan left extension | 58316-0R030 |
| 58361E | Rear floor reinforcement No. 1 | 58361-0R030 |
| 58363D | Rear floor No. 2 right reinforcement | 58363-0R020 |
| 58364D | Rear floor No. 2 left reinforcement | 58364-0R020 |
| 58371G | Body lower back panel | 58302-0R050 |
