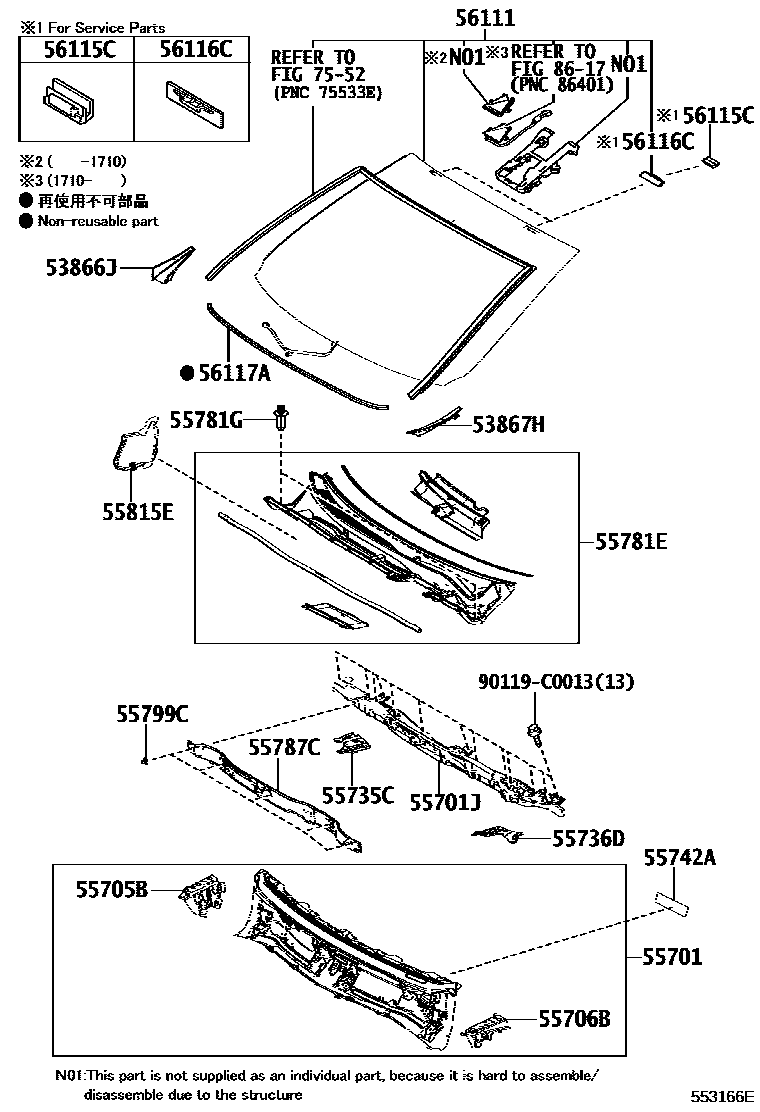

Toyota RAV4 前围板和挡风玻璃 — Figure 5553
Toyota RAV4 EPC diagram 5553, 前围板和挡风玻璃, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53866J | Right front fender to cowl side seal | 53866-0R040 |
| 53867H | Left front fender to cowl side seal | 53867-0R040 |
| 55701 | Front apron sub-assembly | 55700-0R040 |
| 55701J | Front wall upper outer panel sub-assembly | 55701-0R040 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-0R040 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-0R040 |
| 55735C | Right front wall body-mounted reinforcement | 55735-0R040 |
| 55736D | Left front wall body mounting reinforcement | 55736-0R050 |
| 55742A | Heat insulation panel on front wall | 55742-0R040 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-0R040 |
| 55787C | No. 1 front wall upper cover thermal insulation pad | 55787-0R040 |
| 55799C | Ventilation grille clips on front apron | 90467-06197 |
| 55815E | No. 1 front vent seal | 55815-0R020 |
| 56111 | windshield | 56101-0R120 · 56101-0R130 · 56101-0R140 · 56101-0R170 · 56101-0R380 |
| 56115C | windshield block | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-0R040 |
