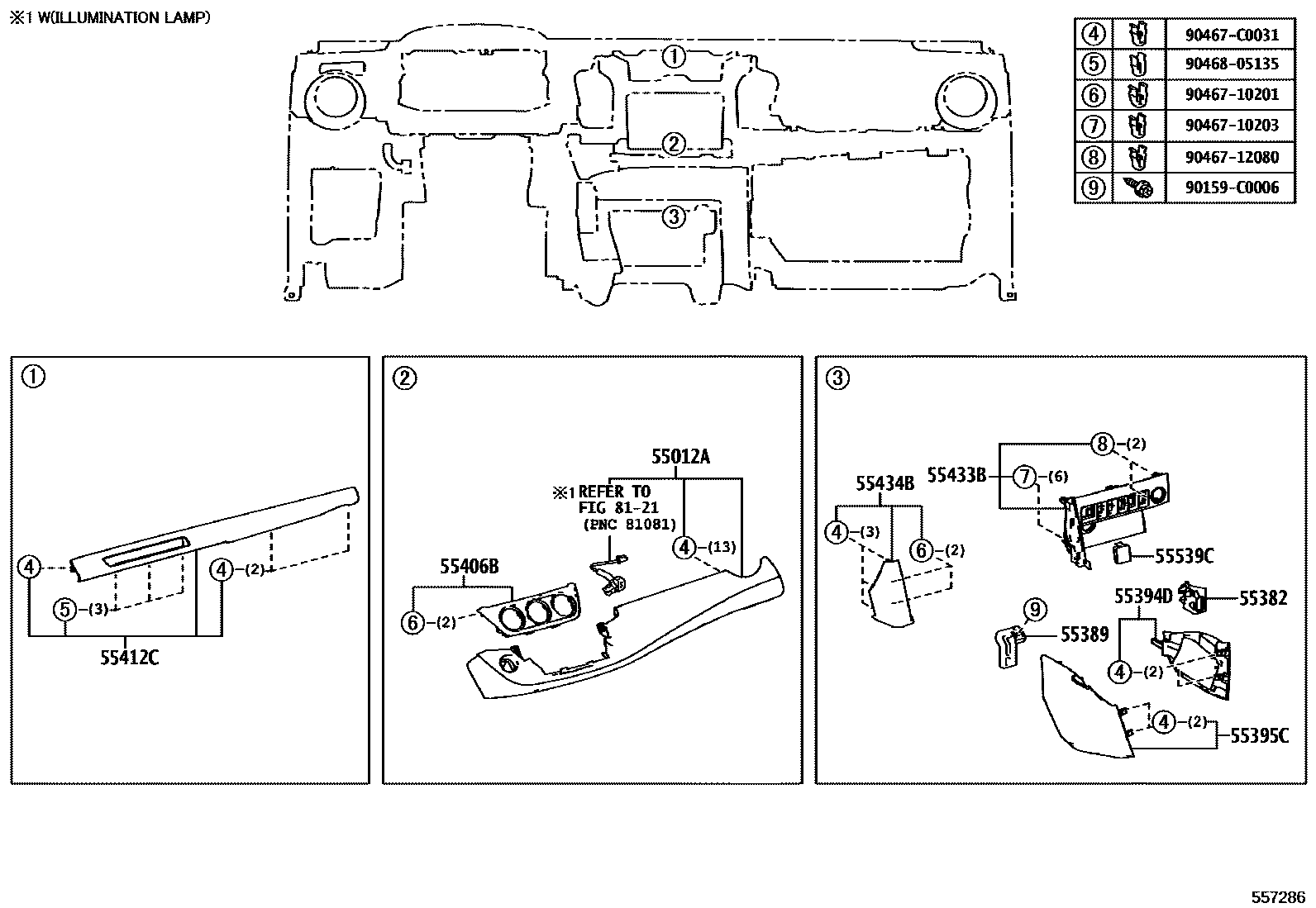

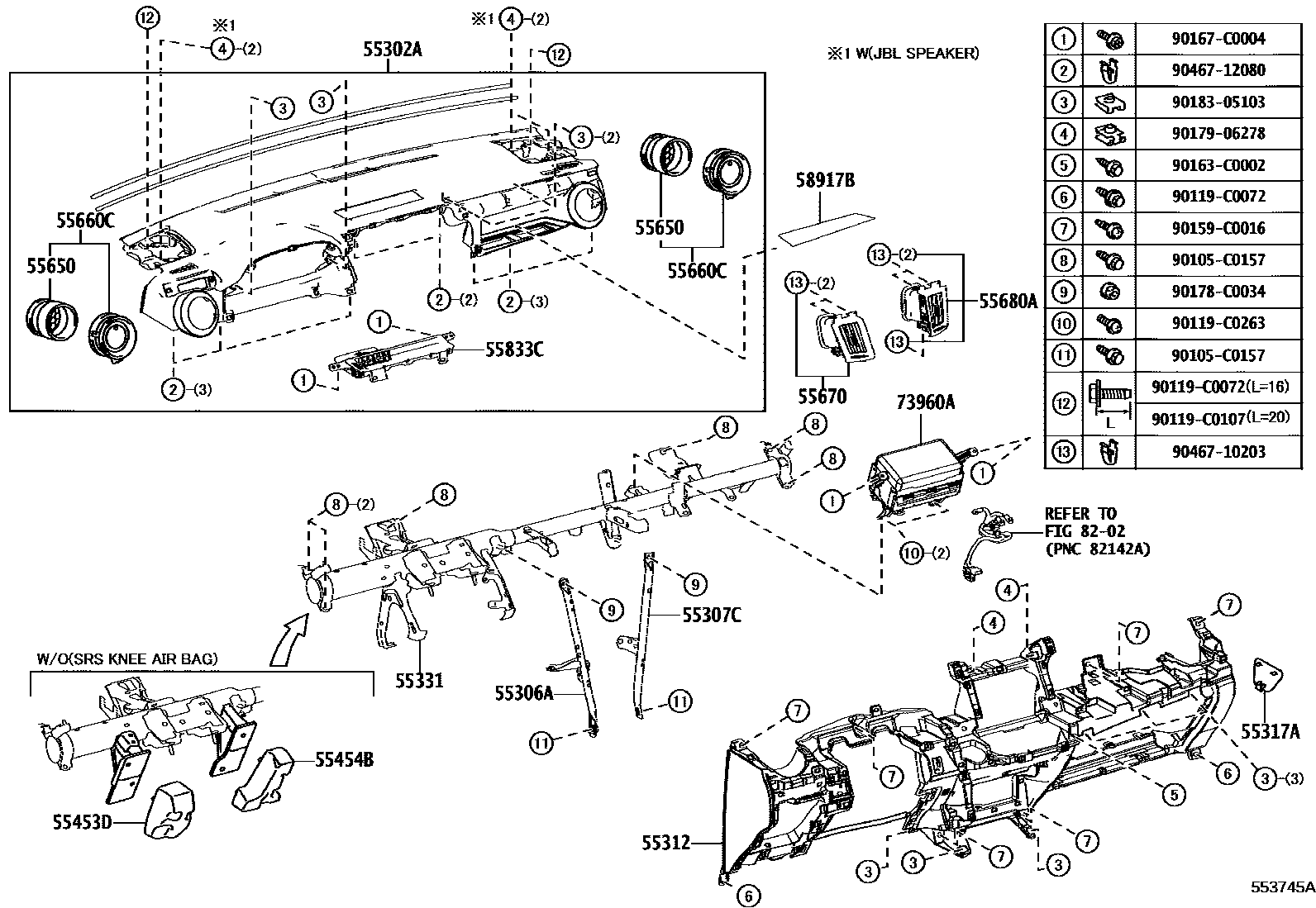

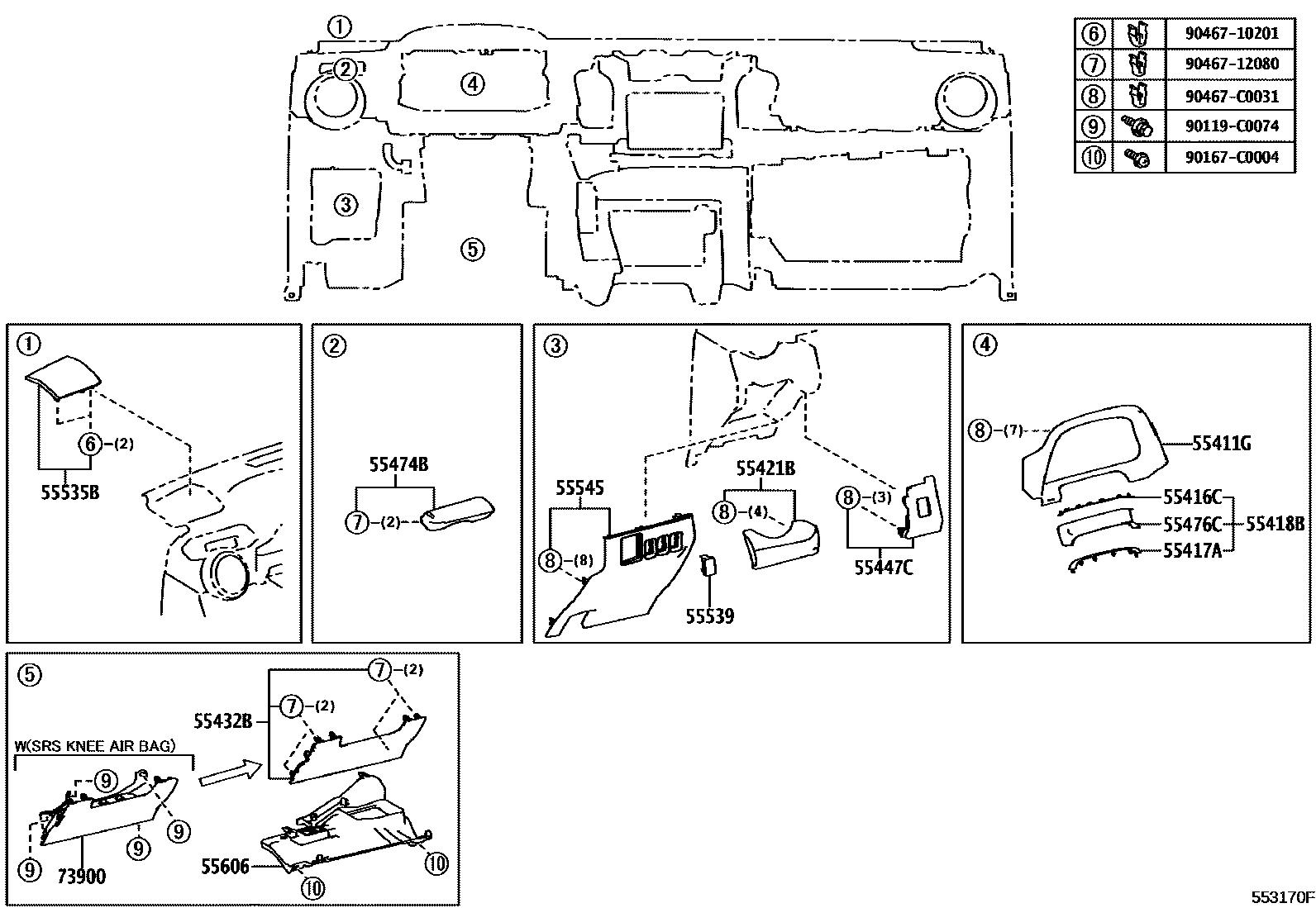

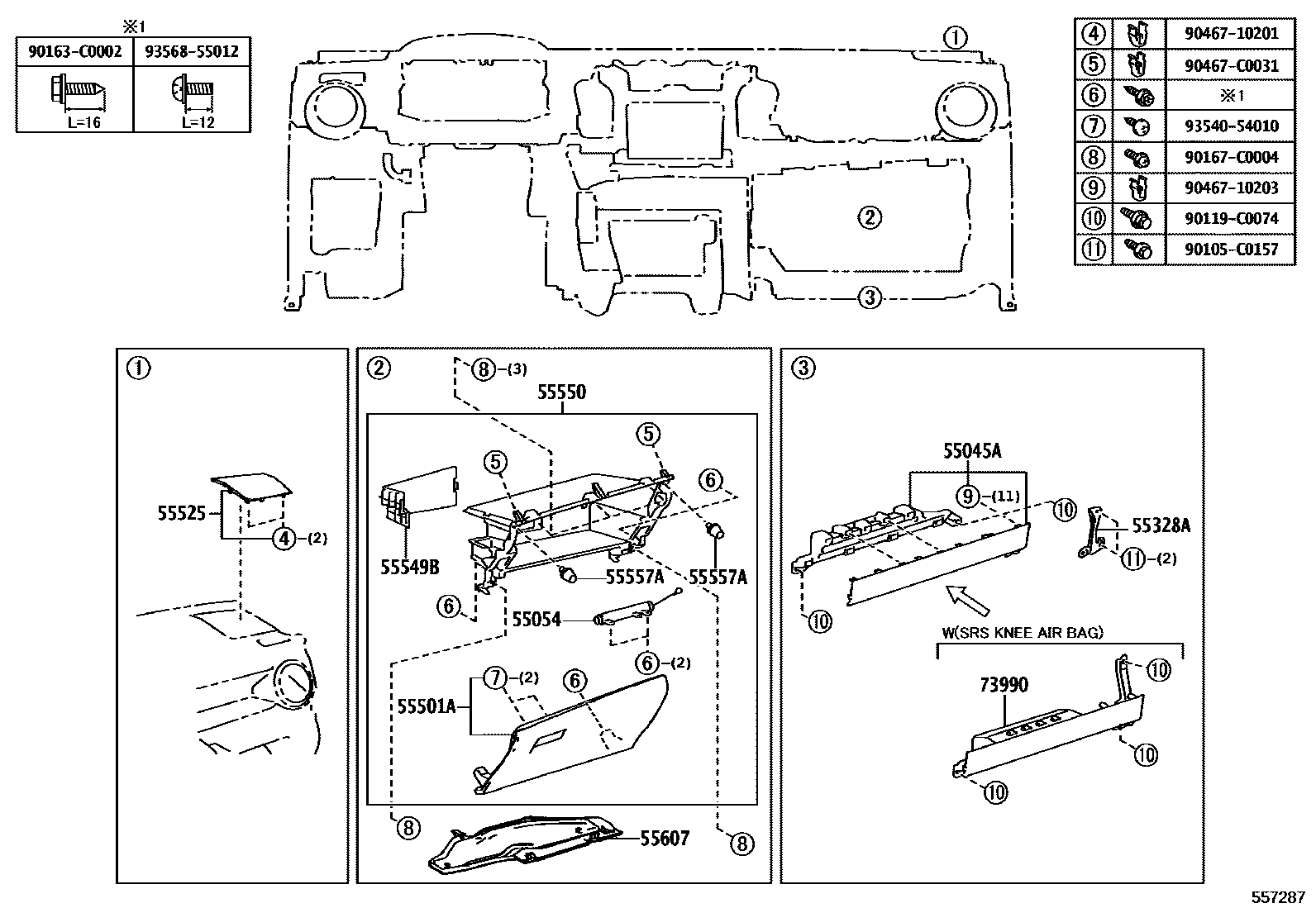

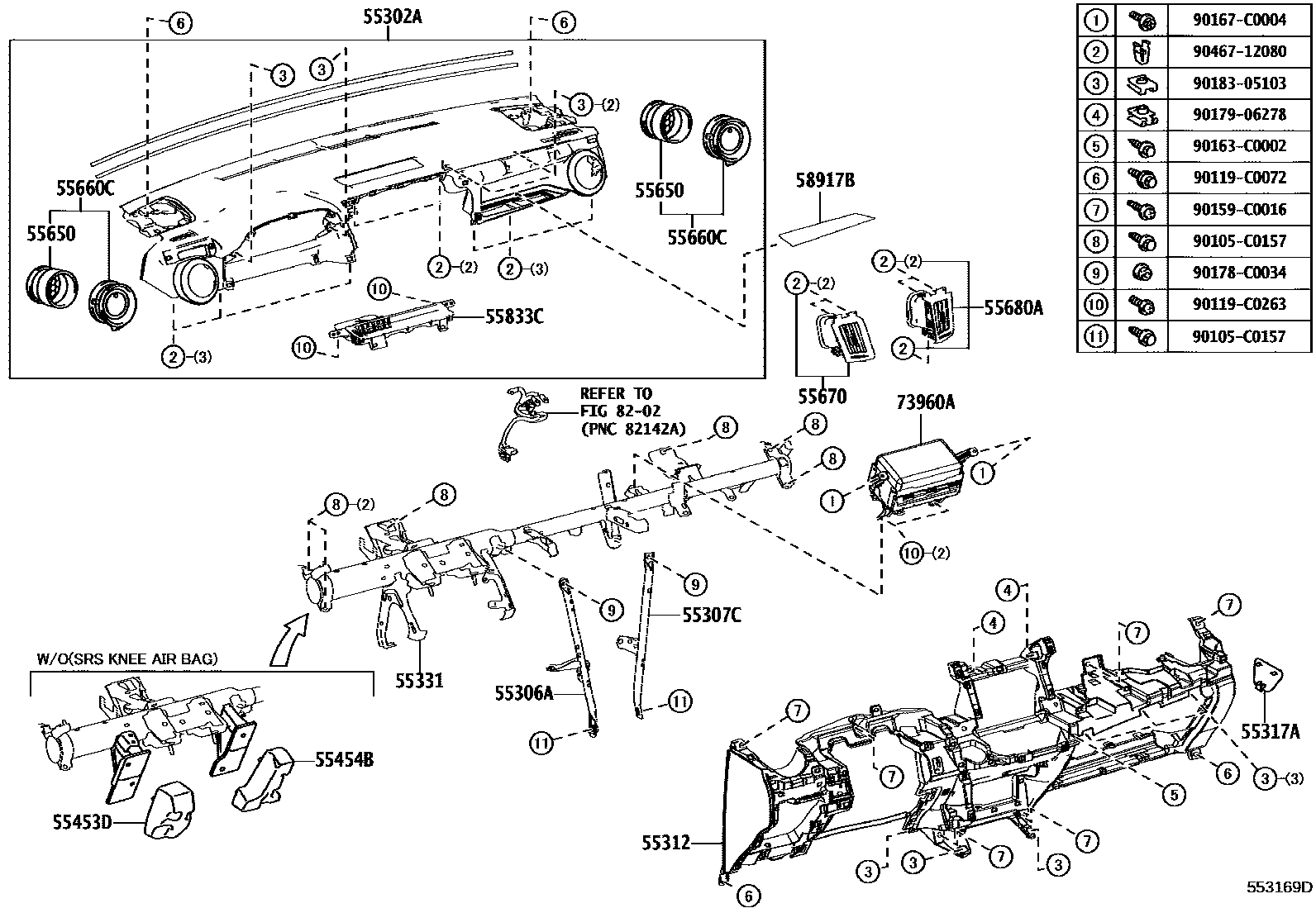

Toyota RAV4 仪表板和手套箱 — Figure 5551
Toyota RAV4 EPC diagram 5551, 仪表板和手套箱, with 5 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55054 | Glove box cover stopper sub-assembly | 55054-0R010 |
| 55306A | Instrument panel No. 1 bracket sub-assembly | 55306-0R050 · 55306-0R060 |
| 55307C | Instrument panel No. 2 bracket sub-assembly | 55307-0R020 |
| 55328A | Dashboard No. 3 stay | 55328-0R080 |
| 55331 | Dashboard reinforcement | 55330-0R050 · 55330-0R060 · 55330-0R080 · 55330-0R090 |
| 55382 | No. 2 decorative panel mounting bracket | 55382-02120 |
| 55389 | Console left side mounting bracket | 55389-0R020 |
| 55406B | Center instrument cluster lower decorative panel sub-assembly | 55406-0R020 · 55406-0R040 |
| 55411G | Instrument cluster No. 1 decorative panel | 55411-0R040 · 55411-0R041 |
| 55412C | Center instrument cluster No. 1 decorative panel | 55412-0R050 |
| 55416C | Instrument cluster decorative panel fixings | 55416-0R040 |
| 55417A | Instrument cover No.2 fixing piece | 55417-0R040 |
| 55418B | Instrument cover spacer | 55418-0R020 |
| 55434B | Center dashboard lower trim panel | 55434-0R020 |
| 55453D | Dashboard Safety Mat No. 1 | 55453-0R030 |
| 55454B | Dashboard Safety Mat No. 2 | 55454-0R030 |
| 55474B | Instrument cluster decorative panel trim parts | 55474-0R020 |
| 55476C | Dashboard decorative panel trim parts | 55476-0R040 |
| 55549B | Instrument panel hole cover No. 2 | 55549-0R030 |
| 55557A | Glove box cover limit pad | 55557-60050 |
| 55606 | Instrument panel No. 1 bottom cover sub-assembly | 55606-0R040 |
| 55607 | Instrument panel No. 2 bottom cover sub-assembly | 55607-0R040 · 55607-0R041 |
| 55670 | Instrument panel No. 3 air regulator assembly | 55670-0R050 · 55670-0R060 · 55670-0R100 · 55670-0R110 |
| 55680A | No. 4 air regulator assembly on instrument panel | 55680-0R030 · 55680-0R040 · 55680-0R070 · 55680-0R080 |
| 73960A | Dashboard passenger air bag assembly without cover | 73960-0R050 |
