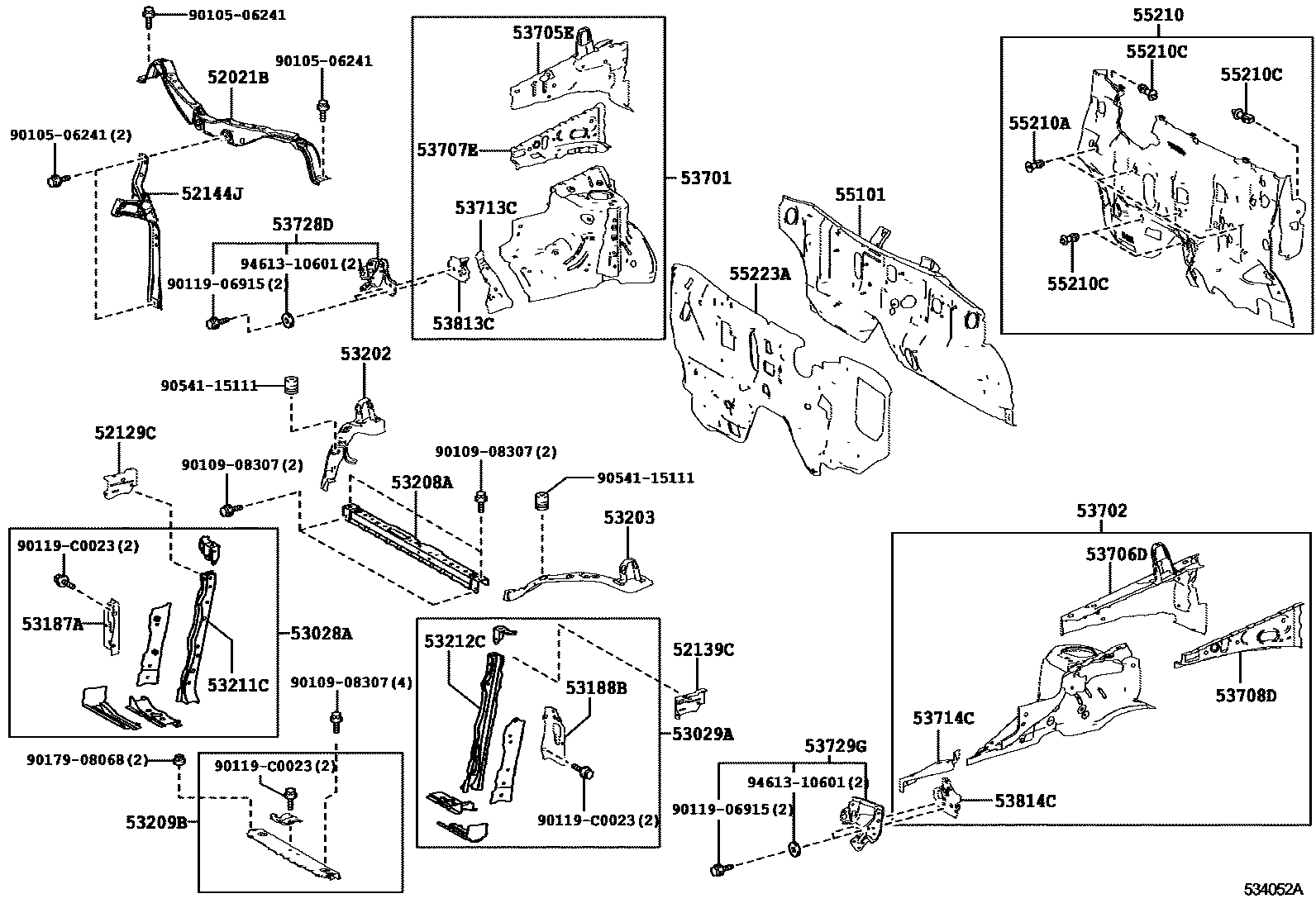

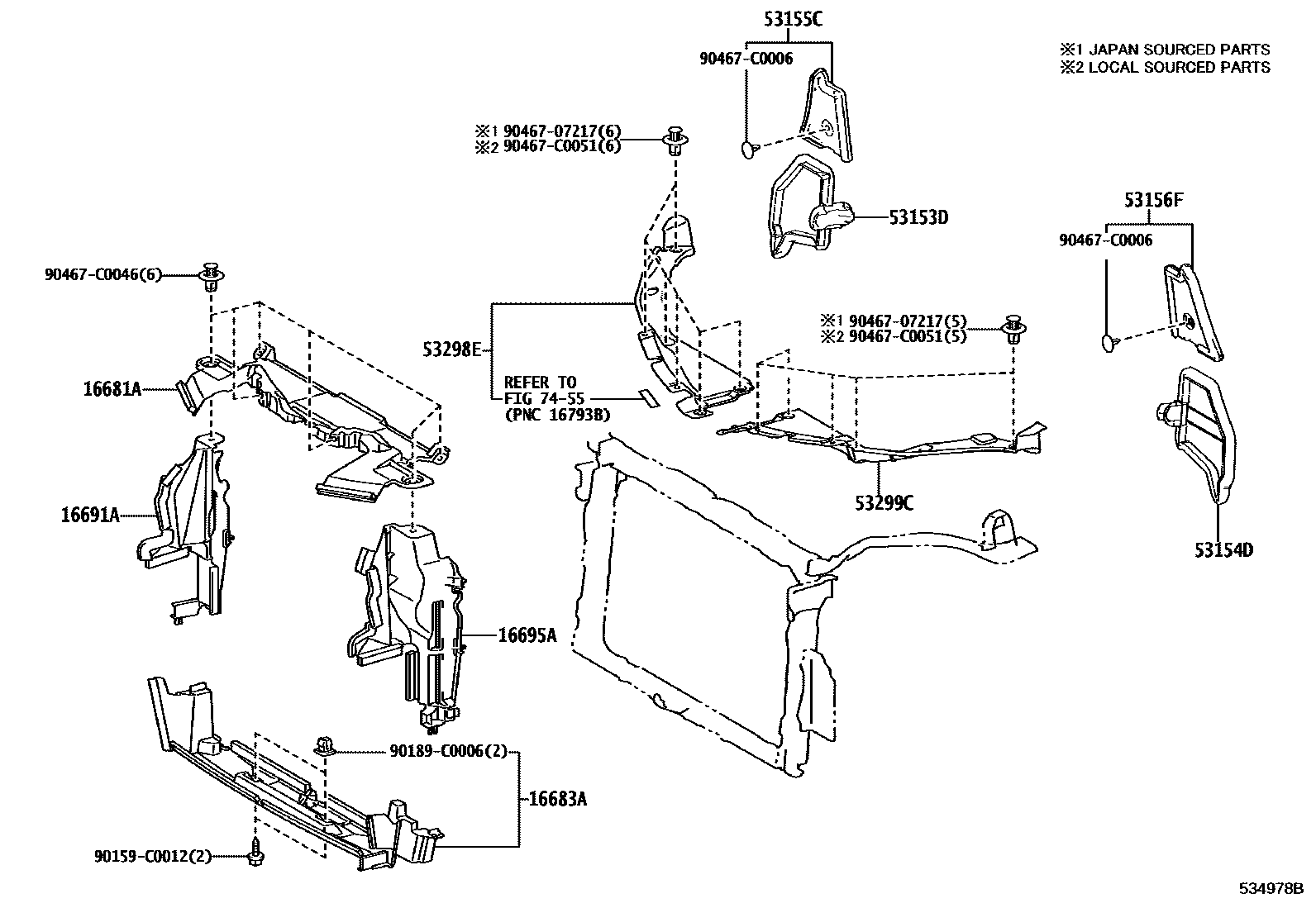

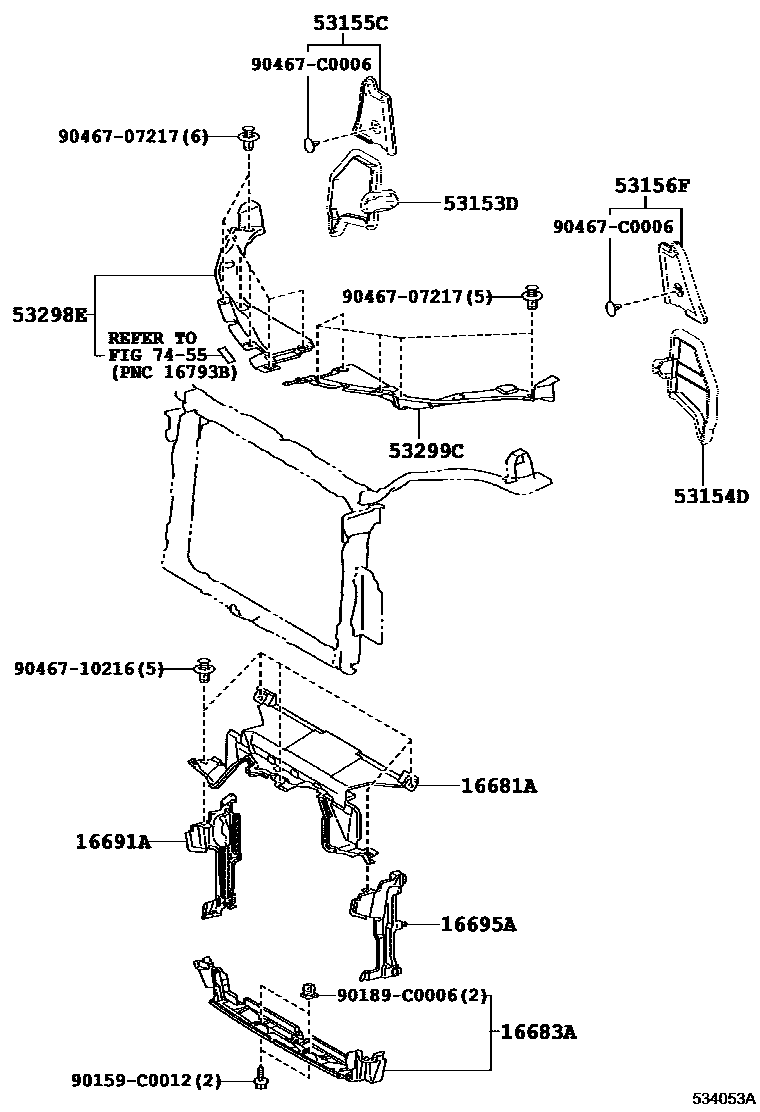

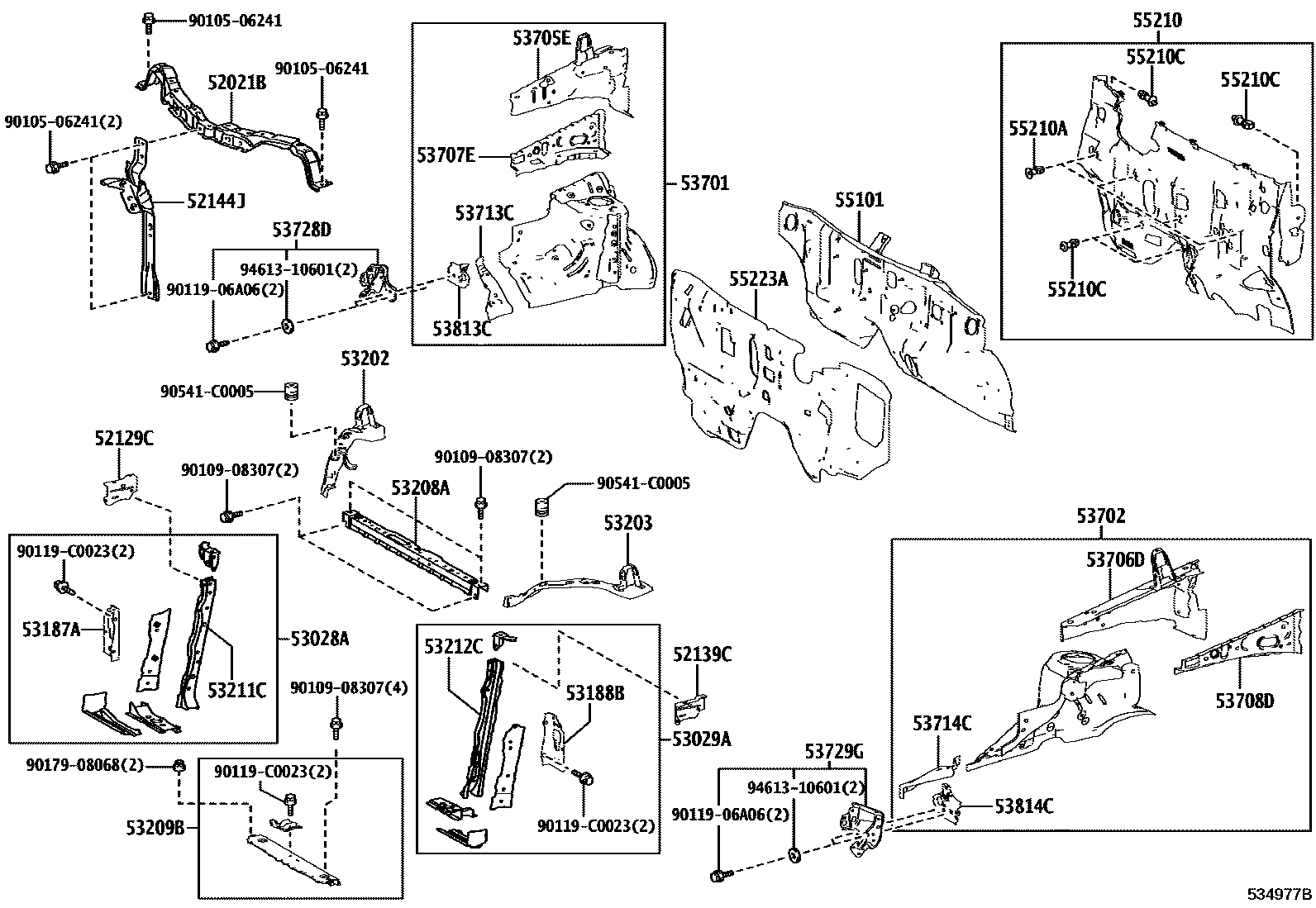

Toyota RAV4 前翼子板挡泥板和前围板 — Figure 5355
Toyota RAV4 EPC diagram 5355, 前翼子板挡泥板和前围板, with 4 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16681A | Radiator upper deflector | 16681-0T010 · 16681-0V020 · 16681-0V030 |
| 16683A | Radiator lower deflector | 16683-0T010 · 16683-0V020 · 16683-0V030 |
| 16691A | Radiator right front side deflector | 16691-0T010 · 16691-0V020 · 16691-0V030 |
| 16695A | Radiator left front deflector | 16695-0T010 · 16695-0V020 · 16695-0V030 |
| 52021B | Front bumper reinforcement sub-assembly | 52029-0R040 · 52029-0R060 |
| 52129C | Front bumper No. 2 upper right arm | 52129-0R040 |
| 52139C | Front bumper No. 2 left upper arm | 52139-0R040 |
| 52144J | Front bumper center stay | 52085-0R040 · 52085-0R060 |
| 53028A | Radiator lower right bracket sub-assembly | 53028-0R010 |
| 53029A | Radiator lower left bracket sub-assembly | 53029-0R010 |
| 53153D | Radiator grille right deflector | 53153-0R020 |
| 53154D | Radiator grille left deflector | 53154-0R020 |
| 53155C | Radiator grille seal No. 1 | 53155-0R020 |
| 53156F | Radiator grille seal No. 2 | 53156-0R020 |
| 53187A | Radiator right side bracket stay | 53187-0R020 |
| 53188B | Radiator left bracket stay | 53188-0R020 |
| 53202 | Radiator right side bracket sub-assembly | 53202-0R040 |
| 53203 | Radiator left bracket sub-assembly | 53203-0R040 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-0R010 |
| 53209B | Engine cover lock bracket sub-assembly | 53209-0R010 |
| 53211C | Radiator right side support | 53211-0R040 |
| 53212C | Radiator left support | 53212-0R040 |
| 53298E | Radiator right seal | 53298-0R010 · 53298-0R020 |
| 53299C | Radiator left seal | 53299-0R010 · 53299-0R020 |
| 53701 | Right front fender fender sub-assembly | 53701-0R050 |
| 53702 | Left front fender fender sub-assembly | 53702-0R050 |
| 53705E | Front fender to front wall right side beam sub-assembly | 53705-0R040 |
| 53706D | Front fender to front wall left side beam sub-assembly | 53706-0R040 |
| 53707E | Fender right fender sub-assembly | 53707-0R020 |
| 53708D | Fender left fender sub-assembly | 53708-0R020 |
| 53713C | Right front fender fender front extension | 53713-0R020 |
| 53714C | Left front fender fender front extension | 53714-0R020 |
| 53728D | Right fender fender bracket | 53803-42010 · 53803-42020 |
| 53729G | Left fender fender bracket | 53804-42010 |
| 53813C | Right front fender extension | 53813-0R040 |
| 53814C | Left front fender extension | 53814-0R040 |
| 55101 | Front apron sub-assembly | 55101-0R070 · 55101-0R080 |
| 55210 | Front wall insulation pad assembly | 55210-0R040 · 55210-0R041 |
| 55210A | clip | 90467-11122 |
| 55210C | clip | 90467-13079 |
| 55223A | Front wall outer heat insulation pad | 55223-0R020 · 55223-0R021 · 55223-0R030 |
