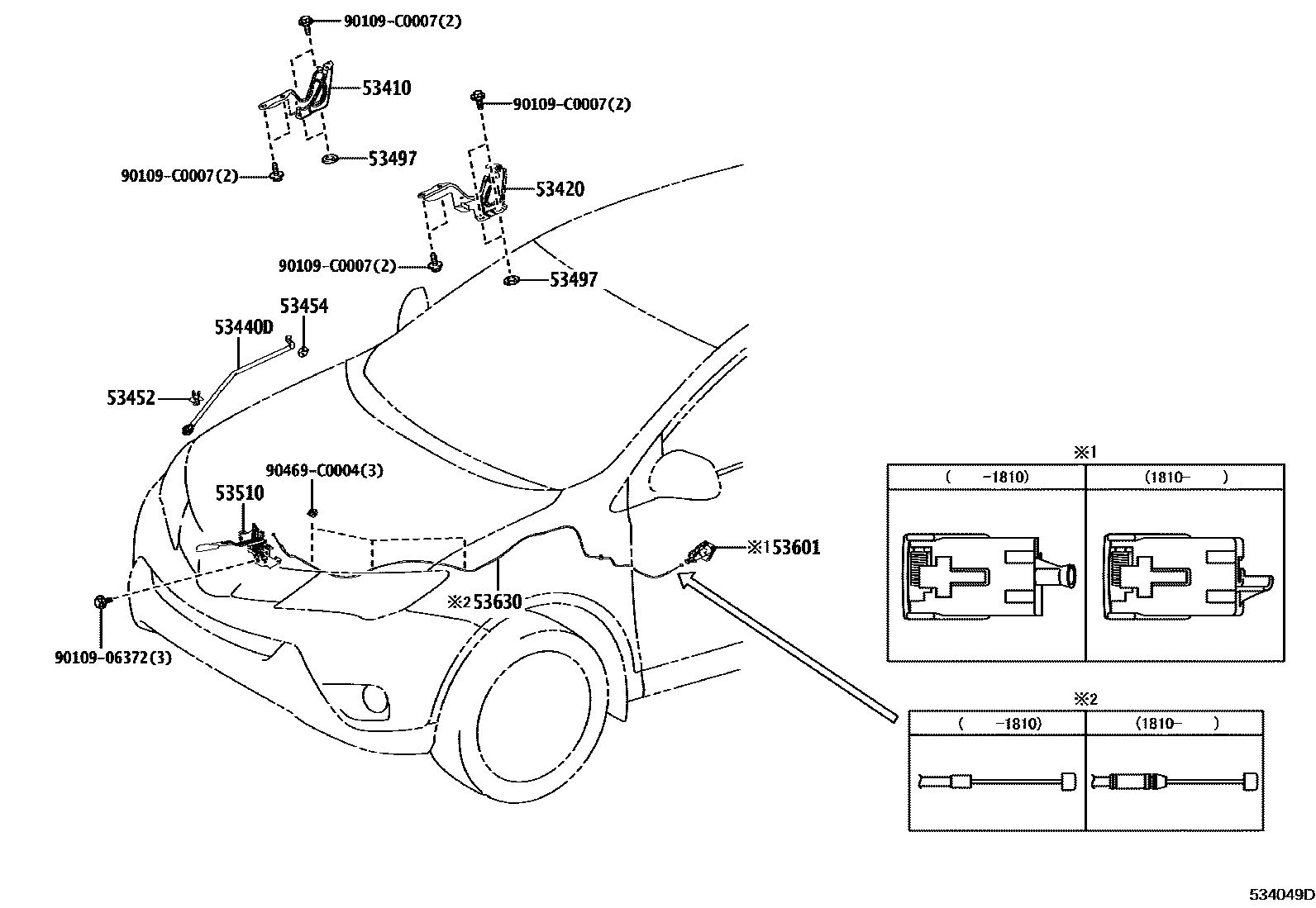

Toyota RAV4 发动机盖锁和铰链 — Figure 5354
Toyota RAV4 EPC diagram 5354, 发动机盖锁和铰链, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-0R120 |
| 53420 | Engine cover left hinge assembly | 53420-0R120 |
| 53440D | Engine cover support rod assembly | 53440-0R040 |
| 53452 | Engine cover stay rod fixing | 53452-0R020 |
| 53454 | Engine cover support rod clip | 53454-0R020 |
| 53497 | No. 1 engine cover hinge gasket | 53497-0R010 |
| 53510 | Engine cover lock assembly | 53510-0R040 · 53510-0R070 |
| 53630 | Engine hood lock control cable assembly | 53630-0R040 · 53630-0R041 |
