Toyota RAV4 发动机盖和前翼子板 — Figure 5353
Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

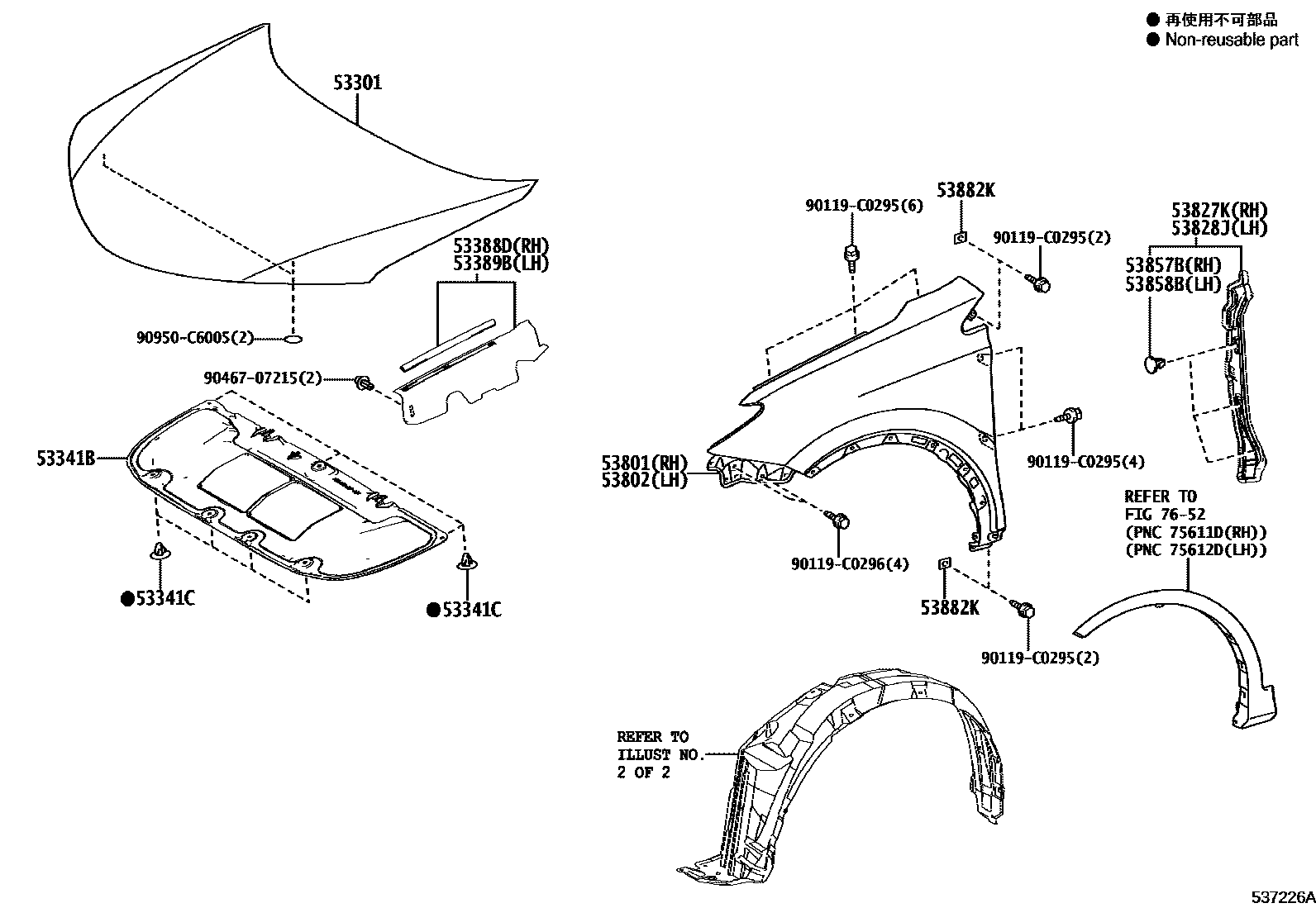

| 53301 | Engine cover sub-assembly | 53301-0R060 |
| 53341B | engine cover gasket | 53341-0R040 · 53341-0R050 |
| 53341C | Clip (for engine cover gasket) | 90467-C0006 |
| 53388D | Engine cover to right front fender seal | 53388-0R040 |
| 53389B | Engine cover to left front fender seal | 53389-0R040 |
| 53801 | Right front fender sub-assembly | 53811-0R110 |
| 53802 | Left front fender sub-assembly | 53812-0R090 |
| 53827K | Right front fender side panel protector | 53827-0R040 |
| 53828J | Left front fender side panel protector | 53828-0R040 |
| 53857B | Right front fender external panel fixing piece | 53857-0R010 · 53857-47011 |
| 53858B | Left front fender external panel fixing piece | 53857-0R010 · 53857-47011 |

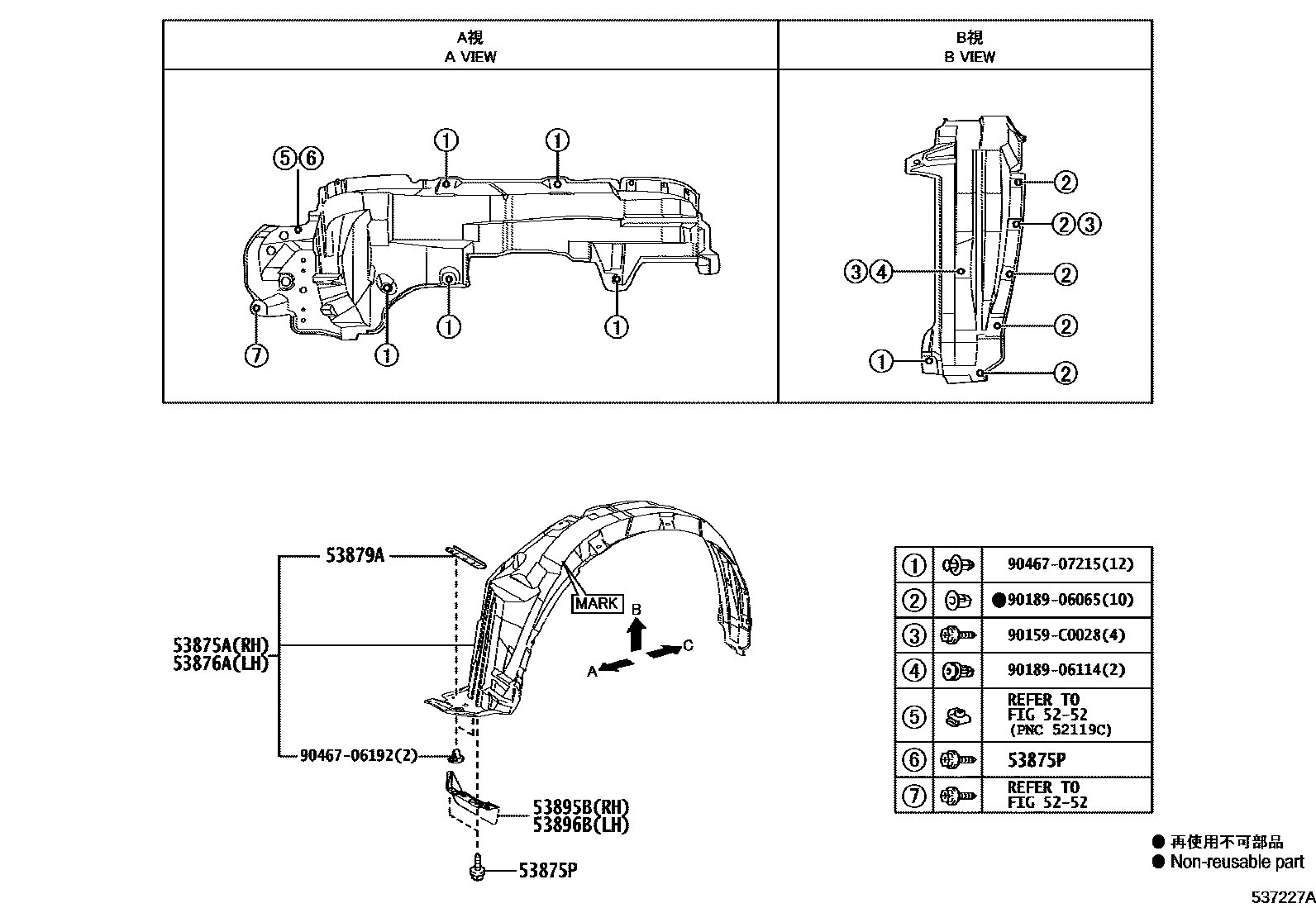

| 53875A | Right front fender lining | 53875-0R050 · 53875-0R070 |
| 53875P | Screw No. 1 | 90159-60620 |
| 53876A | Left front fender lining | 53876-0R050 · 53876-0R070 |
| 53879A | Front fender lining fixing parts | 53879-0R030 |
| 53882K | front fender seal | 53882-0R050 · 53882-16030 |
| 53895B | Right front fender front splash guard | 53895-0R040 · 53895-0R070 |
| 53896B | Left front fender front splash guard | 53896-0R040 · 53896-0R070 |
