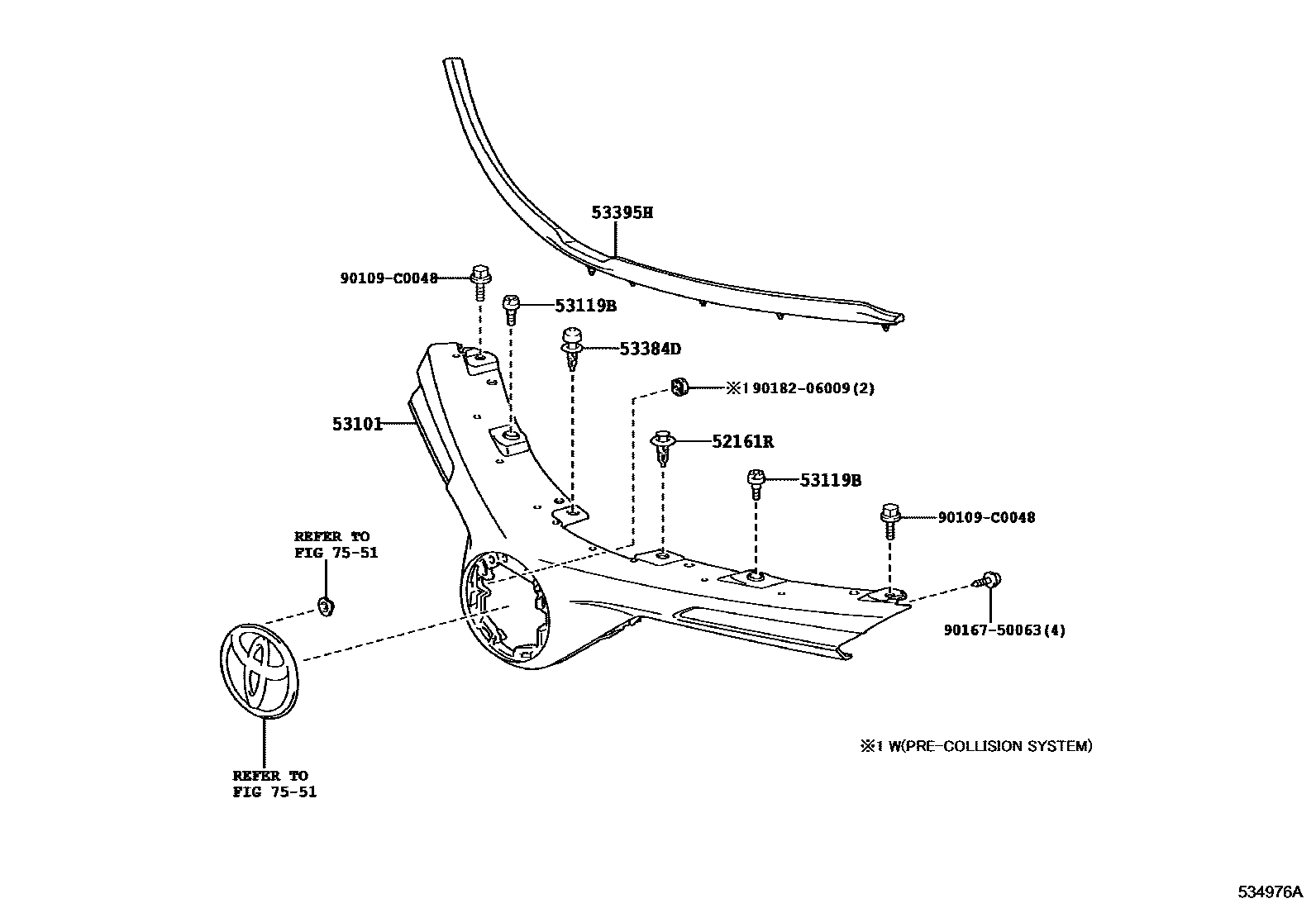

Toyota RAV4 radiator grille — Figure 5351
Toyota RAV4 EPC diagram 5351, radiator grille, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52161R | front bumper insert | 52161-02040 |
| 53101 | Radiator grille sub-assembly | 53101-0R140 |
| 53105A | Radiator grille right trim sub-assembly | 53105-0R020 |
| 53106C | Radiator grille left trim sub-assembly | 53106-0R020 |
| 53119B | Radiator grille protector | 53119-12150 |
| 53384D | Engine cover center cushion | 53384-0R070 · 53384-68010 |
| 53395H | Engine cover to radiator grille seal | 53395-0R070 |
