Toyota RAV4 后保险杠及附件 — Figure 5253

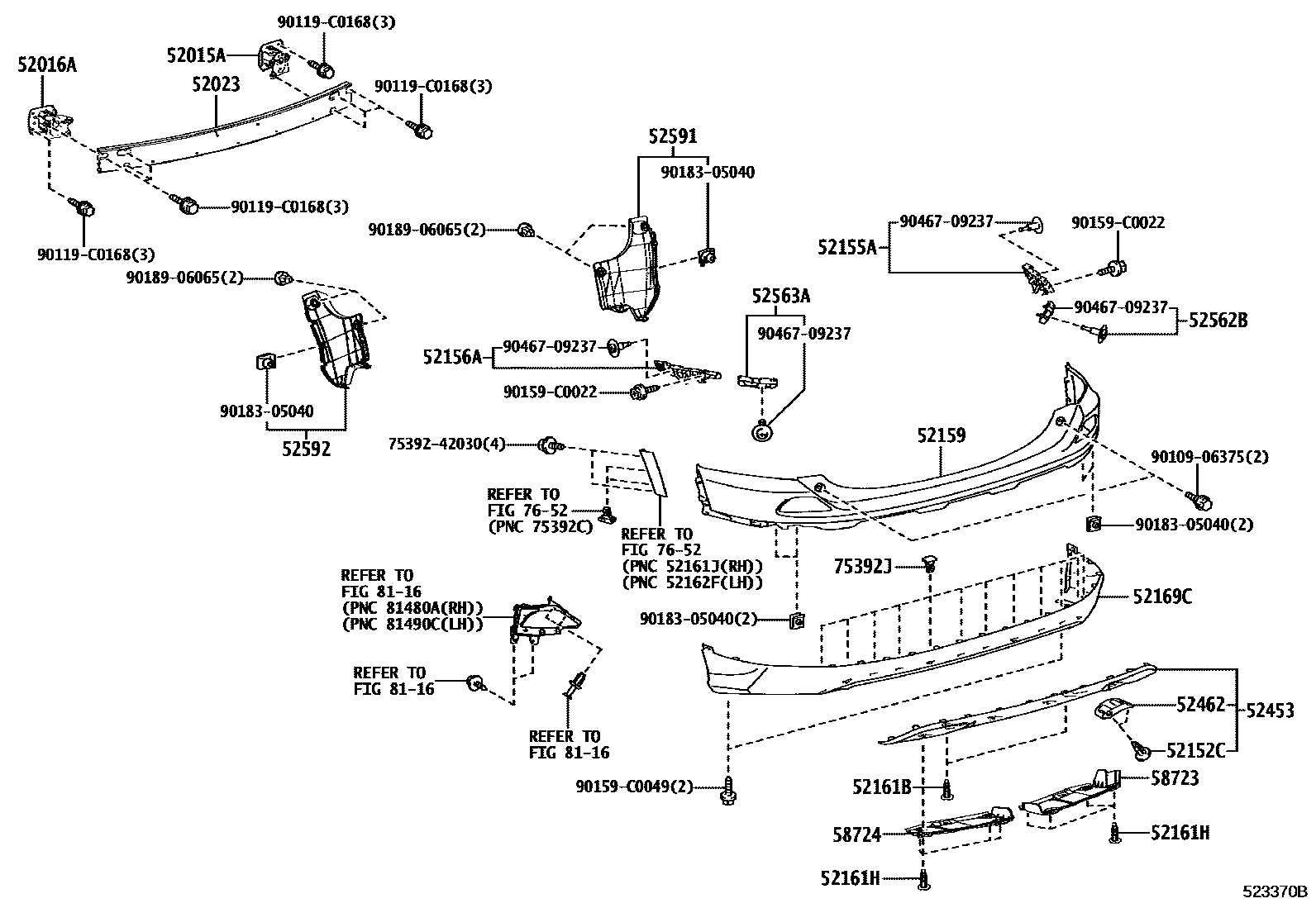

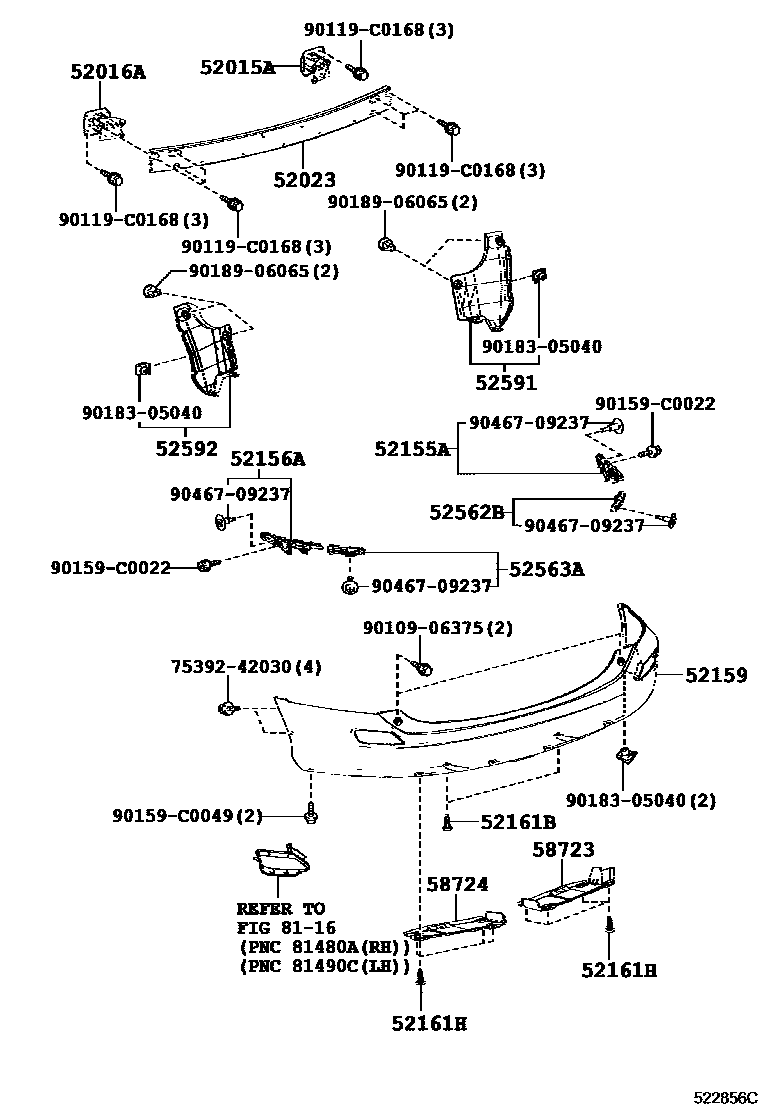

Toyota RAV4 EPC diagram 5253, 后保险杠及附件, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-0R010 |
| 52016A | Rear bumper left arm sub-assembly | 52016-0R010 |
| 52023 | Rear bumper reinforcement sub-assembly | 52023-0R010 · 52171-0R010 |
| 52152C | Rear bumper side clips | 90467-05170 · 90467-C0048 |
| 52155A | Rear bumper right side bracket | 52155-0R040 · 52155-0R060 |
| 52156A | Rear bumper left bracket | 52156-0R040 · 52156-0R060 |
| 52159 | rear bumper cover | 52159-0R090 · 52159-0R100 · 52159-0R916 |
| 52161B | Rear bumper insert | 52161-02040 |
| 52161H | Rear bumper insert | 52161-02040 |
| 52169C | Rear bumper lower cover | 52169-0R030 · 52169-0R040 |
| 52453 | Rear bumper center anti-collision bar | 52453-0R030 |
| 52462 | Rear bumper right side lining | 52462-0R010 |
| 52562B | Rear bumper upper right fixing bracket | 52562-0R040 · 52562-0R060 |
| 52563A | Rear bumper upper left fixing bracket | 52563-0R040 · 52563-0R060 |
| 52591 | Rear bumper right seal | 52591-0R040 · 52591-0R060 |
| 52592 | Rear bumper left seal | 52592-0R040 · 52592-0R060 |
| 58723 | Trunk access cover No. 1 protective part | 58723-0R020 · 58723-0R030 · 58723-0R050 |
| 58724 | Luggage trunk access cover No. 2 protective parts | 58724-0R020 · 58724-0R030 · 58724-0R050 |
| 75392J | External protective strip fixings | 75392-0R030 |
