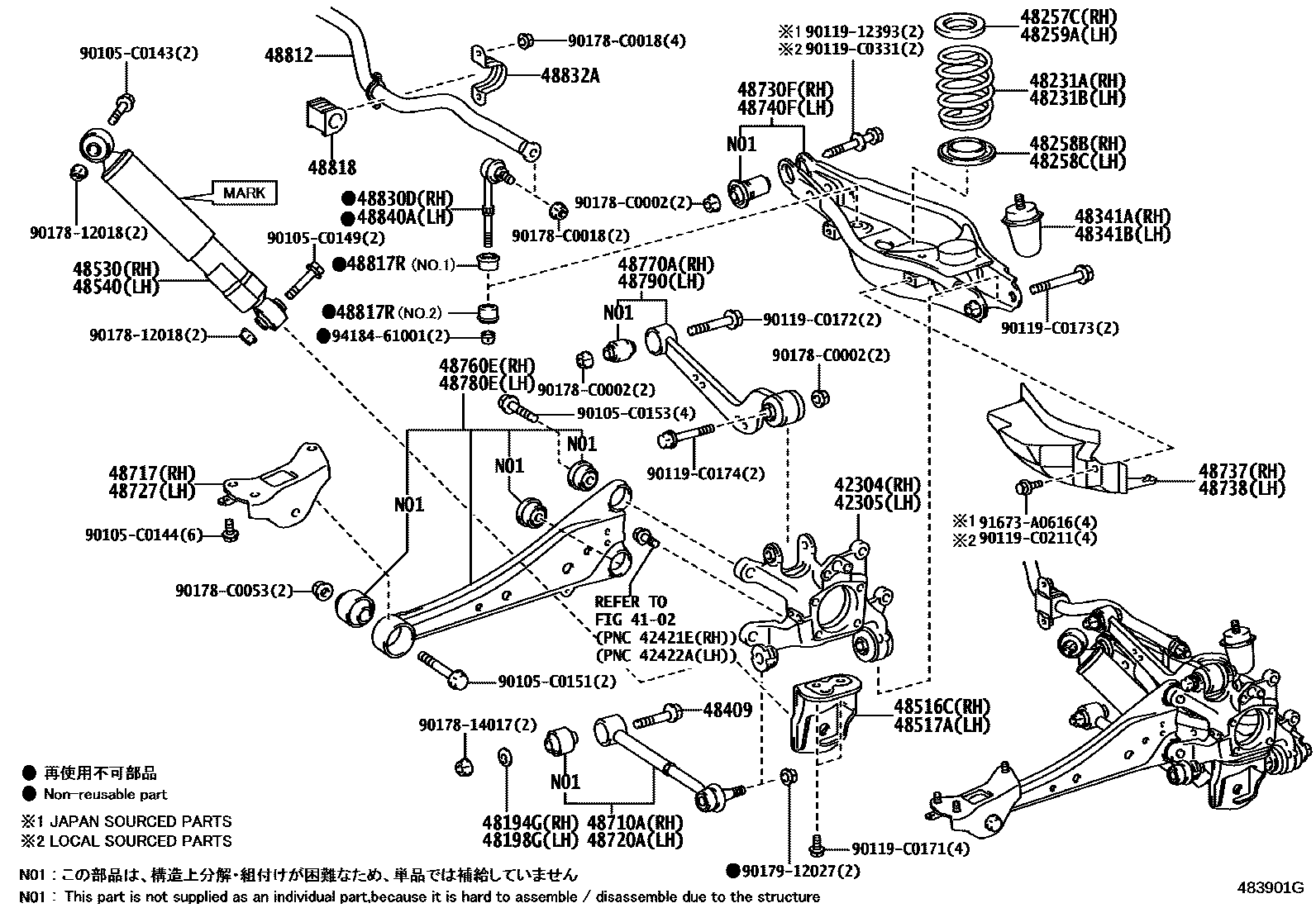

Toyota RAV4 Rear Spring & Shock Absorber — Figure 4804
Toyota RAV4 EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42304 | Rear axle right bracket sub-assembly | 42304-0R010 |
| 42305 | Rear axle left bracket sub-assembly | 42305-0R010 |
| 48194G | No. 1 right rear suspension camber angle adjustment cam | 48198-42010 |
| 48198G | No. 1 left rear suspension camber angle adjustment cam | 48198-42010 |
| 48231A | Right rear coil spring | 48231-0R140 · 48231-0R150 · 48231-0R160 · 48231-0R170 · 48231-0R190 · 48231-0R200 |
| 48231B | Left rear coil spring | 48231-0R140 · 48231-0R150 · 48231-0R160 · 48231-0R170 · 48231-0R190 · 48231-0R200 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-0R030 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-0R030 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-0R030 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-0R030 |
| 48341A | No. 1 right rear spring buffer block | 48341-0R030 |
| 48341B | No. 1 left rear spring buffer block | 48341-0R030 |
| 48409 | Rear suspension toe adjustment cam sub-assembly | 48409-42030 |
| 48516C | No. 1 right rear shock absorber bracket | 48505-42010 |
| 48517A | No. 1 left rear shock absorber bracket | 48506-42010 |
| 48530 | Right rear shock absorber assembly | 48531-0R080 · 48531-0R081 · 48531-0R090 · 48531-0R110 · 48531-0R111 · 48531-0R120 · 48531-0R121 · 48531-0R180 |
| 48540 | Left rear shock absorber assembly | 48531-0R080 · 48531-0R081 · 48531-0R090 · 48531-0R110 · 48531-0R111 · 48531-0R120 · 48531-0R121 · 48531-0R180 |
| 48710A | Right rear suspension No. 1 arm assembly | 48710-0R040 |
| 48717 | Right rear suspension arm bracket | 48717-42010 |
| 48720A | Left rear suspension No. 1 arm assembly | 48710-0R040 |
| 48727 | Left rear suspension arm bracket | 48727-42010 |
| 48730F | Right rear suspension No. 2 arm assembly | 48730-42040 |
| 48737 | Right rear suspension arm cover | 48737-42021 |
| 48738 | Left rear suspension arm cover | 48738-42021 |
| 48740F | Left rear suspension No. 2 arm assembly | 48740-42010 |
| 48760E | Right rear trailing arm assembly | 48760-0R030 |
| 48770A | Right rear upper control arm assembly | 48770-0R010 |
| 48780E | Left rear trailing arm assembly | 48780-0R030 |
| 48790 | Left rear upper control arm assembly | 48790-0R010 |
| 48812 | rear stabilizer bar | 48812-0R040 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-0R021 · 48817-0R031 |
| 48818 | Rear stabilizer bar bushing | 48818-0R040 |
| 48830D | Right rear stabilizer bar link assembly | 48830-0R020 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-0R060 · 48832-42010 |
| 48840A | Left rear stabilizer bar link assembly | 48830-0R020 |
