Toyota RAV4 后盘式制动器卡钳和防尘罩 — Figure 4707

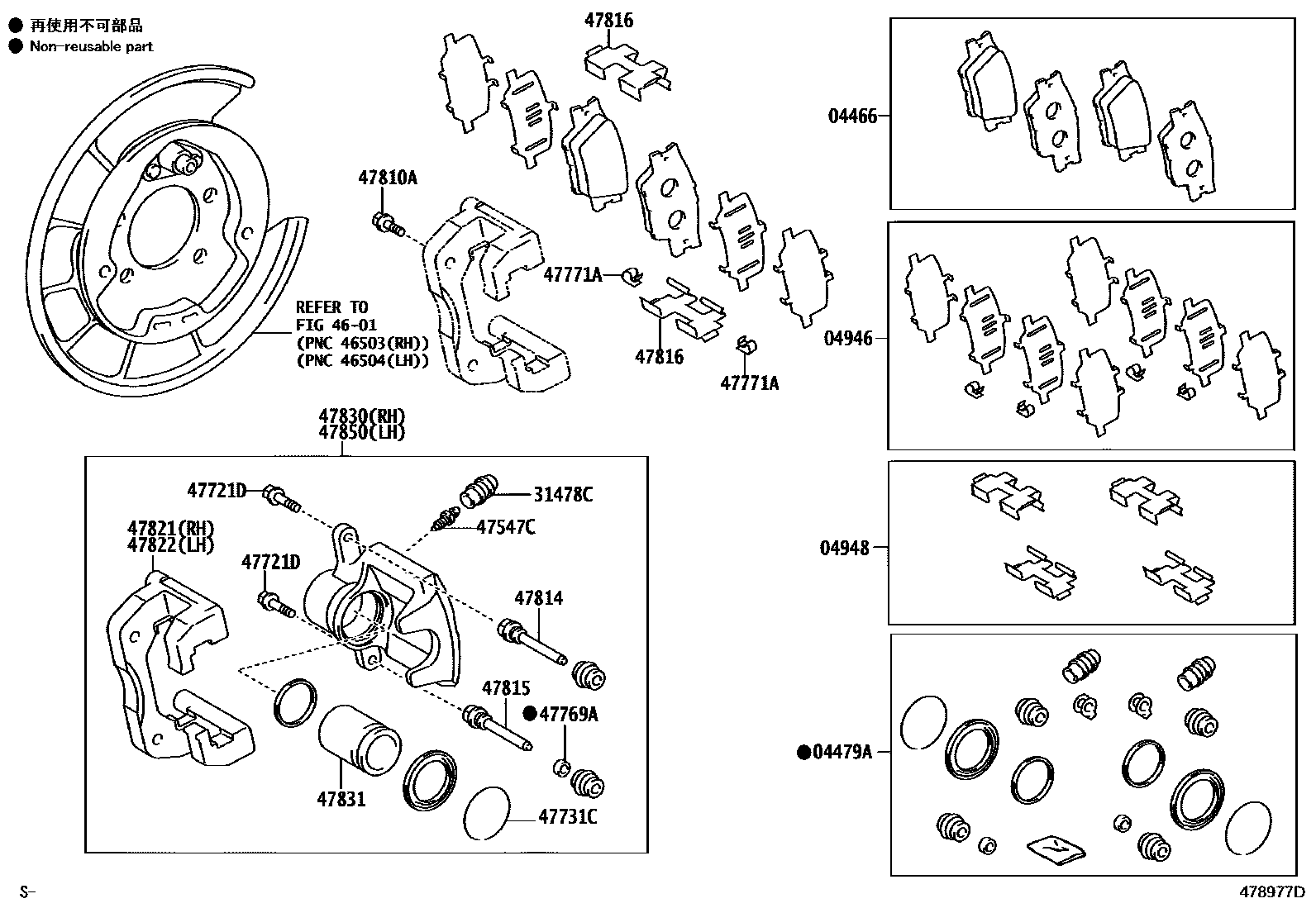

Toyota RAV4 EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-42060 · 04466-42070 |
| 04479A | Rear disc brake cylinder assembly | 04479-06320 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-0R025 |
| 04948 | Rear disc brake mounting assembly | 04948-0R020 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-06020 |
| 47547C | Bleed plug (for rear disc brake) | 47547-12010 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90016-AA608 |
| 47731C | retaining ring (for rear disc brake piston) | 90520-52006 |
| 47769A | No. 1 brake cylinder sliding sleeve (for rear disc brake) | 47879-06130 |
| 47771A | Pad wear indicator disc (for rear disc brakes) | 47871-47060 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-C0140 |
| 47814 | No. 1 brake cylinder sliding pin (for rear disc brake) | 47814-06130 |
| 47815 | No. 2 rear brake cylinder sliding pin (for rear disc brake) | 47815-06130 |
| 47816 | Pad support plate No. 1 (for rear disc brake) | 47816-0R040 · 47816-0R041 |
| 47821 | Right rear disc brake cylinder retainer | 47821-0R040 |
| 47822 | Left rear disc brake cylinder retainer | 47822-0R040 |
| 47830 | Right rear disc brake cylinder assembly | 47830-0R040 |
| 47831 | rear disc brake piston | 47831-06130 |
| 47850 | Left rear disc brake cylinder assembly | 47850-0R040 |
