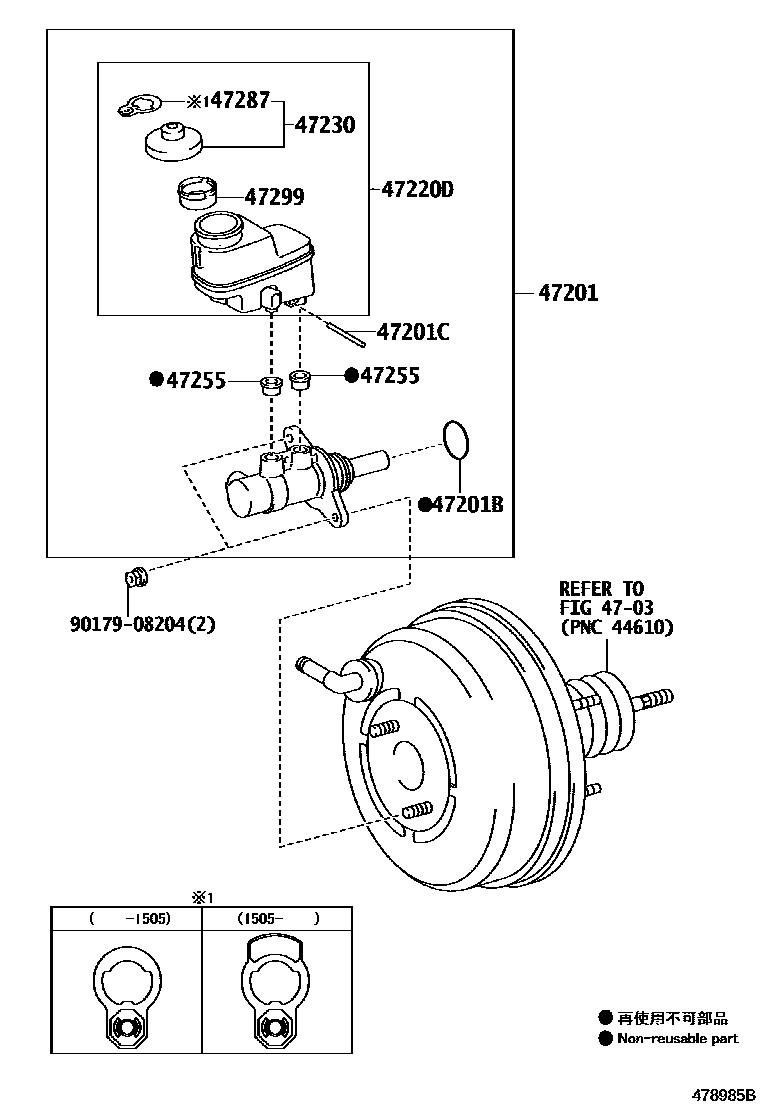

Toyota RAV4 制动总泵 — Figure 4702
Toyota RAV4 EPC diagram 4702, 制动总泵, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47201 | Brake master cylinder sub-assembly | 47201-0R052 · 47201-0R062 · 47201-0R090 · 47201-0R100 · 47201-0R110 · 47201-0R120 · 47201-0R140 |
| 47201B | O-ring (for brake master cylinder) | 90015-AH002 · 90016-AH902 |
| 47201C | Brake master cylinder ring pin | 90029-15803 |
| 47220D | Brake master cylinder fluid reservoir assembly | 47220-0R030 · 47220-0R040 · 47220-0R060 · 47220-0R070 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-02260 · 47230-0R030 |
| 47255 | Master pump reservoir seal | 90016-AT002 · 90029-48001 |
| 47287 | brake fluid information label | 47287-02360 · 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-20060 · 47299-25010 |
