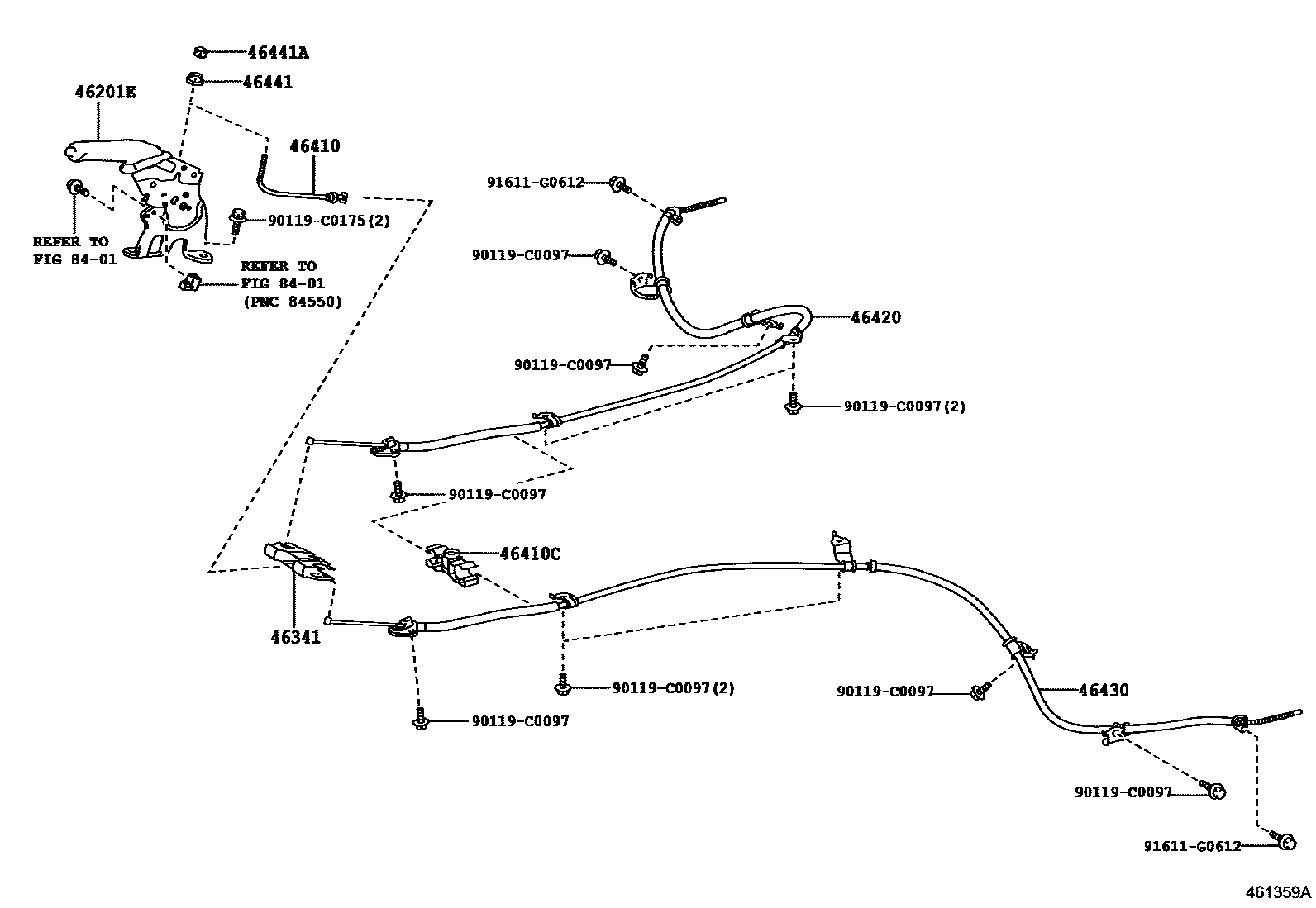

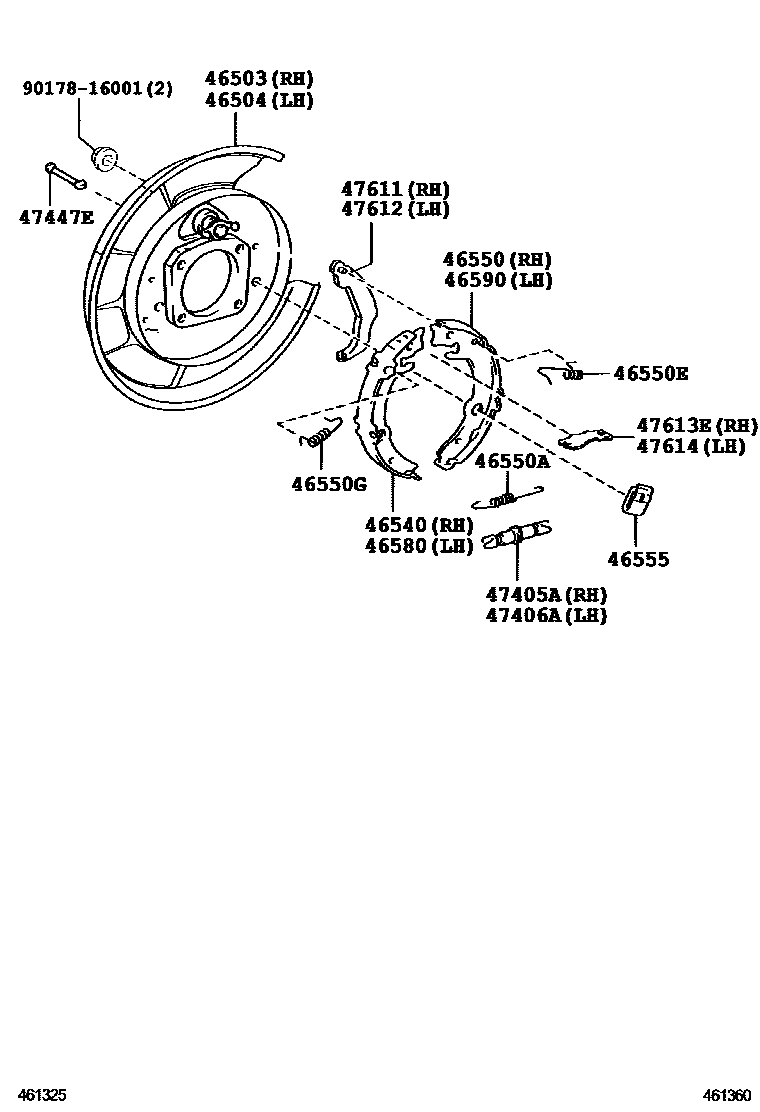

Toyota RAV4 Parking Brake & Cable — Figure 4601
Toyota RAV4 EPC diagram 4601, Parking Brake & Cable, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46341 | Parking brake balancer | 46341-0R020 |
| 46410 | Parking brake cable assembly No. 1 | 46410-0R020 |
| 46410C | Clip (for front parking brake cable) | 46411-0R020 |
| 46420 | Parking brake No. 2 cable assembly | 46420-0R023 · 46420-0R024 · 46420-0R025 |
| 46430 | Parking brake No. 3 cable assembly | 46430-0R023 · 46430-0R024 · 46430-0R025 |
| 46441 | No. 1 cable adjustment nut | 46441-12010 |
| 46441A | No. 2 cable adjustment nut | 90179-06299 |
| 46503 | Right parking brake pad sub-assembly | 46503-0R020 |
| 46504 | Left parking brake pad sub-assembly | 46504-0R020 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-0R020 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46540-0R020 |
| 46550A | No. 1 tension spring (used for parking brake shoe return) | 90016-DY016 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90016-DY014 · 90016-DY015 |
| 46550G | No. 3 tension spring (used for parking brake shoe return) | 90016-DY013 |
| 46555 | Brake shoe limit spring | 46555-0R020 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-0R020 |
| 46590 | No. 2 left parking brake shoe assembly | 46540-0R020 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 46605-0R020 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 46606-0R020 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-0D070 |
| 47611 | Right parking brake shoe lever | 46601-0R020 |
| 47612 | Left parking brake shoe lever | 46602-0R020 |
| 47613E | Right parking brake shoe push rod | 46612-0R020 |
| 47614 | Left parking brake shoe push rod | 46622-0R020 |
