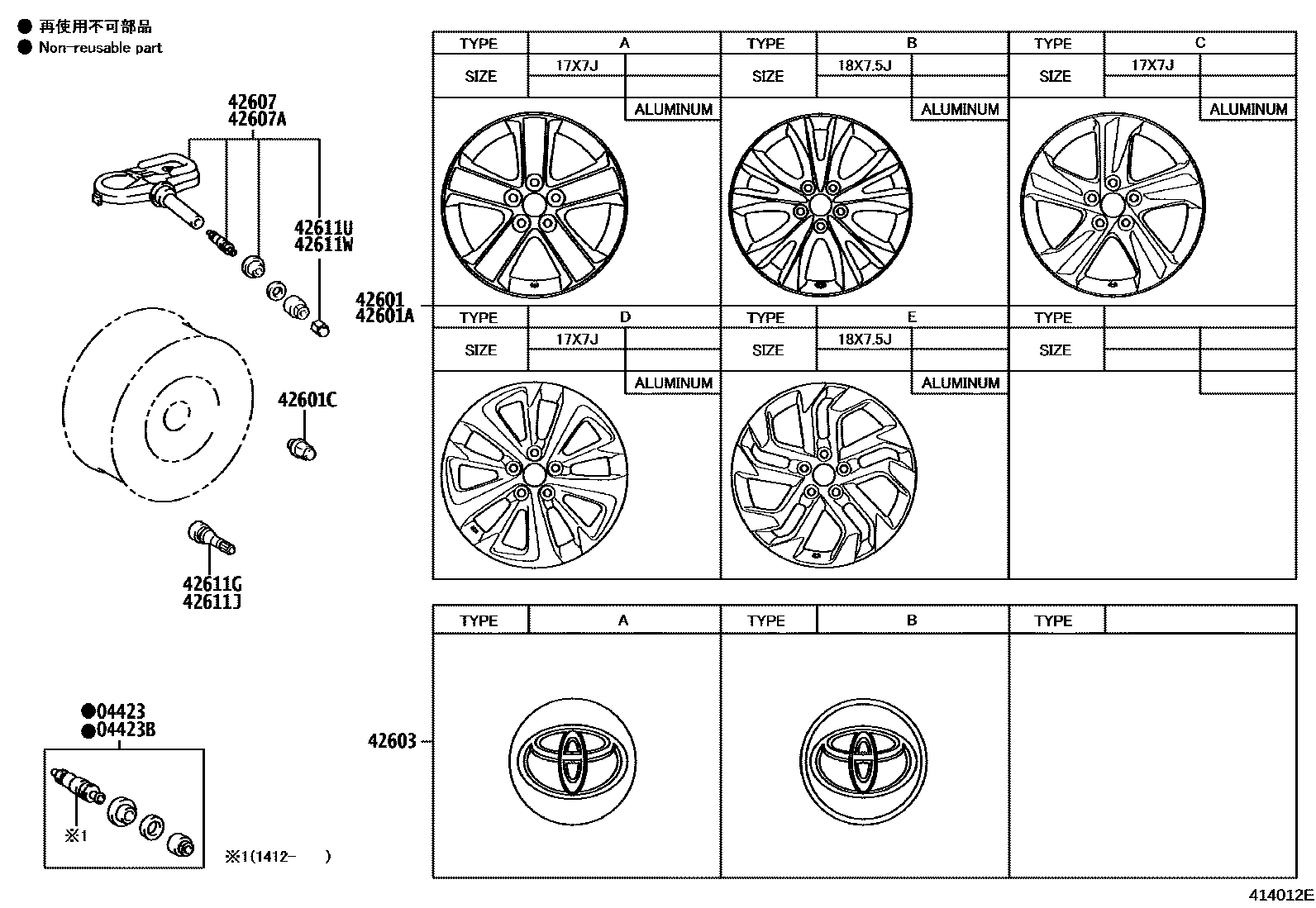

Toyota RAV4 车轮和车轮盖 — Figure 4103
Toyota RAV4 EPC diagram 4103, 车轮和车轮盖, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-0N010 · 04423-33030 · 04423-33060 |
| 04423B | Tire pressure monitoring valve or balancer valve mounting assembly (spare) | 04423-0N010 · 04423-33030 · 04423-33060 |
| 42601 | spoke wheel | 42611-0R130 · 42611-0R140 · 42611-0R180 · 42611-0R210 · 42611-0R220 · 42611-0R380 |
| 42601A | Spoke wheel (for spare tire) | 42611-0R130 · 42611-0R140 · 42611-0R180 · 42611-0R210 · 42611-0R220 · 42611-0R380 |
| 42601C | Hub nut (for axle) | 90942-C1001 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-02250 · 42603-02320 · 42603-0E040 · 42603-48140 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-0R020 · 42607-33040 |
| 42607A | Tire pressure monitoring valve sub-assembly (for spare tire) | 42607-0R020 · 42607-33040 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 · 90942-C5001 |
| 42611W | Tire valve cap (for spare tire) | 90942-05039 · 90942-C5001 |
