Toyota RAV4 后桥半轴和后桥轮毂 — Figure 4102

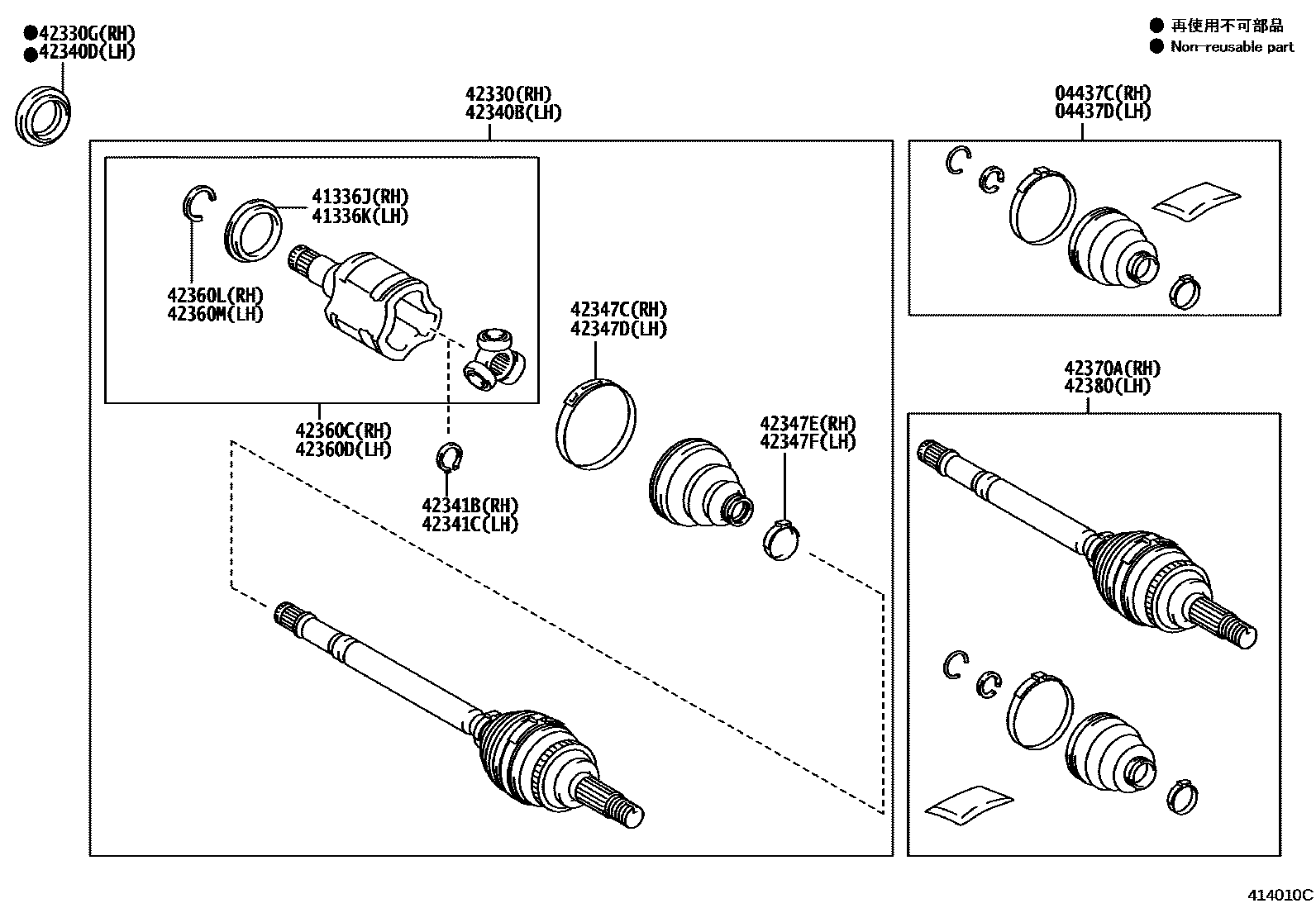

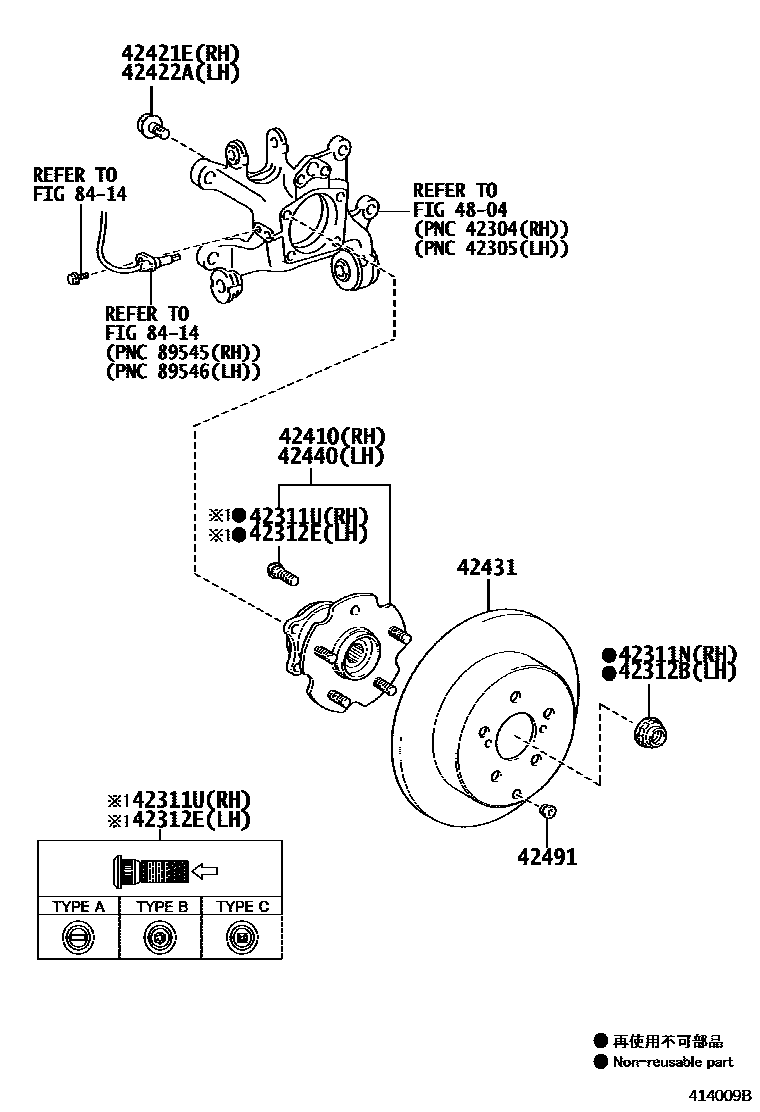

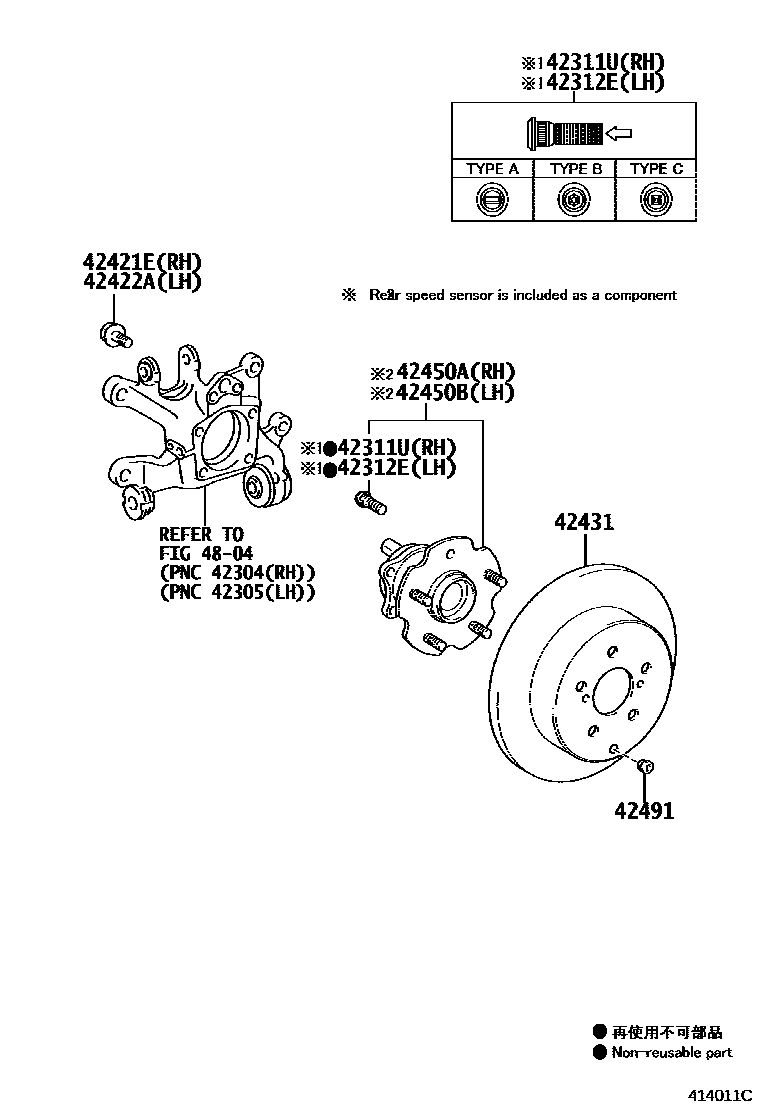

Toyota RAV4 EPC diagram 4102, 后桥半轴和后桥轮毂, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04437C | Right rear drive shaft inner universal joint dust boot assembly | 04439-0R010 |
| 04437D | Left rear drive shaft inner universal joint dust boot assembly | 04439-0R010 |
| 41336J | Rear axle right drive shaft dust cover | 41336-0R030 |
| 41336K | Rear axle left drive shaft dust cover | 41336-0R030 |
| 42311N | Nut (for rear axle right half shaft) | 90177-22001 · 90177-C0004 |
| 42311U | Hub bolt (for rear axle right) | 90942-02049 · 90942-02081 · 90942-02082 |
| 42312B | Nut (for rear axle left half shaft) | 90177-22001 · 90177-C0004 |
| 42312E | Hub bolt (for left rear axle) | 90942-02049 · 90942-02081 · 90942-02082 |
| 42330 | Rear axle right drive shaft assembly | 42330-0R030 |
| 42330G | Rear drive shaft right oil seal | 90311-37004 |
| 42340B | Rear axle left drive shaft assembly | 42330-0R030 |
| 42340D | Rear drive shaft left oil seal | 90311-37004 |
| 42341B | Snap ring (for rear axle right drive shaft) | 43425-0R090 |
| 42341C | Snap ring (for rear axle left drive shaft) | 43425-0R090 |
| 42347C | Clamp (for the universal joint dust cover inside the right drive shaft of the rear axle) | 42345-0R130 |
| 42347D | Clamp (for the universal joint dust cover inside the left drive shaft of the rear axle) | 42345-0R130 |
| 42347E | Clamp No. 2 (for the dust cover of the universal joint inside the right drive shaft of the rear axle) | 42345-0R140 |
| 42347F | Clamp No. 2 (for the dust cover of the universal joint inside the left drive shaft of the rear axle) | 42345-0R140 |
| 42360C | Rear axle right drive shaft inner universal joint assembly | 42360-0R030 |
| 42360D | Rear axle left drive shaft inner universal joint assembly | 42360-0R030 |
| 42360L | Shaft snap ring (for rear axle right drive shaft inner universal joint) | 43425-0R100 |
| 42360M | Shaft snap ring (for rear axle left drive shaft inner universal joint) | 43425-0R100 |
| 42370A | Rear axle right drive shaft outer universal joint assembly | 42370-09120 |
| 42380 | Rear axle left drive shaft outer universal joint assembly | 42370-09120 |
| 42410 | Rear axle right hub and bearing assembly | 42410-0R020 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-12350 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-12350 |
| 42431 | rear brake disc | 42431-0R020 |
| 42440 | Rear axle left wheel hub and bearing assembly | 42410-0R020 |
| 42450A | Rear axle right hub and bearing assembly | 42450-0R020 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42450-0R020 |
| 42491 | Brake shoe adjustment hole plug (for parking brake) | 47493-06010 |
