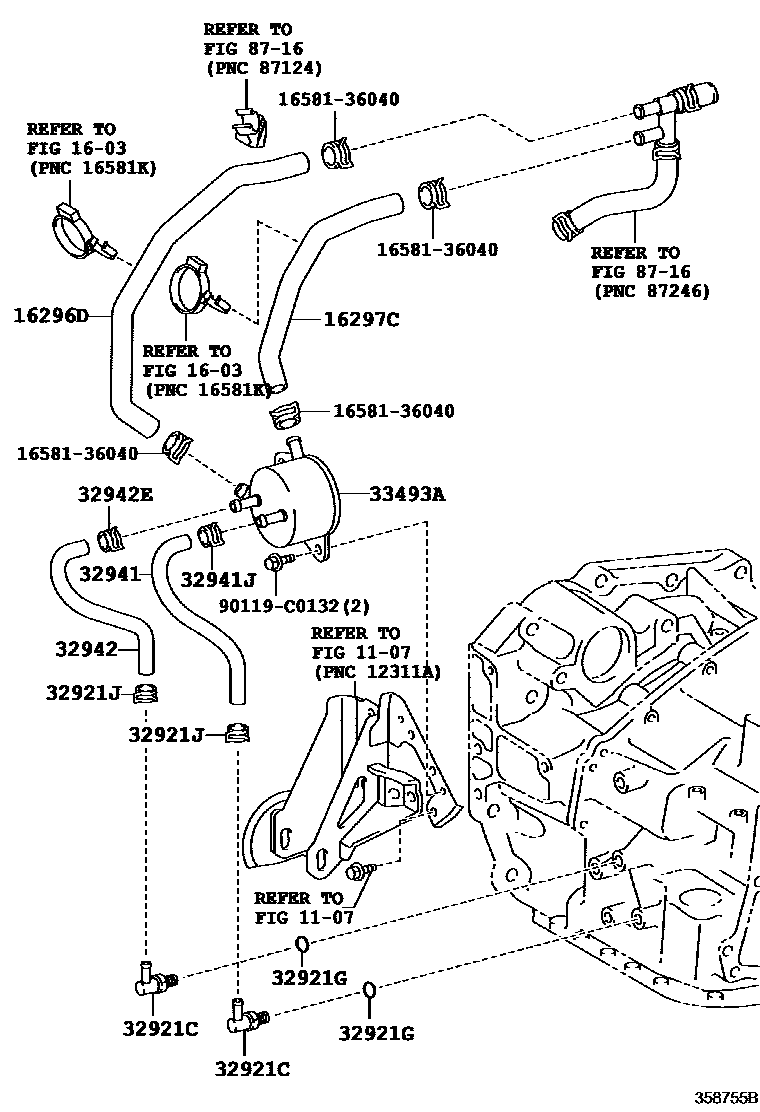

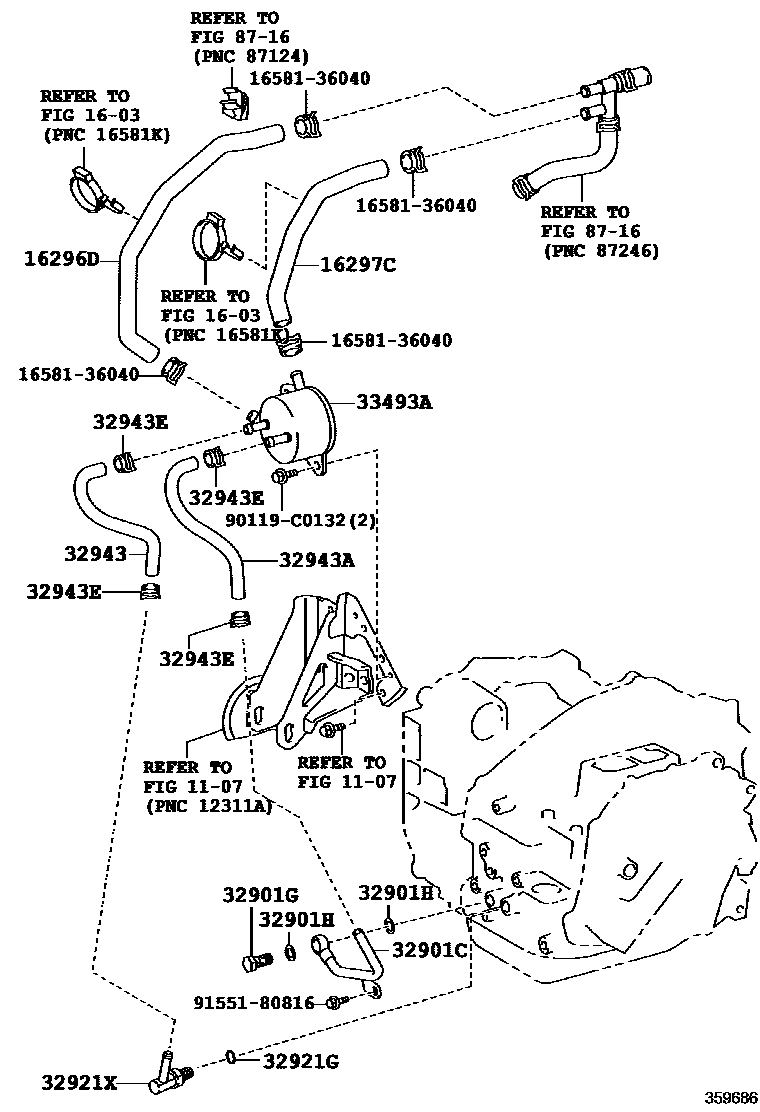

Toyota RAV4 变速器油冷却器和配管(ATM) — Figure 3514
Toyota RAV4 EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16296D | HOSE, WATER BY-PASS, NO.8 | 16296-0V010 |
| 16297C | No. 9 water bypass hose | 16297-0V010 |
| 32901C | Transmission oil cooler joint sub-assembly | 32901-48010 |
| 32901G | Connector bolt (for oil cooler) | 90401-14003 |
| 32901H | Gasket (for transmission oil cooler connector) | 90430-14013 |
| 32921C | Fitting (for transmission oil cooler tube) | 90407-14032 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-11031 |
| 32921J | Clamp (for transmission oil cooler hose) | 90466-16004 |
| 32921X | Transmission oil cooler oil inlet joint or elbow | 90407-14032 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32942-0R020 |
| 32941J | Clamp No. 1 (for transmission oil cooler hose) | 90466-16004 · 90466-C0024 |
| 32942 | No. 1 transmission oil cooler oil outlet hose | 32941-0R020 |
| 32942E | Clamp No. 2 (for transmission oil cooler hose) | 90466-16004 · 90466-C0024 |
| 32943 | No. 1 transmission oil cooler hose | 32941-0R040 |
| 32943A | No. 2 transmission oil cooler hose | 32942-0R050 |
| 32943E | Clamp No. 3 (for transmission oil cooler hose) | 90466-16004 · 90466-C0024 |
| 33493A | Transmission oil cooler | 33493-42100 |
