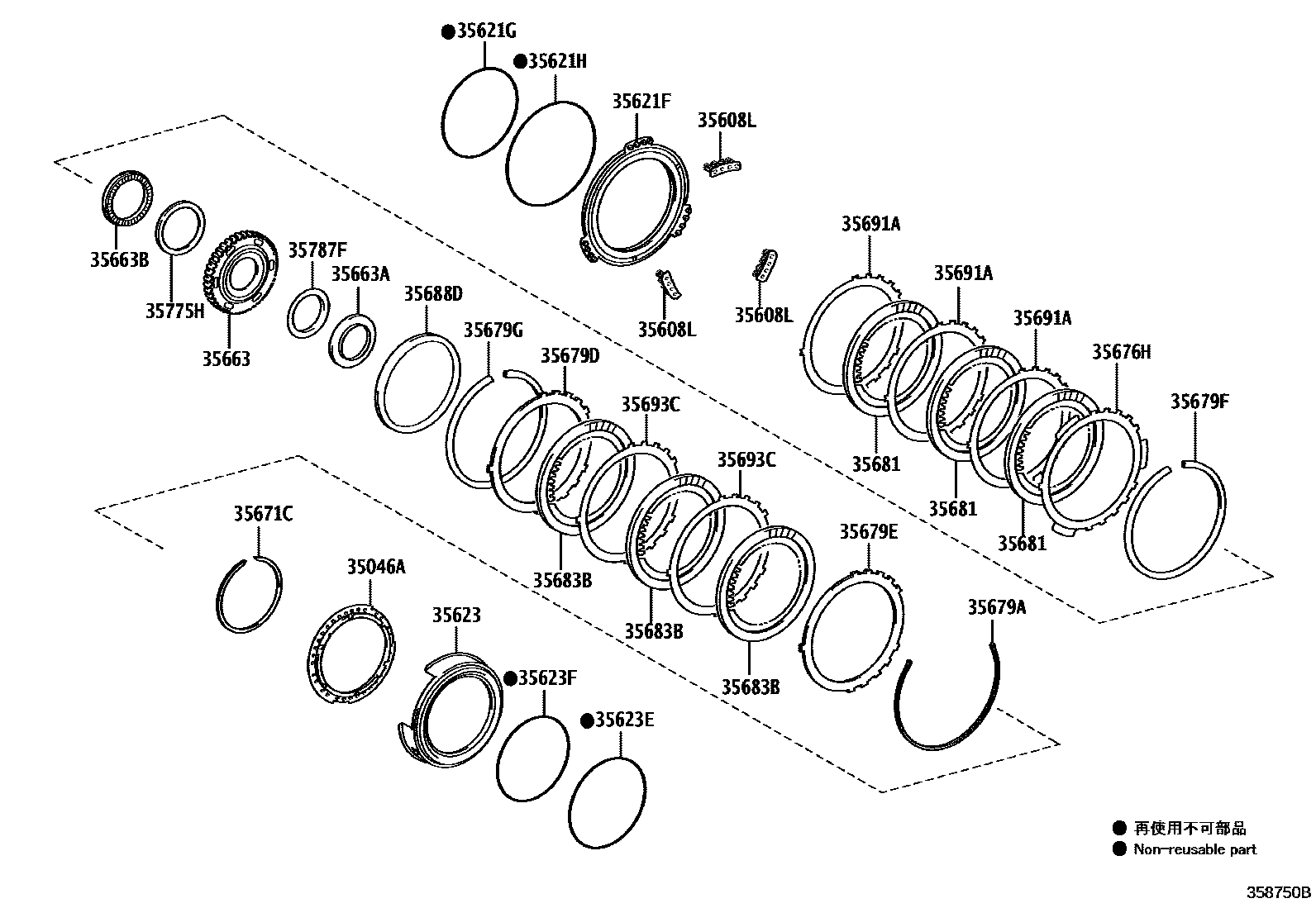

Toyota RAV4 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota RAV4 EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 1 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35046A | No. 3 brake piston return spring sub-assembly | 35046-73010 |
| 35608L | Second gear brake piston return spring sub-assembly | 35608-73010 |
| 35621F | Brake piston No. 1 | 35621-33030 · 35621-73010 |
| 35621G | Inner O-ring (for brake piston) | 90301-99190 |
| 35621H | Outer O-ring (for brake piston) | 90301-99189 |
| 35623 | No. 3 brake piston | 35623-33090 · 35623-73010 · 35623-73011 |
| 35623E | No. 1 O-ring (for brake piston) | 90301-99190 |
| 35623F | No. 2 O-ring (for brake piston) | 90301-99194 |
| 35663 | No. 3 brake hub | 35663-33030 · 35663-73010 |
| 35663A | No. 1 Thrust Needle Roller Bearing | 90374-60001 |
| 35663B | No. 2 thrust needle roller bearing | 90374-62005 · 90374-62010 |
| 35671C | Snap ring (for brake piston return spring) | 90520-99103 |
| 35676H | No. 1 brake flange | 35676-73010 · 35676-73020 · 35676-73030 · 35676-73040 · 35676-73050 · 35676-73060 |
| 35679A | Hole snap ring (for brake flange) | 90521-99136 |
| 35679D | No. 2 brake flange | 35679-33080 · 35679-73010 |
| 35679E | No. 3 brake flange | 35679-73020 · 35679-73030 · 35679-73040 · 35679-73050 · 35679-73060 · 35679-73070 · 35679-73080 |
| 35679F | Snap ring (for brake flange) | 90520-99144 |
| 35679G | Snap ring (for brake flange No. 3) | 90520-99136 |
| 35681 | No. 1 brake disc | 35681-73010 · 35683-33040 |
| 35683B | No. 3 brake disc | 35683-33040 · 35683-73010 |
| 35688D | Brake snap ring stop | 35688-73010 |
| 35691A | No. 1 brake pad | 35691-73010 |
| 35693C | No. 3 brake pad | 35693-73010 |
| 35775H | No. 5 thrust bearing race | 35775-33020 · 35775-73010 |
| 35787F | No. 2 thrust bearing race | 35787-73010 |
