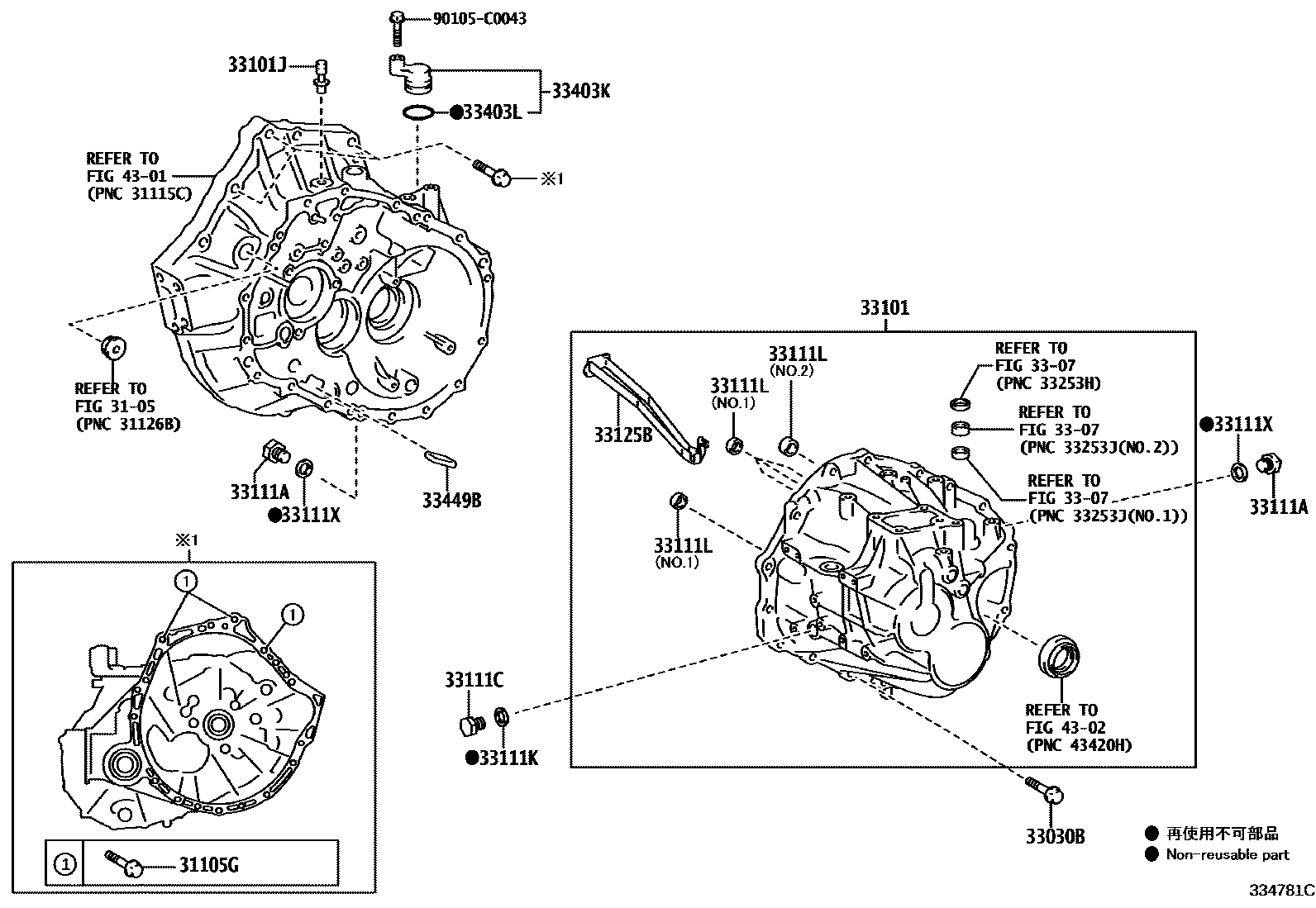

Toyota RAV4 离合器壳和变速器壳(MTM) — Figure 3302
Toyota RAV4 EPC diagram 3302, 离合器壳和变速器壳(MTM), with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105G | Bolts (for securing transaxle housing and engine) | 90105-C0227 |
| 33030B | Bolts (for securing transaxle housing and gearbox) | 91551-10840 |
| 33101 | Manual transmission housing sub-assembly | 33101-20100 · 33101-42050 |
| 33101J | vent plug | 90930-03085 |
| 33111A | Manual transmission plug | 90341-18006 |
| 33111C | Screw plug (for gearbox) | 90341-18033 |
| 33111K | Gasket (for gearbox) | 12157-10010 |
| 33111L | Bimetallic bushing (for gearbox) | 90384-14008 · 90384-16005 |
| 33111X | Gearbox plug gasket | 12157-10010 |
| 33125B | Manual gearbox oil collector | 33125-20020 |
| 33403K | Speedometer driven gear hole cover sub-assembly | 33403-06010 |
| 33403L | O-ring | 96711-24018 |
| 33449B | derailleur magnet | 33449-60010 |
