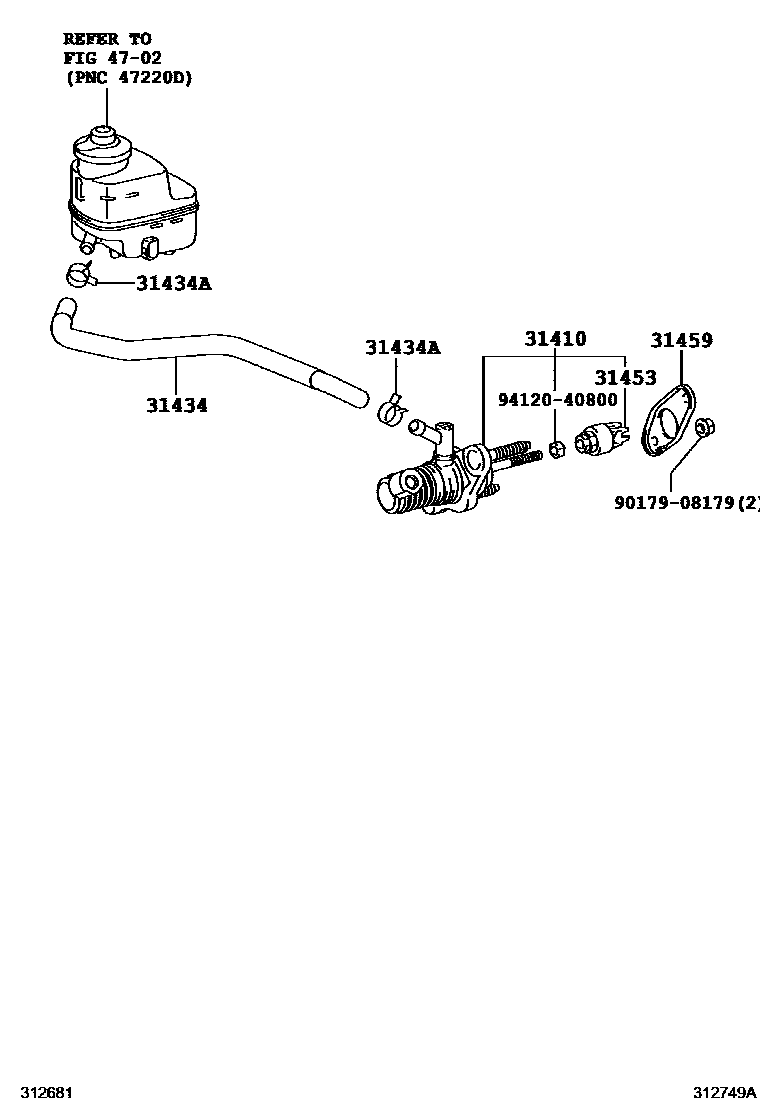

Toyota RAV4 离合器总泵 — Figure 3103
Toyota RAV4 EPC diagram 3103, 离合器总泵, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31410 | Clutch master cylinder assembly | 31420-42070 |
| 31434 | Clutch reservoir connecting pipe | 31434-42050 |
| 31434A | Clamp (for clutch reservoir connecting pipe) | 96136-41801 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-52010 |
| 31459 | Clutch master cylinder bracket | 31459-42040 |
