Toyota RAV4 离合器踏板和挠性软管 — Figure 3102
Toyota RAV4 EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

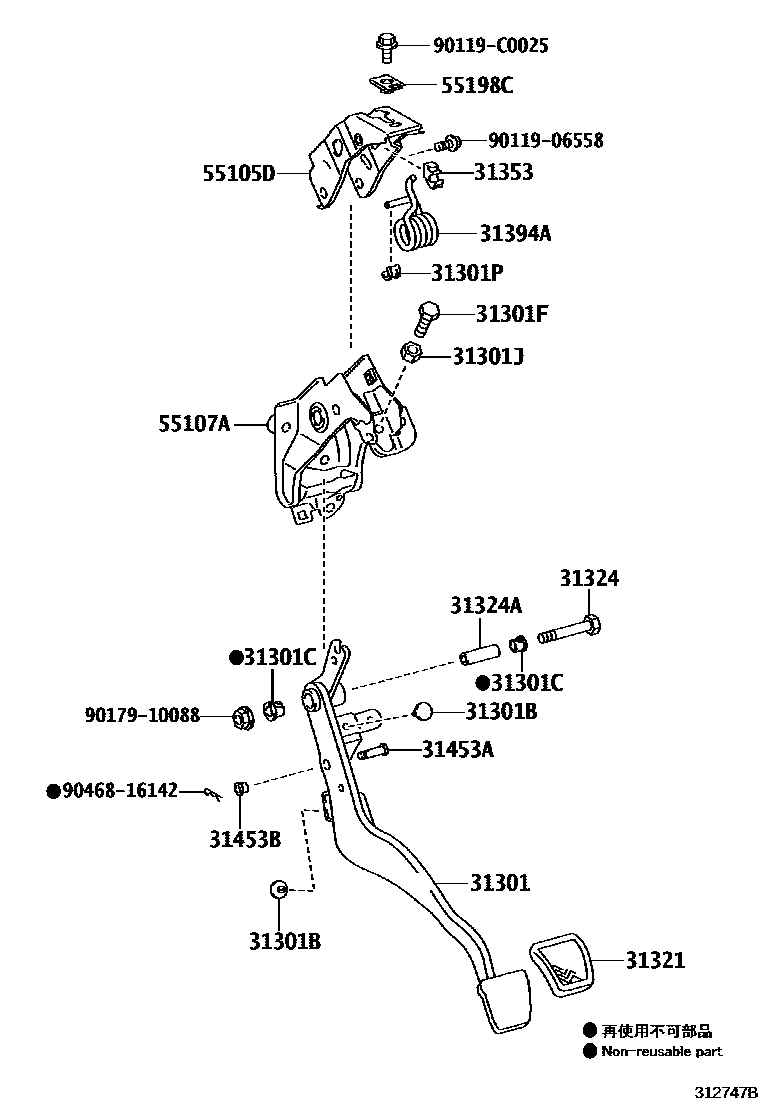

| 31301 | Clutch pedal sub-assembly | 31301-42090 |
| 31301B | Cushion pad No. 1 (for clutch pedal) | 90541-06036 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301F | Bolt (for clutch pedal stop) | 90101-10055 |
| 31301J | Nut (for clutch pedal stop) | 90178-10029 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31321 | clutch pedal pad | 31321-0R030 · 31321-42010 |
| 31324 | clutch pedal shaft | 90101-10039 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31394A | Pedal spring with hook | 31394-12070 |

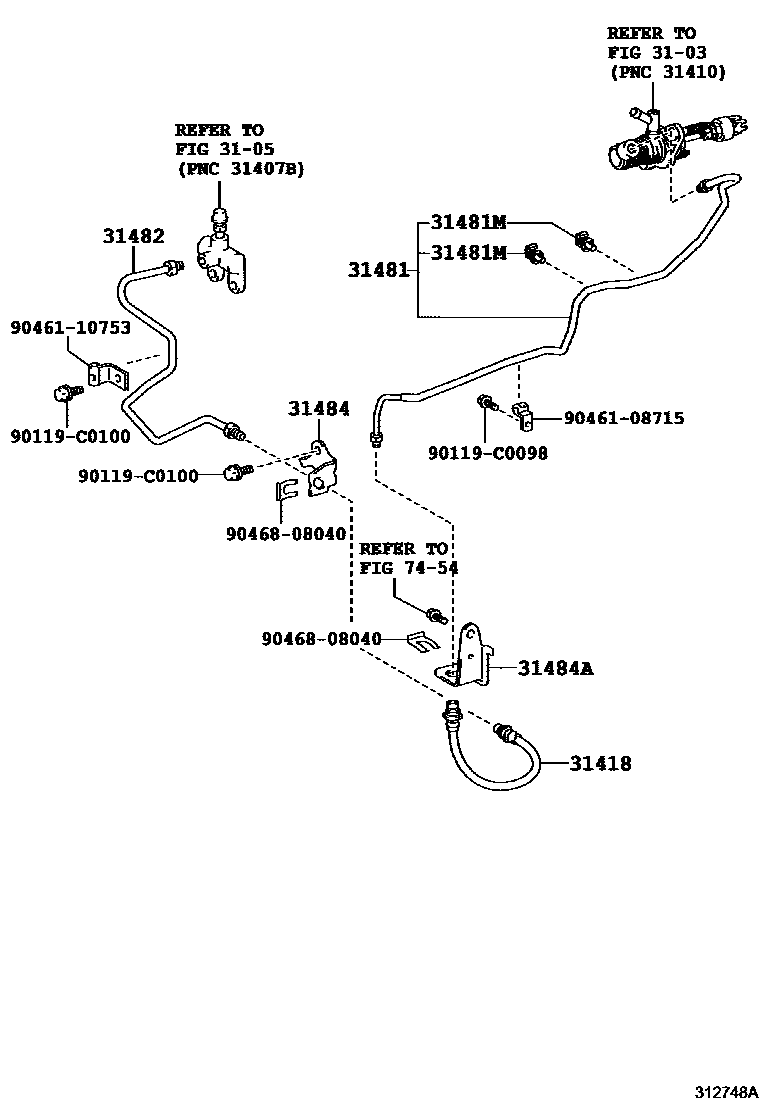

| 31418 | clutch hose | 90947-C2034 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90249-08256 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-0R020 |
| 31481M | Clamp (for clutch master cylinder tube) | 90949-01C74 |
| 31482 | Pipe from clutch release cylinder to flexible hose | 31482-0R020 |
| 31484 | Flexible hose bracket (for clutch) | 31484-02140 |
| 31484A | No. 1 flexible hose bracket (for clutch) | 31484-0R010 |
| 55105D | Clutch pedal bracket sub-assembly | 55105-42010 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-42091 |
| 55198C | Separate mounting bolt fasteners | 55198-13010 |
