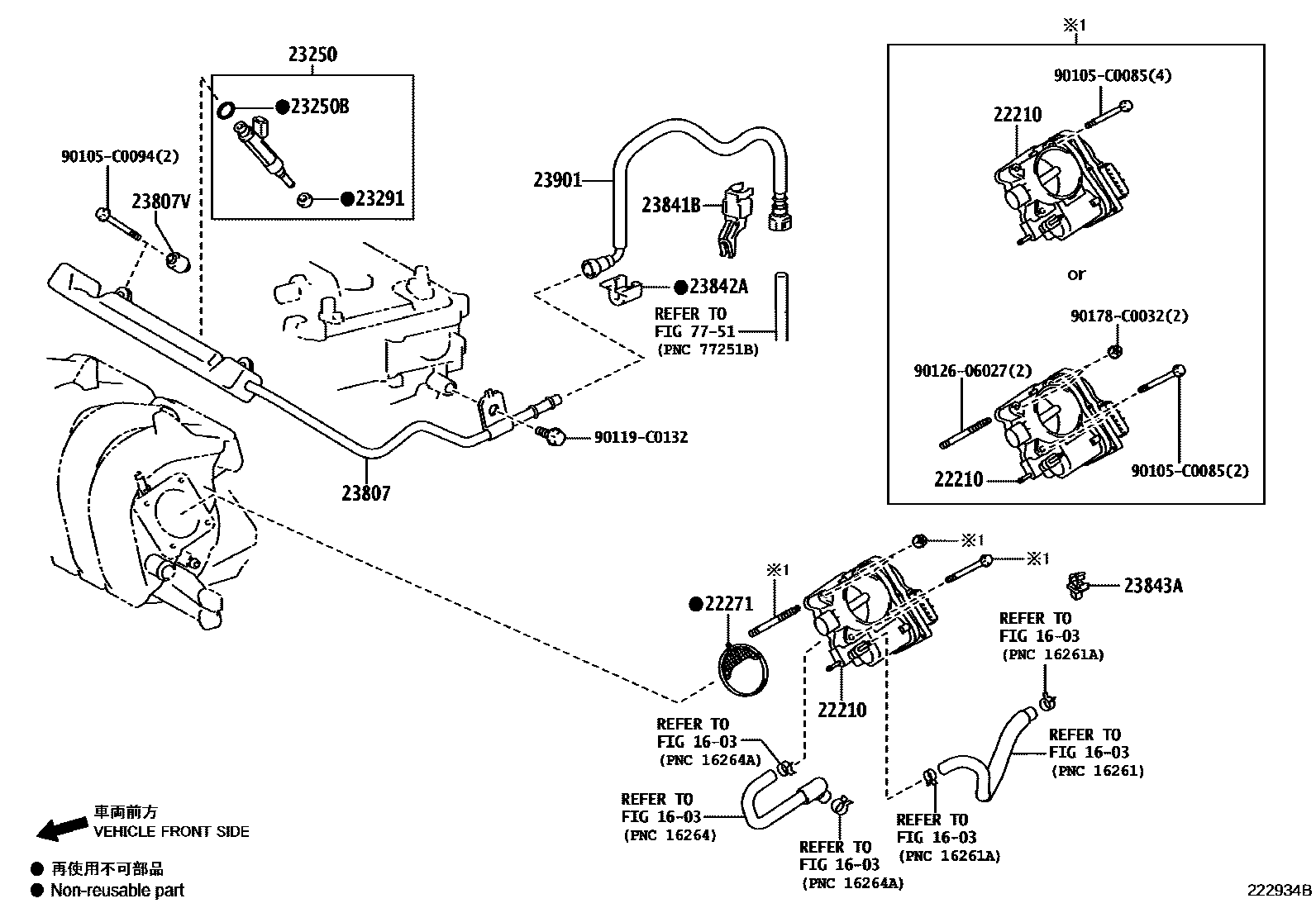

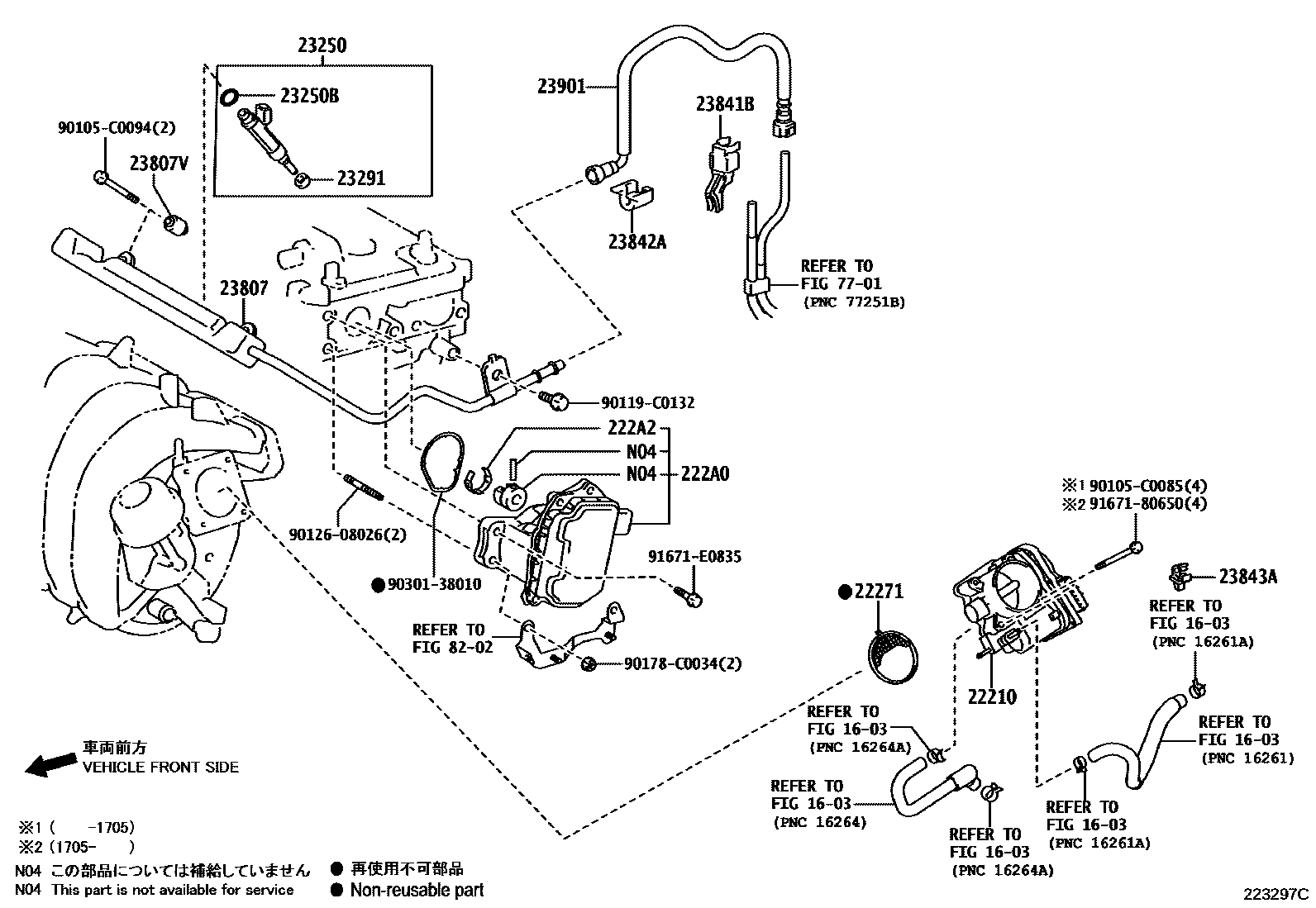

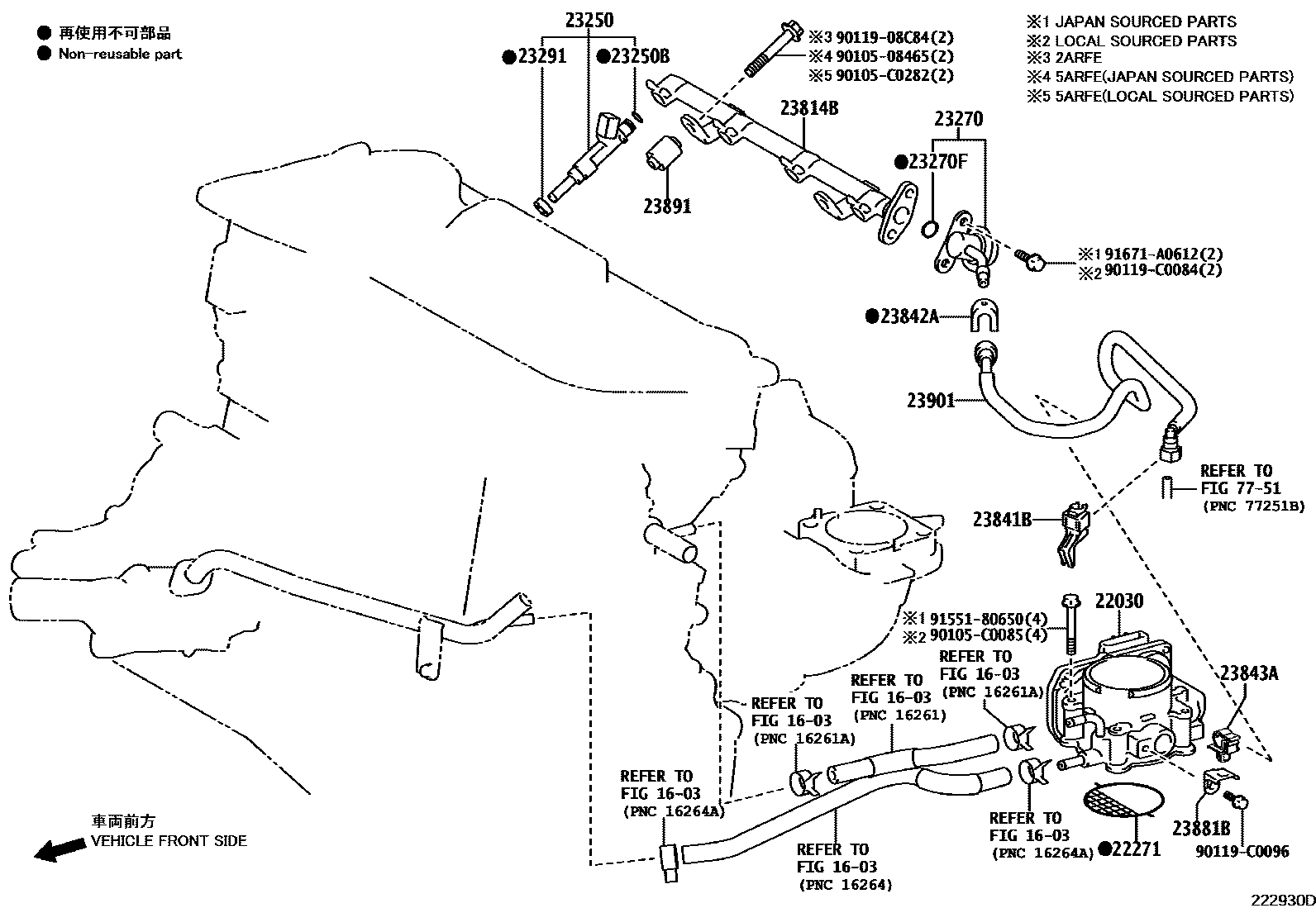

Toyota RAV4 燃油喷射系统 — Figure 2211
Toyota RAV4 EPC diagram 2211, 燃油喷射系统, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Throttle valve body assembly with throttle position sensor | 22030-0V040 · 22030-36010 |
| 22210 | Throttle body assembly | 22030-0T100 |
| 22271 | Throttle body gasket | 22271-0T010 · 22271-0V020 · 22271-36010 |
| 222A0 | Continuously variable valve lift controller assembly | 222A0-37021 · 222A0-37022 · 222A0-37023 · 222A0-37024 |
| 222A2 | Valve lifter control actuator connector clip | 222A2-37011 |
| 23250 | Fuel injector assembly | 23209-09120 · 23209-09230 · 23209-09360 · 23209-39175 |
| 23250B | O-ring (for fuel injector) | 90301-07037 · 90301-C0072 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-36031 |
| 23270F | O-ring (for pulsation damper) | 90301-07037 |
| 23291 | Injector vibration isolation pad | 23291-0P020 · 23291-0V010 · 23291-28020 |
| 23807 | Oil pipe sub-assembly | 23814-37051 |
| 23807V | No. 1 spacer (for oil pipe) | 23891-37010 |
| 23814B | oil pipeline | 23814-0V050 · 23814-36040 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-0V020 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-0H030 |
| 23843A | No. 3 fuel pipe clamp (for EFI) | 23847-0V010 |
| 23881B | fuel hose bracket | 23881-0V100 |
| 23891 | oil pipe septum | 23891-36010 |
| 23901 | Fuel pipe sub-assembly | 23901-0T130 · 23901-0T300 · 23901-0V150 |
