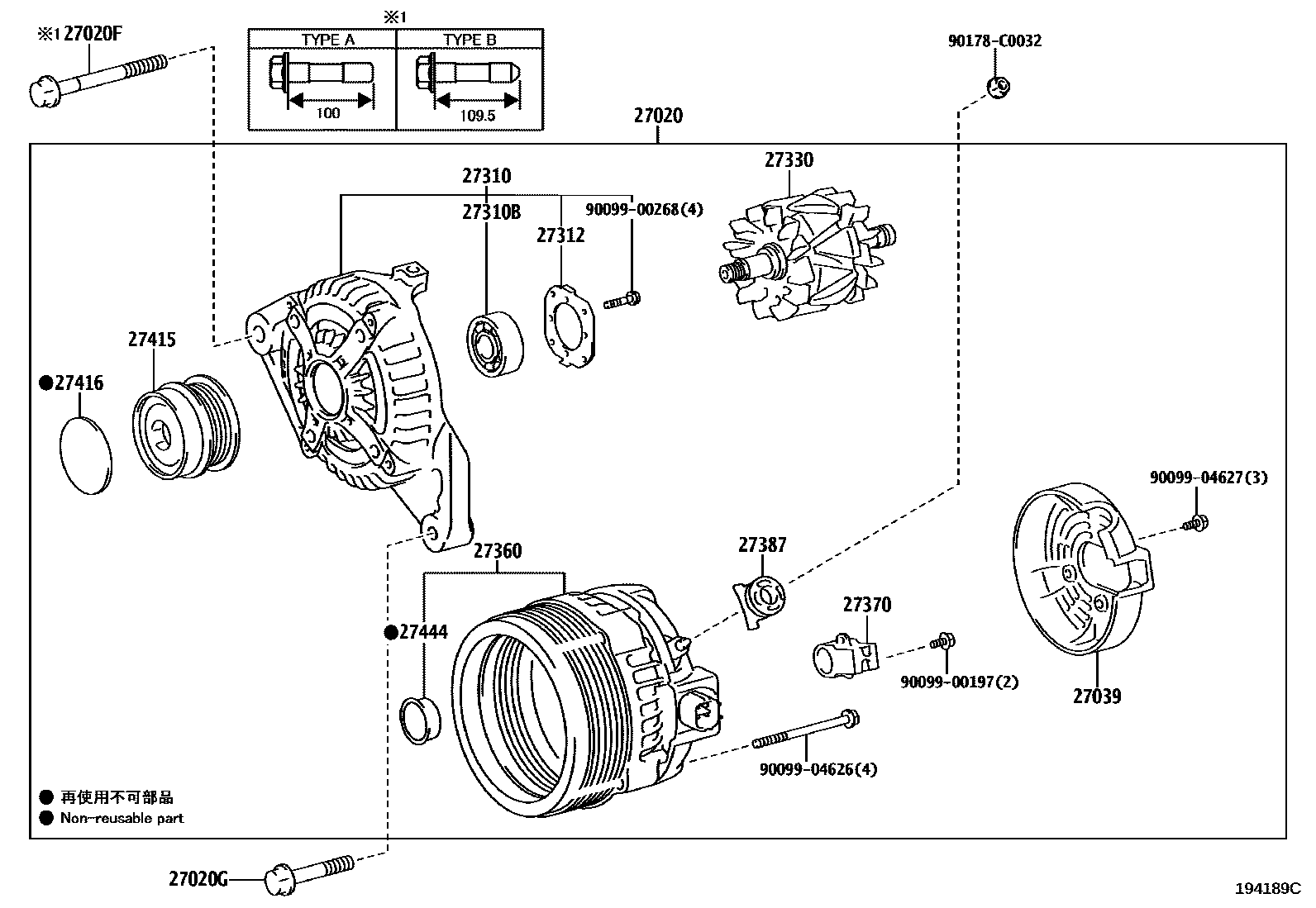

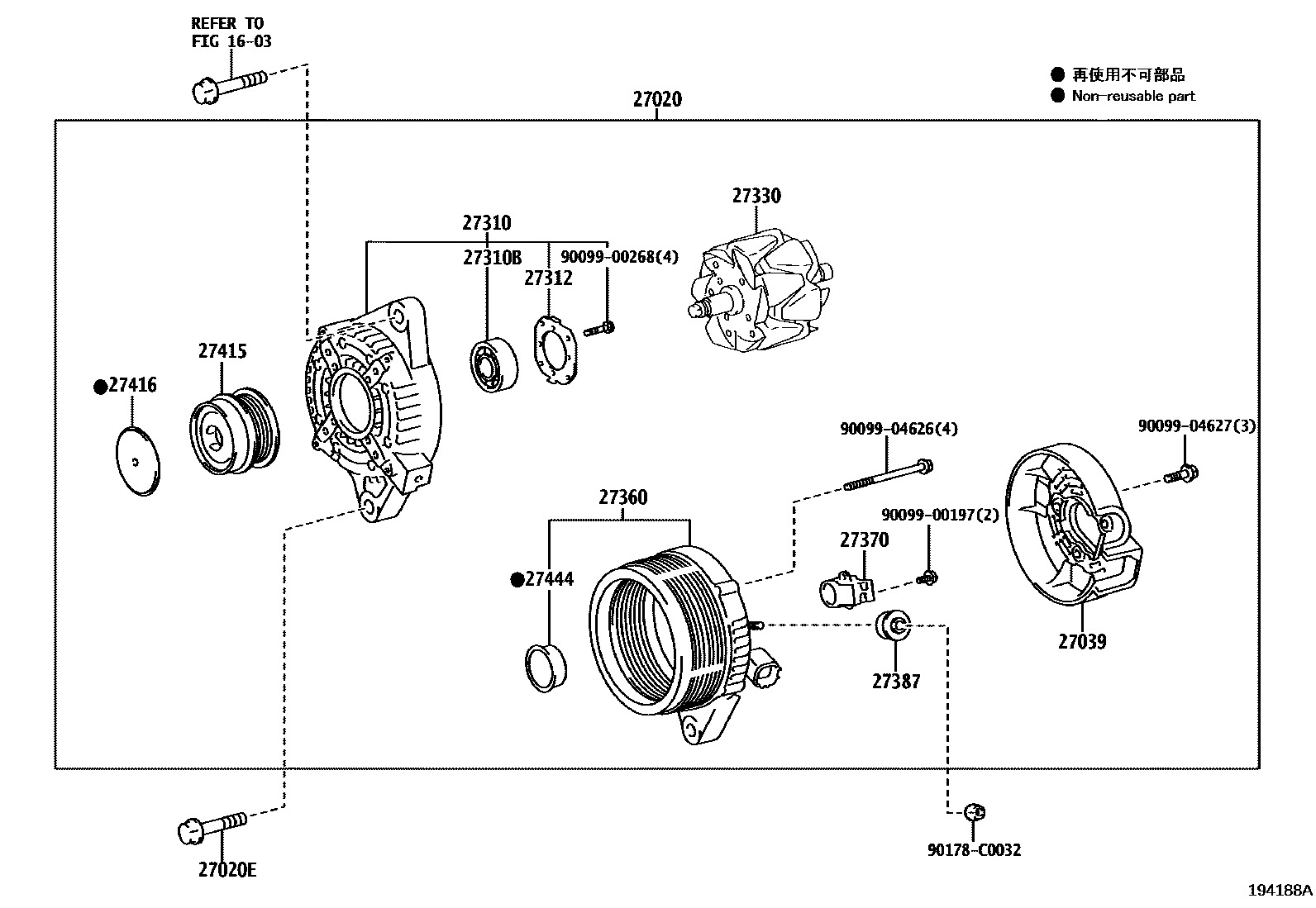

Toyota RAV4 Alternator — Figure 1903
Toyota RAV4 EPC diagram 1903, Alternator, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-0T280 · 27060-0T380 · 27060-0V150 · 27060-0V290 |
| 27020E | Bolts (for generator) | 90105-10307 |
| 27020F | Bolt No. 1 (for generator) | 90105-C0160 · 90105-C0183 |
| 27020G | Bolt No. 2 (for generator) | 90105-C0202 |
| 27039 | Alternator Rear End Cover | 27039-0C180 · 27039-0T260 |
| 27310 | Alternator Drive End Frame Assembly | 27310-0T260 · 27310-0V140 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90068-10042 |
| 27312 | Retainer Plate | 27312-0M070 |
| 27330 | Alternator Rotor Assembly | 27330-0T260 |
| 27360 | Alternator Stator Coil Assembly | 27360-0T260 · 27360-0T430 · 27360-0V140 · 27360-0V360 |
| 27370 | Alternator Brush Holder Assembly | 27370-0T030 |
| 27387 | Terminal Insulator | 27387-0H110 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-0T060 · 27415-0V040 · 27415-0W021 |
| 27416 | Generator pulley cover | 27416-0W050 |
| 27444 | Generator bearing cap seals | 27444-0Y180 |
