Toyota RAV4 点火线圈和火花塞 /电热塞 — Figure 1901

Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞 /电热塞, with 2 images and 2 PNC and OE references.

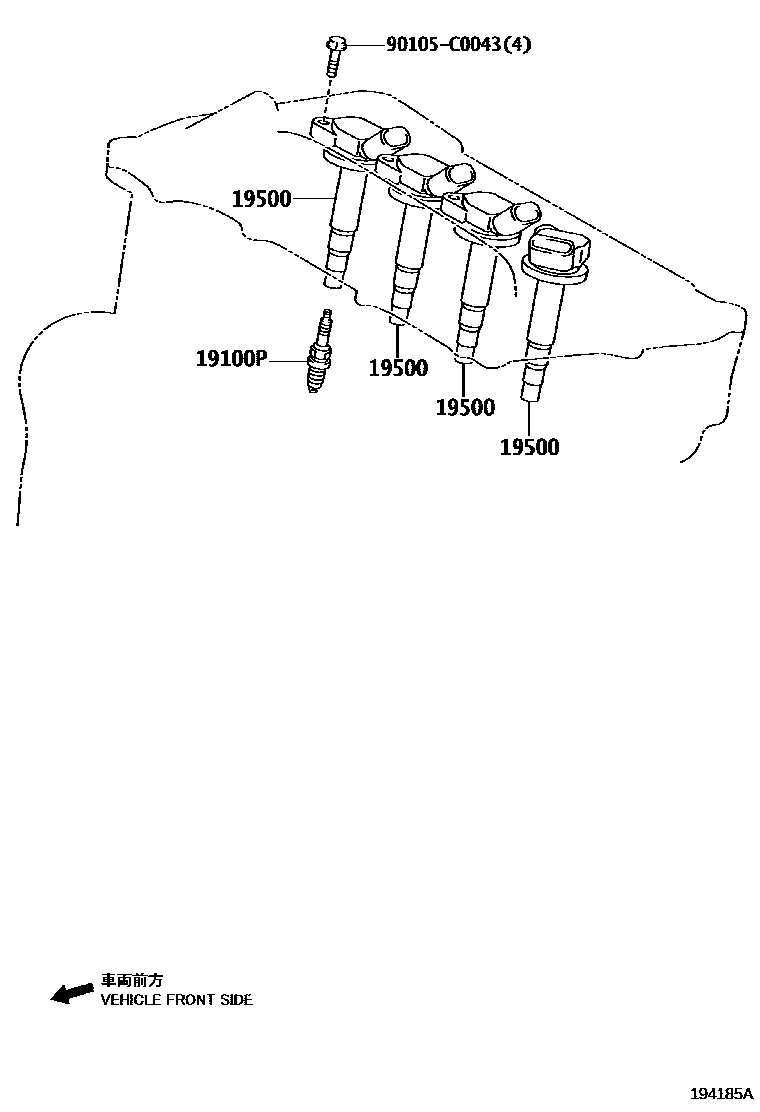

Toyota RAV4 点火线圈和火花塞 /电热塞 EPC diagram — 194185A
点火线圈和火花塞 /电热塞 — 194185A (201308 – 999999)

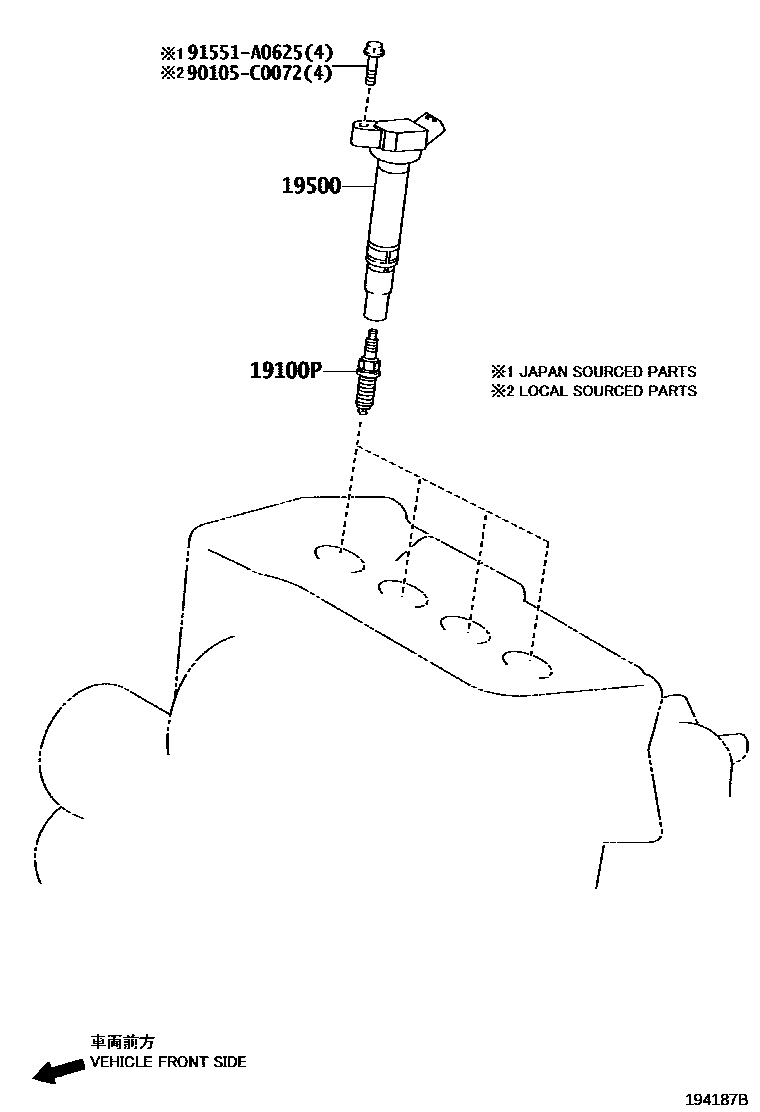

Toyota RAV4 点火线圈和火花塞 /电热塞 EPC diagram — 194187B
点火线圈和火花塞 /电热塞 — 194187B (201308 – 999999)

PNC and OE references

PNCPart nameOE numbers
19100Pspark plug90919-01233 · 90919-C1001 · 90919-C1008 · 90919-C1010 · 90919-T1009 · 90919-T1014
19500Ignition coil assembly90919-02256 · 90919-C2004 · 90919-C2005
