Toyota RAV4 vacuum tube — Figure 1708

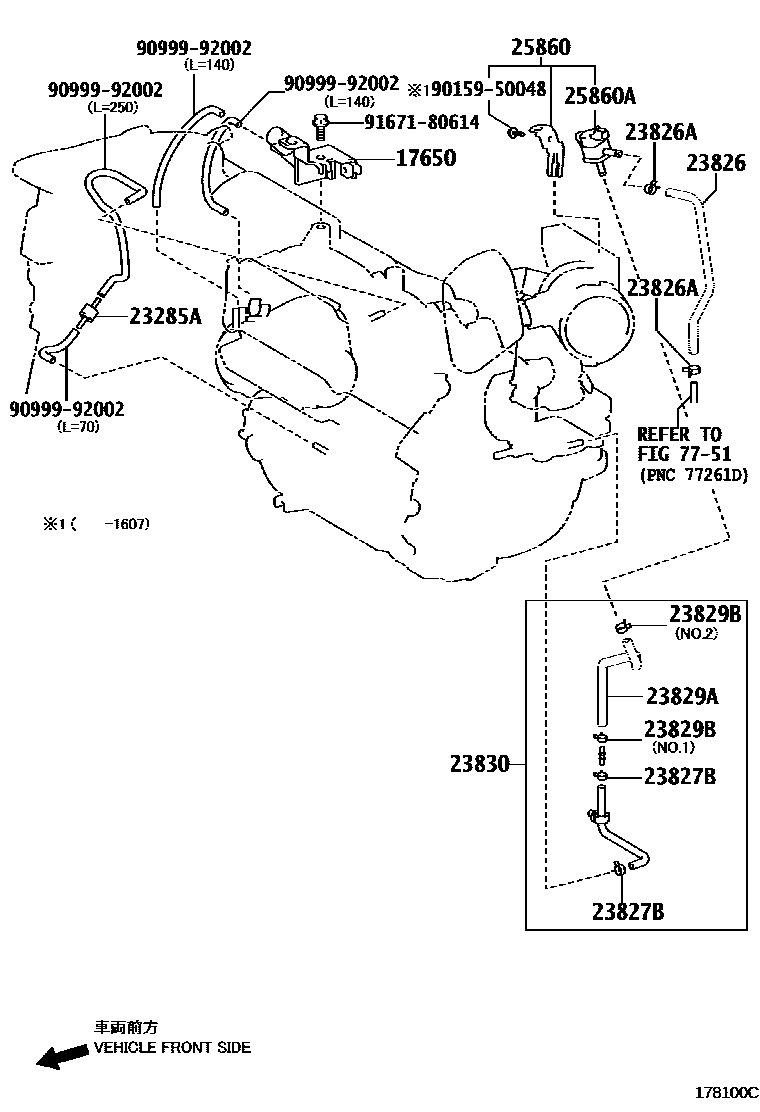

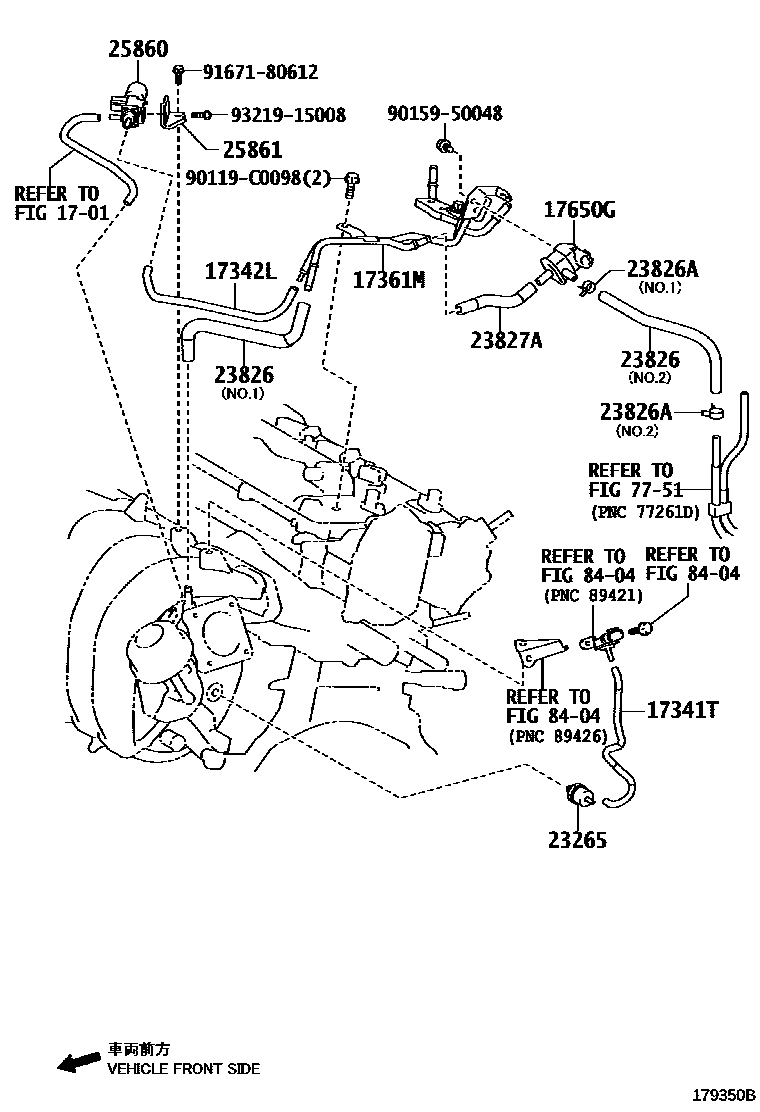

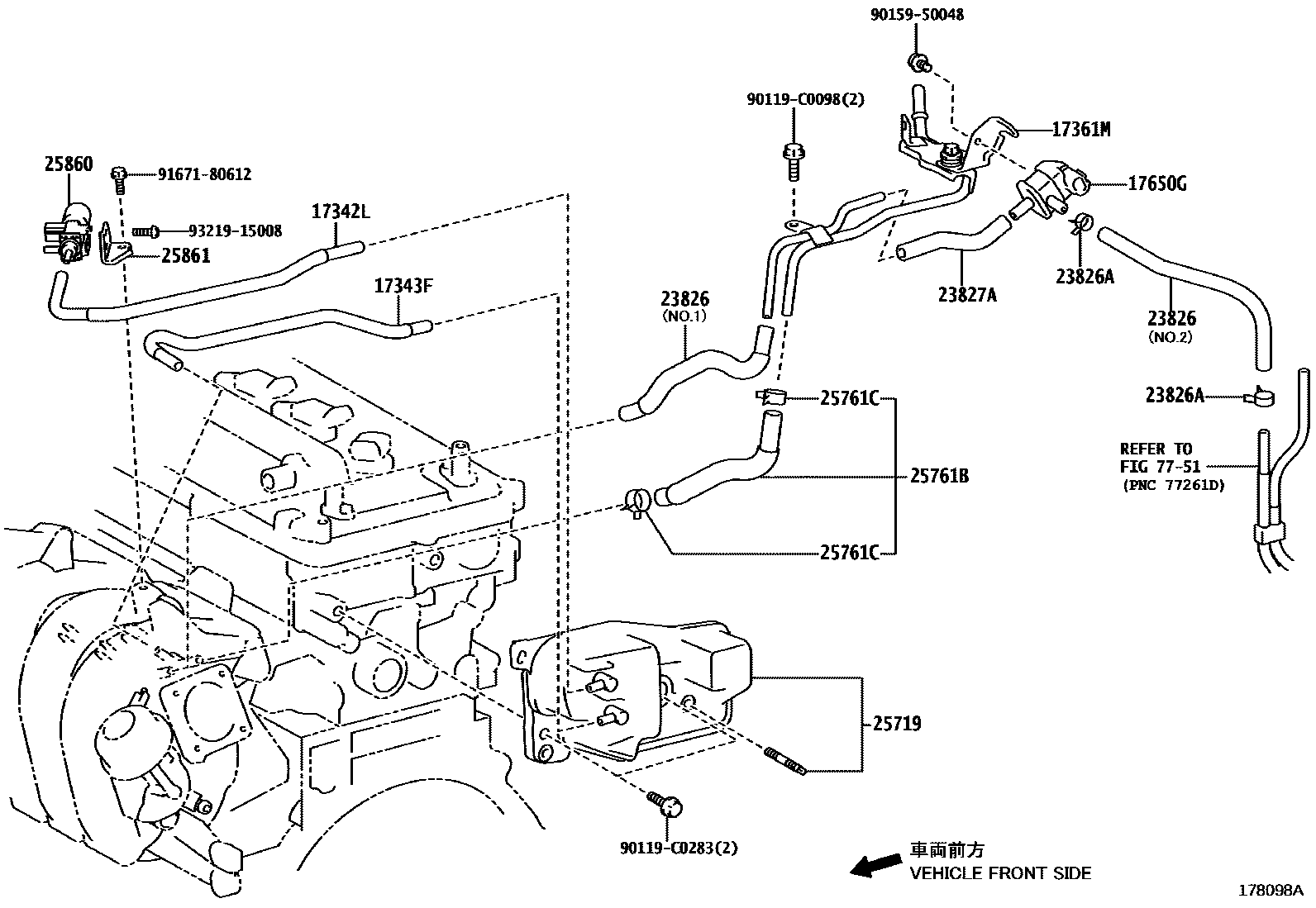

Toyota RAV4 EPC diagram 1708, vacuum tube, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17341T | Air hose No. 1 | 17341-37060 · 17341-37100 |
| 17342L | Air hose No. 2 | 17342-37050 · 17342-37060 |
| 17343F | No. 3 air hose | 17343-37040 |
| 17361M | air tube | 17361-0T010 · 17361-0T030 · 17361-37070 |
| 17650 | Vacuum switch valve assembly | 25860-36010 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12276 · 90910-12283 · 90910-TC001 |
| 23265 | No. 1 gas filter | 90917-11022 |
| 23285A | No. 1 one-way valve | 90917-10065 |
| 23826 | No. 1 fuel vapor supply hose | 23826-0T110 · 23826-0T170 · 23826-0T270 · 23826-0T310 · 23826-0T321 · 23826-0V060 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90466-11003 · 90466-C0037 · 96133-41501 · 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23827-0T080 · 23827-37030 · 23827-37060 · 95328-07009 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96132-51300 |
| 23829A | Fuel vapor supply hose | 23826-0V200 |
| 23829B | Clamp (for fuel vapor supply hose) | 90466-13004 · 96132-51300 |
| 23830 | No. 2 fuel vapor supply hose assembly | 23830-0V130 |
| 25719 | Vacuum pressure tank | 25719-0T010 · 25719-37010 |
| 25761B | No. 1 Vacuum Transfer Hose | 25761-0T020 · 25761-37080 |
| 25761C | Clamp (No. 1 vacuum transfer hose) | 96133-41500 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-0V060 · 90910-12281 |
| 25860A | No. 1 vacuum switch valve | 90910-TC001 |
| 25861 | Vacuum switch valve bracket | 25861-37010 |
