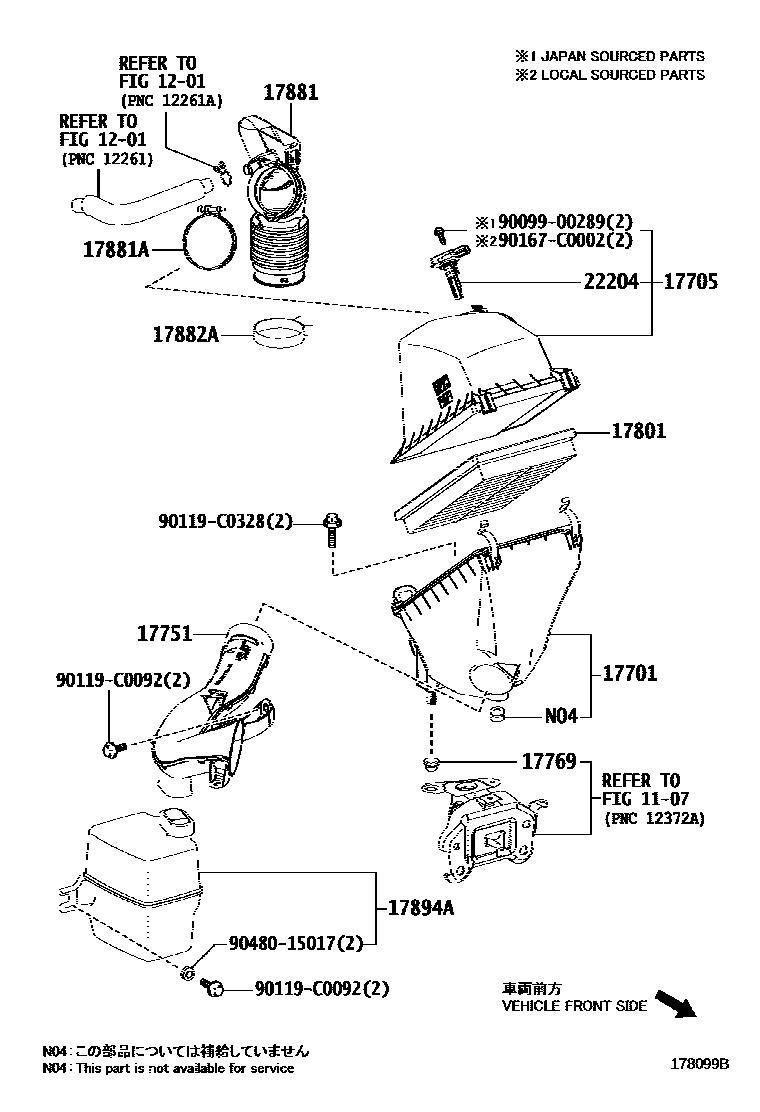

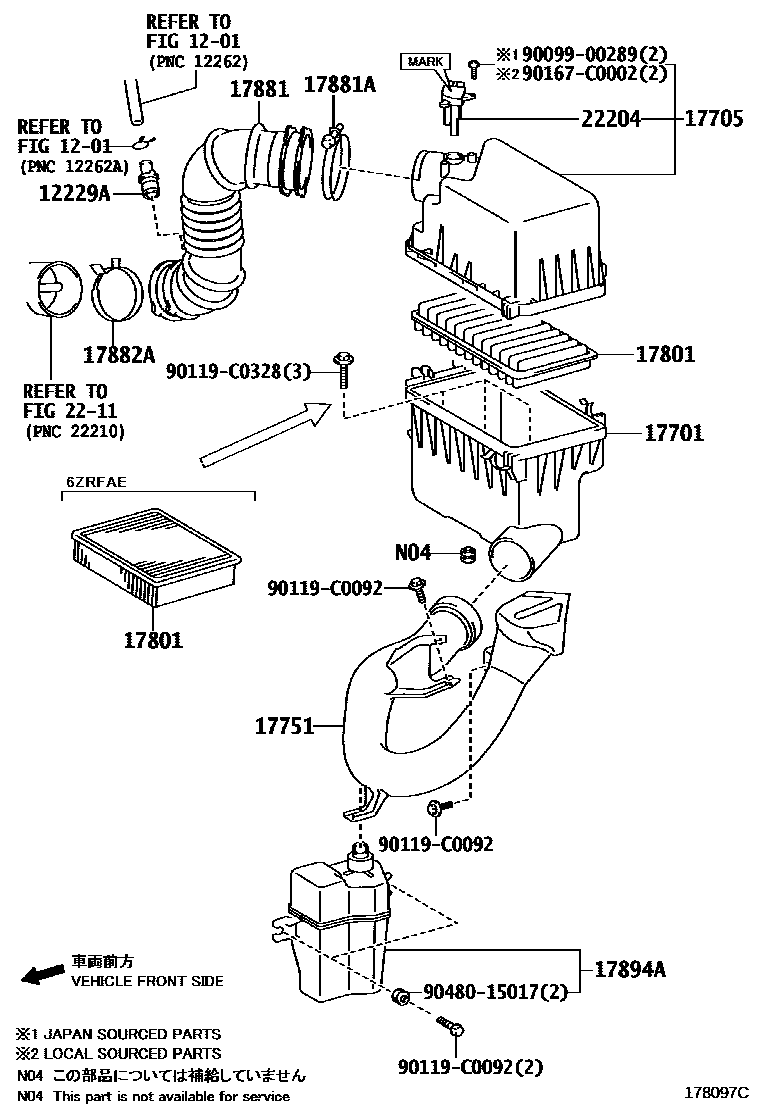

Toyota RAV4 Air Cleaner — Figure 1703
Toyota RAV4 EPC diagram 1703, Air Cleaner, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12229A | ventilation duct | 12229-0T010 · 12229-21010 |
| 17701 | Air filter housing sub-assembly | 17701-0T150 · 17701-0T200 · 17701-0V130 |
| 17705 | Air filter cover sub-assembly | 17705-0T180 · 17705-0T240 · 17705-0T250 · 17705-0V130 |
| 17751 | No. 1 air filter air inlet | 17751-0H090 · 17751-0V050 |
| 17769 | air filter bracket | 17769-0V030 |
| 17801 | Air filter element sub-assembly | 17801-0T020 · 17801-0V030 · 17801-38011 |
| 17881 | No. 1 air cleaner hose | 17881-0T290 · 17881-0V170 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10780 · 96111-10850 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90466-62002 · 90466-71001 · 90466-C0019 |
| 17894A | No. 2 intake resonator | 17894-0H120 · 17894-0V060 |
| 22204 | Intake air flow meter assembly | 22204-0T040 · 22204-0V020 · 22204-28010 |
