Toyota RAV4 Exhaust Pipe — Figure 1702

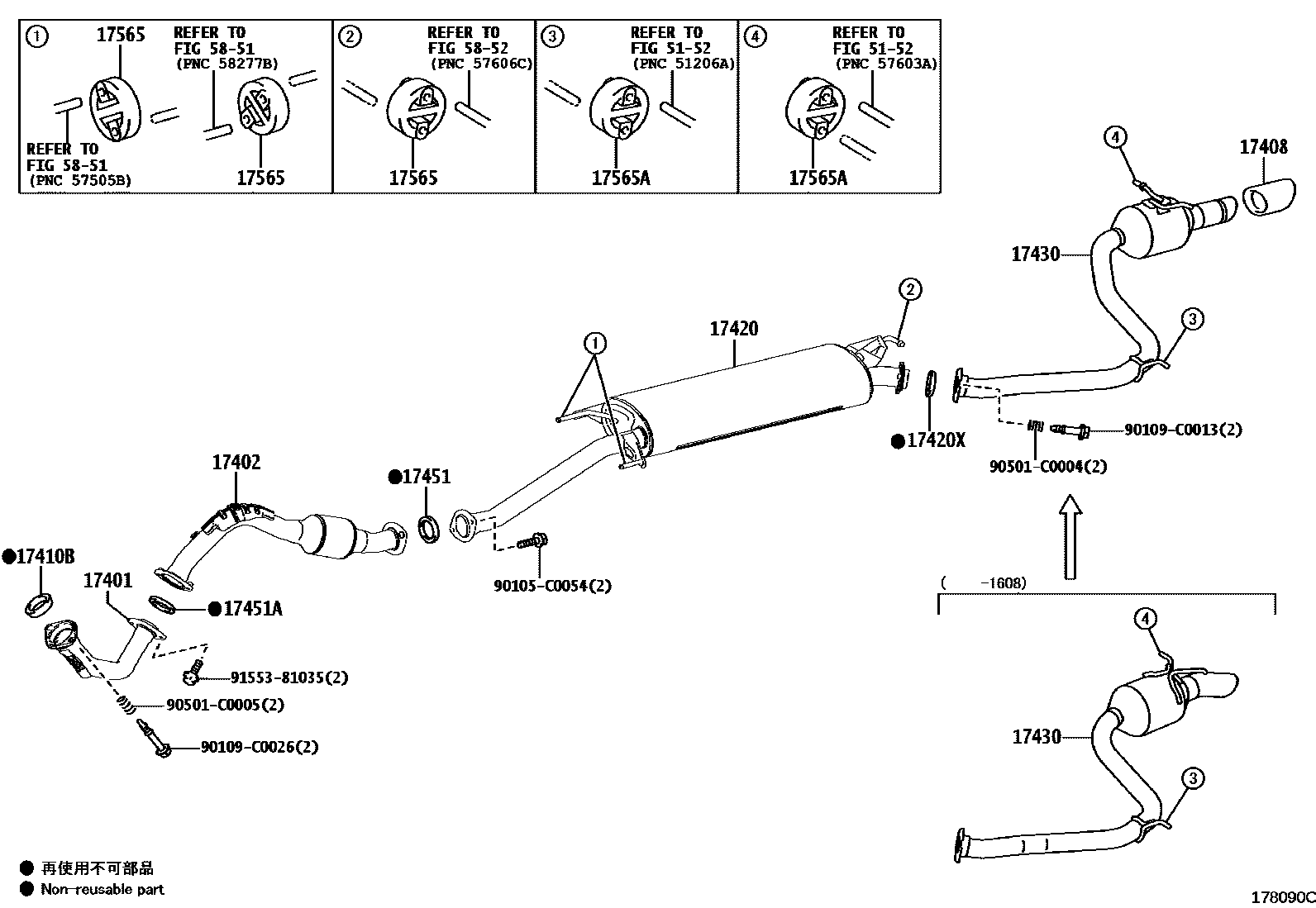

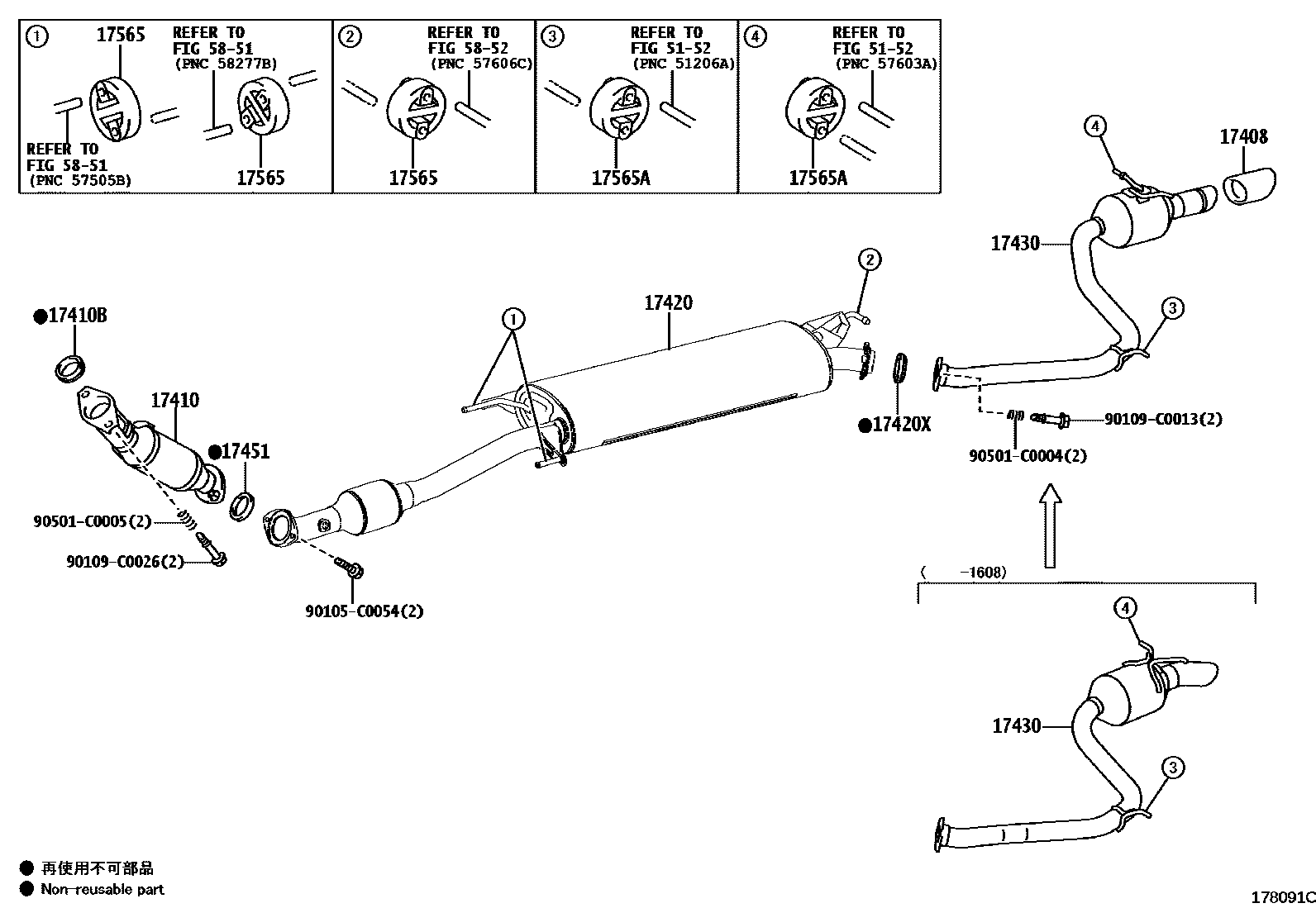

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17401 | Front exhaust pipe sub-assembly | 17401-0V070 |
| 17402 | No. 2 front exhaust pipe sub-assembly | 17402-0V020 · 17402-0V030 |
| 17408 | Exhaust pipe tail throat sub-assembly | 17408-0T050 |
| 17410 | Front exhaust pipe assembly | 17410-0T610 · 17410-0T640 · 17410-0TD10 |
| 17410B | Exhaust pipe gasket | 17451-0H020 · 17451-0T010 |
| 17420 | Central exhaust pipe assembly | 17420-0T050 · 17420-0T051 · 17420-0T100 · 17420-0T110 · 17420-0V290 · 17420-0V291 |
| 17420X | Center exhaust pipe liner | 17451-0V060 |
| 17430 | Exhaust tailpipe assembly | 17430-0T290 · 17430-0T310 · 17430-0T610 · 17430-0V280 · 17430-0V460 |
| 17451 | Exhaust pipe gasket | 90917-06078 · 90917-C6001 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06078 · 90917-C6001 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-0T010 · 17565-0T011 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-0D070 |
