Toyota RAV4 Manifold — Figure 1701

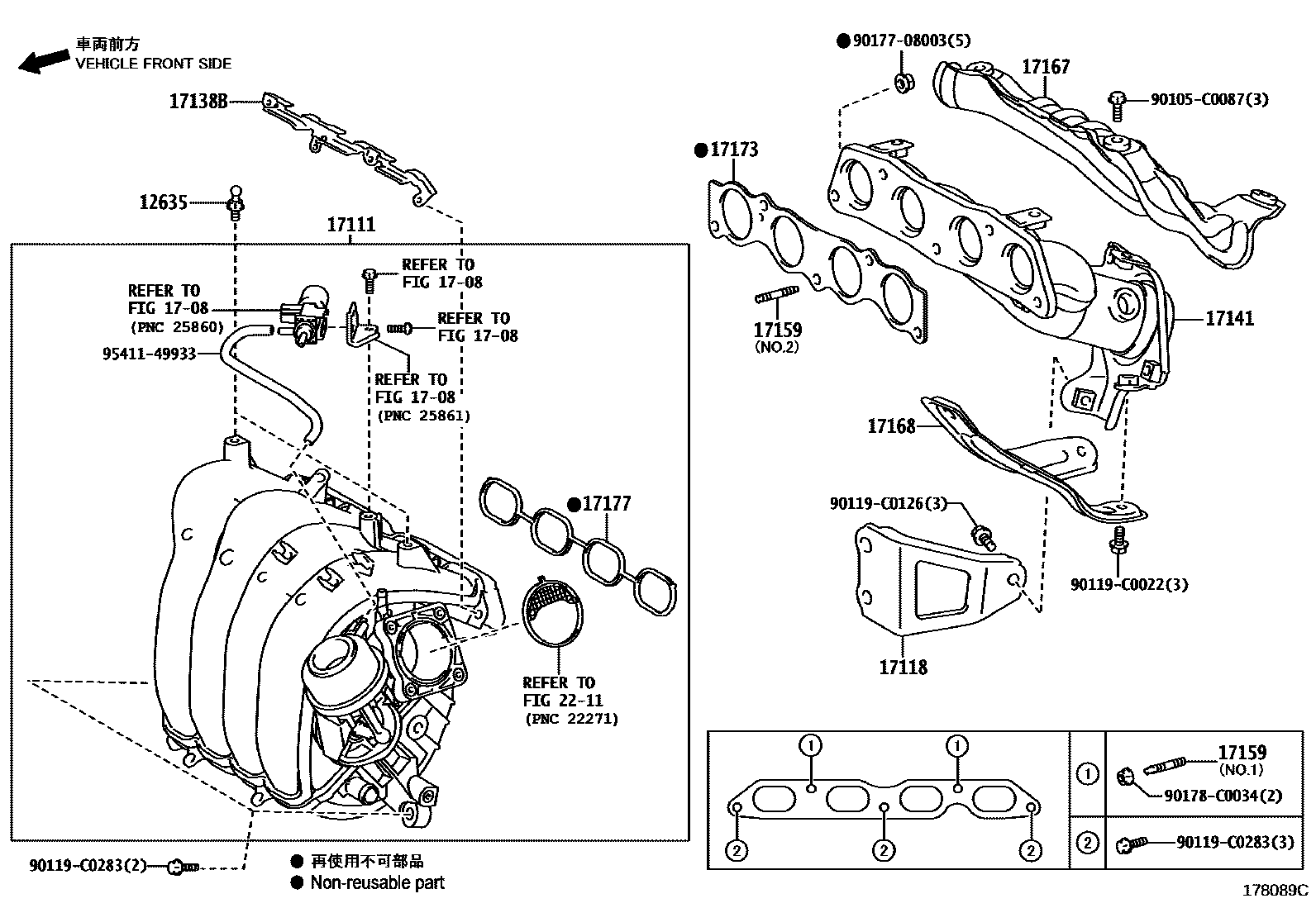

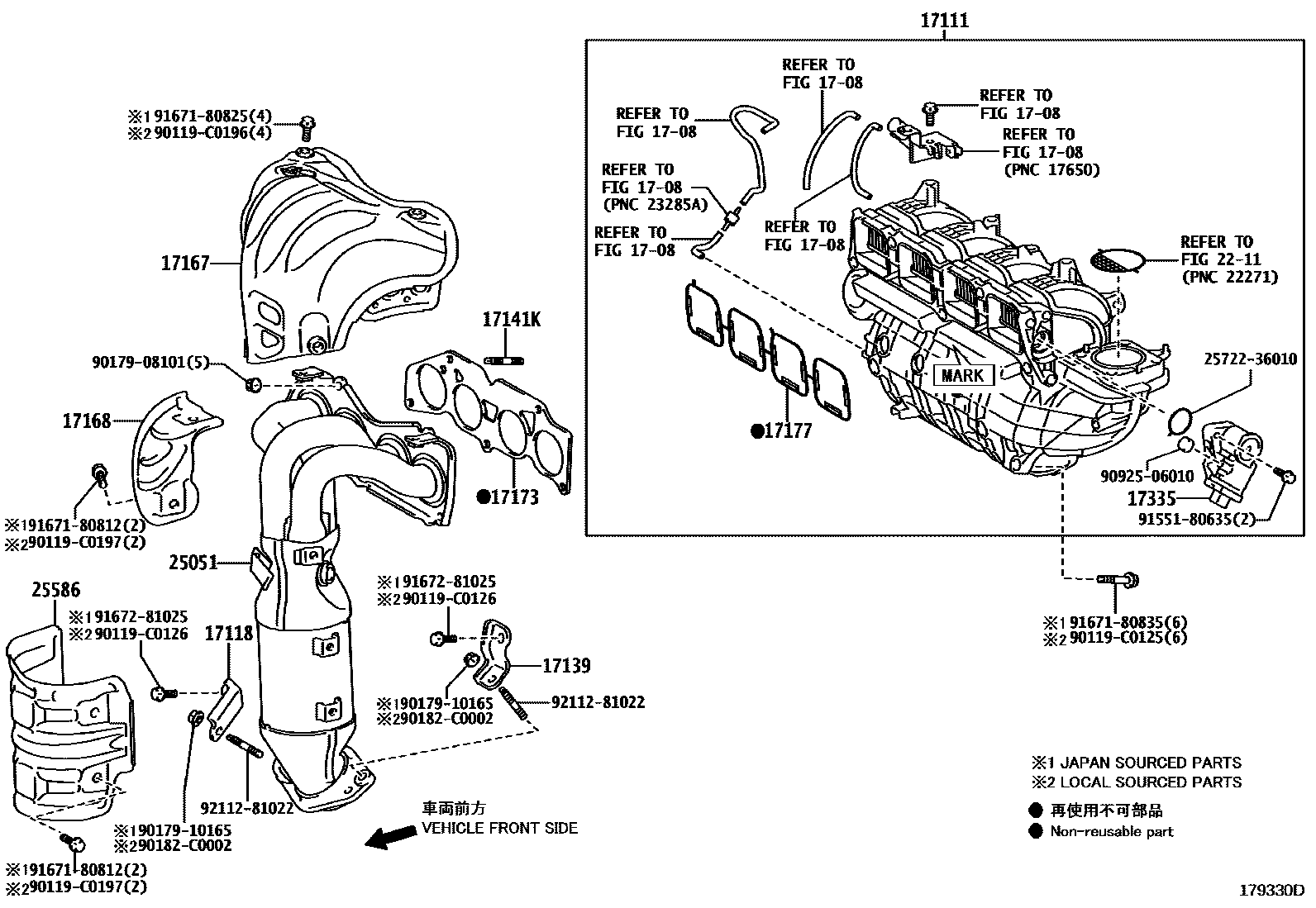

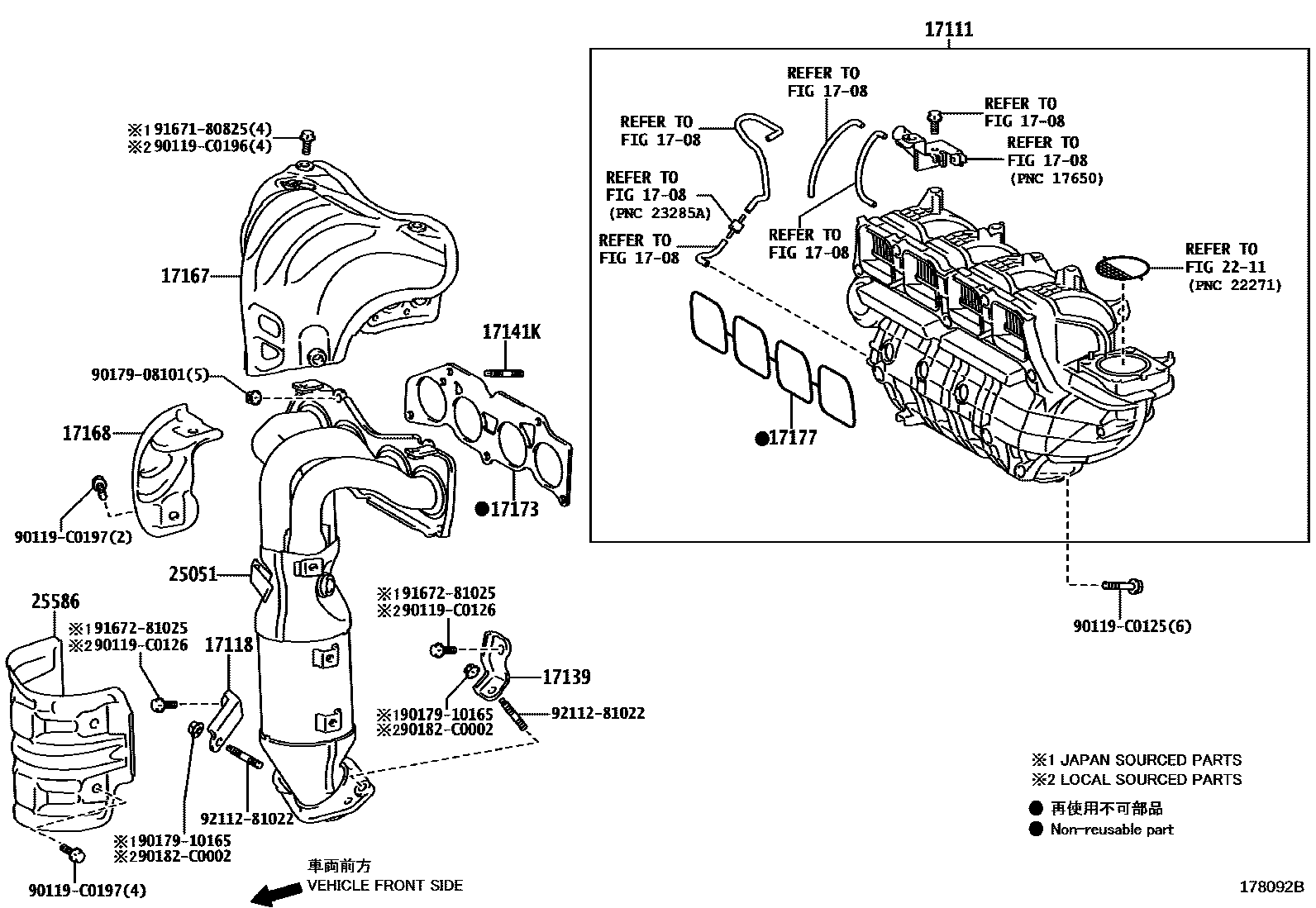

Toyota RAV4 EPC diagram 1701, Manifold, with 3 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12635 | hood connector | 90109-06385 · 90109-C0017 |
| 17111 | Intake Manifold | 17120-0T070 · 17120-0T170 · 17120-0V030 · 17120-36011 · 17120-36020 · 17120-36021 |
| 17118 | Manifold stays | 17118-0T050 · 17118-0V020 · 17118-36010 |
| 17138B | Intake manifold stay | 17138-0T020 · 17138-0T021 |
| 17139 | No. 2 manifold stay | 17139-0V060 · 17139-36010 |
| 17141 | exhaust manifold | 17141-0T100 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-08037 · 90126-08052 · 90126-C0010 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08026 · 90126-08052 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-0T050 · 17167-0V020 · 17167-36011 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-0T080 · 17168-0V020 · 17168-36010 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-0T010 · 17173-0V020 · 17173-36020 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-0V020 · 17171-36010 · 17171-36011 · 17177-0T010 |
| 17335 | Intake control valve actuator | 17335-36010 |
| 25051 | Exhaust manifold three-way catalytic converter sub-assembly | 25051-0V200 · 25051-0V290 · 25051-36380 |
| 25586 | No. 1 manifold three-way catalytic converter vibration isolation pad | 25586-0V030 · 25586-36010 |
