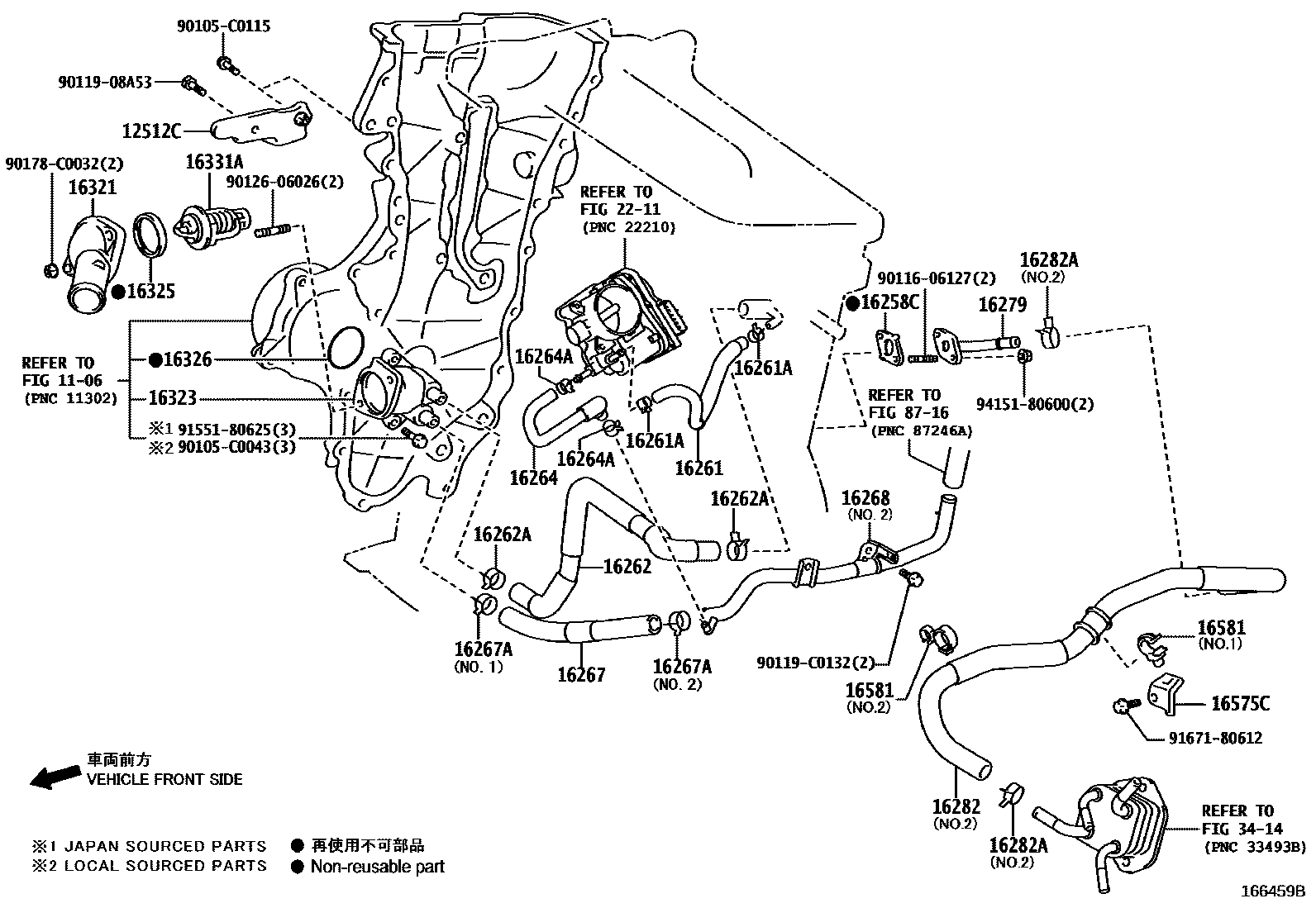

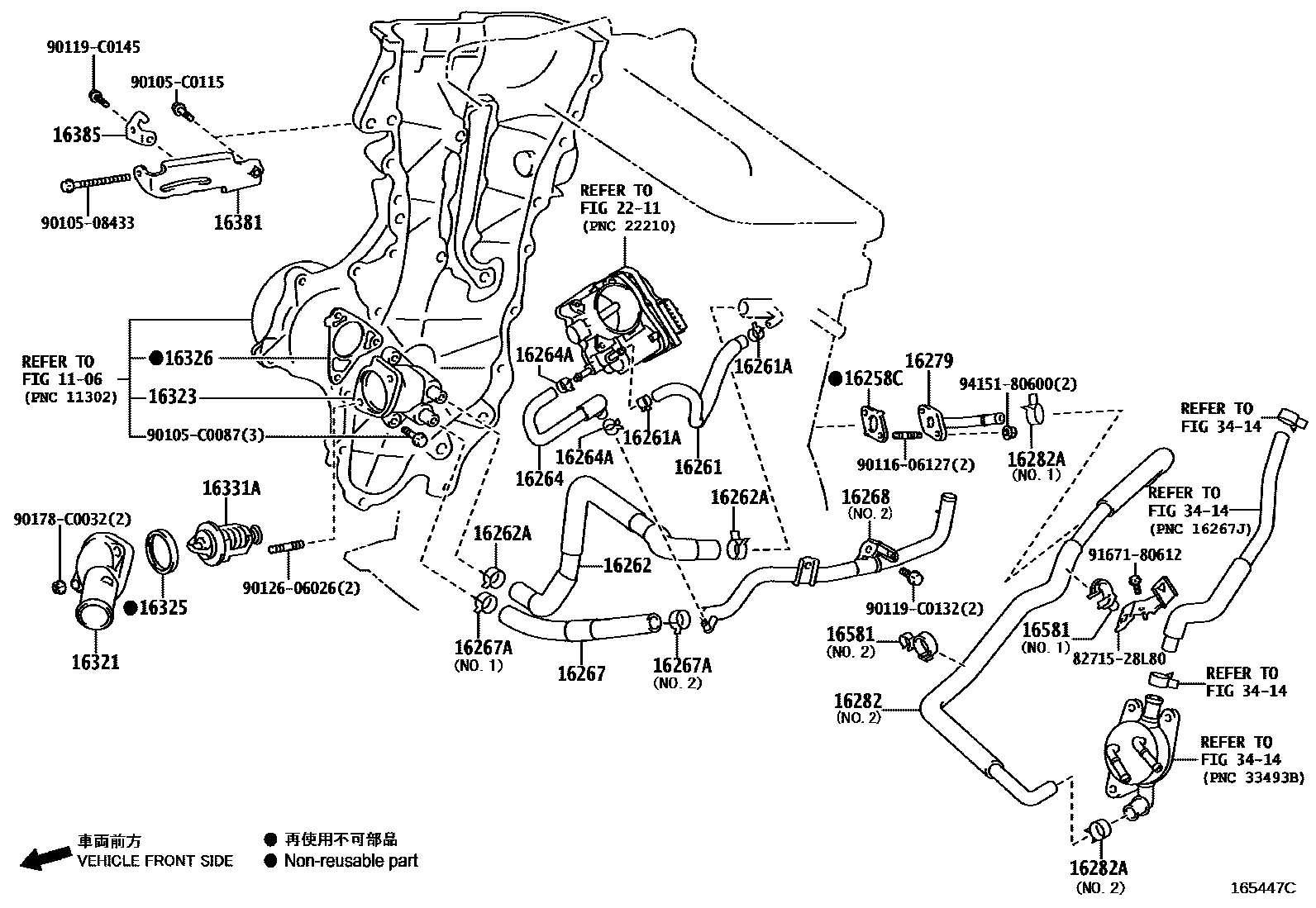

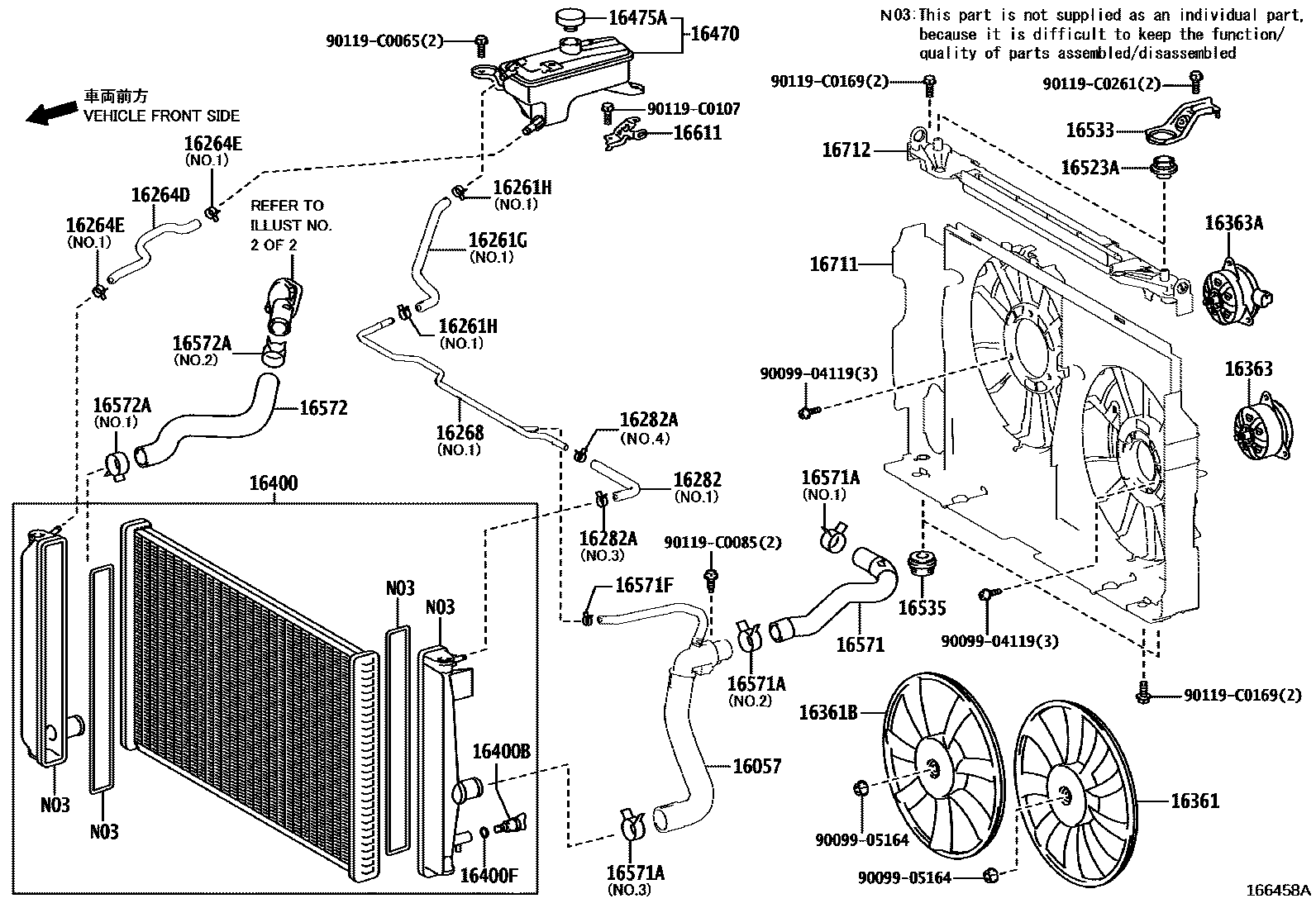

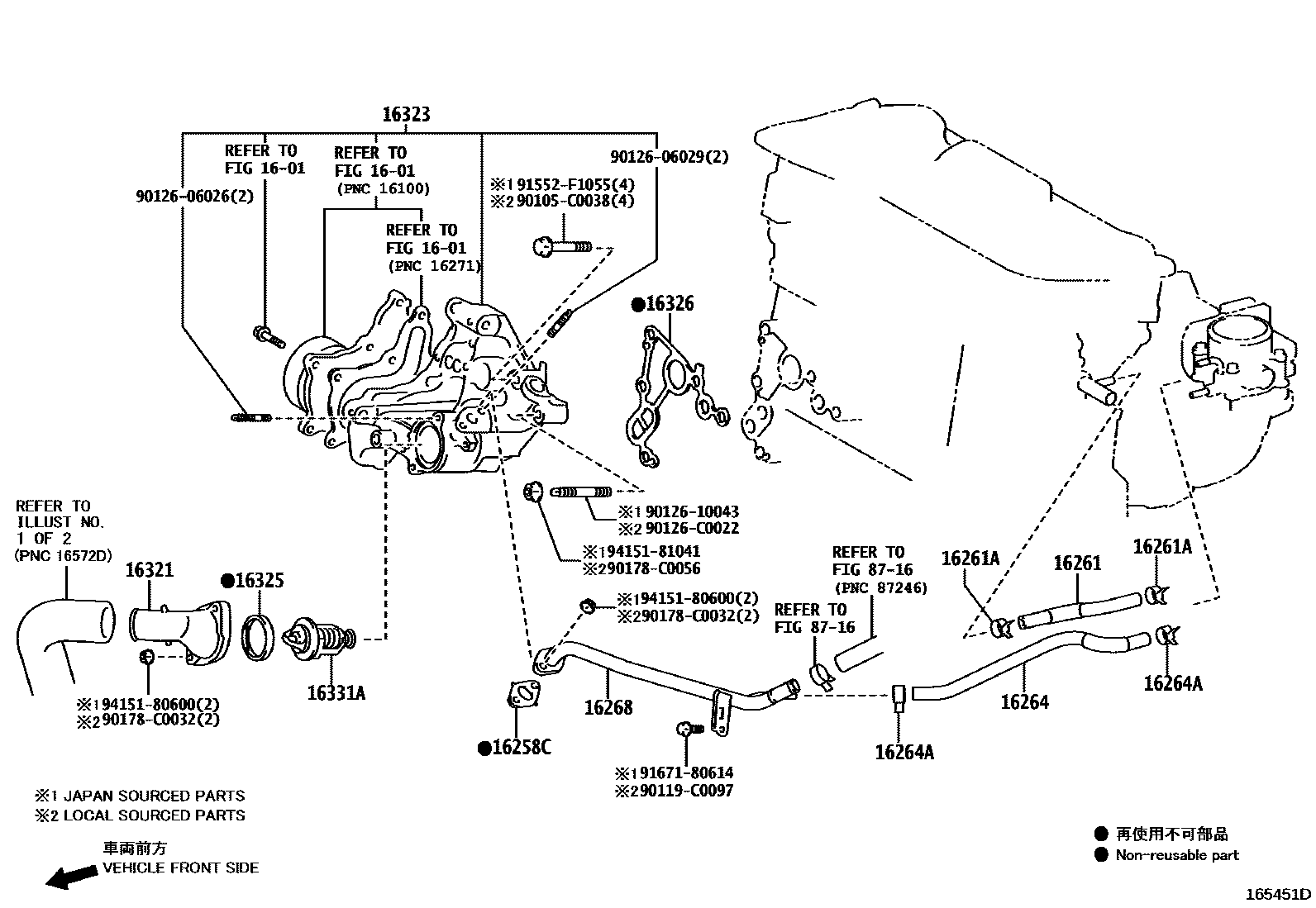

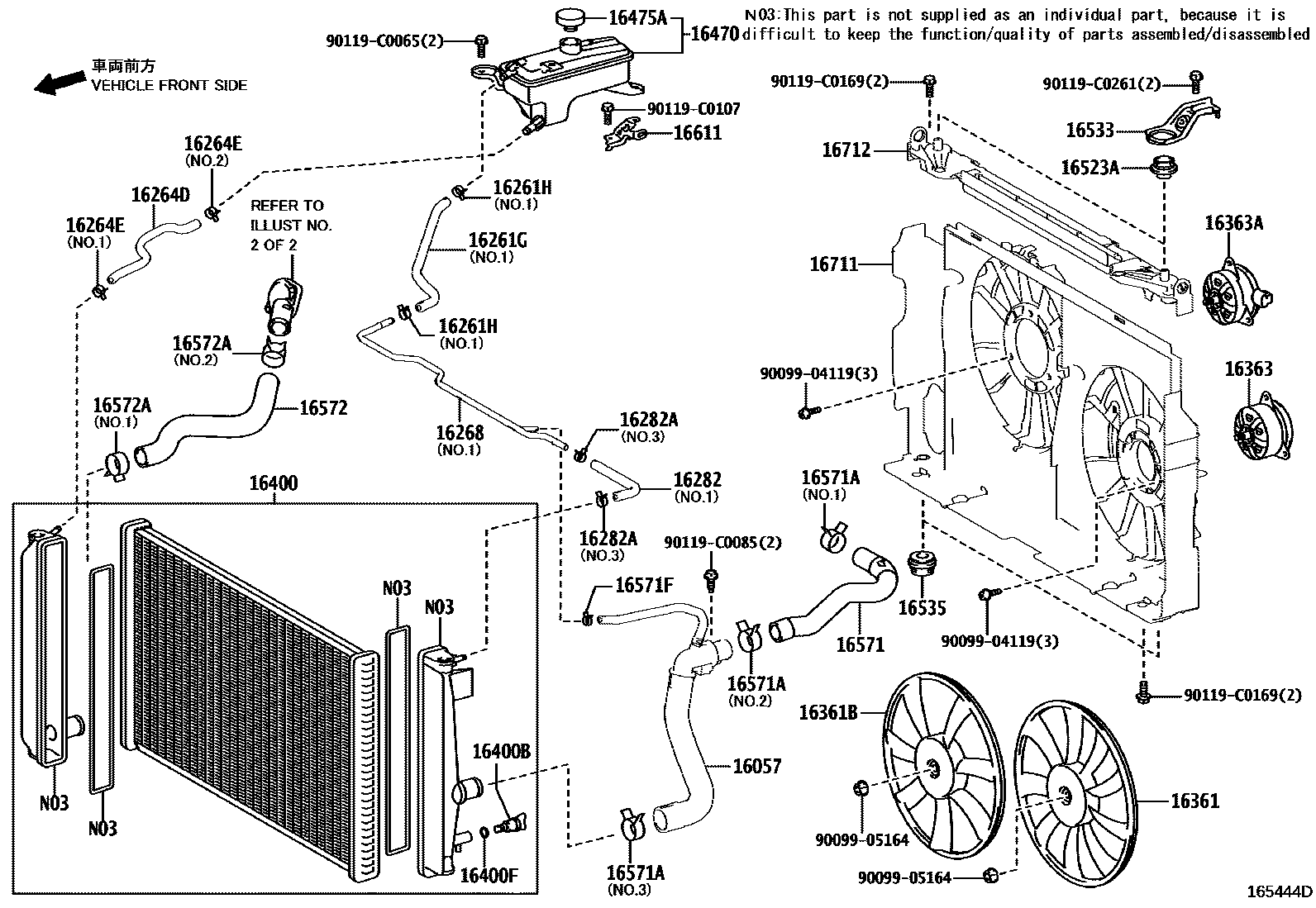

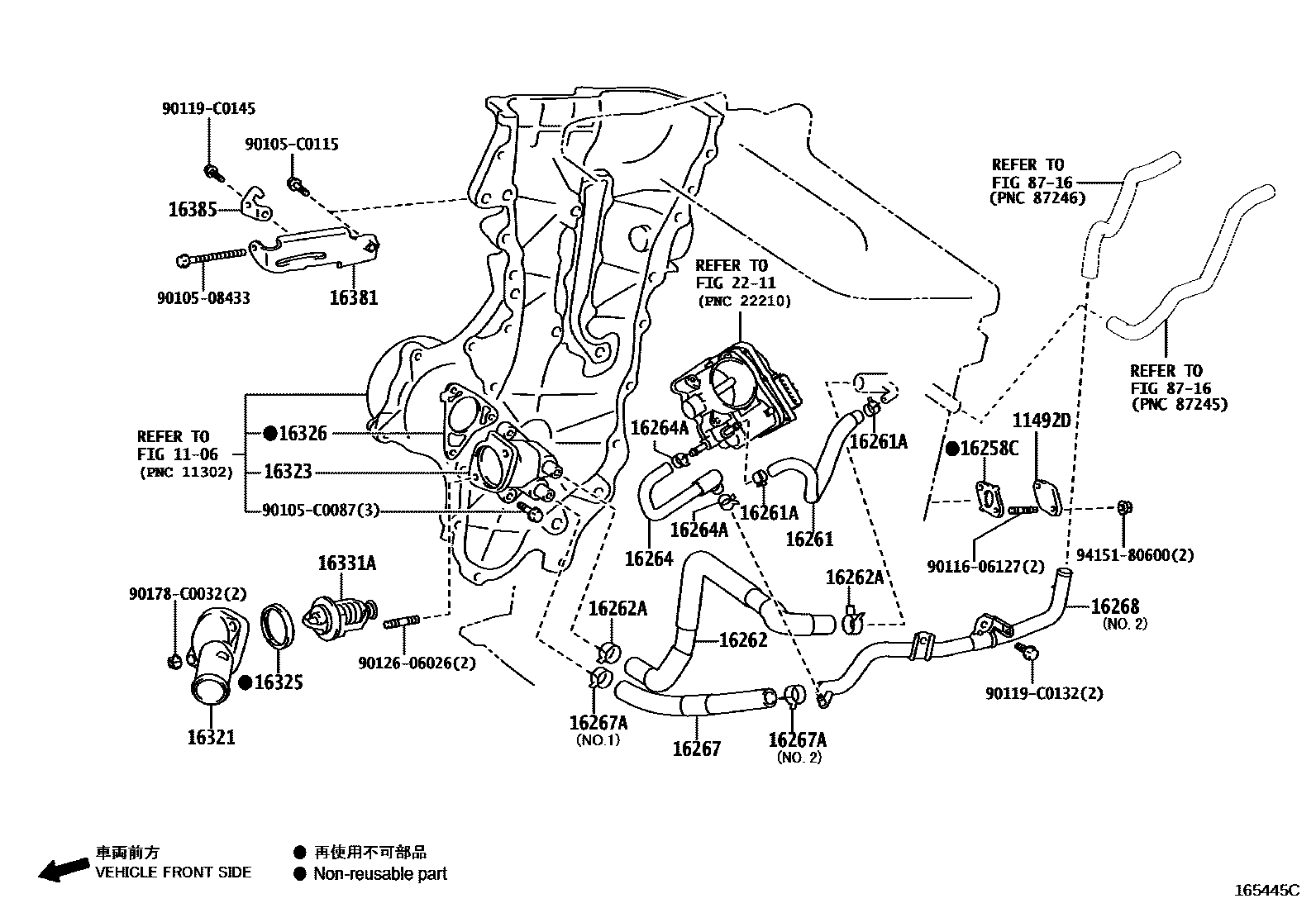

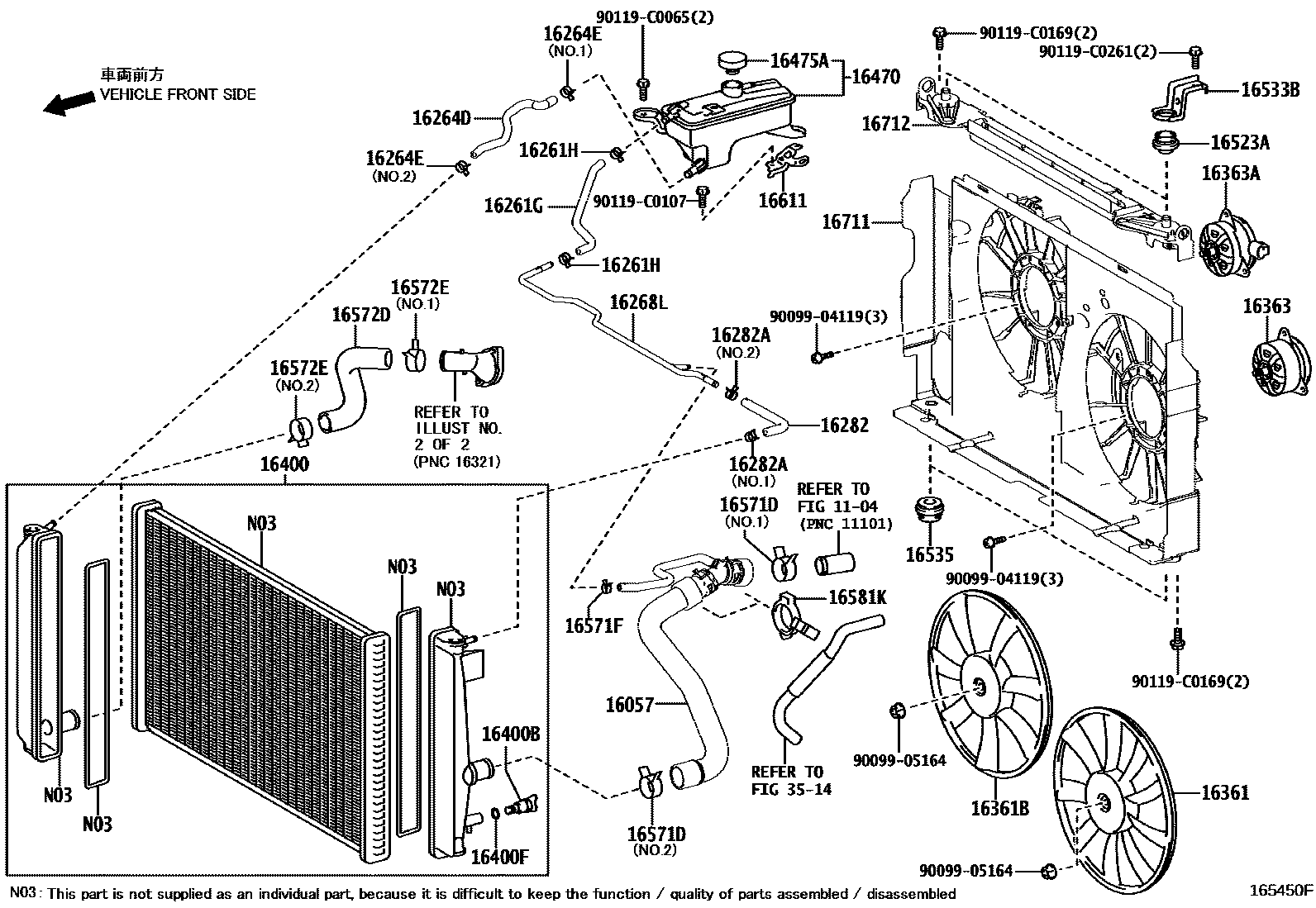

Toyota RAV4 RADIATOR & WATER OUTLET — Figure 1603
Toyota RAV4 EPC diagram 1603, RADIATOR & WATER OUTLET, with 7 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11492D | No. 1 sealing plate | 11492-37010 |
| 12512C | No. 2 generator bracket | 12512-0T020 |
| 16057 | Radiator hose sub-assembly | 16057-0T100 · 16057-0V020 |
| 16258C | Gasket (for water bypass pipe) | 16258-0H050 · 16258-0V010 · 16258-36010 |
| 16261 | HOSE, WATER BY-PASS | 16261-0T101 · 16261-0V030 · 16261-36010 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-C0026 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-0T030 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 90466-C0003 |
| 16262 | water inlet hose | 16262-0T010 |
| 16262A | Clamp (for water inlet hose) | 90466-C0014 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-0T061 · 16264-0V040 · 16264-36010 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0026 · 96137-41501 |
| 16264D | HOSE, WATER BY-PASS, NO.2 | 16264-0T020 · 16264-0T200 |
| 16264E | CLIP, WATER BY-PASS HOSE NO.2 | 90466-C0003 · 96136-41901 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-0T070 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90466-C0014 · 96136-52701 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-0T040 · 16268-0T050 · 16268-0V090 · 16268-36010 |
| 16268L | PIPE, WATER BY-PASS | 16268-0T050 |
| 16279 | No. 3 water bypass pipe | 16279-0T010 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-0T050 · 16282-0T060 · 16282-0T120 · 16282-0T130 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90466-C0003 · 90466-C0006 · 96136-41901 · 96136-52201 |
| 16321 | water inlet | 16321-0T020 · 16321-0V020 · 16321-36010 · 16321-37010 |
| 16323 | HOUSING, WATER INLET | 16032-0V030 · 16032-36011 · 16323-0T070 · 16323-0T110 · 16323-37040 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-0H030 · 16325-0T010 · 16325-28010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16326-36010 · 16326-37010 · 16326-37030 |
| 16331A | thermostat | 90916-03129 · 90916-C3001 · 90916-C3003 · 90916-C3007 |
| 16361 | Fan | 16361-0V450 |
| 16361B | Fan No. 2 | 16361-0H300 |
| 16363 | cooling fan motor | 16363-0V380 |
| 16363A | Cooling fan motor No. 2 | 16363-0V390 |
| 16381 | Fan belt adjustment lever | 16381-0T030 · 16381-37040 |
| 16385 | Fan belt adjustment slider | 16385-0T030 · 16385-37010 |
| 16400 | Radiator assembly | 16400-0V220 · 16400-0V221 |
| 16400B | Radiator drain switch screw plug | 16417-0H290 |
| 16400F | Seal (for radiator drain switch) | 16492-0P460 · 16492-21050 |
| 16470 | Radiator reservoir assembly | 16470-0H100 |
| 16475A | Reservoir tank cover | 16475-28140 · 16475-37011 · 16475-51010 |
| 16523A | Radiator bracket cushion | 16523-0H060 |
| 16533 | Radiator upper bracket | 16533-0T060 |
| 16533B | Radiator bracket No. 1 | 16533-0T060 |
| 16535 | Radiator lower support | 16535-0H080 · 16535-0H090 |
| 16571 | Radiator water inlet hose | 16571-0T070 · 16571-0T071 |
| 16571A | Hose clamp or clip (for radiator water inlet) | 90466-C0009 · 90466-C0016 · 96136-43901 |
| 16571D | No. 1 radiator hose clip | 90466-C0009 · 90466-C0016 |
| 16571F | Clamps or clips (for water hoses) | 96136-41501 |
| 16572 | Radiator outlet hose | 16572-0T060 |
| 16572A | Hose clamp or clip (for radiator outlet No. 1) | 90466-C0009 · 90466-C0016 |
| 16572D | Radiator hose No. 2 | 16572-0V190 |
| 16572E | No. 2 radiator hose clip | 90466-C0009 · 90466-C0016 |
| 16575C | No. 1 water hose clamp bracket | 16575-37040 |
| 16581 | Hose clamp (for water hose) | 16581-0T120 · 16581-21030 · 16581-37010 · 16581-37100 |
| 16581K | No. 1 auxiliary radiator hose clip | 16581-0V030 · 16581-36010 |
| 16611 | Radiator reservoir bracket | 16611-0T020 |
| 16711 | fan cover | 16711-0V220 |
| 16712 | No. 2 fan cover | 16712-0T070 |
