Toyota RAV4 Water Pump — Figure 1601

Toyota RAV4 EPC diagram 1601, Water Pump, with 3 images and 4 PNC and OE references.

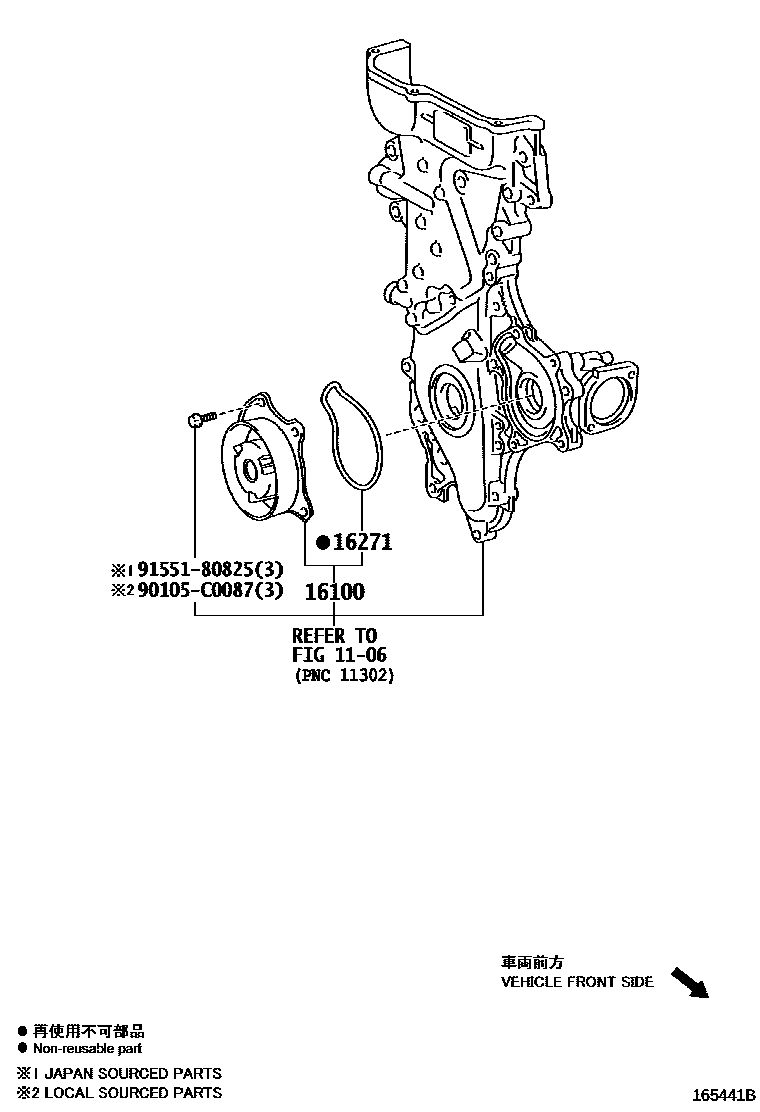

Toyota RAV4 Water Pump EPC diagram — 165441B
Water Pump — 165441B (201308 – 201607)

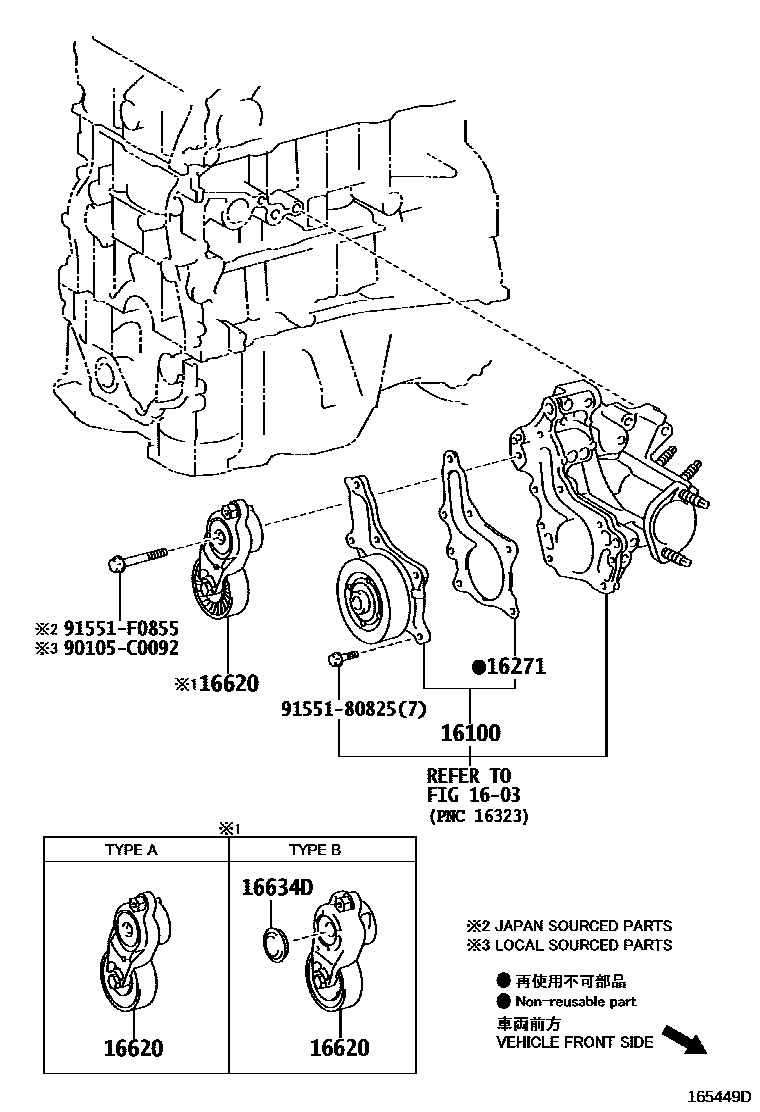

Toyota RAV4 Water Pump EPC diagram — 165449D
Water Pump — 165449D (201308 – 999999)

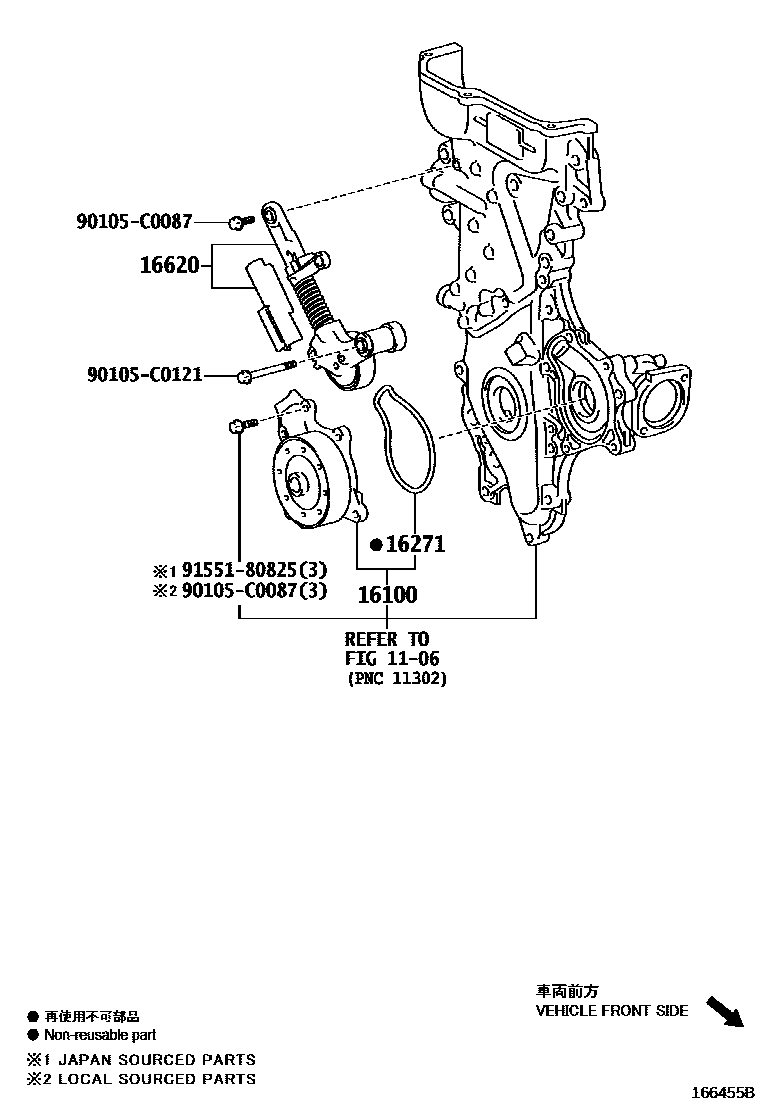

Toyota RAV4 Water Pump EPC diagram — 166455B
Water Pump — 166455B (201607 – 999999)

PNC and OE references

PNCPart nameOE numbers
16100Engine water pump assembly16100-09550 · 16100-09600 · 16100-09650 · 16100-39515
16271water pump gasket16271-36010 · 16271-37010 · 16271-37030
16620Poly V-belt tensioner assembly16620-0T030 · 16620-0V041 · 16620-0V042 · 16620-0V050 · 16620-0V051 · 16620-36013
16634Ddust cover16628-0V010
