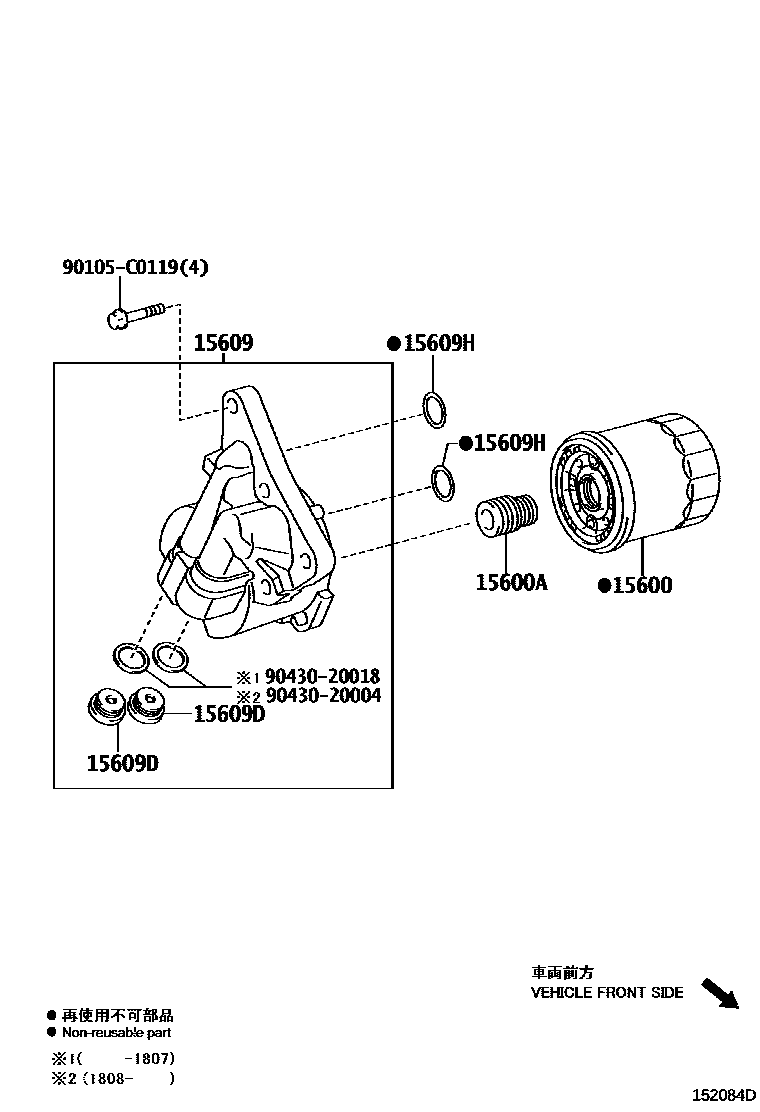

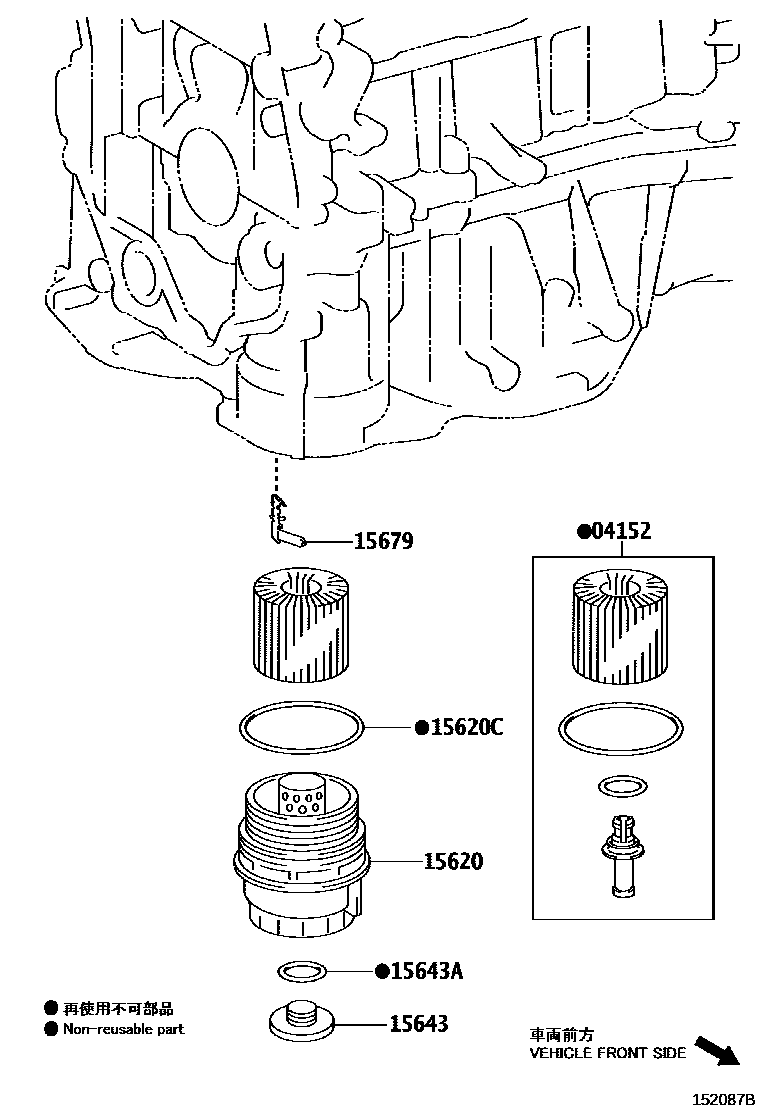

Toyota RAV4 Oil Filter — Figure 1502
Toyota RAV4 EPC diagram 1502, Oil Filter, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04152 | Oil Filter Element Kit | 04152-0V010 · 04152-31090 |
| 15600 | Oil filter assembly | 90915-CA003 |
| 15600A | Connector (for oil filter) | 90904-04006 |
| 15609 | Oil filter bracket sub-assembly | 15609-0T010 · 15609-0T090 |
| 15609D | Straight threaded plug with head (for oil filter bracket) | 90341-20012 |
| 15609H | O-ring (for oil filter bracket) | 90301-C0033 |
| 15620 | Oil filter cover assembly | 15620-36020 |
| 15620C | Gasket (for oil filter cover) | 90301-79006 |
| 15643 | Oil filter drain plug | 15643-31050 |
| 15643A | O-ring (for oil filter drain plug) | 96723-35028 |
| 15679 | Oil filter bracket clip | 15679-37010 · 15679-37011 |
