Toyota RAV4 Crankshaft & Piston — Figure 1301

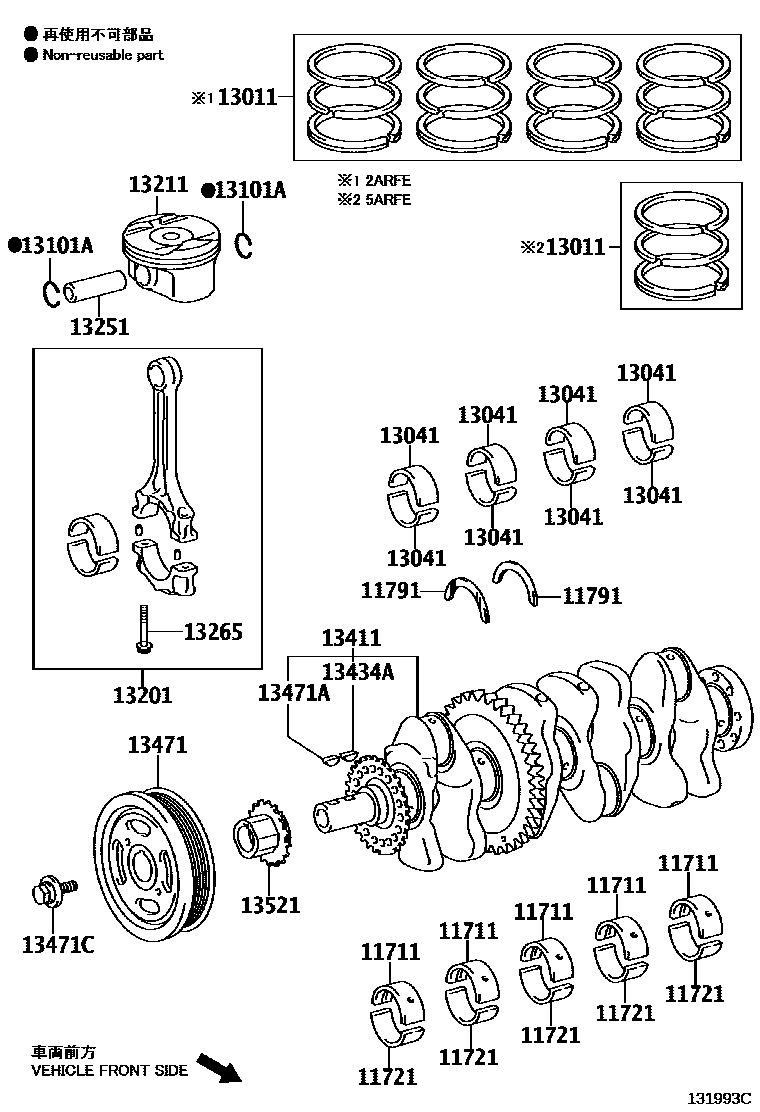

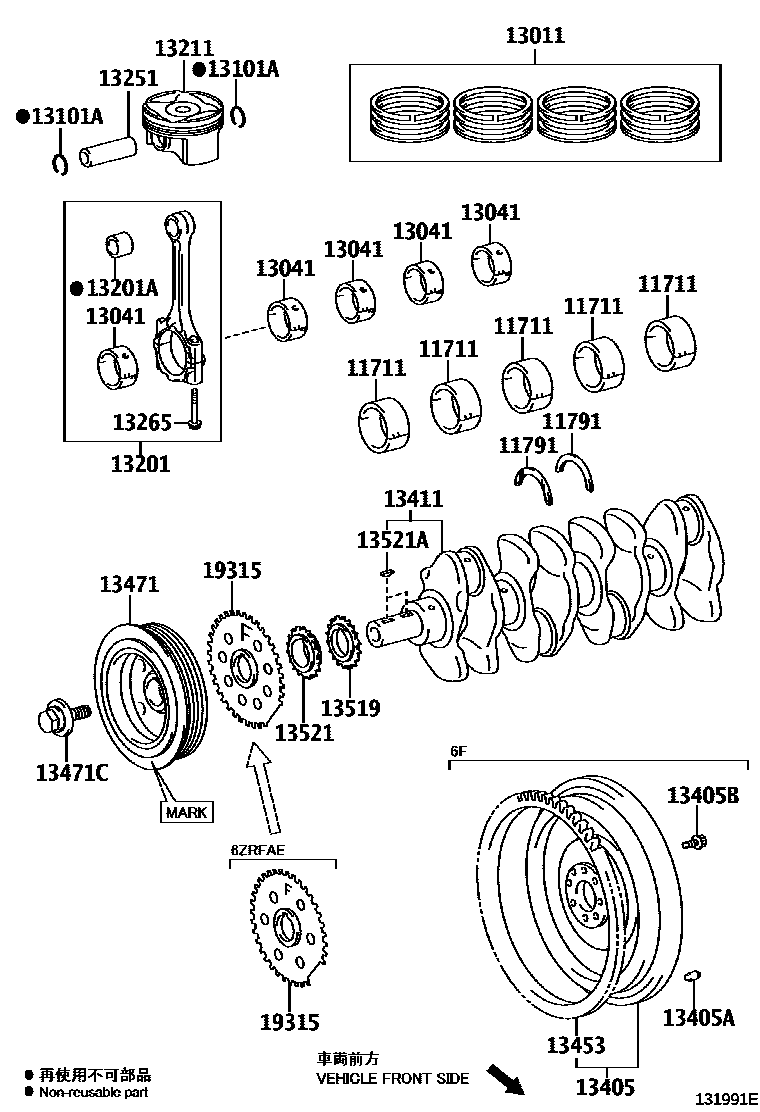

Toyota RAV4 EPC diagram 1301, Crankshaft & Piston, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11791 | Thrust washer on crankshaft | 11791-0T020 · 11791-0V020 · 11791-0V030 · 11791-36010 · 11791-36020 · 11791-37010 |
| 13011 | Piston ring assembly | 13011-0T050 · 13011-0T140 · 13011-0T160 · 13011-0V020 · 13011-0V070 · 13011-36170 |
| 13101A | Bore snap ring (for piston pin) | 90520-20064 · 90520-22025 |
| 13201 | Connecting rod sub-assembly | 13201-09D00 · 13201-39205 |
| 13201A | Bushing (for connecting rod small end) | 90999-73151 |
| 13211 | piston | 13211-0T100 · 13211-0T170 |
| 13265 | Connecting rod bolts | 13265-0T020 · 13265-0V010 · 13265-22020 · 13265-31020 |
| 13405 | Flywheel sub-assembly | 13405-0T060 |
| 13405A | Direct sales (for flywheel) | 90250-C0011 |
| 13405B | Flywheel fixing bolt | 90913-01027 |
| 13411 | crankshaft | 13401-0T080 · 13401-0V021 · 13401-0V060 · 13401-36110 · 13401-37032 |
| 13434A | Key (for oil pump active spline) | 90280-C0001 · 95161-30516 |
| 13453 | flywheel ring gear | 13453-0T060 |
| 13471 | crankshaft pulley | 13470-0T010 · 13470-0T040 · 13470-0V030 · 13470-36010 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-C0001 · 95161-30516 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-16020 · 90119-C0124 · 90119-C0429 · 90119-C0499 |
| 13519 | Oil pump driving gear | 13519-0T010 |
| 13521 | Crankshaft timing gear or sprocket | 13521-0T100 · 13521-0V020 · 13521-36010 · 13521-37020 |
| 13521A | Key (for crankshaft timing gear) | 90280-04003 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-0T010 · 19315-0T020 · 19315-37020 |
